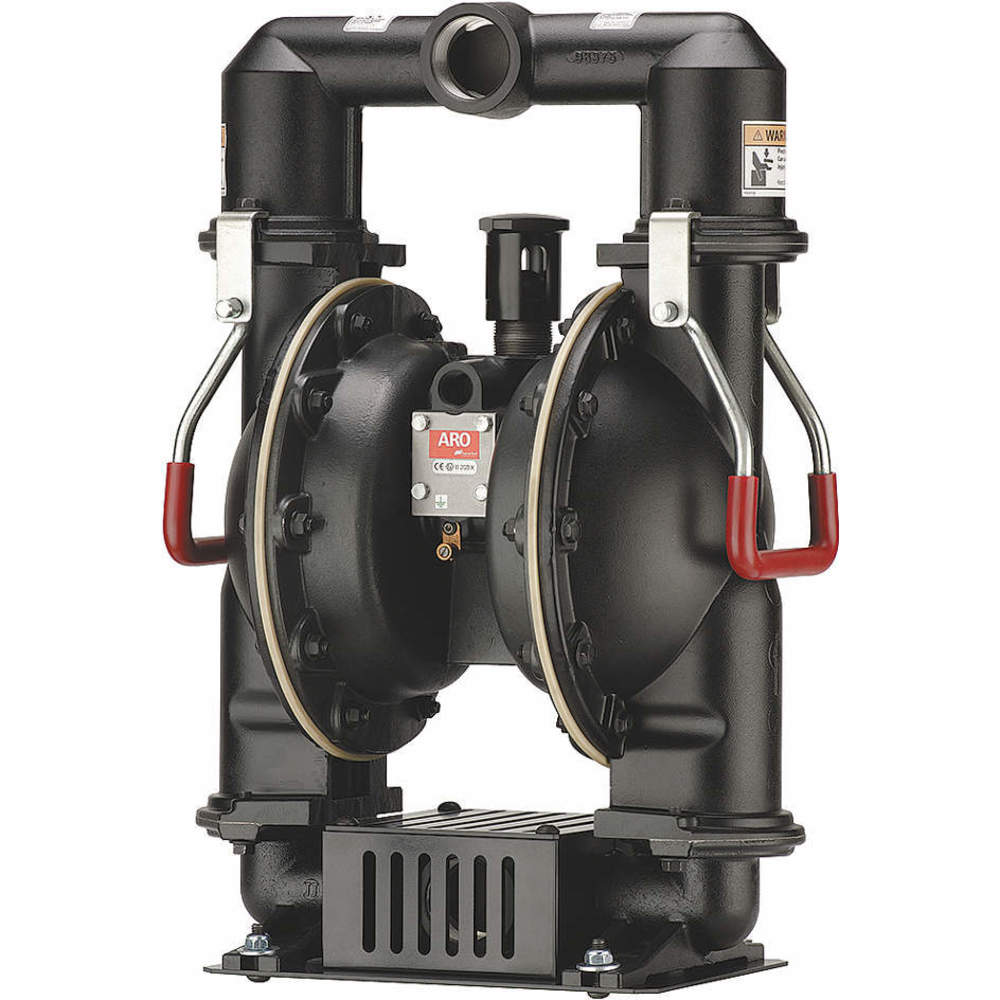

| Item | Double Diaphragm Pump |
|---|---|
| Air Consumption | 140 SCFM |
| Air Inlet | 3/4" FNPT |
| Ball Material | Nitrile |
| Center Section Material | Aluminum |
| Check Seat Material | Aluminum |
| Compatible Chemicals | Alcohol, Antifreeze, Oil-Based Paint, Oils, Water |
| Connection Size | 2" |
| Connection Type | NPTF |
| Diaphragm Material | Buna N |
| Display Qty | 1 |
| Flow Rate @ 100 Psi | 155 GPM |
| Flow Rate @ 120 Psi | 162 GPM |
| Flow Rate @ 40 Psi | 113 GPM |
| Flow Rate @ 50 Psi | 124.5 GPM |
| Flow Rate @ 60 Psi | 131.4 GPM |
| Flow Rate @ 70 Psi | 136 GPM |
| Flow Rate @ 80 Psi | 145.5 GPM |
| Flow Rate @ 90 Psi | 151.2 GPM |
| Fluid Intake Connection | 2" Fnpt |
| Fluid Outlet Connection | 2" Nptf |
| For Use With Potable Systems | No |
| Housing Material | Aluminum |
| Inlet Size | 3/4" |
| Manifold Connection | Single Port |
| Manifold Connection Type | NPT |
| Manufacturers Warranty Length | 5 yrs. |
| Max. Discharge Pressure | 120 psi |
| Max. Flow Rate | 162 GPM |
|---|---|
| Max. Head | 289 ft. |
| Max. Media Temp. | 180°F |
| Max. Operating Pressure | 120 psi |
| Max. Solid Dia. | 1/2" |
| Max. Viscosity | 50000 cPS |
| Media Discharge Location | Center |
| Media Intake Location | Bottom |
| Min. Media Temp. | 10°F |
| Mounting Hardware Material | Aluminum, Carbon Steel |
| Operation Type | Air Operated |
| Overall Height | 26.7" |
| Overall Length | 13" |
| Overall Width | 13" |
| Power Source | Air |
| Priming | Self Priming |
| Pump Assembly Type | Bolt |
| Rated Air Pressure | 120 psi |
| Self Priming | Yes |
| Self Priming Dry | 15 ft. |
| Self Priming Wet | 25 ft. |
| Series | 66M1X0 Series |
| Series Family | Specialty |
| Valve Material | Buna N |
| Valve Type | Ball |
| Warranty | 5 yrs. |
| Nameplate Voltage | N |
| Height (cm) | 67.82 |
|---|---|
| Length (cm) | 33.02 |
| Width (cm) | 33.02 |
| HS Code | 8413500050 |
|---|---|
| Country Of Origin | CN |
| Weight (kg) | 48.6 |
