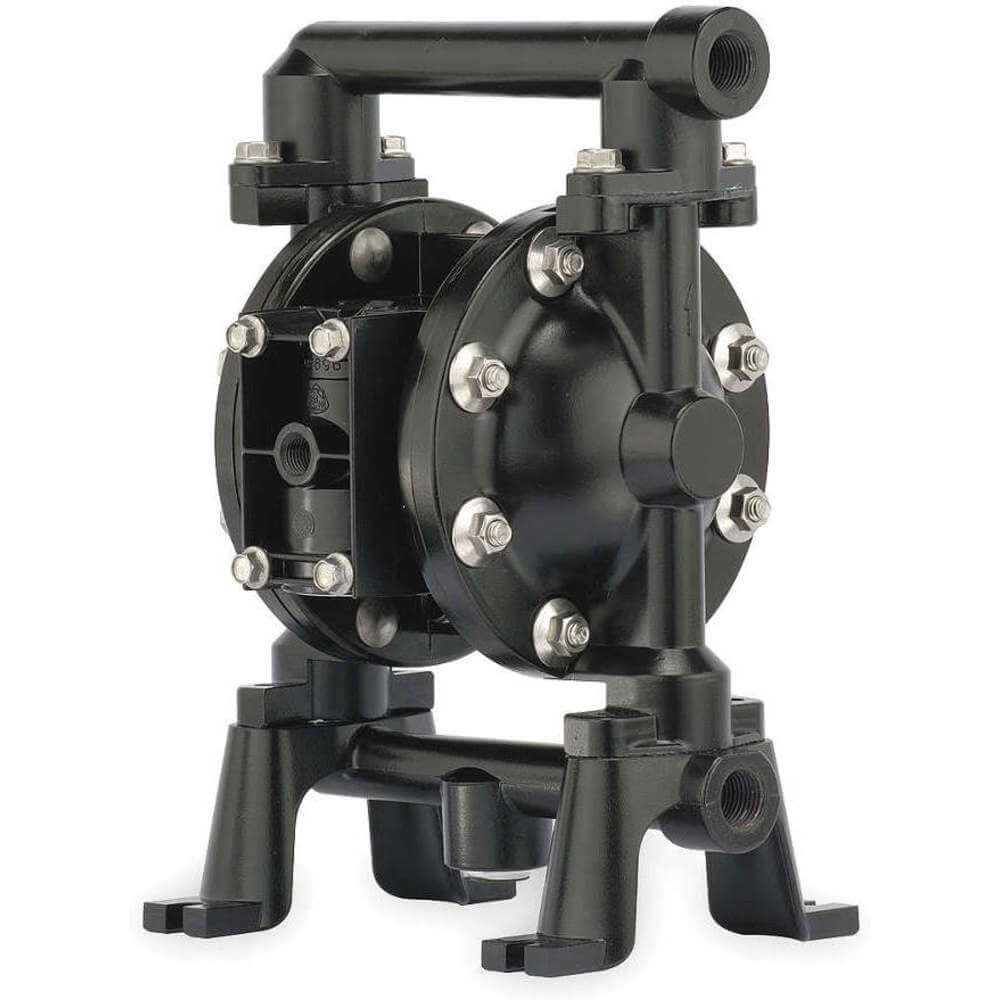

| Item | Double Diaphragm Pump |
|---|---|
| Air Consumption | 75 SCFM |
| Air Inlet Size | 1/2" |
| Air Inlet Type | NPT |
| Ball Material | Acetal |
| Center Section Material | Aluminum |
| Check Seat Material | Polypropylene |
| Compatible Chemicals | Diesel, Gasoline, Kerosene, Oils |
| Connection Size | 1 1/2" |
| Connection Type | FNPT |
| Diaphragm Material | Viton |
| Display Qty | 1 |
| Flow Rate @ 40 Psi | 70 GPM |
| Flow Rate @ 50 Psi | 75 GPM |
| Fluid Intake Connection | 1 1/2" Fnpt |
| Fluid Outlet Connection | 1 1/2" Nptf |
| For Use With Potable Systems | No |
| Housing Material | Aluminum |
| Inlet Size | 1/2" |
| Manifold Connection | Single Port |
| Manifold Connection Type | NPT |
| Manufacturers Warranty Length | 5 yrs. |
| Max. Discharge Pressure | 50 psi |
| Max. Flow Rate | 75 GPM |
| Max. Head | 55 ft. |
| Max. Media Temp. | 180°F |
|---|---|
| Max. Operating Pressure | 50 psi |
| Max. Solid Dia. | 1/4" |
| Max. Viscosity | 40000 cPS |
| Media Discharge Location | Center |
| Media Intake Location | Center |
| Min. Media Temp. | 0°F |
| Operation Type | Air Operated |
| Overall Height | 19 3/5" |
| Overall Length | 14 4/5" |
| Overall Width | 13.1" |
| Power Source | Air |
| Priming | Self Priming |
| Pump Assembly Type | Bolt |
| Rated Air Pressure | 50 psi |
| Self Priming | Yes |
| Self Priming Dry | 19 ft. |
| Series | Specialty Series |
| Series Family | Specialty |
| Standards | Ul 79 |
| Valve Material | Acetal |
| Valve Type | Ball |
| Warranty | 5 yrs. |
| Nameplate Voltage | N |
| Height (cm) | 49.78 |
|---|---|
| Length (cm) | 37.59 |
| Width (cm) | 33.27 |
| HS Code | 8413500050 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 27.495 |
