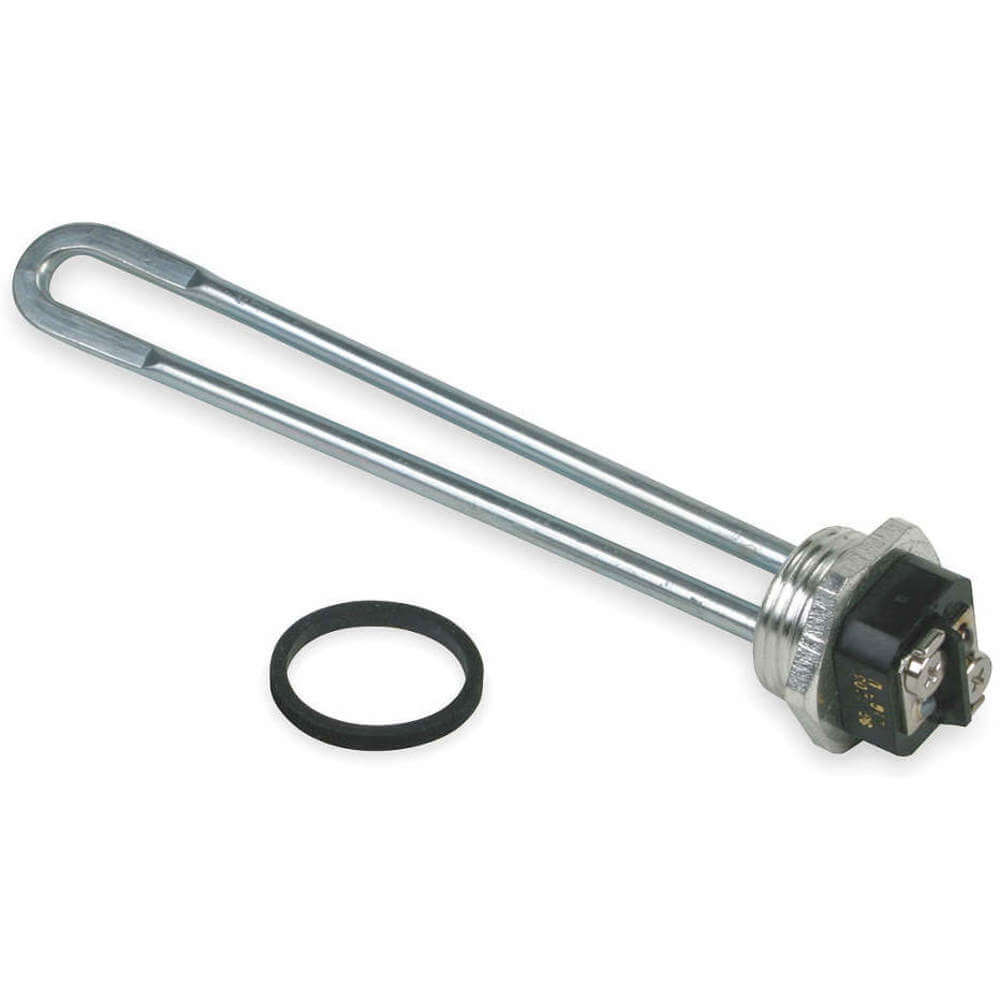

| Item | Water Heater Element |
|---|---|
| Bolt Circle Diameter | 2 1/2" |
| Element Mount Type | Flange |
| Element Type | Bolt On |
| Flange Material | Steel |
| For Potable Water Use | No |
| For Water Hardness | Moderately Hard |
| Gasket Type | Gtrf, Tg27T |
| Hz | 60 Hz |
| Includes Gasket | Yes |
| Includes Mounting Hardware | Yes |
| Insert Length | 7.69" |
|---|---|
| Number Of Mounting Holes | 4 |
| Operating Voltage | 240V AC |
| Plating | Zinc |
| Power Consumption | 1000 W |
| Sheath Material | Copper |
| Standards | Csa File Lr48791, Ul File E65554 |
| Style | Bolt On |
| Type | Low Watt Density |
| Voltage | 240V AC |
| Watt Density Class | Class LWD |
| Height (cm) | 23.11 |
|---|---|
| Length (cm) | 6.86 |
| Width (cm) | 6.6 |
| HS Code | 8516900500 |
|---|---|
| Country Of Origin | MX |
| Weight (kg) | 0.3735 |
| Style | Model | Style | Sheath Material | Type | Watts | Hz | Voltage | Insert Length (in.) | Plating | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | TG1157 430019 | Bolt On | Copper | Low Watt Density | - | 60 Hz | 240V AC | - | Zinc | $13.51 | |
| B | SG1157L 430060 | Screw In | Copper | Low Watt Density | - | 60 Hz | - | - | Zinc | $9.30 | |
| B | SG1157 430078 | Screw In | Copper | Low Watt Density | - | 60 Hz | 240V AC | - | Zinc | $9.11 | |
| B | SG1207 430086 | Screw In | Copper | Low Watt Density | 2000 W | 60 Hz | 240V AC | - | Zinc | $9.96 | |
| C | SG2307 430107 | Screw In | Copper | Low Watt Density | 3000 W | 60 Hz | 240V AC | 9" | Zinc | $11.36 | |
| C | SG2357 430115 | Screw In | Copper | Low Watt Density | 3500 W | 60 Hz | 240V AC | - | Zinc | $11.67 | |
| B | SG1153L-430270 | Screw In | Copper | High Watt Density | - | 60 Hz | - | - | Zinc | $9.01 |
