| Item | Push Nut |
|---|---|
| Application | Bolt Retention |
| Finish | Phosphate |
| Fits Bolt Sizes | 5/16" |
| For Screw Size | 5/16" |
| For Use With | Stud |
| Inside Dia. | 0.274" |
| Material | Spring Steel |
| Outside Dia. | 5/8" |
|---|---|
| Outside Dia. Tolerance | -0.01" to +0.01" |
| Overall Width | 5/8" |
| Push Nut Type | Bolt Retainer |
| Retaining Dia. | 5/16" |
| System Of Measurement | Imperial |
| Thickness | 0.013" |
| Height (cm) | 2.29 |
|---|---|
| Length (cm) | 12.7 |
| Width (cm) | 5.84 |
| HS Code | 7318160030 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 0.0495 |
| Style | Model | Fits Bolt Sizes | Inside Dia. | Outside Dia. | Thickness | Outside Dia. Tolerance | Thickness Tolerance | Pkg. Qty. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|

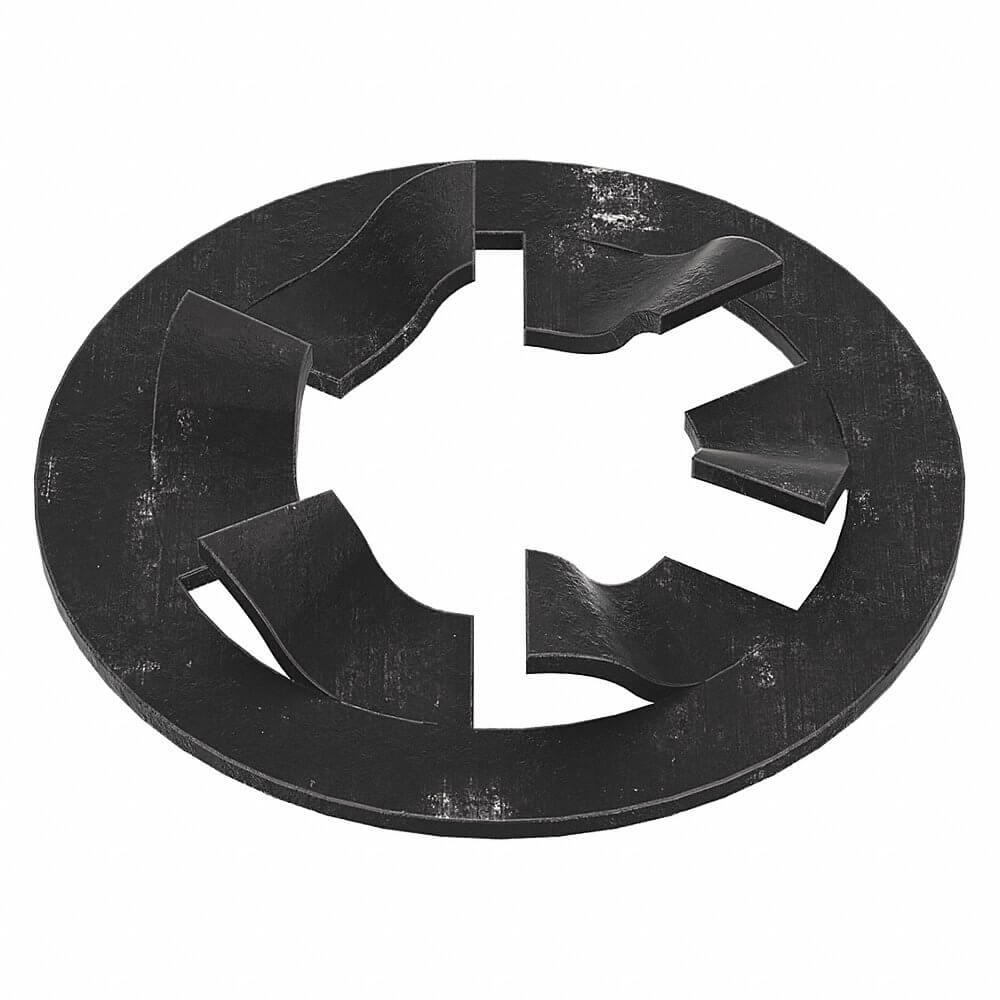

| A | 4HFU9 | #8 | 0.136" | 3/8" | 0.01" | -0.01" to +0.01" | - | 100 | $30.41 | |

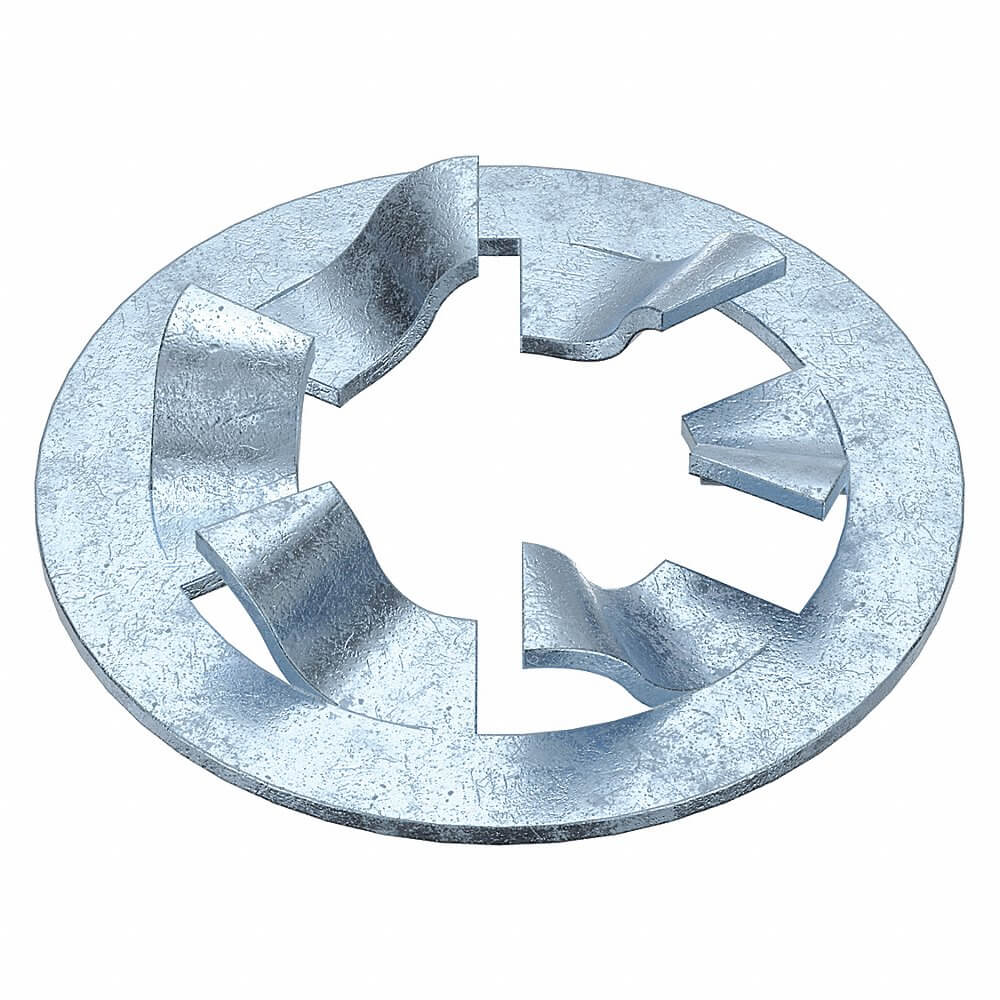

| B | 4HFV1 | #10 | 4/25" | 7/16" | 0.012" | -0.01" to +0.01" | - | 100 | $34.91 | |

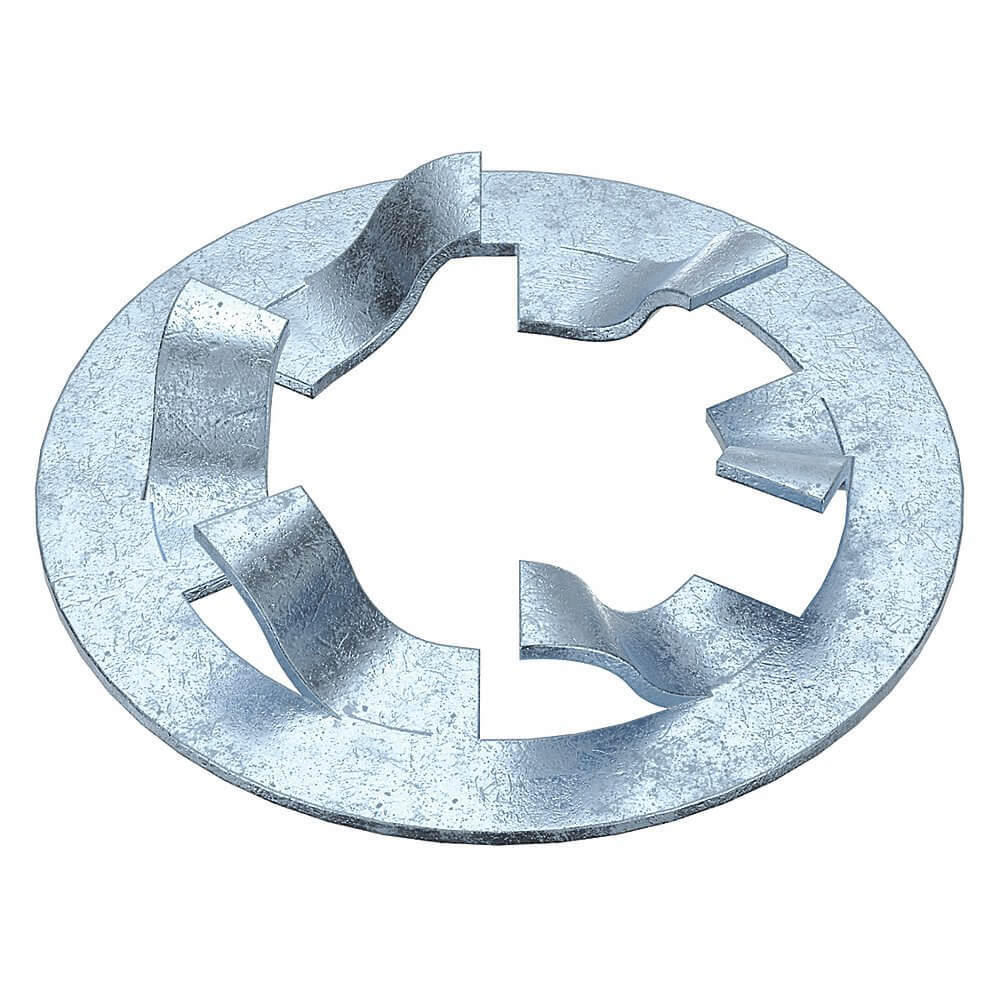

| C | 4HFV2 | 1/4" | 1/4" | 1/2" | 0.01" | -0.01" to +0.01" | - | 100 | $36.40 | |

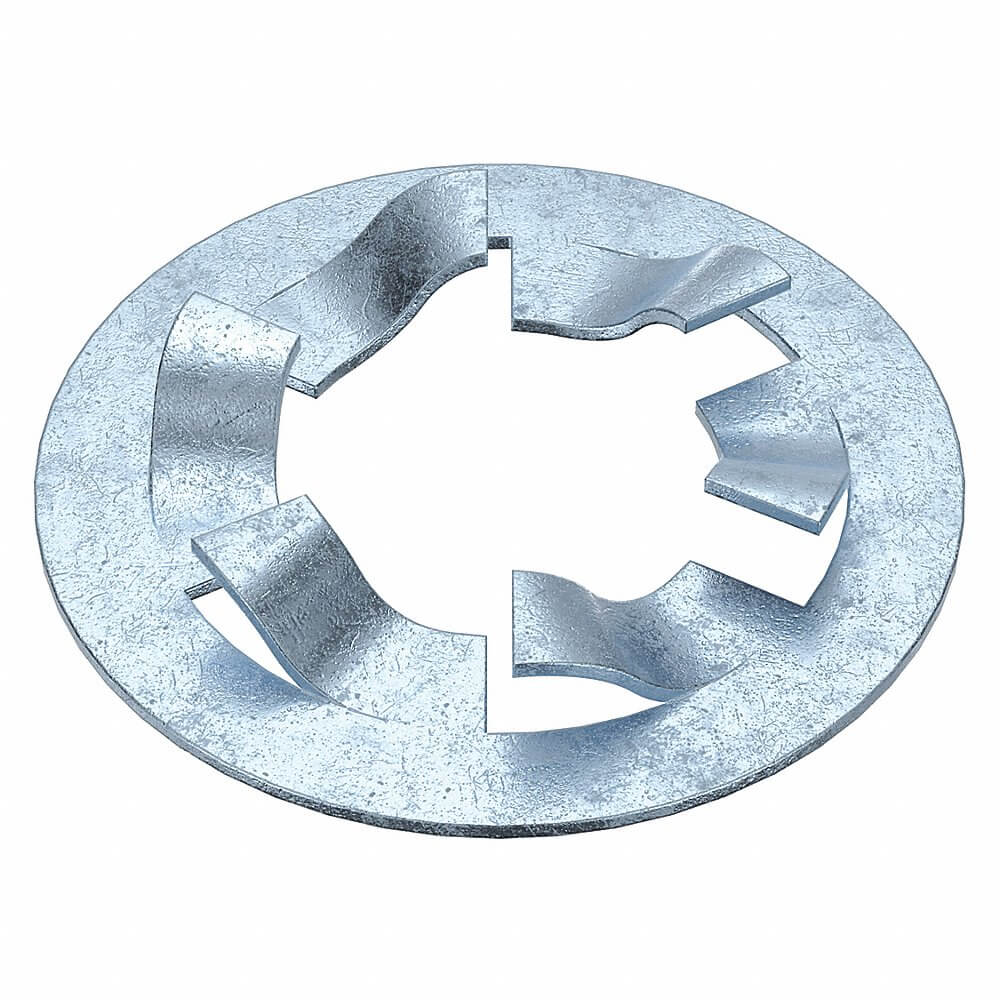

| D | 4HFV4 | 3/8" | 0.34" | 25/32" | 0.015" | -0.01" to +0.01" | - | 100 | $55.13 | |
| E | 138659004 | 7/16" | 13/32" | 27/32" | 0.015" | -0.01" to +0.01" | - | 100 | $60.74 | |
| F | 138660003 | 1/2" | 0.463" | 15/16" | 0.015" | -0.01" to +0.01" | - | 100 | $73.53 | |
| G | 138615002 | 3/32" | 0.161" | 0.195" | 0.01" | -0.005" to +0.005" | -0.003" to +0.003" | 200 | $21.44 |
