ALLPAX GASKET CUTTER SYSTEMS AX4000 Gasket Cutter Kit, Medium Duty, No Cut Board, 1 to 13 Inch Cut Range, 3/4 Inch Max. Thickness

Item: AG8XTG

Model: AX4000

Check Availability

Limited Availbility.

Get it by Friday, Feb 6

Cutting Board

Maximum Cutting Diameter

We deliver to your doorstep under DAP terms. Customs clearance is for your account

Request Quote

Business customers can apply for Net 30
No fees, No interest, Fast approval.

Payment

Delivery

Specifications

Extended Bar Material	Steel
Gasket Cutter Type	Extension Style Kit
Includes	(1) AX3550-Pivot Post Assembly, (1) AX1622-Piercing Tool, (1) AX3500 Standard Duty Cutting Blades, (1) AX3501-Heavy-Duty Cutting Blades, (1) AX3510-1 3/16” Short Center Pins, (1) AX3511-1 7/16” Medium Center Pins, (1) AX3512-1 11/16" Long Center Pins
Max. Work Thickness	3/4"
Maximum Cutting Diameter	13"
Number Of Pieces	7
Outside Dia.	0" to 13"
System Of Measurement	Imperial
Type	Medium Duty

Allpax AX4000 medium duty gasket cutter is designed for cutting gaskets of rubber, cork and compressed fiber.

Country Of Origin	US
Weight (kg)	1.0268

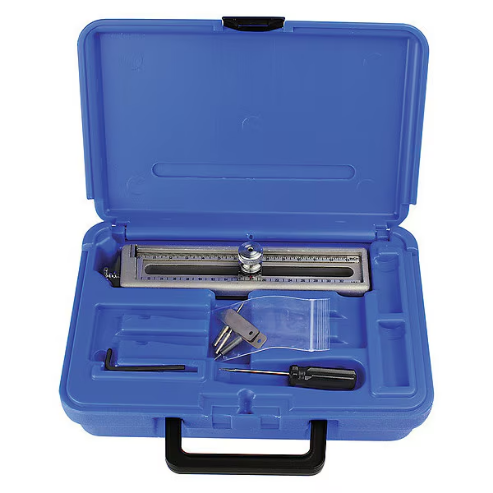

This Allpax AX4000 medium duty gasket cutter features a chrome plated steel extension bar for resisting corrosion on exposed surfaces.
It comes with a plastic storage case for ease of storage & portability and preventing them from contaminants.
This gasket cutter features a dual Metric / Imperial cutting indicator, ensuring precision cuts.
It can cut gaskets of diameters ranging from 1 to 13 inches.

Allpax gasket cutters have a cutter block with modular extension bars and an adaptable cutting blade. First, create a small hole in the centre of the gasket material to be cut.
Now lay out the gasket material flat on the cutting board, put the central pin through the hole and insert it into a ferrule in the board.
Set the blade to the desired depth of cut. Now loosen the knurled nut so that the blade can be adjusted to the desired outside diameter (OD).
Add / remove extensions if required and position the extension tail onto the pin. While holding the pin with one hand, grip the block with the other hand and apply downward pressure by sweeping a circular pattern around the circumference of the gasket material.
Now, remove excess material and adjust the cutter to the desired inner diameter (ID) and make another circular cut around that circumference.
Finally, remove the finished flange gasket.
