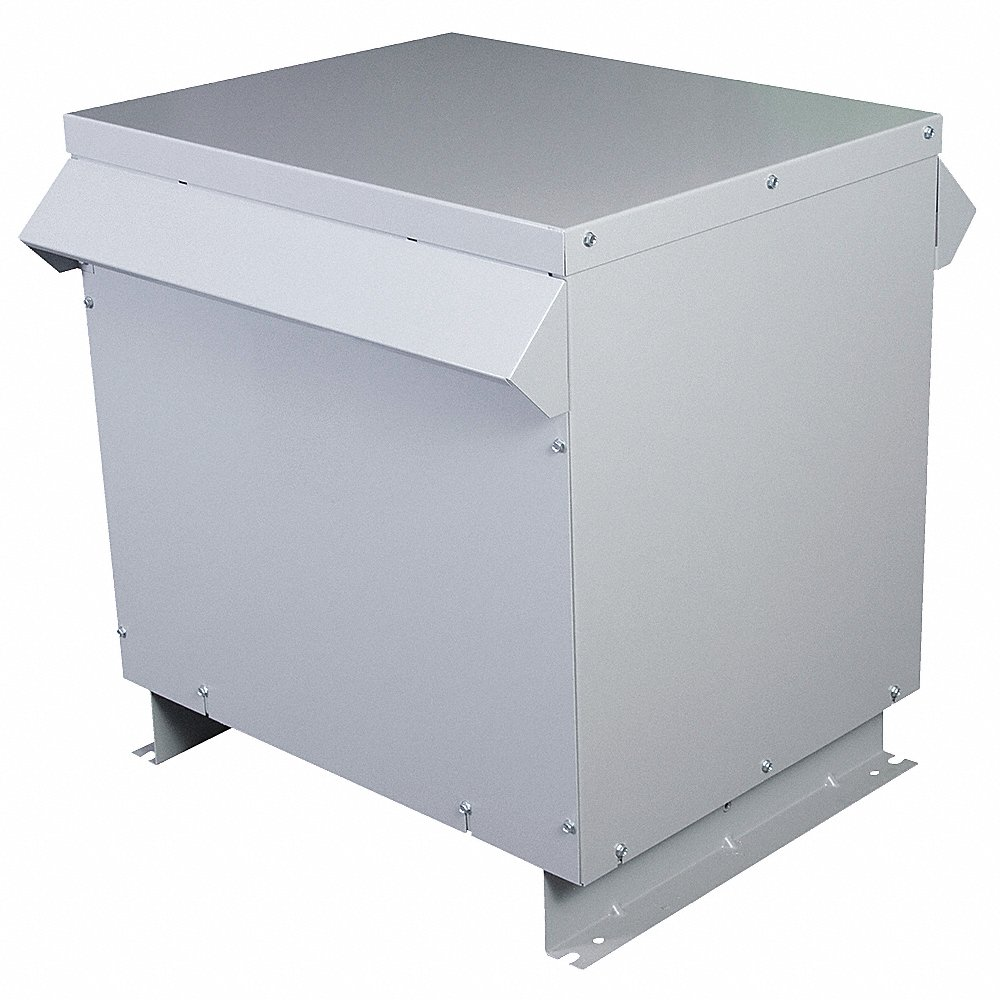

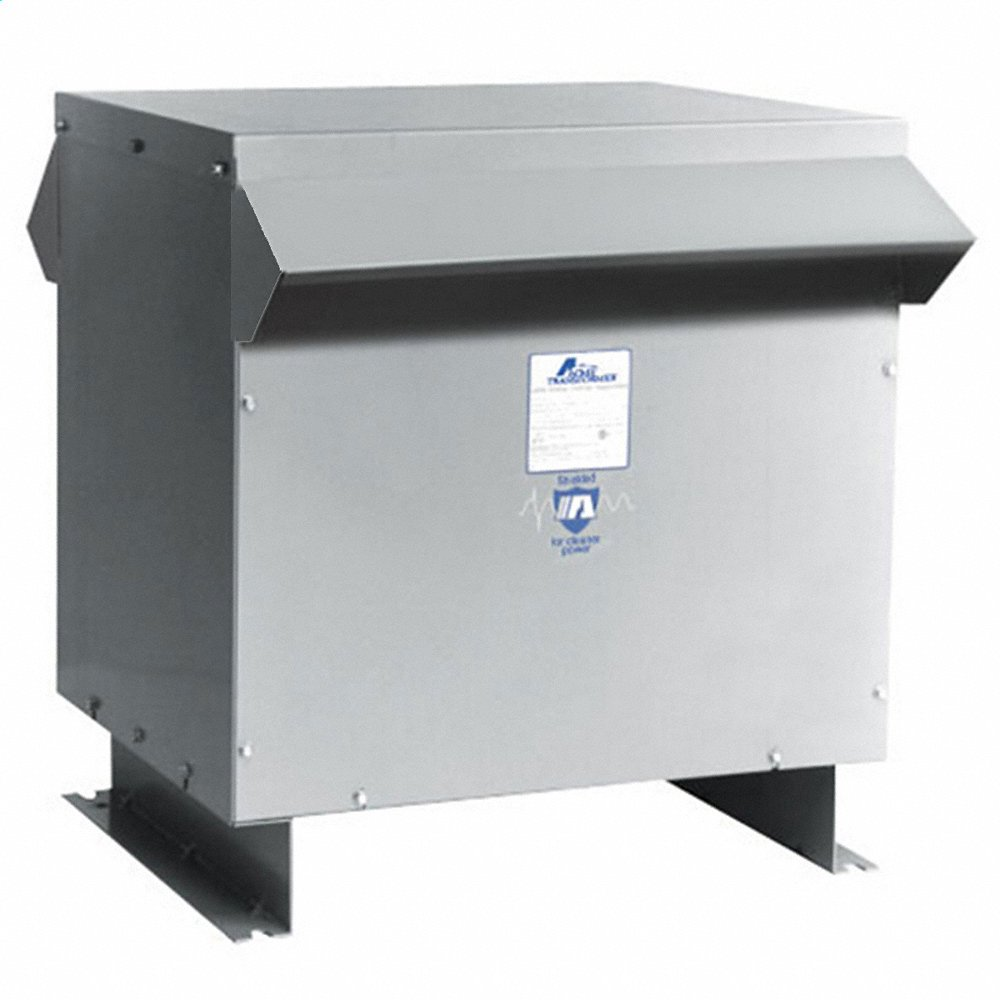

| Item | Transformer |
|---|---|
| Anfc Taps | 2 |
| Bnfc Taps | 4 |
| Carton Quantity | 1 |
| Color | ASA 61 Gray |
| Construction | Ventilated |
| Depth | 19.37" |
| Dimensions | 19.37" x 24.39" x 25.5" |
| Efficiency | 98.4% |
| Enclosure Finish | Powder Polyurethane Paint |
| Enclosure Material | Steel |
| Frequency | 60 Hz |
| Height | 25.5" |
| Includes | Weathershield |
| Includes Knockouts | No Knockouts |
| Input Voltage | 480V AC |
| Ip Rating | IP14 |
| Knockout Size - Transformer | No Knockout |
| Kva Rating | 45 kVA |
| Length | 19.37" |
| Material | Ventilated |
| Max Temperature Rise | 150°C |
| Max. Temp. | 150°C |
| Mounting Location | Floor |
| Mounting Type | Floor |
| Nema Enclosure Rating | NEMA 3R |
|---|---|
| Nema Rating | Nema 3R |
| Outdoor Rated - Transformer | Yes |
| Output Voltage | 120/240V AC |
| Overall Depth | 19.37" |
| Overall Height | 25 1/2" |
| Overall Width | 24.39" |
| Pallet Quantity | 1 |
| Phase | Three |
| Power Rating | 45 kVA |
| Primary Voltage | 480V |
| Secondary Voltage | 240 120V , 240/120V , 240V |
| Sound Level | 45 dBA |
| Taps % Steps | 2.5% |
| Temperature Rise | 150°C |
| Ul Insulation Class | 220°C |
| Ul Standard | UL 1561 |
| Va Rating - Transformer | 45 kVA |
| Voltage Function | Step Down |
| Voltage Function - Transformer | Step Down |
| Width | 24.39" |
| Winding Material | Aluminum |
| Winding Material - Transformer | Aluminum |
| standard | CSA C22.2 NO. 47, MEETS OR EXCEED U.S. DOE 10 CFR PART 431, UL 1561 |
| Height (cm) | 64.77 |
|---|---|
| Length (cm) | 49.2 |
| Width (cm) | 61.95 |
| Country Of Origin | MX |
|---|---|
| Weight (kg) | 180 |
