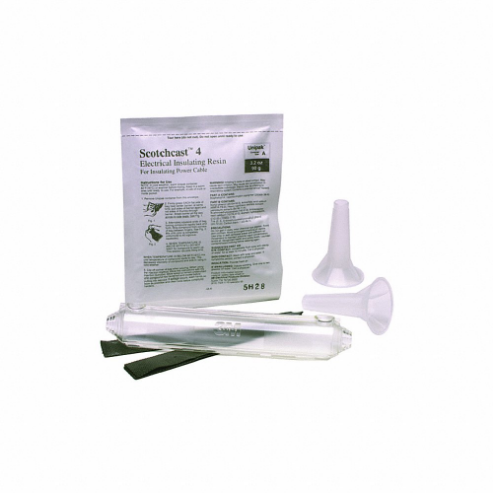

| Item | Resin Splice Kit |
|---|---|
| Barrel Length | Not Applicable |
| Body Material | Polypropylene |
| Color | Black |
| Compatible With Product Type | Signal And Control Cables |
| Container Type | Closed Mixing Pouch |
| For Max. Cable Od | 1 1/2" |
| For Wire Type | Signal And Control Cables |
| Includes | (2) Pour Spouts, 2-Part Trans Mold Body, Bonding Jumper Wire With Clips, Instruction Sheet, Nonconductive Abrasive Cloth, Resin Compound, Rubber-Splicing Tape 23 |
| Includes Resin | Yes |
| Insulation Material | EPDM Rubber |
| Material | Resin With Plastic EPDM Rubber Mold |
| Max. Cable Dia. | 5/8" |
| Max. Temp. | 194°F |
| Max. Voltage | 1000V |
| Max. Wire Size | 10 AWG |
| Min. Wire Size | 22 AWG |
|---|---|
| Number Of Pieces | 7 |
| Number Of Splices | 1 |
| Overall Length | 15 2/5" |
| Resin Material | Resin |
| Resistance Properties | Moisture Resistant |
| Rohs Compliant | Yes |
| Screw Finish | Not Applicable |
| Screw Material | Not Applicable |
| Seam Style | Butted |
| Standard Length | 15 7/16" |
| Stud Size | Not Applicable |
| Temp. Range | +194°F to +266°F |
| Tensile Strength | 600 psi |
| Termination Style | Splice |
| Voltage Rating | 1000V |
| Height (cm) | 13.46 |
|---|---|
| Length (cm) | 39.12 |
| Width (cm) | 35.05 |
| HS Code | 3909505000 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 1.8675 |
| Style | Model | Overall Length | Standard Length | Max. Cable Dia. | Termination Style | Max. Wire Size | Min. Wire Size | Max. Voltage | Color | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 72-N1 | 7.1" | 7 1/8" | 1/4" | Splice | 10 AWG | 22 AWG | 1000V | Black | $163.71 | |
| A | 72-N2 | 10 3/5" | 10 7/16" | 1/2" | Splice | 10 AWG | 22 AWG | 1000V | Black | $173.53 | |
| B | 72-N4 | 15 3/5" | 15 5/8" | 1" | Splice | 10 AWG | 22 AWG | 1000V | Black | $572.97 | |
| A | 72-N5 | 20.3" | 20 5/16" | 1 1/4" | Splice | 10 AWG | 22 AWG | 1000V | Black | $794.61 | |
| B | 72-N6 | 25" | 25" | 1 1/4" | Splice | 10 AWG | 22 AWG | 1000V | Black | $1,658.60 |
