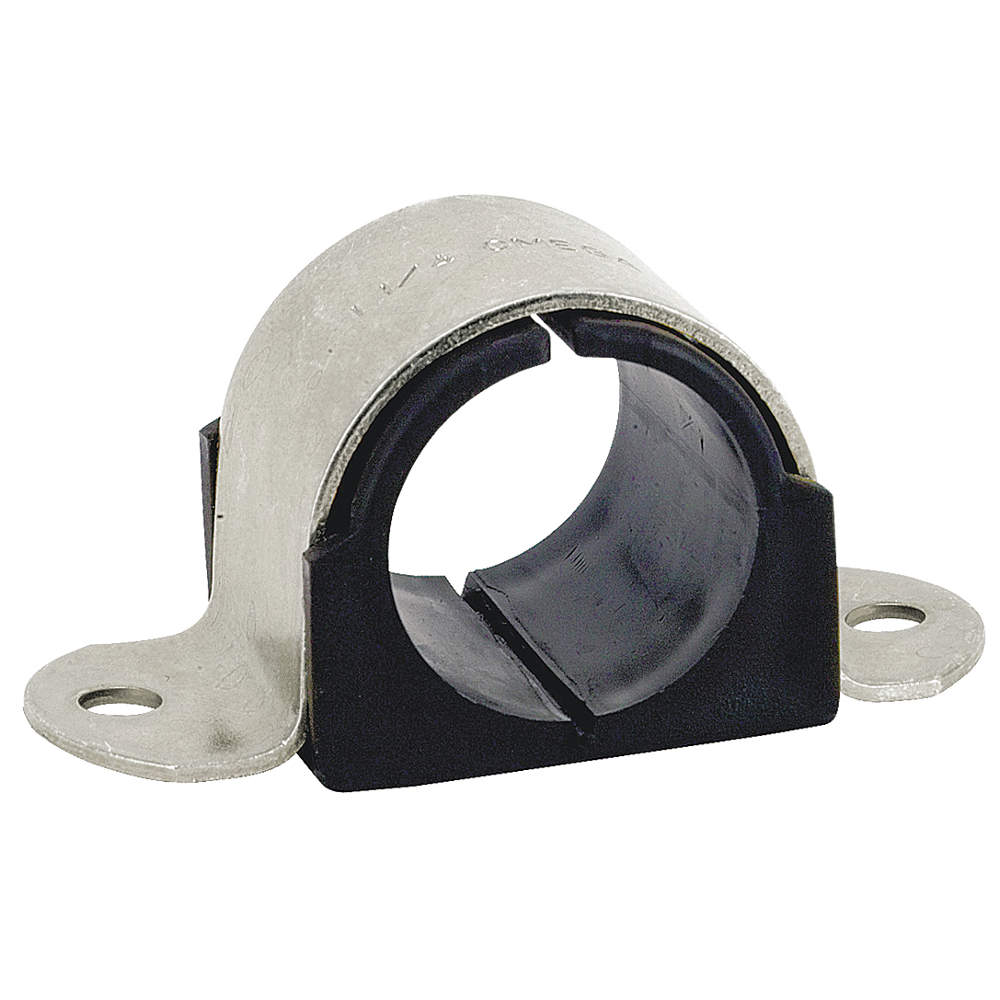

| Item | 2 Hole Cushioned Clamp |
|---|---|
| Bolt Material | Stainless Steel |
| Bolt Material Grade | Grade 304 |
| Bolt Size | 1/4" |
| Clamp Material | Stainless Steel |
| Clamp Type | Vibration Dampening Two Hole |
| Cushion Material | TPE |
| Features | Interlock Edge |
| For Copper Tube Size | 1 1/2" |
| For Maximum Outside Diameter | 1 5/8" |
| For Rigid Conduit Size | 1 5/8" |
| For Use On | Tube |
| Height | 1.984" |
| Includes | Cushion |
| Includes Mounting Hardware | Yes |
| Length | 3 23/64" |
| Load Capacity | 200 lbs. |
| Material Grade | Grade 304 |
|---|---|
| Max. Load | 200 lbs. |
| Maximum Operating Temperature | 275°F |
| Metal Detectable | Yes |
| Minimum Operating Temperature | -50°F |
| Mounting Hole Diameter | 0.26" |
| Mounting Location | Surface Mount |
| Number Of Mounting Holes | 2 |
| Overall Height | 1 63/64" |
| Overall Length | 3 23/64" |
| Overall Width | 1 9/16" |
| Resistance Properties | Chemical Resistant, Oil Resistant |
| Series | OMEGA Series |
| Tube Size | 1 5/8" |
| Type | Surface Mounted |
| Width | 1.562" |
| Height (cm) | 5.08 |
|---|---|
| Length (cm) | 20.32 |
| Width (cm) | 17.78 |
| HS Code | 7326908588 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 0.09 |
| Style | Model | Max. Load | Metal Detectable | Load Capacity | Overall Width | Overall Length | Clamp Material | For Maximum Outside Diameter | For Copper Tube Size | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | T016M019 | 50 lbs. | No | 50 lbs. | 63/64" | 2 11/16" | Steel | 1" | 1" | $6.99 | |
| B | T016MS019 | 50 lbs. | Yes | 50 lbs. | 63/64" | 2 11/16" | Stainless Steel | 1" | 1" | $16.54 | |
| A | T004M007 | 50 lbs. | No | 50 lbs. | 25/32" | 1 53/64" | Steel | 1/4" | 1/4" | $5.16 | |
| B | T004MS007 | 50 lbs. | Yes | 50 lbs. | 25/32" | 1 53/64" | Stainless Steel | 1/4" | 1/4" | $11.37 | |
| A | T024M028 | 200 lbs. | No | 200 lbs. | 1 9/16" | 3 15/64" | Steel | 1 1/2" | 1 1/2" | $9.67 | |
| B | T024MS028 | 200 lbs. | Yes | 200 lbs. | 1 9/16" | 3 15/64" | Stainless Steel | 1 1/2" | 1 1/2" | $19.90 | |
| A | T020M024 | 50 lbs. | No | 50 lbs. | 1 9/16" | 3 1/64" | Steel | 1 1/4" | 1 1/4" | $9.11 |
