| Item | Hand Winch Lift Truck |
|---|---|
| Base | Fixed |
| Base Inside Width | 13" |
| Base Legs Inside Dia. | 13" |
| Base Legs Outside Dia. | 21 1/2" |
| Base Material | Steel And Aluminum |
| Base Outside Width | 21 1/2" |
| Base Type | Fixed |
| Capacity | 500 lbs. |
| Caster Brake Type | Face Contact Brake |
| Caster Wheel Bearings | Roller |
| Caster Wheel Type | Swivel |
| Caster/wheel Configuration | (2) Swivel Casters |
| Features | Fixed Base Used In Narrow Work Spaces, Winch Crank Handle Locks To Secure Carriage |
| Fork Length | 22 1/2" |
| Fork Type | Invertible |
| Fork Width | 4" |
| Lift Control | Hand Winch |
| Lift Mechanism | Cable |
| Lifting Height Max. | 70" |
|---|---|
| Load Capacity | 500 lbs. |
| Load Center | 11.25" |
| Lowered Height Range | 3.5" to 27.5" |
| Material | Aluminum, Steel |
| Max. Lift Range | 47" to 70" |
| Max. Lifting Height | 70 |
| Min. Lifting Height | 3 1/2" |
| Operation | Manual |
| Overall Depth | 35" |
| Overall Height | 68" |
| Overall Height With Forks Lowered | 68" |
| Overall Height With Forks Raised | 70" |
| Overall Length | 35" |
| Overall Width | 24" |
| Powered By | Hand Winch |
| Width Across Forks | 4" |
| Width Between Forks | 0" to 12.875" |
| Height (cm) | 172.72 |
|---|---|
| Length (cm) | 88.9 |
| Width (cm) | 60.96 |
| Country Of Origin | CN |
|---|---|
| Weight (kg) | 64.35 |
| Style | Model | Load Capacity | Lifting Height Max. | Overall Length | Overall Width | Min. Lifting Height | Base | Overall Depth | Capacity | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

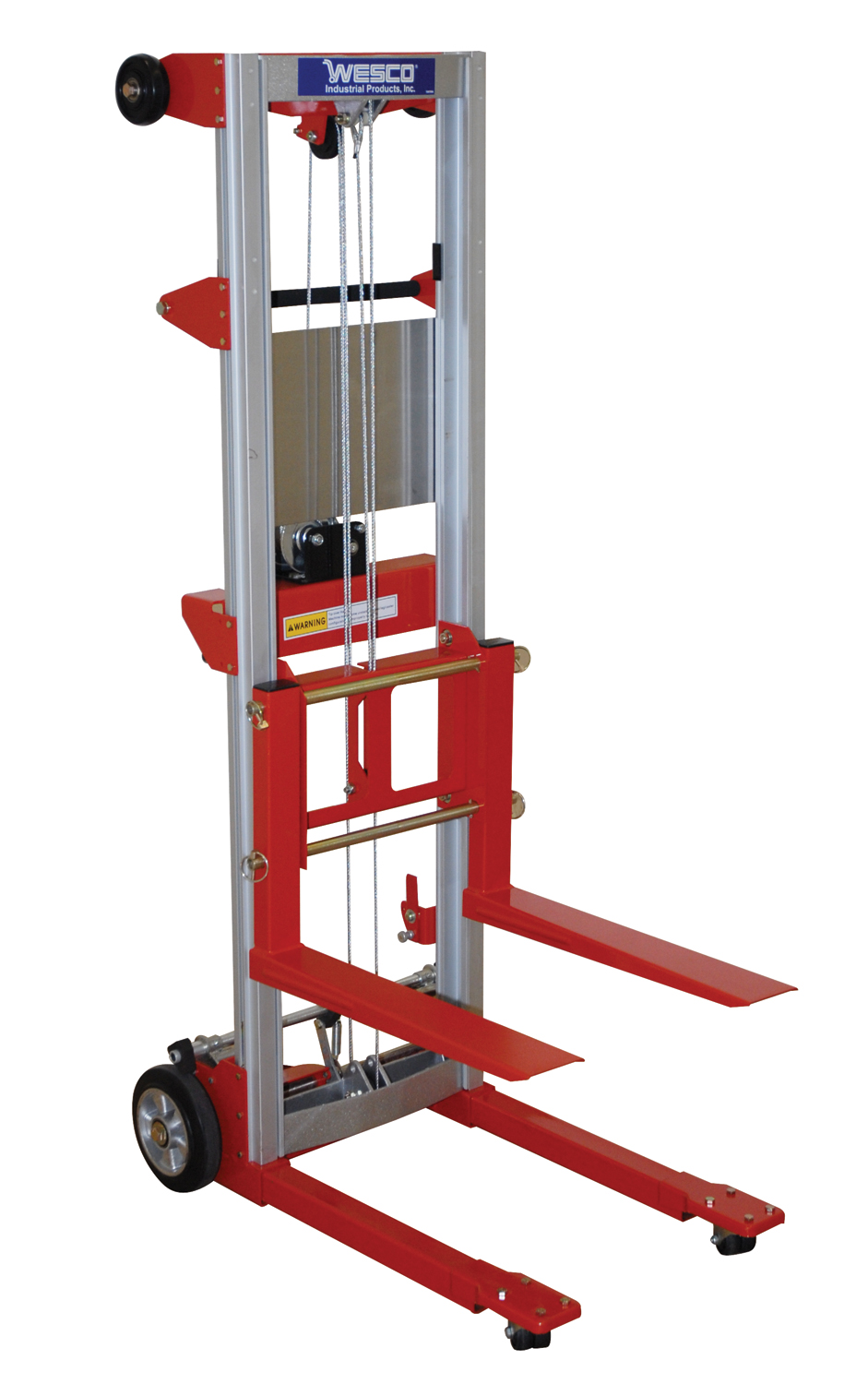

| A | 273510 | 400 lbs. | 120" | 35" | 24" | 3 1/2" | Fixed | 35" | 400 lbs. | $2,519.25 | |

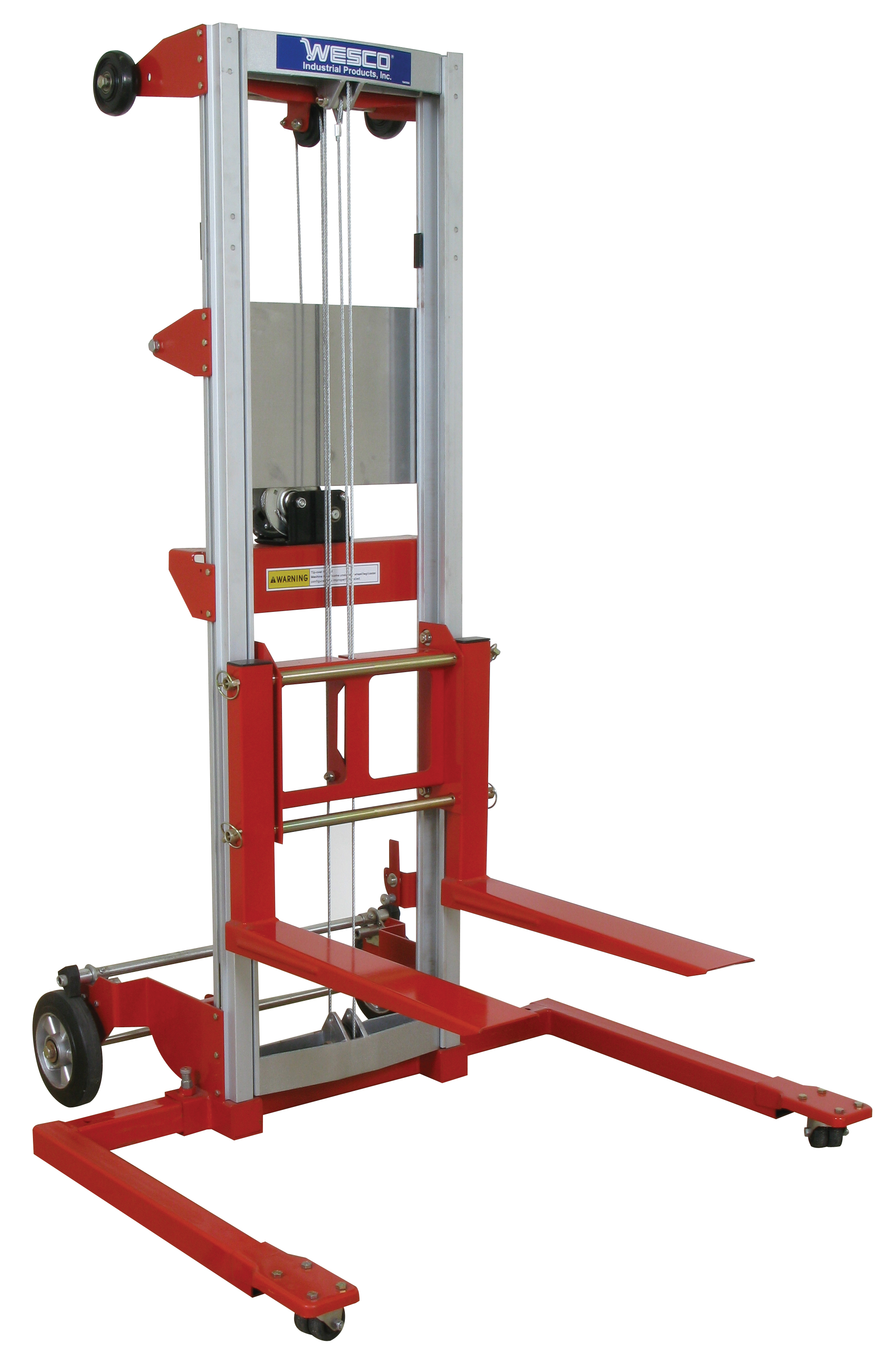

| B | 273512 | 350 lbs. | 142" | 43" | 29" | 2" | Adjustable Straddle | 43" | 350 lbs. | $3,146.21 | |
| B | 273513 | 400 lbs. | 120 1/2" | 43" | 29" | 2" | Adjustable Straddle | 43" | 400 lbs. | $2,742.89 | |
| B | 273514 | 500 lbs. | 70" | 43" | 29" | 2" | Adjustable Straddle | 43" | 500 lbs. | $2,536.59 | |

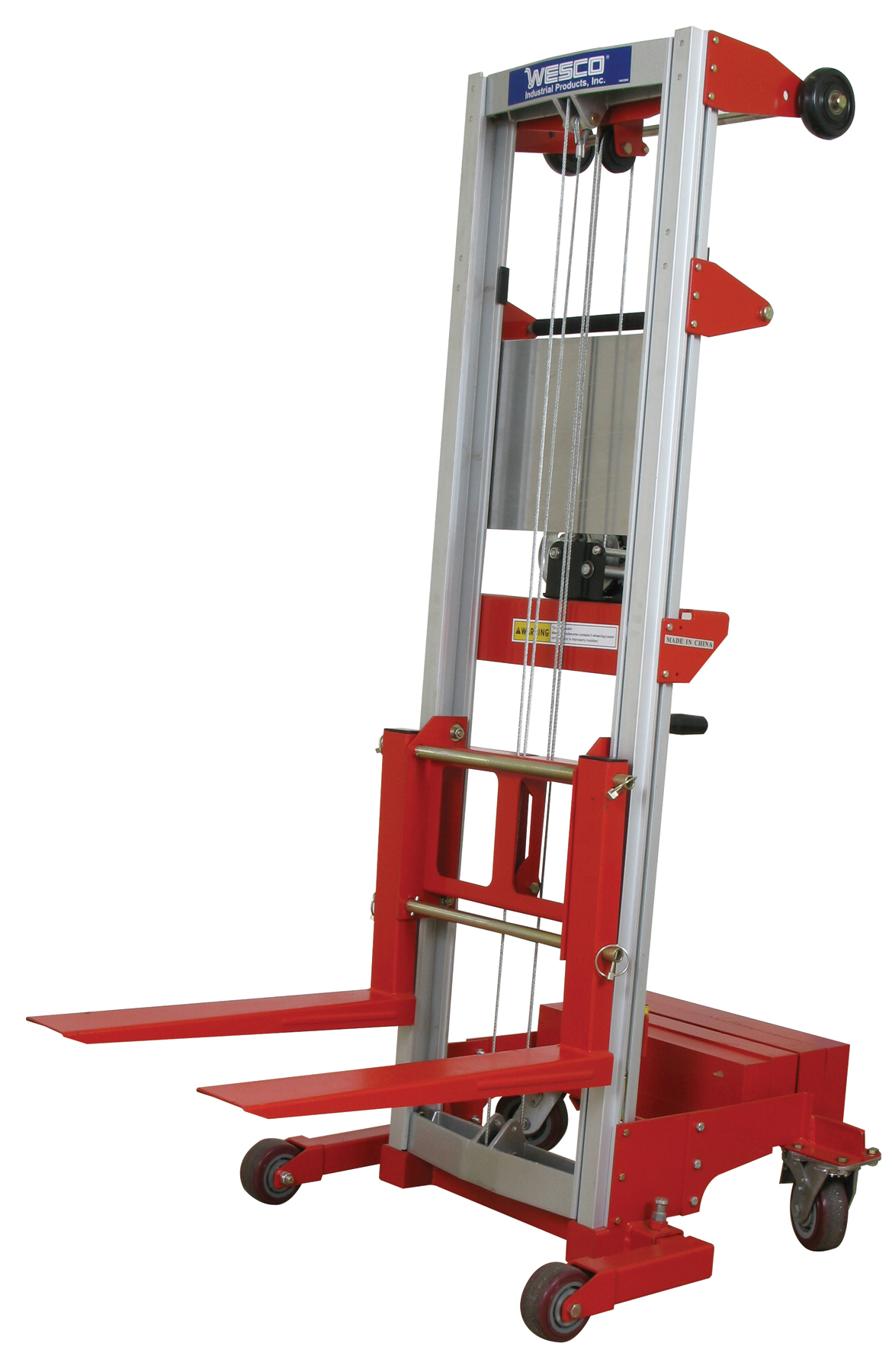

| C | 273515 | 350 lbs. | 140" | 47" | 29" | 2" | Counterbalance Straddle | 47" | 350 lbs. | $3,230.41 | |
| C | 273516 | 400 lbs. | 120" | 47" | 29" | 2" | Counterbalance Straddle | 47" | 400 lbs. | $2,258.17 | |
| C | 273517 | 500 lbs. | 70" | 47" | 29" | 2" | Counterbalance Straddle | 47" | 500 lbs. | $2,633.74 |
