| Item | Pressure Reducing Control Valve |
|---|---|
| Application | Commercial Use, Industrial Use |
| Body Material | Ductile Iron |
| Body Style | Globe |
| Bonnet Material | Ductile Iron |
| Coating/lining | Bonded Epoxy |
| Connection Type | Flanged |
| Cover Material | Ductile Iron |
| Disc Material | Buna N |
| Elastomer Material | Buna N |
| Factory Set Pressure | 50 psi |
| Flow Rate | 1850/2300 GPM |
| For Media | Water |
| Grade | Grade 302, Grade 316 |
| Inlet Connection Size | 6" |
| Max. Continous Flow Rate | 1850 GPM |
| Max. Fluid Temp. | 160°F |
| Max. Fluid Temperature | 212°F |
| Max. Intermittent Flow Rate | 2300 GPM |
|---|---|
| Operating Pressure | 250 psi |
| Operating Pressure Range | 250 psi |
| Outlet Connection Size | 6" |
| Overall Width | 20" |
| Pilot Adjustment Range | 30 psi to 300 psi |
| Pipe Size | 6" |
| Port Design | Full Port |
| Port Size | 1/2" x 1/2" x 1/2" |
| Pressure Adjustment Range | 30 psi to 300 psi |
| Seat Material | Buna-N |
| Stem Grade | Grade 304 |
| Stem Material | 304 Stainless Steel |
| Trim Material | Stainless Steel |
| Trim Material Grade | Garde 316 |
| Valve Type | Pressure Reducing |
| standard | ASTM A536, NSF |
| Height (cm) | 96.52 |
|---|---|
| Length (cm) | 96.52 |
| Width (cm) | 63.5 |
| HS Code | 8481809015 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 135 |
| Style | Model | Valve Type | Connection Type | Max. Continous Flow Rate | Max. Intermittent Flow Rate | Operating Pressure | Pilot Adjustment Range | Pipe Size | Port Size | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

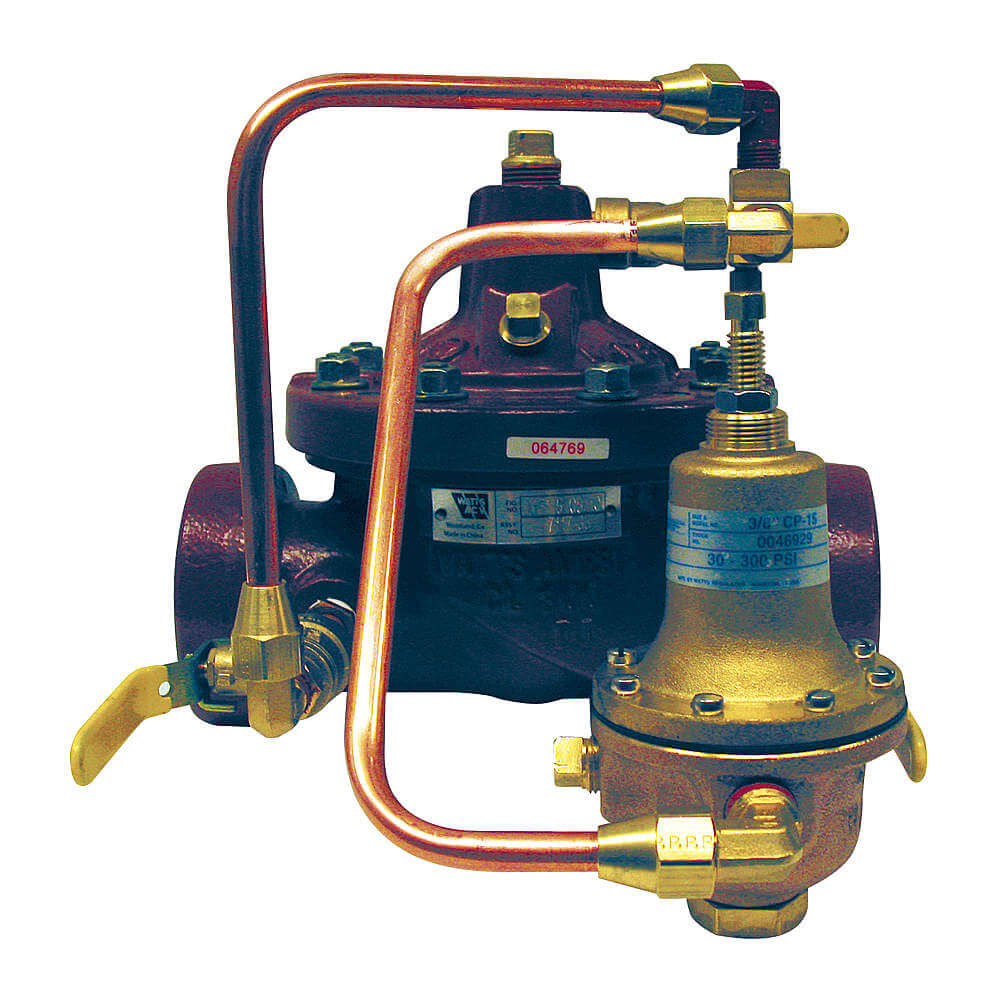

| A | M115-2 TH | Pressure Reducing | Threaded | 210 GPM | 265 GPM | 400 psi | 30 psi to 300 psi | 2" | 1/2" x 1/2" x 1/4" | $3,690.52 | |
| B | M115-2 FL | Full Port | Flanged | 210 GPM | 265 GPM | 250 psi | 30 psi to 300 psi | 2" | 1/2" x 1/2" x 1/4" | $3,859.70 | |
| A | M115-2 1/2 TH | Pressure Reducing | Threaded | 300 GPM | 390 GPM | 400 psi | 30 psi to 300 psi | 2 1/2" | 1/2" x 1/2" x 1/8" | $4,012.94 | |
| B | M115-3 FL | Pressure Reducing | Flanged | 485 GPM | 590 GPM | 250 psi | 30 psi to 300 psi | 3" | 1/2" x 1/2" x 3/8" | $3,877.46 | |
| B | M115-4 FL | Pressure Reducing | Flanged | 800 GPM | 1000 GPM | 250 psi | 30 psi to 300 psi | 4" | 1/2" x 1/2" x 3/8" | $7,021.14 | |
| B | M115-8 FL | Pressure Reducing | Flanged | 3100 GPM | 4000 GPM | 250 psi | 30 psi to 300 psi | 8" | 1/2" x 1" x 1/2" | $14,166.26 | |

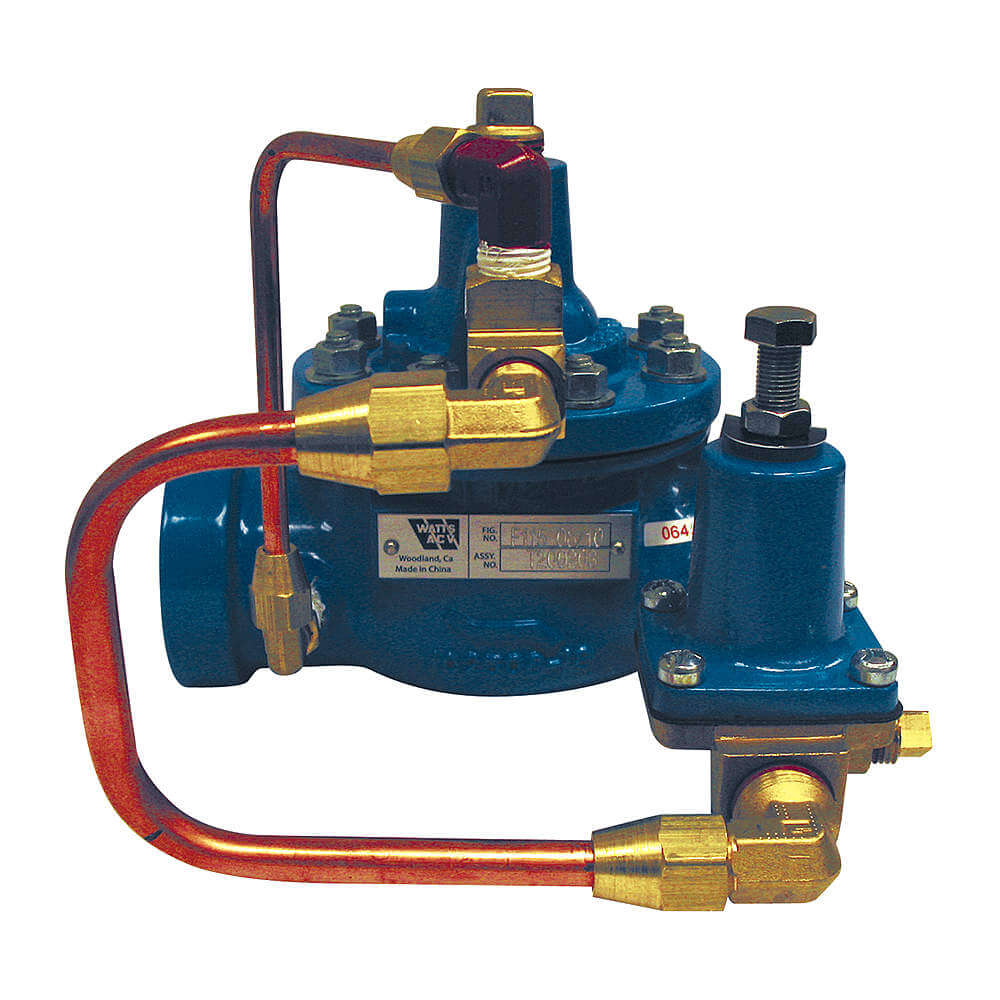

| C | 115-1 1/4 TH | Pressure Reducing | Threaded | 93 GPM | 115 GPM | 400 psi | 30 psi to 300 psi | 1 1/4" | 1/4" x 1/2" x 1/8" | $3,322.12 |
