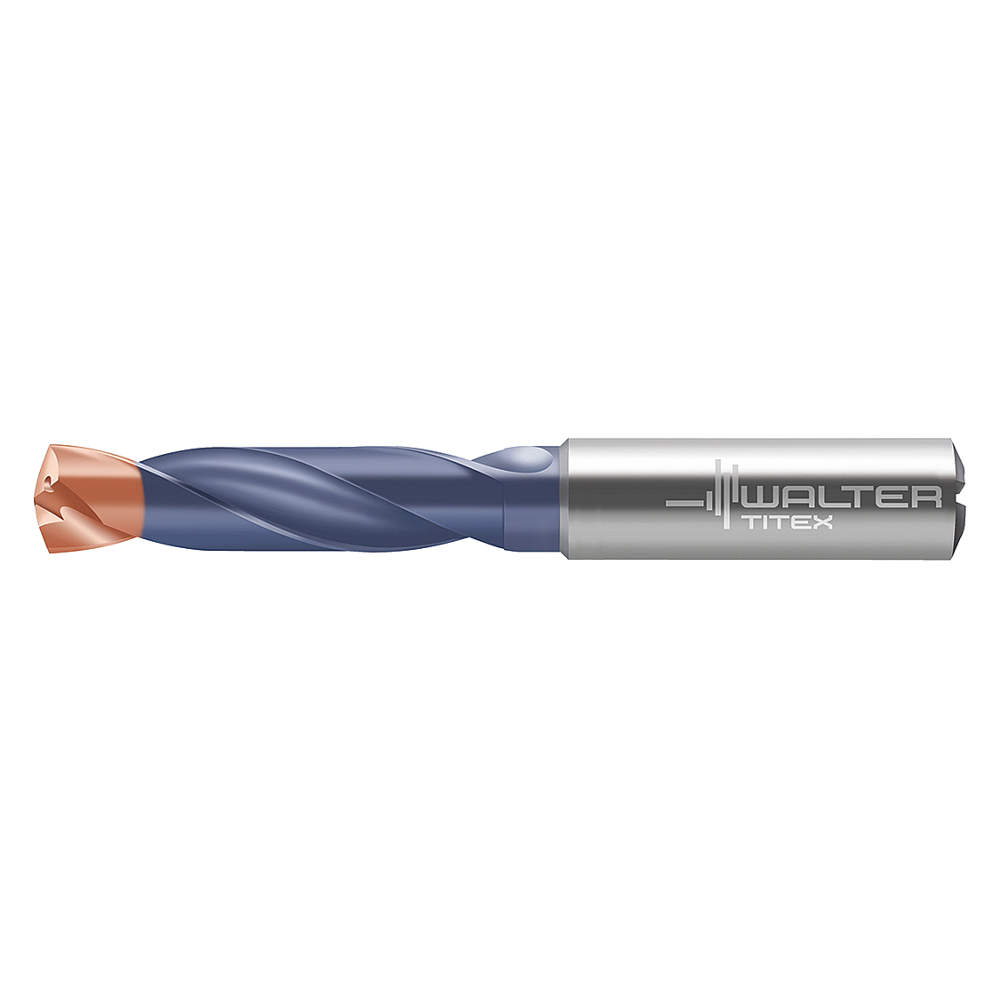

| Item | Jobber Drill Bit |
|---|---|
| Coolant Fed | Coolant Through |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.1378 |
| Depthdia. Ratio | 3xd |
| Dimension Type | Metric |
| Drill Bit Point Angle | 140° |
| Drill Bit Point Type | Self Centering Point |
| Drill Bit Size | 3.5 mm |
| Drill Diameter Tolerance | M7 |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.637 mm |
| Finish | TiAlN |
| Finish - Machining | TiAlN |
| Flute Length | 20 mm |
| Flute Type | Spiral |
| Grade | Grade K30F |
| List Number | A3382 |
| Material | Solid Carbide |
| Material - Machining | Carbide |
|---|---|
| Material Grade - Machining | Grade K30F |
| Maximum Drilling Depth | 14 mm |
| Measurement System | Metric |
| Number Of Coolant Holes | 2 |
| Number Of Flutes | 2 |
| Overall Length | 62 mm |
| Point Type | Self Centering |
| Primary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Hardened Steel, Nickel, Stainless Steel, Steel, Titanium |
| Primary Material Application Iso Code | H, K, M, N, P, S |
| Secondary Material Application | Composite |
| Secondary Material Application Iso Code | O |
| Series | X.Treme Plus |
| Shank Dia. | 6 mm |
| Shank Length | 36 mm |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Standards | DIN 6537 |
| Height (cm) | 2.54 |
|---|---|
| Length (cm) | 6.2 |
| Width (cm) | 2.54 |
| HS Code | 8466100130 |
|---|---|
| Country Of Origin | CN |
| Weight (kg) | 0.0297 |
| Style | Model | Decimal Equivalent | Size | Dimension Type | Material | Finish | Point Angle | Grade | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|
| A | A3289DPL-3 | 0.1181 | 3" | Metric | Solid Carbide | TiAlN | - | Grade K30F | $280.74 | |
| A | A3289DPL-3.1 | 0.122 | 3.1 mm | Metric | Solid Carbide | TiAlN | - | Grade K30F | $240.63 | |
| A | A3289DPL-1/8IN | 0.125 | 3.175 mm | Fractional Inch | Solid Carbide | TiAlN | 140° | Grade K30F | $239.59 | |
| A | A3289DPL-3.2 | 0.126 | 3.2 mm | Metric | Solid Carbide | TiAlN | - | Grade K30F | $263.00 | |
| A | A3289DPL-3.3 | 0.129" | 3.3 mm | Metric | Solid Carbide | TiAlN | - | Grade K30F | $236.71 | |
| A | A3289DPL-3.4 | 0.1339 | 3.4 mm | Metric | Solid Carbide | TiAlN | - | Grade K30F | $263.00 | |
| A | A3289DPL-9/64IN | 0.1406 | 3.572 mm | Fractional Inch | Solid Carbide | TiAlN | 140° | Grade K30F | $239.59 |
