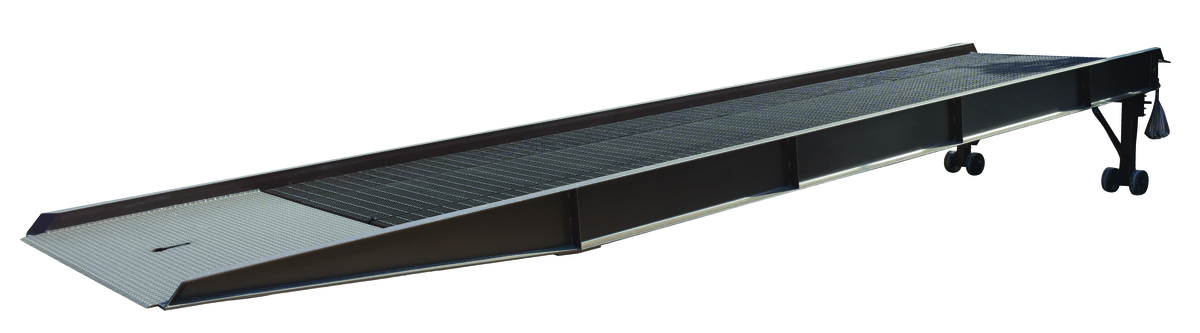

VESTIL YR-16-8430 Steel Overlap Yard Ramp, 84 Inch x 30 ft, 16000 lb Capacity, Earth Tone Brown

Item: AG8CQU
Model: YR-16-8430
Check Availability
In Stock.

Get it by Friday, Feb 13

£9.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates

We deliver to your doorstep under DAP terms. Customs clearance is for your account

$20,166.27 /unit (ex. VAT)
Add To Cart
Request Quote

Unlock 30-day payment terms

Business customers can apply for Net 30
No fees, No interest, Fast approval.

Payment

Delivery

Specifications

Item Portable Yard Ramp
Assembled Depth 360"
Assembled Height 46"
Assembled Width 102 3/8"
Assembly Assembled
Capacity 16000 lbs.
Caster Dia. 9"
Caster Material Steel
Caster Width 3 5/8"
Color Brown , Earth Tone Brown
Color Family Earth Tone Brown
Curb Height 4"
Deck Type Grating
Depth 360"
Distance Between Curbs 78"
Features Steel Side Curbs Prevent Fork Truck Run Off
Handrail Included No
Height 46"
Height Adjustment Method Hand Crank
Length 360"
Lowered Height 45"
Material Steel
Max. Height 62"
Min. Height 45"
Overall Length 30 ft.
Overall Ramp Width 84"
Overall Width 102 3/8"
Ramp Frame Material Steel
Ramp Grate Material Steel
Safety Chains Yes
Safety Curb 4"
Straight Ramp 360"
Tow Bar Yes
Usable Lip Support Edge 13.87"
Usable Ramp Width 78"
Weight Capacity 16000 lbs.
Wheel Dia. 40 3/25" , 8 5/8"
Wheel Material Steel
Wheel Width 3 5/8" , 3.62"
Width 84"

Shipping Information

Height (cm) 114.3
Length (cm) 2.54
Width (cm) 218.44
HS Code 8428900290
Country Of Origin US
Weight (kg) 2328.75
