| Item | Axial Duct Booster |
|---|---|
| Airflow @ 0.000 In Sp | 325 CFM |
| Application | General Purpose |
| Bearing Type | Sleeve |
| Duct Diameter | 8" |
| Fits Duct Dia. | 8" |
| For Fan Type | Tubeaxial |
| High Efficiency Motor | No |
| Housing Dia. | 8" |
| Housing Material | Galvanized Steel |
| Hp | 1/40 hp |
| Includes | External Junction Box For Easy Wiring |
| Inlet And Outlet Dia. | 8" |
| Length | 9" |
| Max. Amps | 1.1A |
|---|---|
| Max. Inlet Temp. | 150°F |
| Motor Enclosure Design | Open Air Over |
| Motor Ip Rating | Not Applicable |
| Motor Output Power | 18.6 W |
| Mounting Position | Horizontal/Vertical |
| Number Of Speeds | 1 |
| Overall Dia. | 8" |
| Overall Height | 9" |
| Overall Width | 8" |
| Phase | 1 |
| Speed Control | Yes |
| Speed Control Included | No |
| Voltage | 120V AC |
| Height (cm) | 24.64 |
|---|---|
| Length (cm) | 25.15 |
| Width (cm) | 22.1 |
| HS Code | 8414519060 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 2.0025 |
| Style | Model | Airflow @ 0.000 In Sp | Motor Output Power | Housing Dia. | Max. Amps | Speed Control | Overall Dia. | Inlet And Outlet Dia. | Cfm @ Duct | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

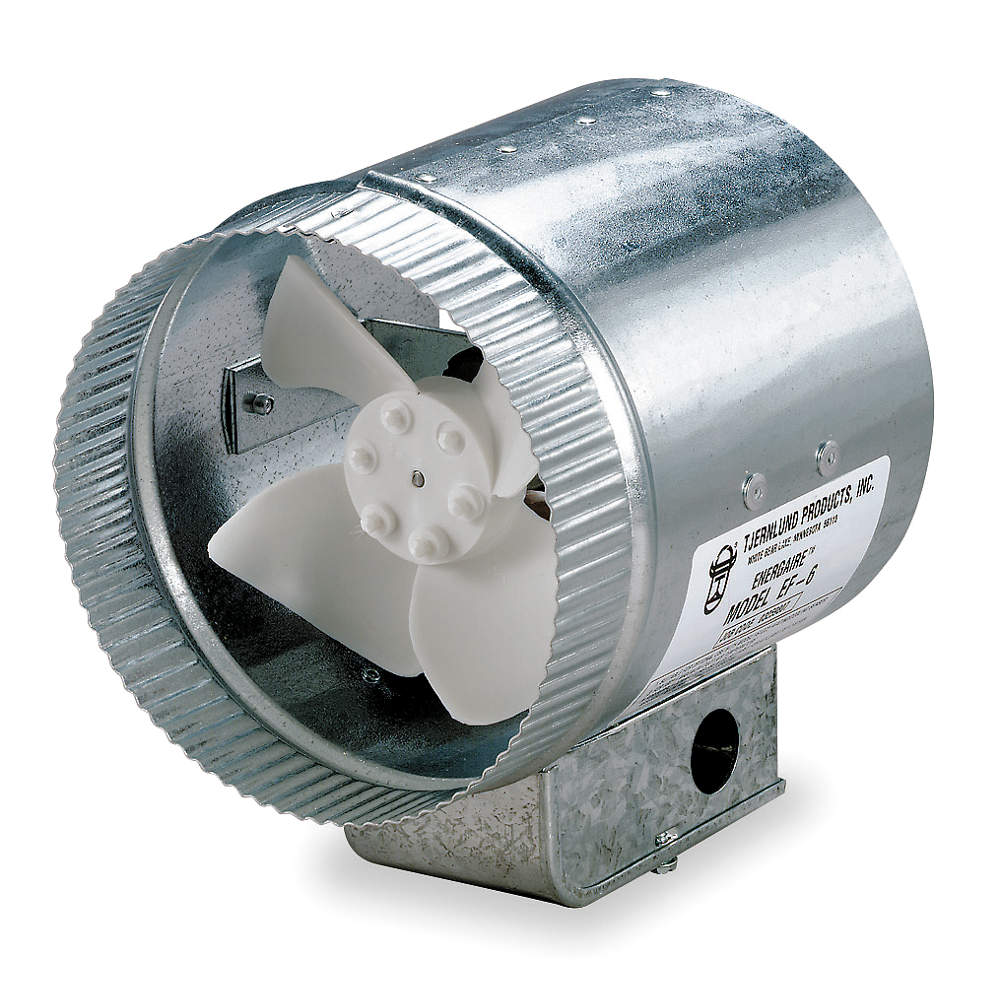

| A | EF-6 | 180 CFM | 7.5 W | 6" | 0.4A | Yes | 6" | 6" | - | $113.77 | |

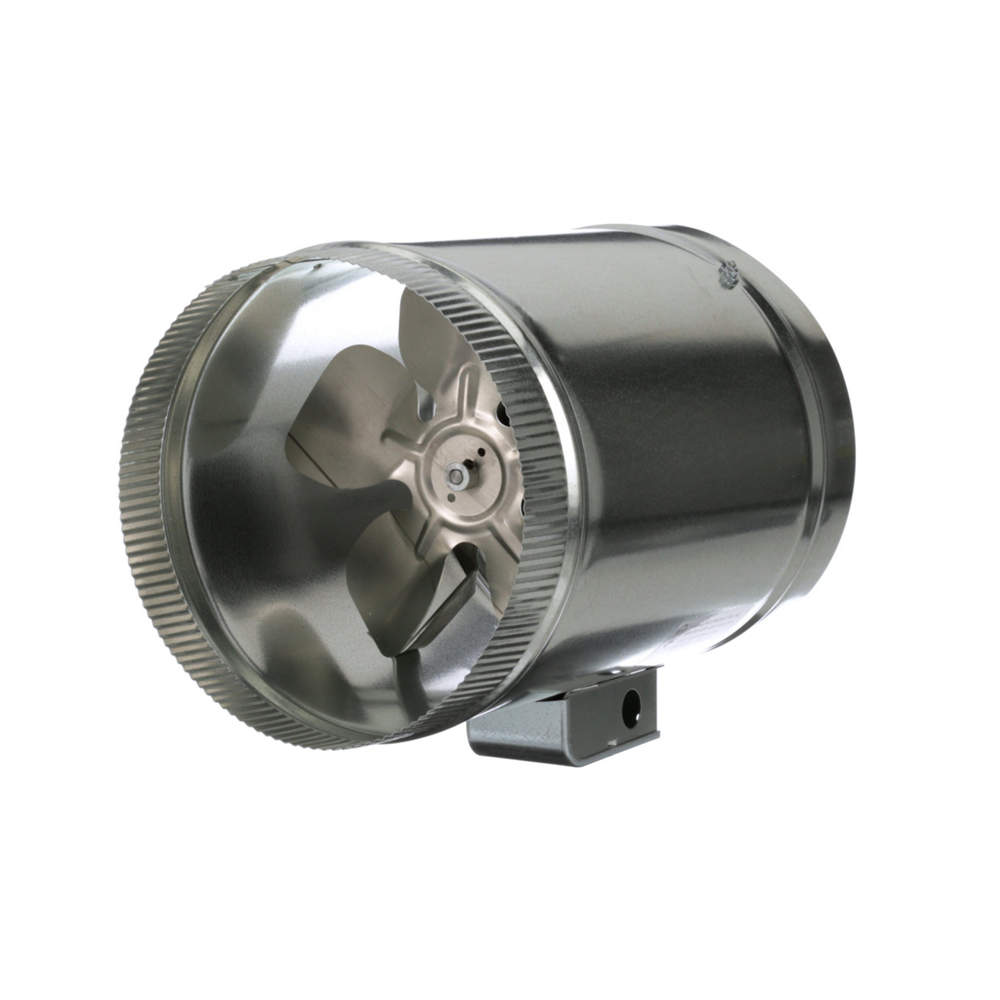

| B | EF-10 | 475 CFM | 7.5 W | 10" | 0.46A | Yes | 10" | 10" | 400/325/275 CFM | $318.59 | |
| C | EF-12 | 875 CFM | 21.3 W | 12" | 1.25A | No | 12" | - | 800/700/600 CFM | $369.35 | |
| D | EF-14 | 1200 CFM | 29.8 W | 14" | 1.7A | No | 14" | 14" | - | $349.06 |
