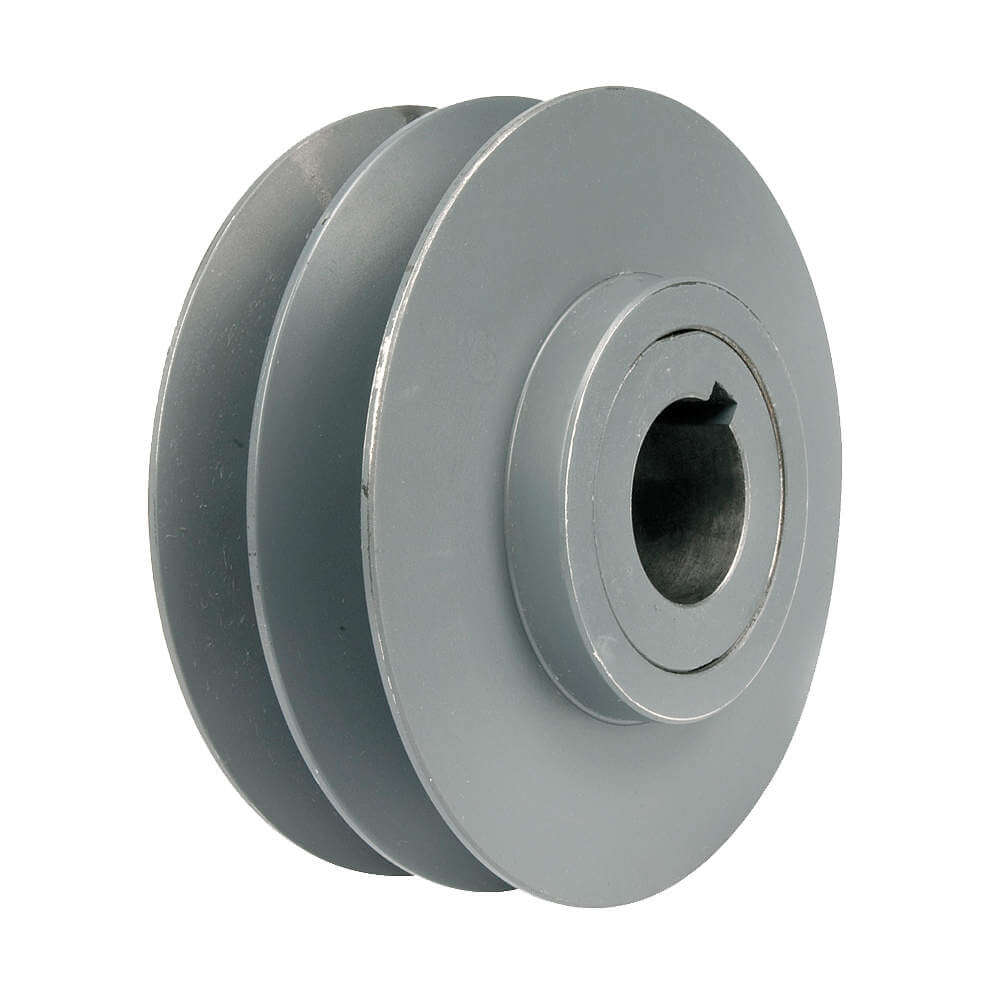

| Item | Variable Pitch V-Belt Pulley |
|---|---|
| 4l Pitch Diameter (maximum) | 6.7" |
| 4l Pitch Diameter (minimum) | 5.7" |
| 4l, A, Or Ax Belt Pitch Dia. | 5.8" to 6.98" |
| 4la Or A Belt Pitch Dia. | 5.8" to 6.98" |
| 5l Pitch Diameter (maximum) | 7" |
| 5l Pitch Diameter (minimum) | 5 4/5" |
| 5l, B, Or Bx Belt Pitch Dia. | 6.24" to 7.45" |
| 5v Belt Pitch Dia. | 6.18" to 7.39" |
| 5v Pitch Diameter (maximum) | 7.4" |
| 5v Pitch Diameter (minimum) | 6.2" |
| 5vx Pitch Diameter (maximum) | 7 2/5" |
| 5vx Pitch Diameter (minimum) | 6.2" |
| A Pitch Diameter (maximum) | 6.7" |
| A Pitch Diameter (minimum) | 5.7" |
| Ax Pitch Diameter (maximum) | 6.7" |
| Ax Pitch Diameter (minimum) | 5.7" |
| B Pitch Diameter (maximum) | 7" |
| B Pitch Diameter (minimum) | 5.8" |
| Bore Dia. | 1 5/8" |
| Bore Type | Fixed Bore |
| Bushing Required | None |
| Bx Pitch Diameter (maximum) | 7" |
| Bx Pitch Diameter (minimum) | 5.8" |
| Construction | Solid |
| Finish | Annealed |
| Fits Shaft Dia. | 1.625" |
|---|---|
| For Belt Section | 4L, 5L, A, Ax, B, Bx, 5V, 5Vx |
| For V-belt Type | Classical, Wedge, Cogged, Banded |
| Includes | Set Screw |
| Industry Number | 2VP75158 |
| Keyway | Yes |
| Keyway Depth | 3/16" |
| Keyway Size | 3/8" |
| Keyway Width | 3/8" |
| Length Through Bore | 3 1/4" |
| Material | Cast Iron |
| Material Fabrication | Cast |
| Max. Pitch Dia. | 6.7" (4L, A), 7" (5L, B), 7.4" (5V) |
| Maximum Face Width | 2 3/8" |
| Minimum Face Width | 1.625" |
| Minimum Pitch Diameter | 5.7" (4L, A), 5.8" (5L, B), 6.2" (5V) |
| No. Of Grooves | 2 |
| Number Of Turns To Fully Open | 5 (4L, A), 6 (5L, B), 6 (5V) |
| Outside Dia. | 7 1/2" |
| Outside Diameter | 7.5" |
| Overall Width | 3 1/4" |
| Pulley Construction | Plain |
| Pulley Industry Number | 2VP75 |
| Pulley Series | Series VP |
| Set Screw Included | Yes |
| Height (cm) | 11.43 |
|---|---|
| Length (cm) | 21.34 |
| Width (cm) | 21.34 |
| HS Code | 8483509040 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 7.425 |
