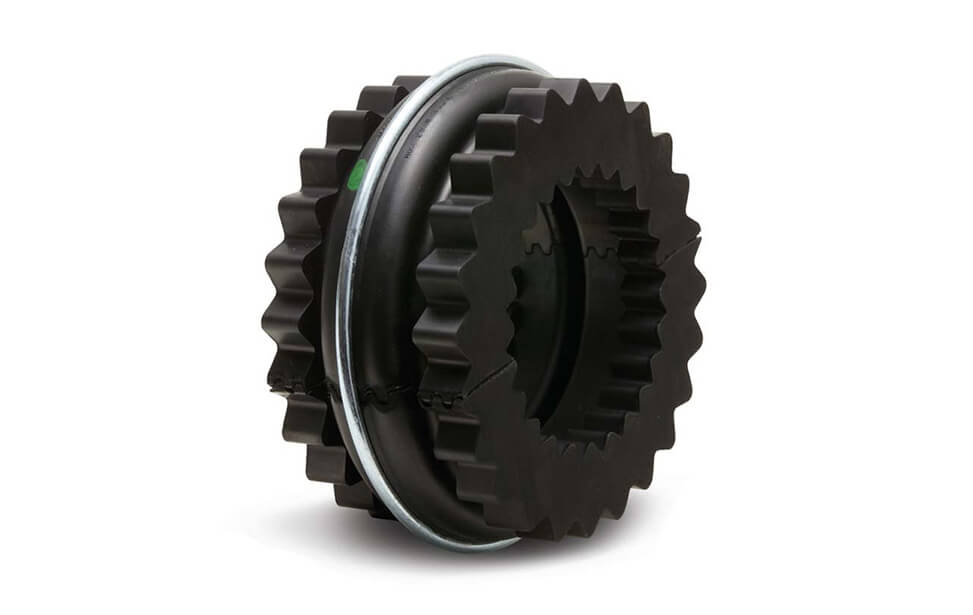

| Item | Sure-Flex Sleeve |
|---|---|
| Component Wr² | 1.8894 lbs.-sq. ft. |
| Coupling Size | 13 |
| Hp Rating @ 100 Rpm | 23 hp |
| Insert Design | Two-Piece with Retaining Ring |
| Material | Neoprene |
| Max. Angular Gap Misalignment | 0.195" |
| Max. Angular Misalignment | 1 Deg. |
| Max. Parallel Misalignment (in.) | 0.04" |
|---|---|
| Max. Rpm | 2400 rpm |
| Outside Dia. | 11.187" |
| Rated Torque | 1028 Nm |
| Temp. Rating | 0 To 200 Degrees F |
| Torsional Stiffness (deg./in.-lbs.) | 43350 lbs.-in./rad. |
| Weight | 13 lbs. |
| Height (cm) | 2.54 |
|---|---|
| Length (cm) | 28.42 |
| Width (cm) | 11.43 |
|---|---|
| Weight (kg) | 5.85 |
| Style | Model | Coupling Size | Outside Dia. | Max. Speed | Hp Rating @ 100 Rpm | Max. Angular Gap Misalignment | Temp. Rating | Rated Torque | Insert Design | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 12 | 12 | 9.562" | 2800 RPM | 15 hp | 0.175" | -30°F to +275°F | 1028 N-m | Two Piece With Retaining Ring | - | RFQ
|
| A | 12N | 12 | 9.562" | 2800 RPM | 15 hp | 0.175" | 0°F to +200°F | 1028 N-m | Two Piece With Retaining Ring | $602.95 | |
| A | 13 | 13 | 11.187" | 2400 RPM | 23 hp | 0.195" | -30°F to +275°F | 1028 N-m | Two Piece With Retaining Ring | - | RFQ
|
| A | 14 | 14 | 13.094" | 2200 RPM | 37 hp | 0.242" | -30°F to +275°F | 1028 N-m | Two Piece With Retaining Ring | - | RFQ
|
| A | 14N | 14 | 13.094" | 2200 RPM | 37 hp | 0.242" | 0°F to +200°F | 1028 N-m | Two Piece With Retaining Ring | $1,061.19 |
