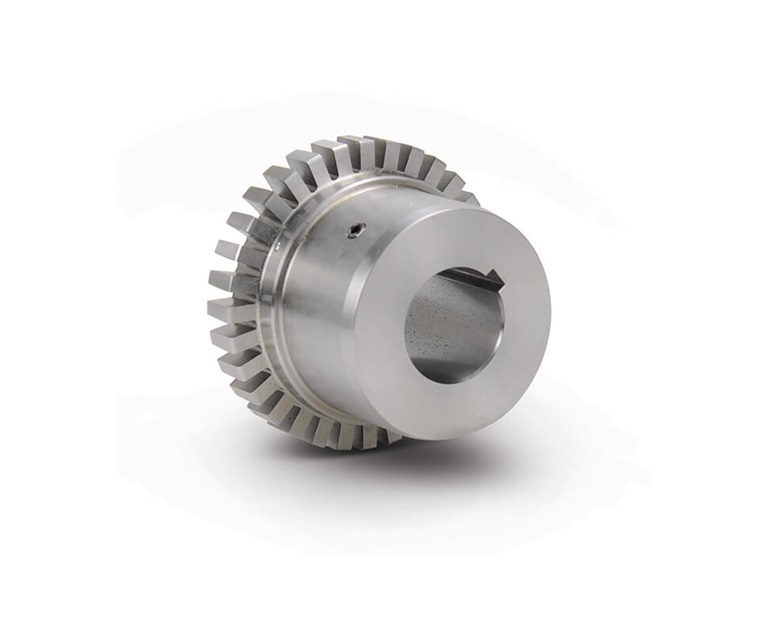

| Item | Grid Coupling Hub |
|---|---|
| Application | For Limited Space, General Purpose |
| Bore Dia. | 1 1/2" |
| Bore Fit | Clearance |
| Bore Size | 1 mm |
| Bore Type | Round With Keyway |
| Coupling Overall Length | 5 3/25" |
| Coupling Size | 1060 |
| Coupling Weight | 16 lbs. |
| Features | Design Flexibility, Horizontally Split Cover, Stop Lug In Cover Prevents Spinning During Reversing Service |
| For Misalignment Type | Angular, Parallel |
| Gap | 0.13" |
| Hp Rating @ 100 Rpm | 9 3/5 hp |
| Hub | Standard Grid Taper Hub |
| Hub Body Length | 2 1/2" |
| Hub Diameter | 3" |
| Hub Material | Steel |
| Included Screws | Set Screw |
|---|---|
| Keyway Depth | 3/16" |
| Keyway Size | 3/8" x 3/16" |
| Keyway Width | 3/8" |
| Length Through Bore | 2 1/2" |
| Machinable Bore Range | 1 1/2" to 2 1/8" |
| Material | Steel |
| Max. Bore | 2 1/8" |
| Maximum Speed | 4350 RPM |
| Min. Bore | 1 1/4" |
| Outside Dia. | 3" |
| Overall Coupling Length | 5 3/25" |
| Overall Length | 5 3/25" |
| Rated Torque | 6054 lbs.-in. |
| Screw Thread Size | M8 |
| Standards | Agma |
| System Of Measurement | Imperial |
| Height (cm) | 2.54 |
|---|---|
| Length (cm) | 7.62 |
| Width (cm) | 7.62 |
|---|---|
| Weight (kg) | 2.115 |
| Style | Model | Length Through Bore | Outside Dia. | Rated Torque | Coupling Size | Bore Dia. | Min. Bore | Hp Rating @ 100 Rpm | Gap | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 1070T134 | 3" | 3 11/25" | 8798 lbs.-in. | 1070 | 1 3/4" | 1 1/4" | 14 hp | 0.13" | $353.09 | |
| A | 1070T158 | 3" | 3 11/25" | - | 1070 | 1 5/8" | 1 1/4" | 14 hp | 0.13" | $353.09 | |
| A | 1070T2316 | 3" | 3 11/25" | 8798 lbs.-in. | 1070 | 2.188" | 1 1/4" | 14 hp | 0.13" | $353.09 | |

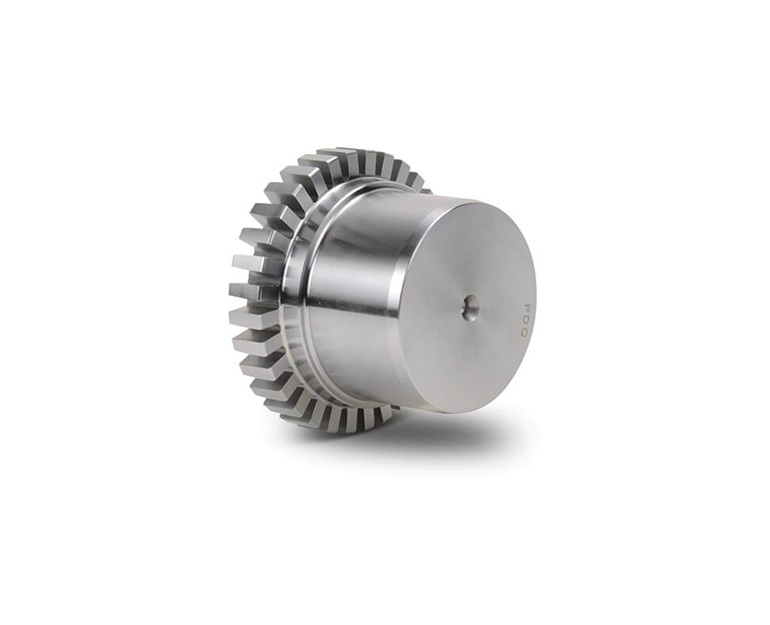

| B | 1080TRB | 3 1/2" | 4.13" | 18144 lbs.-in. | 1080 | - | 1.06" | 29 hp | 0.13" | $303.93 | |

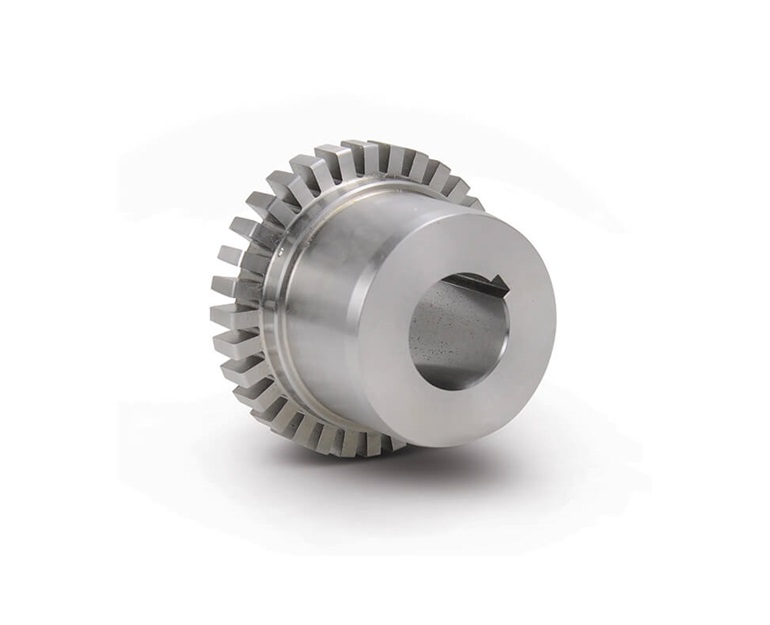

| C | 1120T378 | 5 7/8" | 7.06" | 121255 lbs.-in. | 1120 | 3 7/8" | 2.38" | 192 hp | 1/4" | $1,446.24 | |

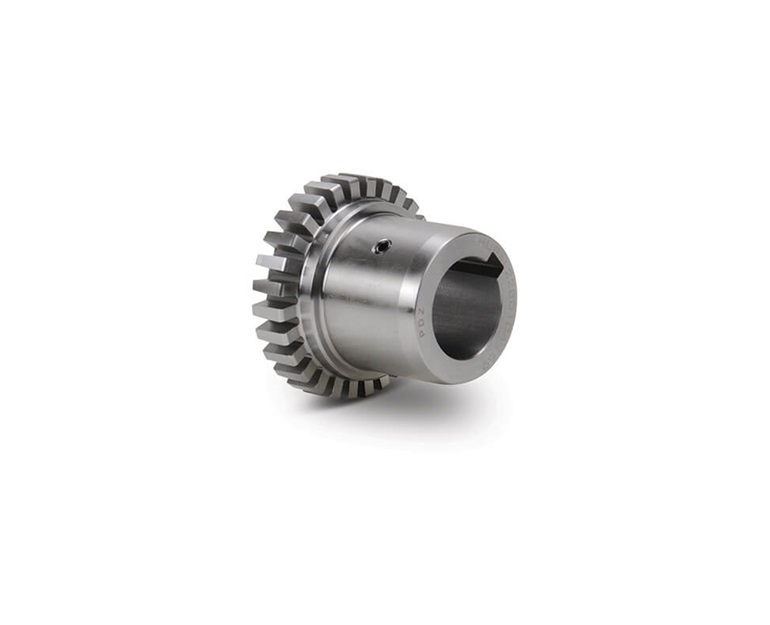

| D | 1020T1 | 1 7/8" | - | 460 lbs.-in. | 1020 | - | 1/2" | 73/100 hp | 0.13" | $101.58 | |
| D | 1020T1116 | 1 7/8" | 1 14/25" | 460 lbs.-in. | 1020 | 1.062" | 1/2" | 73/100 hp | 0.13" | $101.58 |
