| Item | Speed Control Lid Support |
|---|---|
| Extended Length | 7 31/32" |
| Finish | Nickel Plated |
| Hand | Right |
| Includes Mounting Hardware | Mounting Hardware Included |
| Material | Zinc Alloy |
| Max. Angle (deg.) | 100 |
| Max. Support Angle | 100° |
| Min. Opening Depth (in.) | 2.803" |
| Min. Opening Width | 7.874" |
|---|---|
| Min. Support Angle | 80° |
| Overall Depth | 55/64" |
| Overall Height | 8 3/16" |
| Overall Width | 55/64" |
| Product Type | Lid Support |
| Torque | 19 lbs.-in. to 60 lbs.-in. |
| Standards | REACH 219-12/27/21, ROHS 2 COMPLIANT |
| Height (cm) | 2.54 |
|---|---|
| Length (cm) | 12.7 |
| Width (cm) | 7.62 |
| HS Code | 8302423065 |
|---|---|
| Country Of Origin | CN |
| Weight (kg) | 0.18 |
| Style | Model | Material | Color | Min. Opening Depth (in.) | Hand | Min. Opening Width | Extended Length | Torque | Max. Angle (deg.) | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

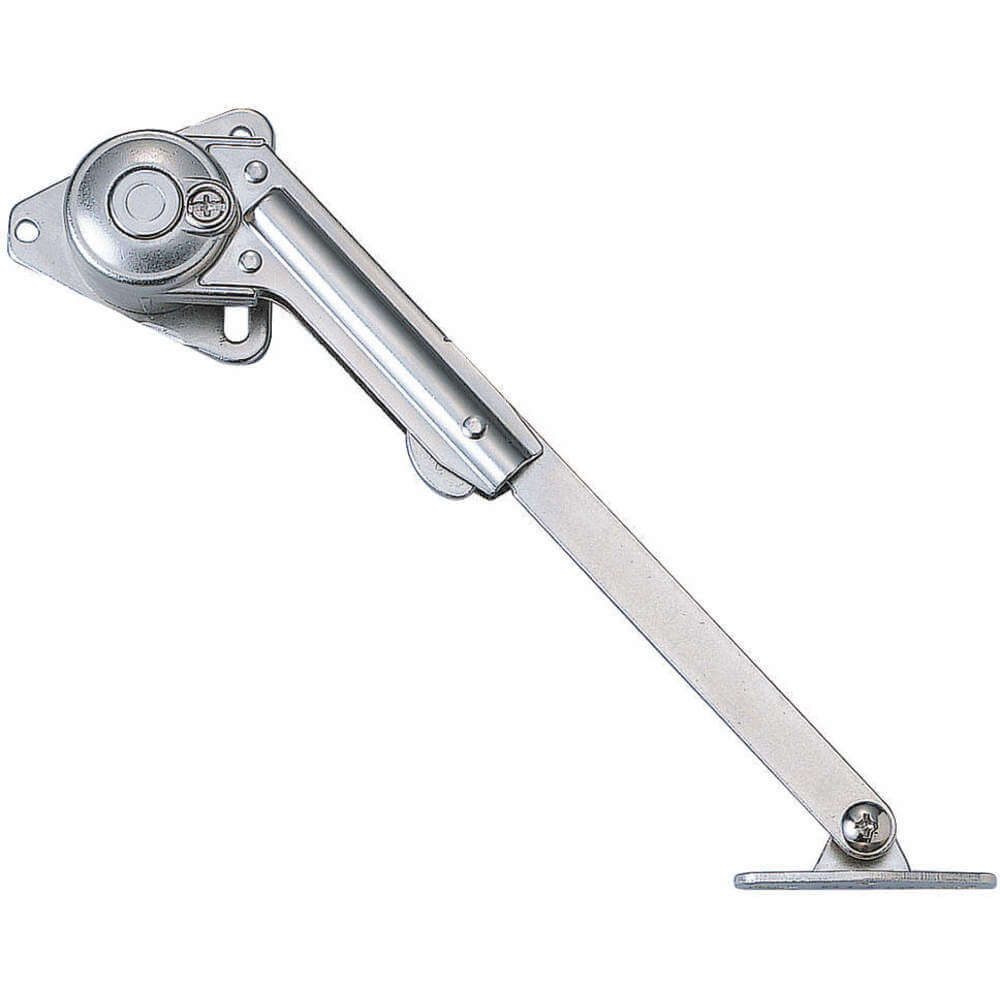

| A | 4CRL8 | Zinc Alloy | - | 2.618" | Left | 8.307" | 7 3/4" | - | 90 | $47.30 | |
| A | 4CRL9 | Zinc Alloy | - | 2.618" | Right | 8.307" | 7 3/4" | 19 lbs.-in. to 60 lbs.-in. | - | $47.30 | |
| B | 4CRN1 | Steel | - | 4.756" | Left | 7.283" | - | 19 lbs.-in. to 60 lbs.-in. | 105 | $47.30 | |
| B | 4CRN2 | Zinc Alloy | - | 4.756" | Right | 7.283" | 7 3/4" | 19 lbs.-in. to 60 lbs.-in. | - | $47.30 | |

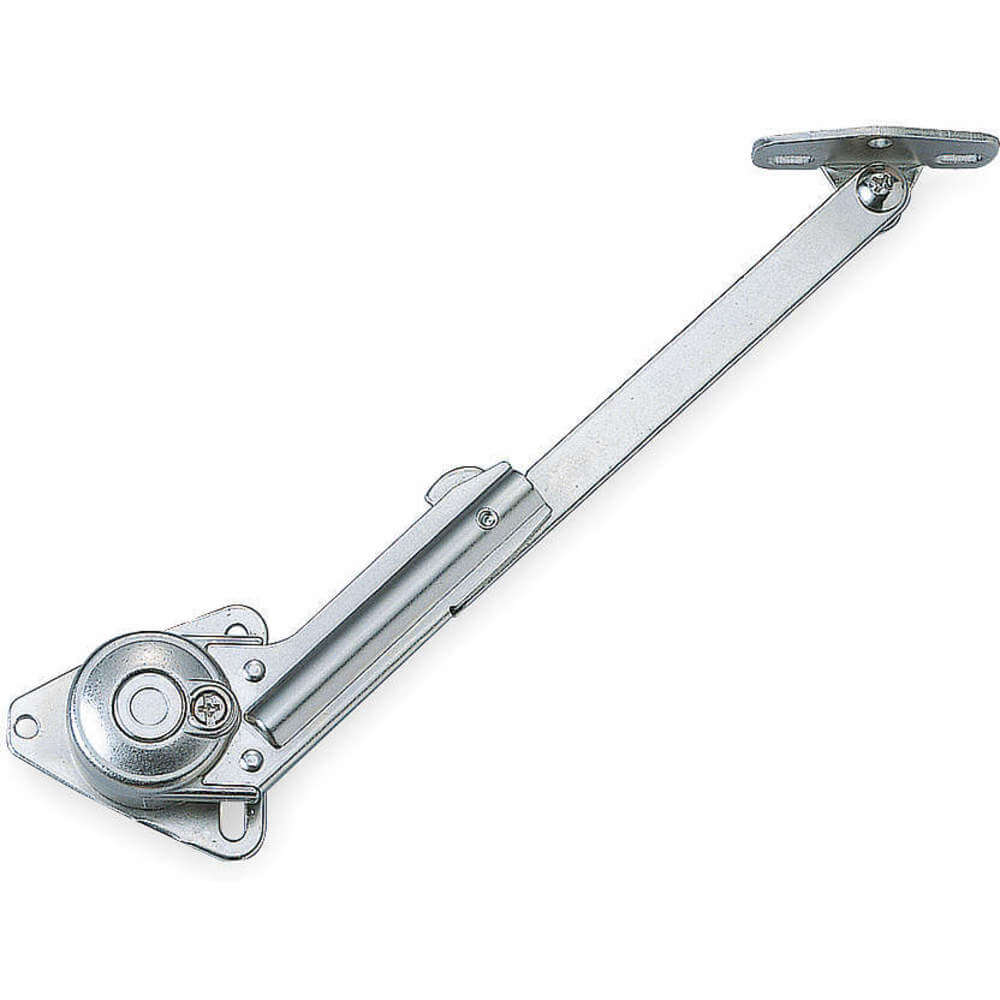

| C | 4CRN3 | Zinc Alloy | - | 2.803" | Left | 7.874" | 7 31/32" | 19 lbs.-in. to 60 lbs.-in. | - | $42.54 | |

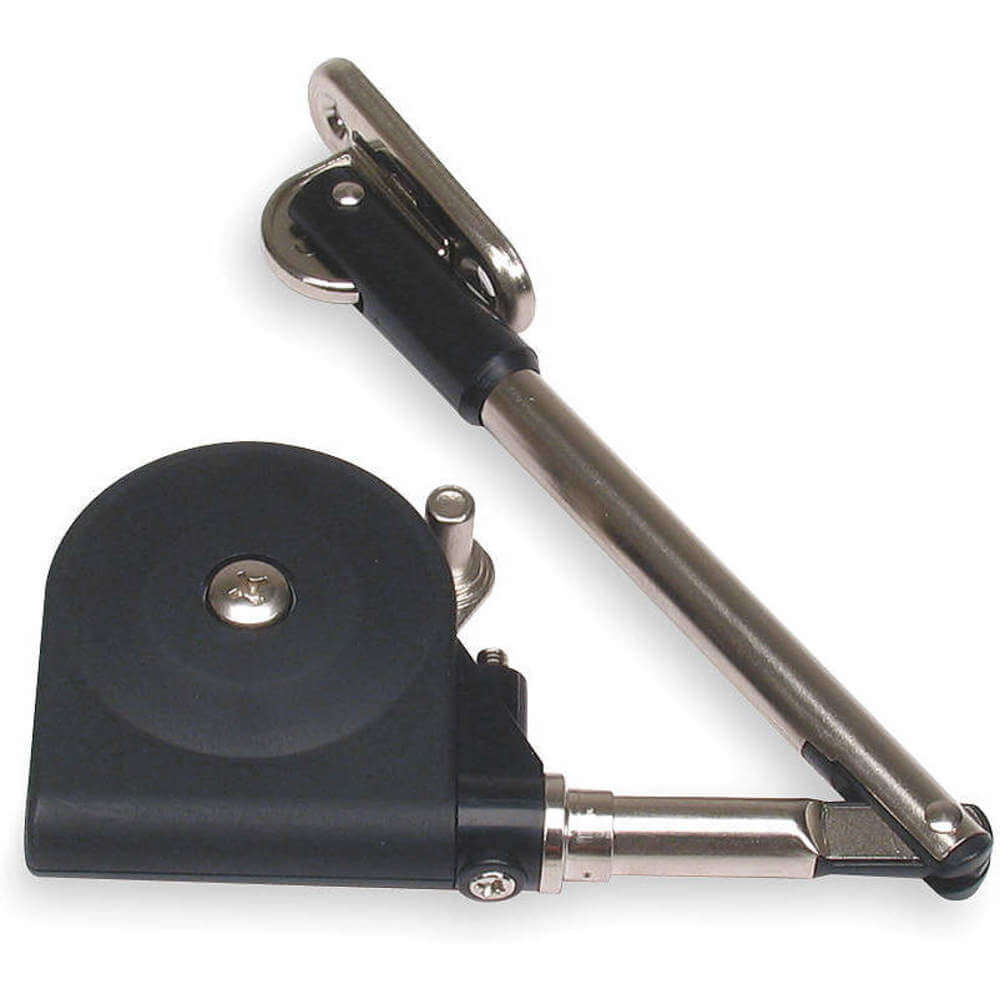

| D | 4CRN7 | Plastic | Black | 3.323" | Non Handed | 8.858" | 7 27/32" | 30 lbs.-in to 43 lbs.-in. | 90 | $44.50 | |

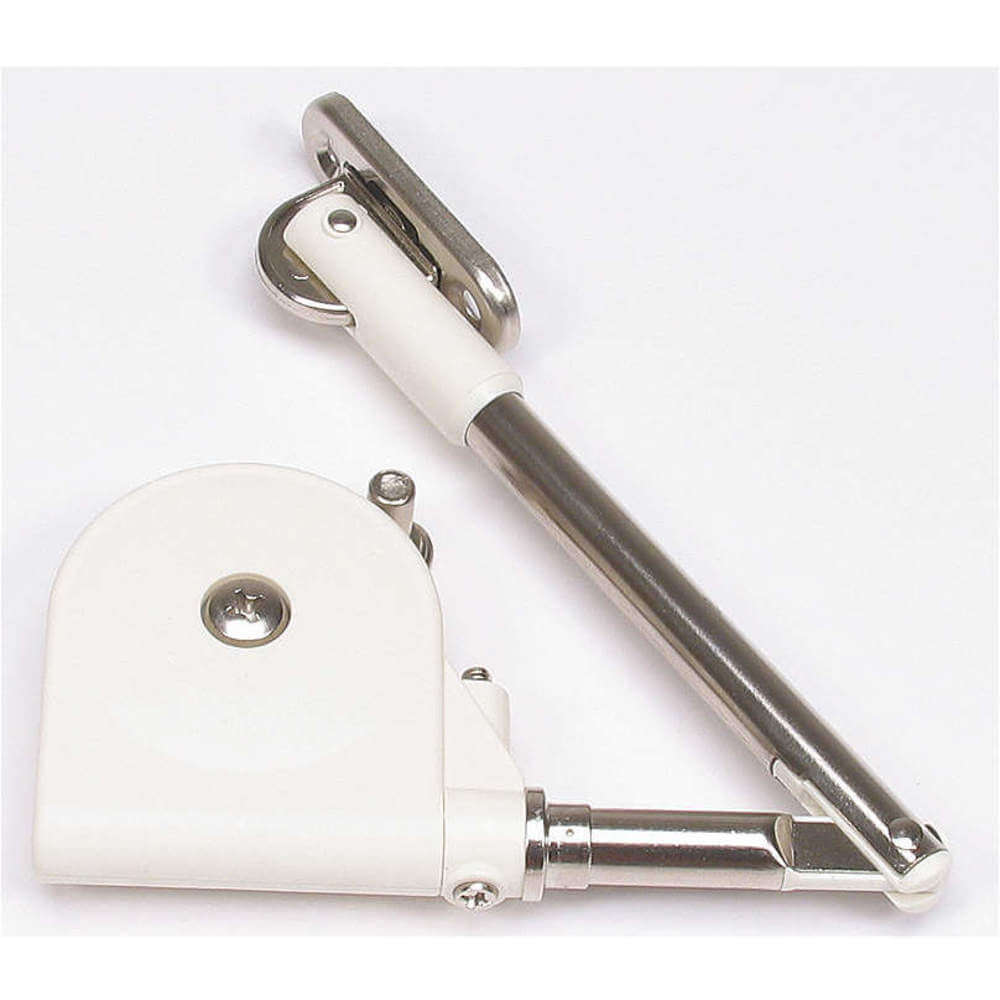

| E | 4CRN8 | Plastic | White | 3.323" | Non Handed | 8.858" | 7 27/32" | 30 lbs.-in to 43 lbs.-in. | 90 | $39.99 |
