| Item | Unit Mount Circuit Breaker |
|---|---|
| Ac Voltage Rating | 120/240V AC |
| Amps | 50A |
| Awg Gauge | 14 AWG to 2 AWG |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Application | HACR Rated |
| Circuit Breaker Mounting Style | Surface/Din Rail |
| Circuit Breaker Type | Standard |
| Compatible Panelboard/load Center Series | Series QO |
| Component Type | Miniature Circuit-Breaker |
| Dc Voltage | 48V DC |
| Dc Voltage Rating | 48V |
| Depth | 2.95" |
| Electrical Connection | Slotted Box Lugs, Line Side, Load Side |
| For Use With | Air Conditioning And Refrigeration Equipment, Heating |
| Frame Size | 100A, QOU |
| Height | 4.05" |
|---|---|
| Length | 4.05" |
| Line Rated Amps | 50A |
| Max. Air Rating | 10 kA At 120/240V AC |
| Max. Wire Size | 2 AWG |
| Min. Wire Size | 14 AWG |
| Mounting Mode | Unit Mount |
| Number Of Poles | 2 |
| Phase | 1 |
| Rated Operational Voltage | 120/240V AC/48V DC |
| Returnability | Yes |
| Terminal Connection | Slotted Box Lug (Reversible Line And Load) |
| Tightening Torque | 45 lbf.in. @ 14 AWG to 2 AWG |
| Width | 1 1/2" , 1.5" |
| standard | IEC, UL LISTED |
| Warranty | 18 Months |
| Height (cm) | 9.14 |
|---|---|
| Length (cm) | 5.59 |
| Width (cm) | 12.19 |
| HS Code | 8536200040 |
|---|---|
| Country Of Origin | MX |
| Weight (kg) | 0.36 |
| Style | Model | Circuit Breaker Type | Max. Air Rating | Min. Wire Size | Amps | Dc Voltage Rating | Terminal Connection | Dc Voltage | Number Of Poles | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

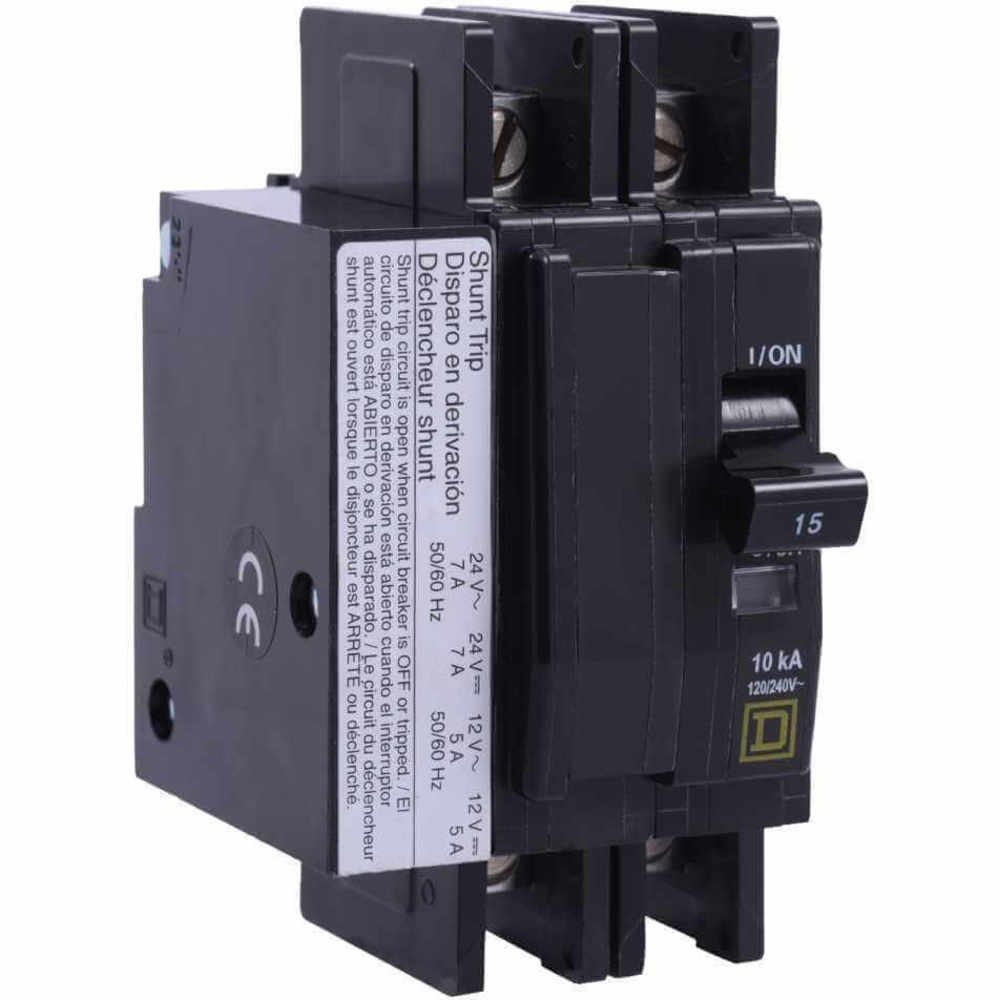

| A | QOU2101021 | Standard | 10 kA At 120/240V AC | 14 AWG | 10A | 48V | Slotted Box Lug (Line And Load) | 48V DC | 2 | $635.86 | |

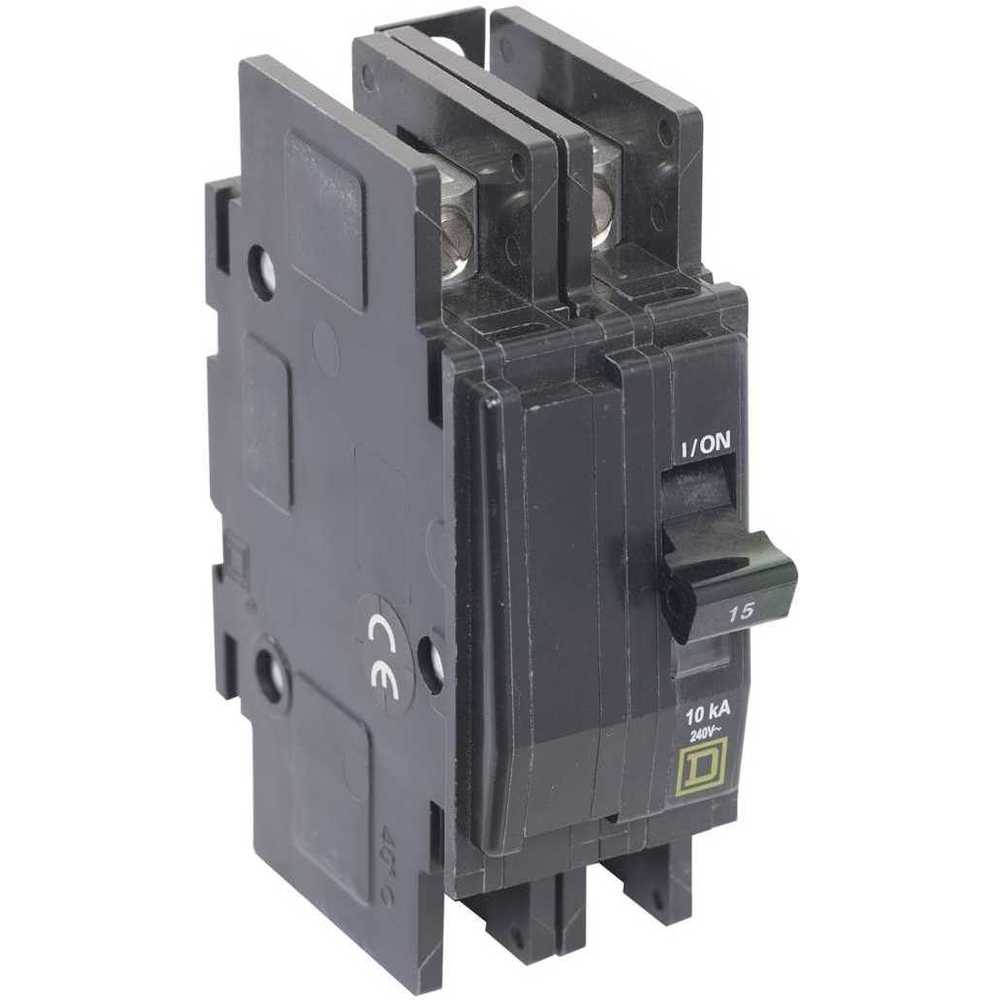

| B | QOU2125 | Standard | 10 kA At 120/240V AC | 12 AWG | 125A | 60V DC | Slotted Box Lug (Non-Reversible Line And Load) | 60V DC | 2 | $358.32 | |
| B | QOU215VH | Standard | 22 kA | 14 AWG | - | - | - | 48V DC | 2 | $420.77 | |
| B | QOU220VH | Standard | 22 kA At 120/240V AC | 14 AWG | 20A | 48V | Slotted Box Lug (Reversible Line And Load) | 48V DC | 2 | $449.44 | |
| A | QOU2201021 | Standard | 10 kA | 14 AWG | - | - | - | 48V DC | 2 | $247.32 | |
| B | QOU230VH | Standard | 22 kA At 120/240V AC | 14 AWG | 30A | 48V | Slotted Box Lug (Reversible Line And Load) | 48V DC | 2 | $162.90 | |
| B | QOU250VH | Standard | 22 kA At 120/240V AC | 14 AWG | 50A | 48V | Slotted Box Lug (Reversible Line And Load) | 48V DC | 2 | $382.16 |
