| Item | Load Center |
|---|---|
| Ambient Air Temp. For Operation | 23°F, 104°F |
| Amps Rating | 200A |
| Box No. | 6R |
| Bus Material | Tin Plated Copper |
| Busbar Material | Copper |
| Busbar Material Finish | Tin Plated |
| Circuit Breaker Type | QO |
| Color | Gray |
| Cover Attachment Style | Side Hinge |
| Cover Closure Method | Door Latch |
| Cover Type | Surface Cover |
| Depth | 4 1/2" |
| Electrical Connection | Feed-Thru Lugs |
| Enclosure Material | Galvanized Steel , Welded Steel |
| Enclosure Nema Rating | 3R |
| Enclosure Rating | NEMA 3R Weatherproof Enclosure |
| Enclosure Surface Finish | Enamel |
| Feed Location | Bottom/Top |
| For Use With | Square D QO Circuit Breakers |
| Ground Bar | Grounding Bar (Ordered Separately) |
| Height | 29.8" , 29.84" |
| Included Enclosure Cover | Surface Cover |
| Location | Outdoor |
| Main Circuit Breaker Or Main Lug | Convertible, Main Circuit Breaker |
|---|---|
| Max. No. Of Single Pole Circuits | 16 |
| Max. No. Of Tandem Breakers | 8 |
| Max. Operating Temp. | 104°F |
| Max. Short Circuit Amps Rating | 22 kA |
| Min. Operating Temp. | 23°F |
| No. Of Spaces | 8 |
| Number Of Phases | 1 |
| Number Of Spaces | 8 |
| Phase | 1 |
| Pon Convertible Mains (lugs) | Main Breaker |
| Recommended Ground Bar Kit | 1D369 |
| Recommended Surface Cover | Included |
| Returnability | Yes |
| Short Circuit Amps Rating | 22 kA |
| Special Features | Mercury Free |
| Standards | Rohs Compliant, Ul Listed |
| Surface Finish | Baked Enamel Gray |
| Voltage | 120/240V AC |
| Voltage Rating | 120/240V AC |
| Width | 14.77" , 14.8" |
| Wire Size | 4 AWG to 250 kcmil |
| Warranty | 18 Months |
| Height (cm) | 79.5 |
|---|---|
| Length (cm) | 39.37 |
| Width (cm) | 12.19 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 14.445 |
| Style | Model | Height | Phase | Amps | Voltage | Enclosure Material | Bus Material | Recommended Ground Bar Kit | Max. No. Of Tandem Breakers | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

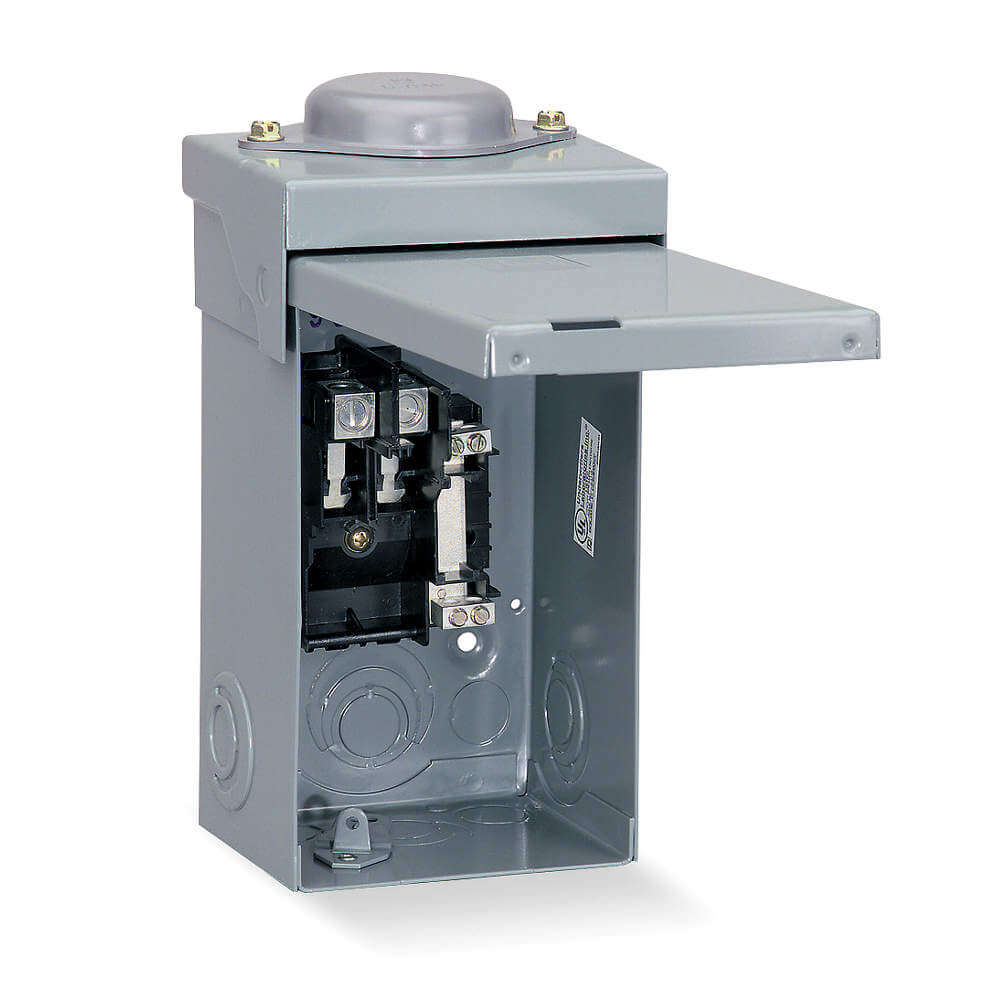

| A | QO24L70RB | 9 2/5" | 1 | 70A | 120/240V AC | Galvanized Steel | Tin Plated Aluminum | 5B718 | 2 | $189.94 | |

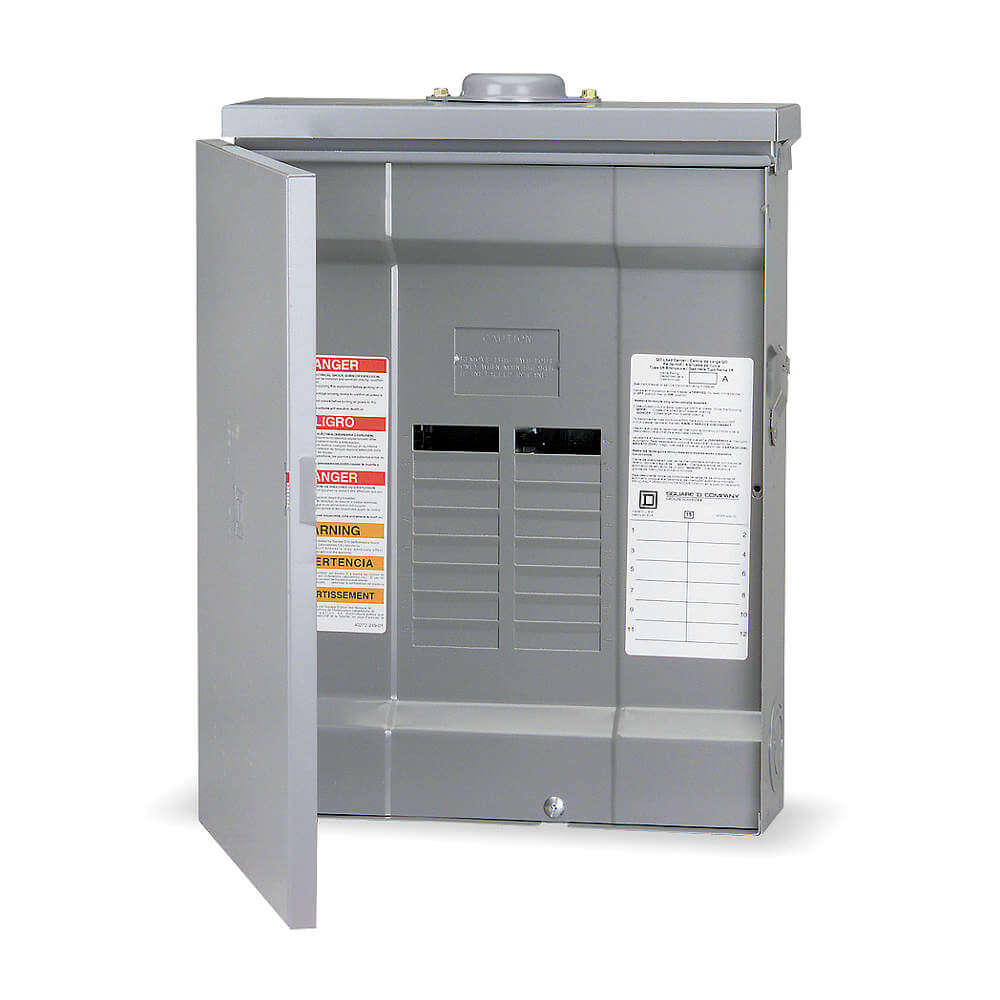

| B | QO312L125GRB | 18.9" | 3 | 125A | 208/120/240V AC | Galvanized Steel | Tin Plated Copper | Included | - | $759.98 | |
| B | QO318L200GRB | 29.84" | 3 | - | 208/120/240V AC | Galvanized Steel | Tin Plated Copper | Included | - | $1,055.09 | |
| B | QO320L125GRB | 22 1/2" | 3 | 125A | 208/120/240V AC | Galvanized Steel | Tin Plated Copper | Included | - | $976.72 | |
| B | QO330L200GRB | 29.84" | 3 | 200A | 208/120/240V AC | Galvanized Steel | Tin Plated Copper | Included | - | $1,315.54 | |

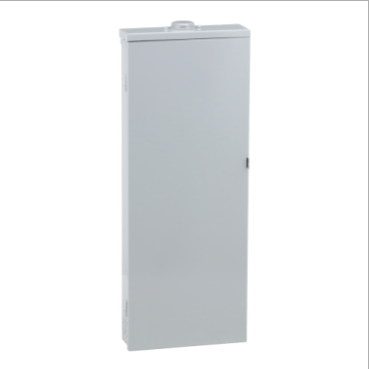

| C | QO342L225GRB | 38" | 3 | 225A | 208/120/240V AC | Galvanized Steel | Tin Plated Copper | Included | - | $2,300.28 | |
| A | QO403L60NRB | 13.19" | 3 | 60A | 208/120/240V AC | Galvanized Steel | Tin Plated Aluminum | 5B718 | - | $324.96 |
