| Item | Load Center |
|---|---|
| Ambient Air Temp. For Operation | 23°F, 104°F |
| Amps | 125A |
| Amps Rating | 125A |
| Box No. | 4R |
| Bus Material | Tin Plated Copper |
| Busbar Material | Copper |
| Busbar Material Finish | Tin Plated |
| Circuit Breaker Type | QO |
| Color | Gray |
| Cover Attachment Style | Side Hinge |
| Cover Closure Method | Latch |
| Cover Type | Surface Cover |
| Depth | 4 1/2" |
| Electrical Connection | Lugs |
| Enclosure Material | Galvanized Steel , Welded Steel |
| Enclosure Nema Rating | 3R |
| Enclosure Rating | NEMA 3R Weatherproof Enclosure |
| Enclosure Surface Finish | Enamel |
| Feed Location | Bottom/Top |
| For Use With | Square D QO Circuit Breakers |
| Ground Bar | Grounding Bar Included (Not Installed) |
| Height | 22 1/2" , 22.05" |
| Included Enclosure Cover | Surface Cover |
| Location | Outdoor |
| Main Circuit Breaker Or Main Lug | Main Lug |
|---|---|
| Max. No. Of Single Pole Circuits | 20 |
| Max. No. Of Tandem Breakers | 0 |
| Max. Operating Temp. | 104°F |
| Max. Short Circuit Amps Rating | 65 kA |
| Min. Operating Temp. | 23°F |
| No. Of Spaces | 20 |
| Number Of Phases | 3 |
| Number Of Spaces | 20 |
| Phase | 3 |
| Pon Convertible Mains (lugs) | Fixed Mains (Lugs) |
| Recommended Ground Bar Kit | Included |
| Recommended Surface Cover | Included |
| Returnability | Yes |
| Short Circuit Amps Rating | 65 kA |
| Special Features | Mercury Free |
| Standards | Rohs Compliant, Ul Listed |
| Surface Finish | Baked Enamel Gray |
| Tightening Torque | 50 lbs.-in. |
| Voltage | 208/120/240V AC |
| Voltage Rating | 208/240/120V AC |
| Width | 14.77" , 14.8" |
| Wire Size | 6 AWG to 2/0 AWG |
| Warranty | 18 Months |
| Height (cm) | 57.15 |
|---|---|
| Length (cm) | 11.43 |
| Width (cm) | 37.52 |
| HS Code | 8537109050 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 13.5 |
| Style | Model | Height | Phase | Amps | Voltage | Enclosure Material | Bus Material | Recommended Ground Bar Kit | Max. No. Of Tandem Breakers | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | QO24L70RB | 9 2/5" | 1 | 70A | 120/240V AC | Galvanized Steel | Tin Plated Aluminum | 5B718 | 2 | $189.94 | |
| B | QO312L125GRB | 18.9" | 3 | 125A | 208/120/240V AC | Galvanized Steel | Tin Plated Copper | Included | - | $759.98 | |
| B | QO318L200GRB | 29.84" | 3 | - | 208/120/240V AC | Galvanized Steel | Tin Plated Copper | Included | - | $1,055.09 | |
| B | QO330L200GRB | 29.84" | 3 | 200A | 208/120/240V AC | Galvanized Steel | Tin Plated Copper | Included | - | $1,315.54 | |
| C | QO342L225GRB | 38" | 3 | 225A | 208/120/240V AC | Galvanized Steel | Tin Plated Copper | Included | - | $2,300.28 | |
| A | QO403L60NRB | 13.19" | 3 | 60A | 208/120/240V AC | Galvanized Steel | Tin Plated Aluminum | 5B718 | - | $324.96 | |

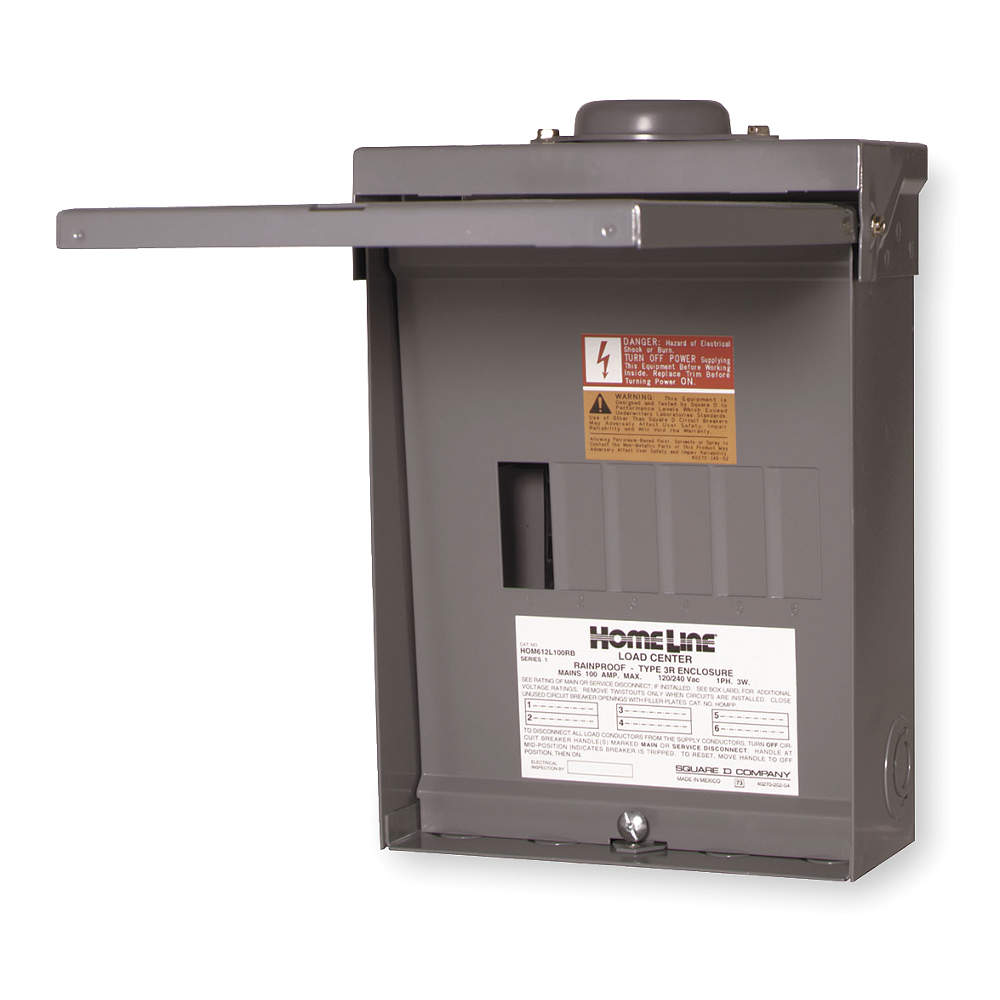

| D | QO612L100RB | 12 3/5" | 1 | 100A | 120/240V AC | Galvanized Steel | Tin Plated Aluminum | 1D374 | 6 | $259.90 |
