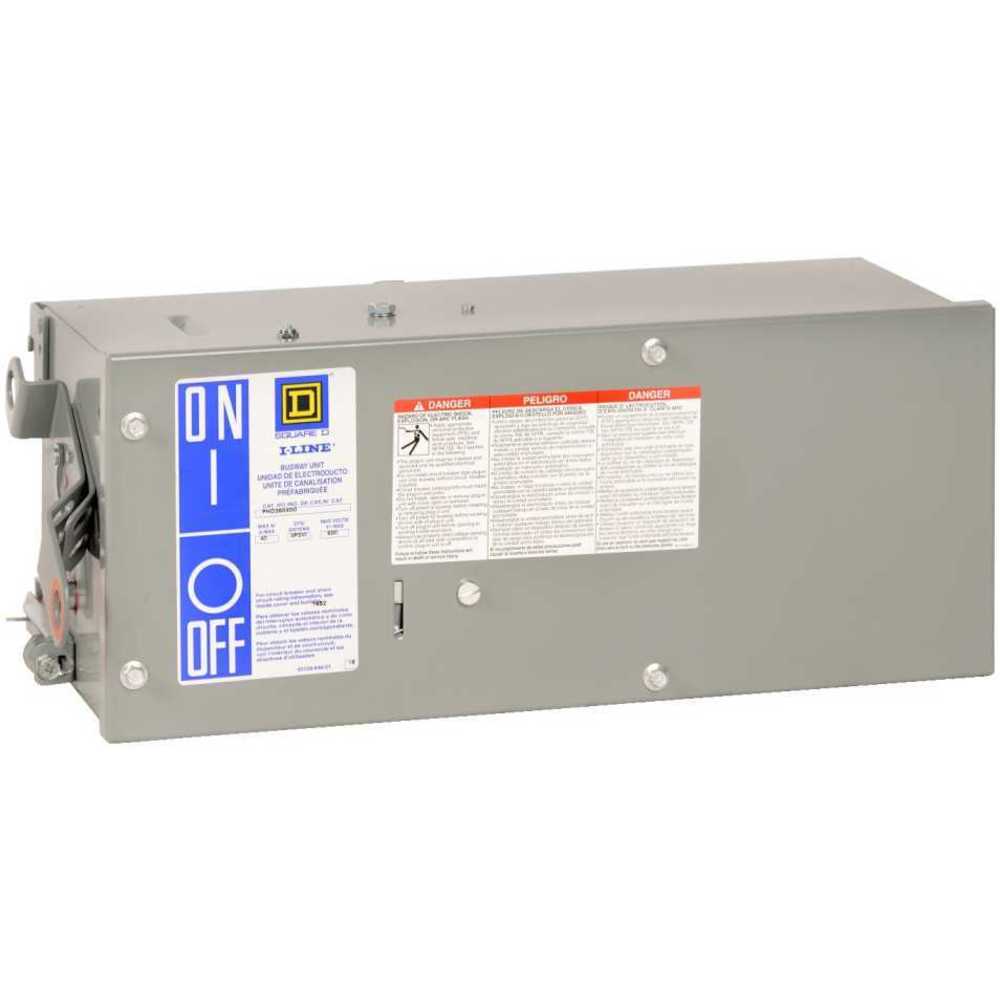

| Item | Busway Plug In Unit |
|---|---|
| Amps | 125A |
| Breaker Type | HD |
| Breaking Capacity Code | D |
| Class | Class 5600 |
| Component Type | Plug-In Unit |
| Depth | 8" |
| Disconnector Device Type | Thermal Magnetic Circuit Breaker |
| Enclosure Rating | NEMA 1 |
| For Use With | Se Square D I Line II Busway |
| Fuse Type | H |
| Fusible | No |
| Height | 20.333" |
|---|---|
| Module Type | H Frame |
| No. Of Wires | 3 |
| Number Of Poles | 3 |
| Phase | 3 |
| Phase/wire | 3 Phase, 3 Wire With Ground |
| Rated Operational Voltage | 600V |
| Returnability | No |
| Voltage | 600V AC |
| Width | 8 1/2" |
| Warranty | 18 Months |
| Height (cm) | 51.63 |
|---|---|
| Length (cm) | 20.32 |
| Width (cm) | 21.59 |
| HS Code | 8536304000 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 14.751 |
| Style | Model | Fusible | Phase/wire | Voltage | Amps | Depth | Height | Number Of Poles | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|
| A | PBPQO3A100 | No | 3 Phase, 3 Wire | 240V AC | 100A | 3 3/4" | 14 3/4" | 3 | $1,047.28 | |

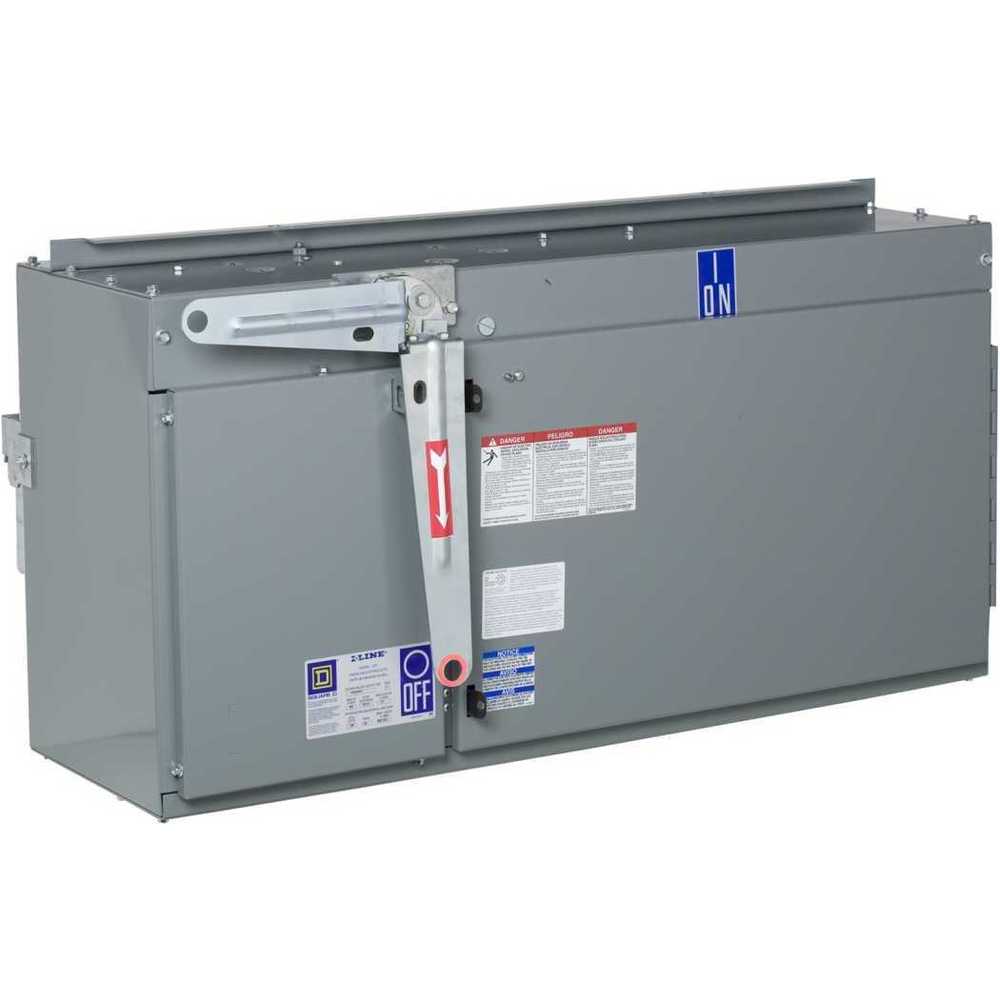

| B | PBQ3660G | Yes | 3 Phase, 3 Wire With Ground | 240/600V AC | 600A | 13 3/4" | 42" | 3 | $10,199.56 | |
| C | PBQ3640G | Yes | 3 Phase, 3 Wire With Ground | 240/600V AC | 400A | 13 3/4" | 42" | 3 | $8,605.49 | |

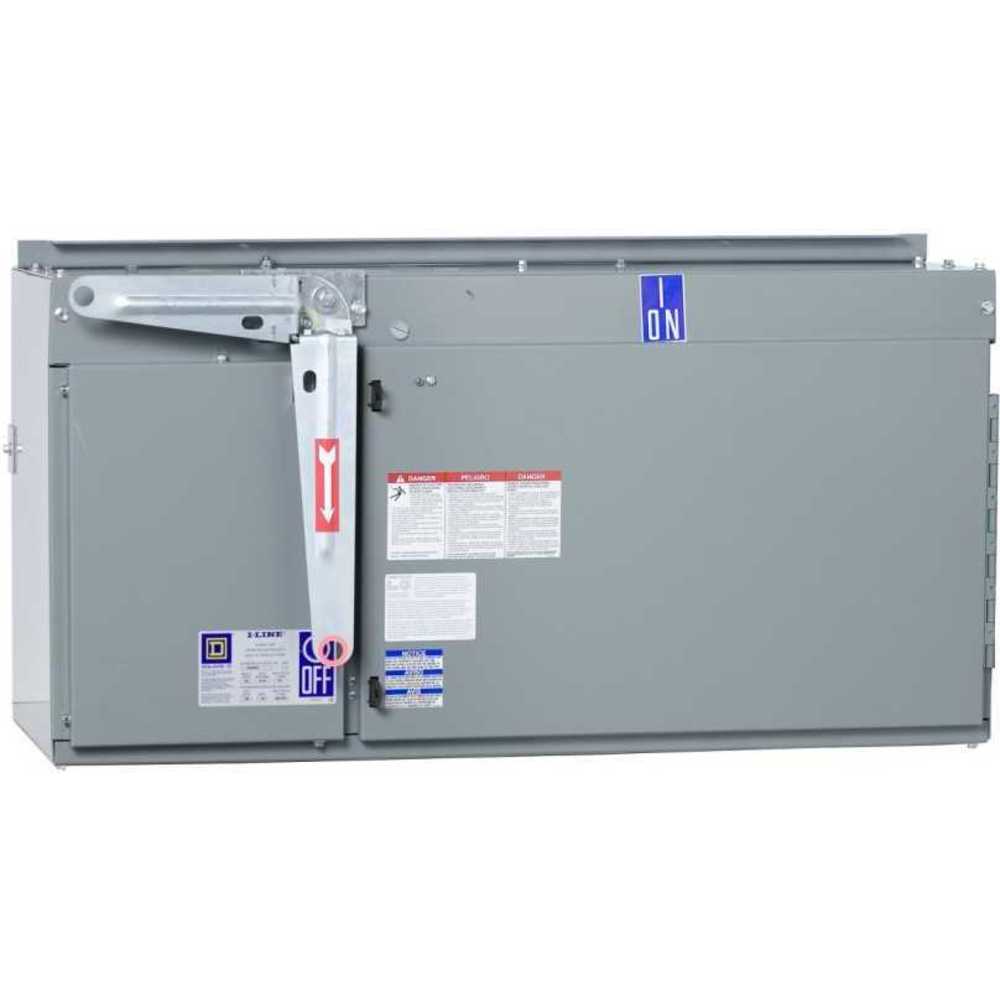

| D | PBQ4660G | Yes | 3 Phase, 4 Wire With Ground | 240/600V AC | 600A | 13 3/4" | 42" | 3 | $11,832.13 | |
| E | PS4220G | Yes | 3 Phase, 4 Wire With Ground | 240V AC | 200A | 11 13/32" | 16 13/64" | 3 | $5,695.09 | |

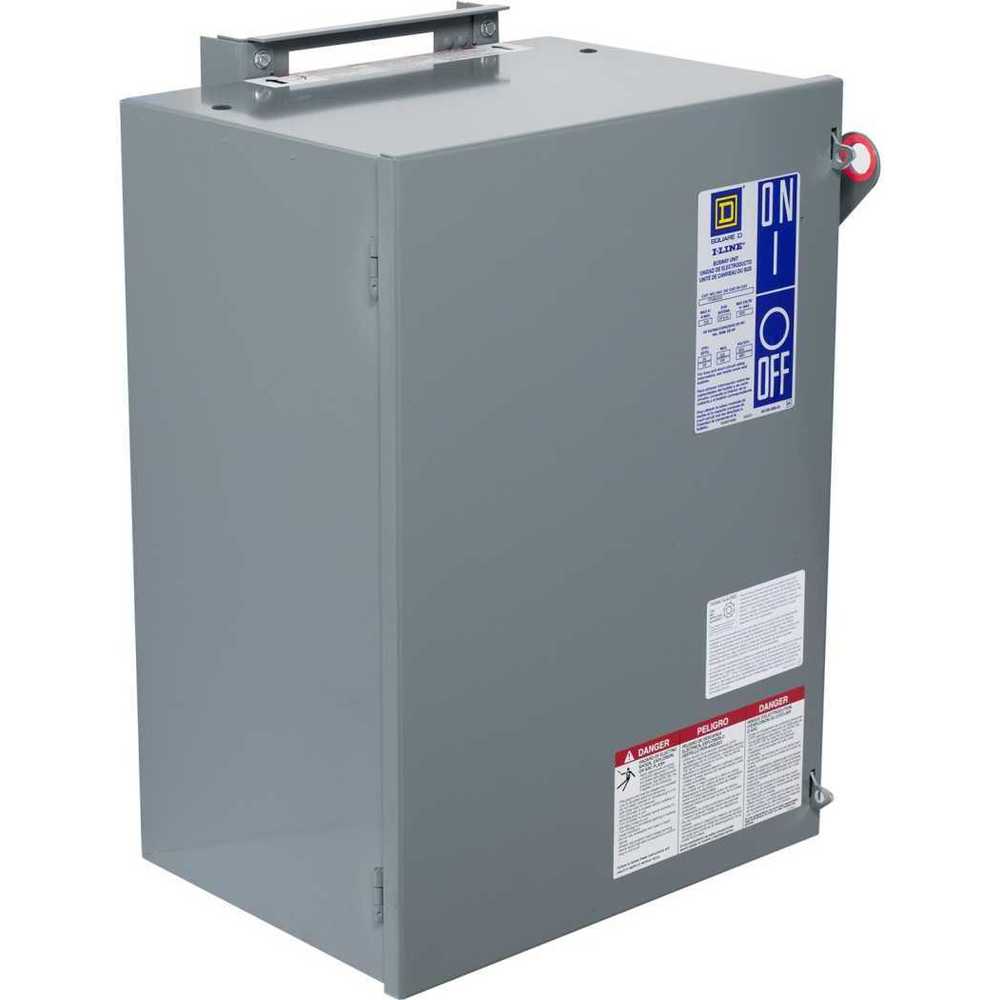

| F | PS4620G | Yes | 3 Phase, 4 Wire With Ground | 600V AC | - | 11 13/32" | 16 13/64" | 3 | $5,873.71 | |
| E | PQ3220G | Yes | 3 Phase, 3 Wire With Ground | 240V AC | 200A | 11 13/32" | 16 13/64" | 3 | $5,100.66 |
