| Item | Magnetic Motor Starter |
|---|---|
| Action Type | Non Reversing |
| Amps Rating | 27A |
| Auxiliary Contacts | Without |
| Auxiliary Contacts Included | No Auxiliary Contacts Included |
| Coil Frequency | 60 Hz |
| Coil Volts | 208V AC |
| Control Circuit Type | Separate |
| Depth | 3 1/2" , 4.22" |
| Enclosure Type | Open |
| Height | 6.81" , 6.9" |
| Horsepower @ Three Phase - 600v Ac | 10 hp |
| Hp @ 3 Phase - 208v | 7 1/2 hp |
| Hp @ 3 Phase - 230v | 7 1/2 hp |
| Hp @ 3 Phase - 240v | 7 1/2 hp |
| Hp @ 3 Phase - 480v | 10 hp |
| Hp @ 3 Phase - 575v | 10 hp |
| Hp Rating | 7 1/2 hp @ 200V AC, 7 1/2 hp @ 230V AC, 10 hp @ 460V AC, 10 hp @ 575V AC |
| Hz | 60 Hz |
| Includes Auxiliary Contacts | No |
| Includes Pilot Light | No |
| Max Current (ac) | 27A |
| Max. Overload Relay Current Setting | 27A |
| Maximum Voltage Rating | 600V AC |
| Minimum Overload Relay Current Setting | 9A |
| Nema Enclosure Rating | No Enclosure |
| Nema Size | 1 , NEMA 1 |
|---|---|
| No. Of Poles | 3 |
| Nominal Coil Voltage @ 60hz | 208V AC |
| Number Of Poles | 3 |
| Operator | Not Available |
| Overall Depth | 4.22" |
| Overall Height | 6.77" |
| Overall Width | 3 1/2" |
| Overload Protection Type | Electronic |
| Overload Relay Amp Setting | 9-27A |
| Overload Type | Solid State Motor Logic Class 10/20 |
| Phase | Three |
| Pilot Light | Without Pilot Light |
| Returnability | Yes |
| Reversing Capability | Non-reversing |
| Sccr | Circuit Breaker 70A Maximum 100 kA At 480V AC, Fuse J 60A Maximum 100 kA At 600V AC, Fuse T 60A Maximum 100 kA At 600V AC, Fuse RK1 60A Maximum 100 kA At 600V AC, Fuse RK5 60A Maximum 100 kA At 600V AC |
| Standards | Csa, Ul Listed |
| Starter Style | NEMA |
| Starter Type | NEMA , Non Reversing |
| Terminal Type | Screw Clamp Terminals |
| Thermal Units Required | None (Not Applicable to Electronic Overloads) |
| Trip Class | Class10, Class 20 |
| Width | 3.5" , 4 1/2" |
| Wire Termination Type | Screw Clamp |
| Warranty | 18 Months |
| Height (cm) | 14.73 |
|---|---|
| Length (cm) | 11.94 |
| Width (cm) | 20.57 |
| HS Code | 8536504000 |
|---|---|
| Country Of Origin | MX |
| Weight (kg) | 1.8 |
| Style | Model | Nema Size | Overload Relay Amp Setting | Amps Ac | Hz | Hp @ 3 Phase - 240v | Hp @ 3 Phase - 575v | Hp @ 3 Phase - 480v | Hp @ 3 Phase - 208v | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

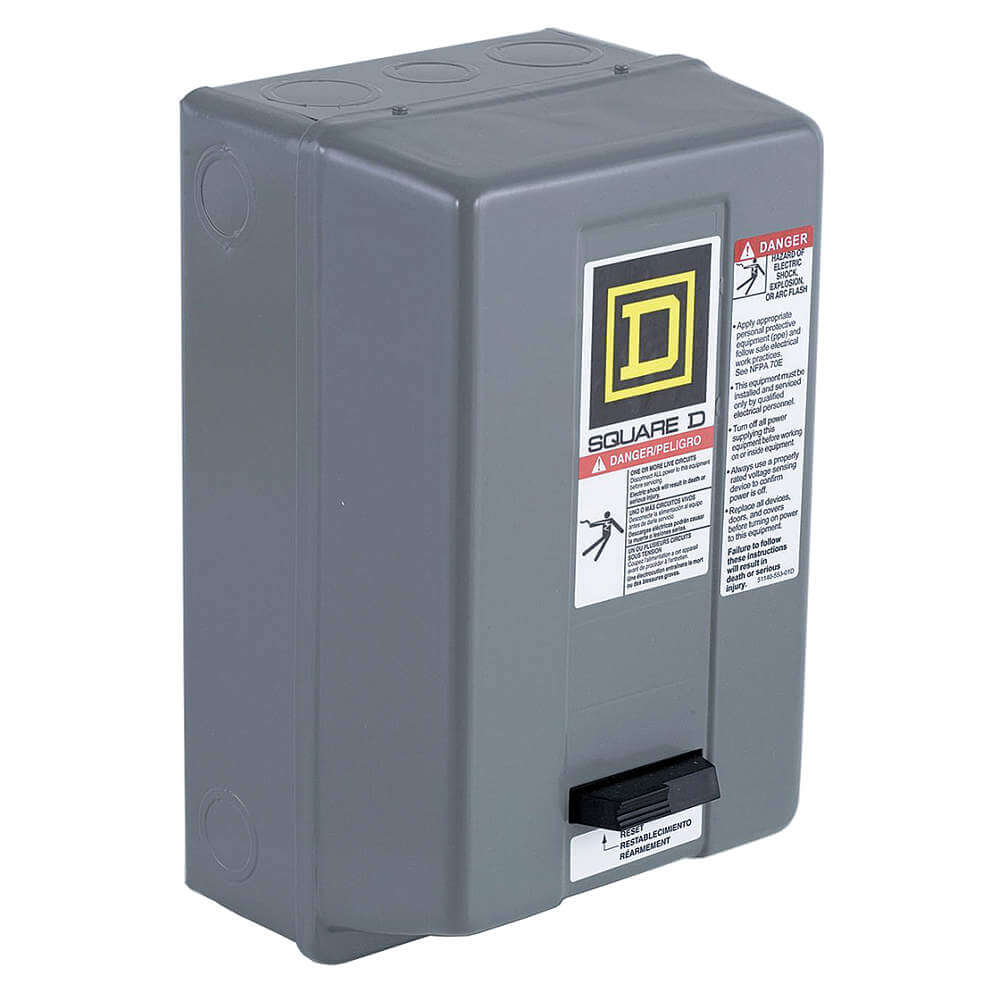

| A | 8536SAG12V02H30S | - | 3-9A | 9A | 50/60 Hz | 1 1/2 hp | 2 hp | 2 hp | 1 1/2 hp | $828.43 | |
| A | 8536SAG12V06H30 | - | 3-9A | 9A | 50/60 Hz | 1 1/2 hp | 2 hp | 2 hp | 1 1/2 hp | $793.85 | |
| A | 8536SAG12V08H30 | - | 3-9A | 9A | 60 Hz | 1 1/2 hp | 2 hp | 2 hp | 1 1/2 hp | $793.85 | |

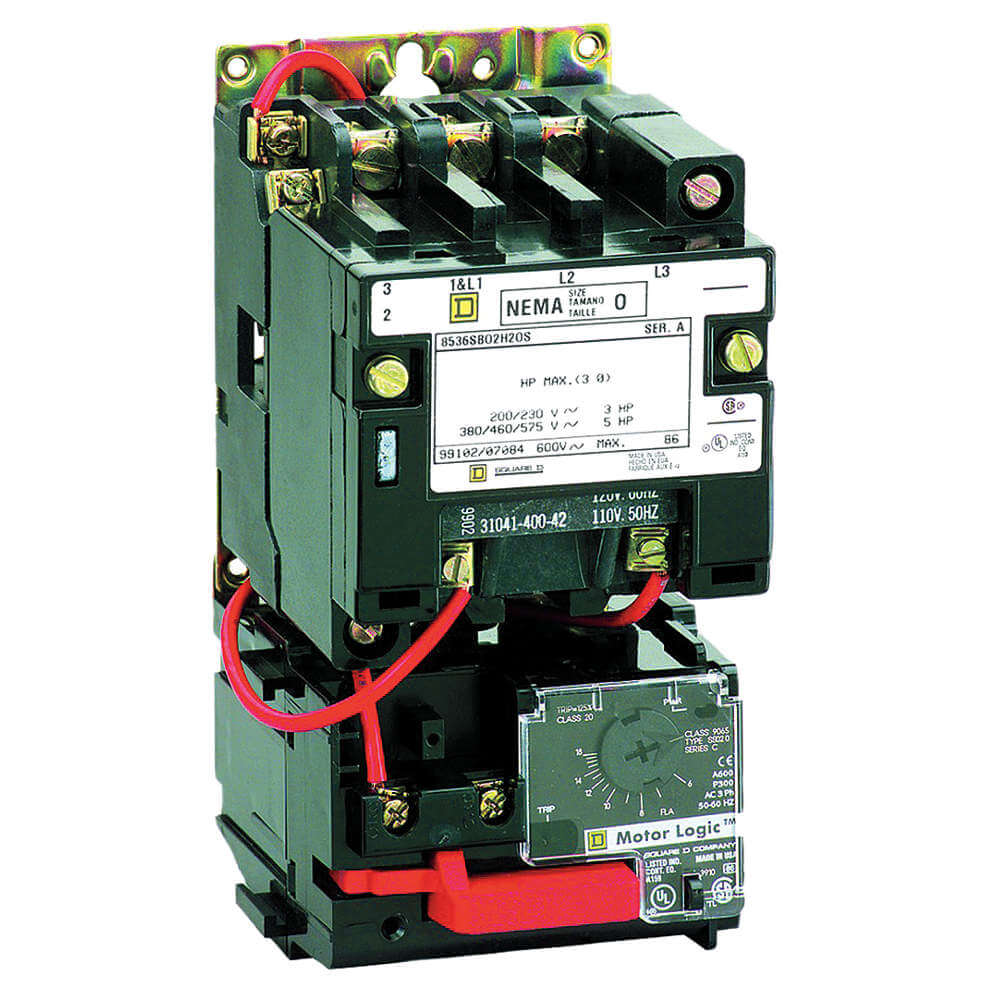

| B | 8536SAO12V02H30S | - | 3-9A | 9A | 50/60 Hz | 1 1/2 hp | 2 hp | 2 hp | 1 1/2 hp | $776.92 | |
| C | 8536SEG1V06H30 | 3 | 30-90A | 90A | 50/60 Hz | 30 hp | 50 hp | 50 hp | 25 hp | $2,954.52 | |
| C | 8536SFG1V02H30S | 4 | 40-135A | 135A | 50/60 Hz | 50 hp | - | 100 hp | - | $6,791.31 | |
| D | 8536SFO1V06H30 | 4 | 40-135A | 135A | 50/60 Hz | 50 hp | 100 hp | 100 hp | - | $5,289.26 |
