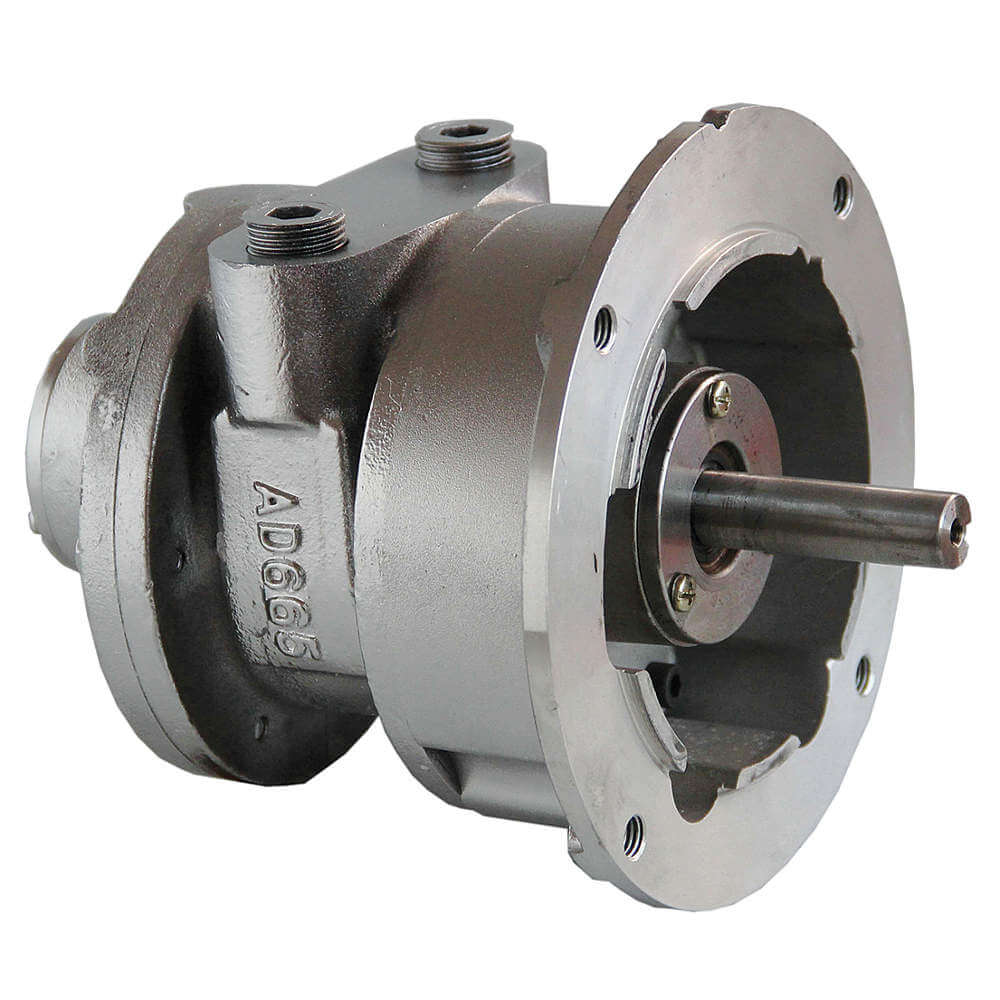

| Item | Air Motor |
|---|---|
| Air Consumption | 128 CFM |
| Air Inlet Port | 1/2" |
| Air Inlet Port Type | NPT |
| Bearing Protection | Not Applicable |
| Cfm | 130 CFM |
| Color | Gray |
| Finish | Gray |
| Height | 6 1/2" |
| Housing Material | Aluminum, Cast Iron |
| Housing Material Finish | Painted |
| Includes | Muffler |
| Inlet Gender | Female |
| Keyway Depth | 1/8" |
| Keyway Length | 1 3/8" |
| Keyway Type | Square |
| Keyway Width | 1/8" |
| Length | 8.29" |
| Length Less Shaft | Not Applicable |
| Material | Aluminum, Cast Iron |
| Max. Air Flow | 128 CFM |
| Max. Air Pressure | 100 psi |
| Max. Ambient Temp. | 250°F |
| Max. Flow Rate | 128 CFM |
| Max. Operating Pressure | 100 psi |
| Mfr. Warranty Length | 1 yr. |
| Min. Ambient Temp. | 0°F |
| Min. Flow Rate | 12.66 CFM |
| Motor Design | Not Applicable |
| Motor Frame Material | Cast Iron |
|---|---|
| Mount | Flange |
| Mount Hole Center To Center Length | Not Applicable |
| Mount Hole Center To Center Width | Not Applicable |
| Mounting Orientation | Any Angle |
| No Load Speed | 3000 RPM |
| No. Of Vane | 8 |
| Output Power | 4 hp |
| Output Power @ 25% Max. Speed | Not Applicable |
| Output Power @ 50% Max. Speed | Not Applicable |
| Output Shaft Type | Keyed |
| Outside Dia. | 5" |
| Overall Height | 6 1/2" |
| Overall Length | 8 1/8" |
| Overall Width | 6 1/2" |
| Rotation | Clockwise/Counter Clockwise |
| Rpm @ Max. Torque | 250 RPM |
| Shaft Dia. | 5/8" |
| Shaft Length | 2" |
| Shaft Material | Steel |
| Shaft Orientation | Inline |
| Starting Torque | Not Applicable |
| System Of Measurement | Inch |
| Temp. | 250°F |
| Torque @ Max. Pressure | 84 lbs.-in. |
| Type | Rotary Vane |
| Weight | 15.44 lbs. |
| Width | 6 1/2" |
| Height (cm) | 16.51 |
|---|---|
| Length (cm) | 20.65 |
| Width (cm) | 16.51 |
| HS Code | 8412390040 |
|---|---|
| Country Of Origin | CN |
| Weight (kg) | 7.524 |
