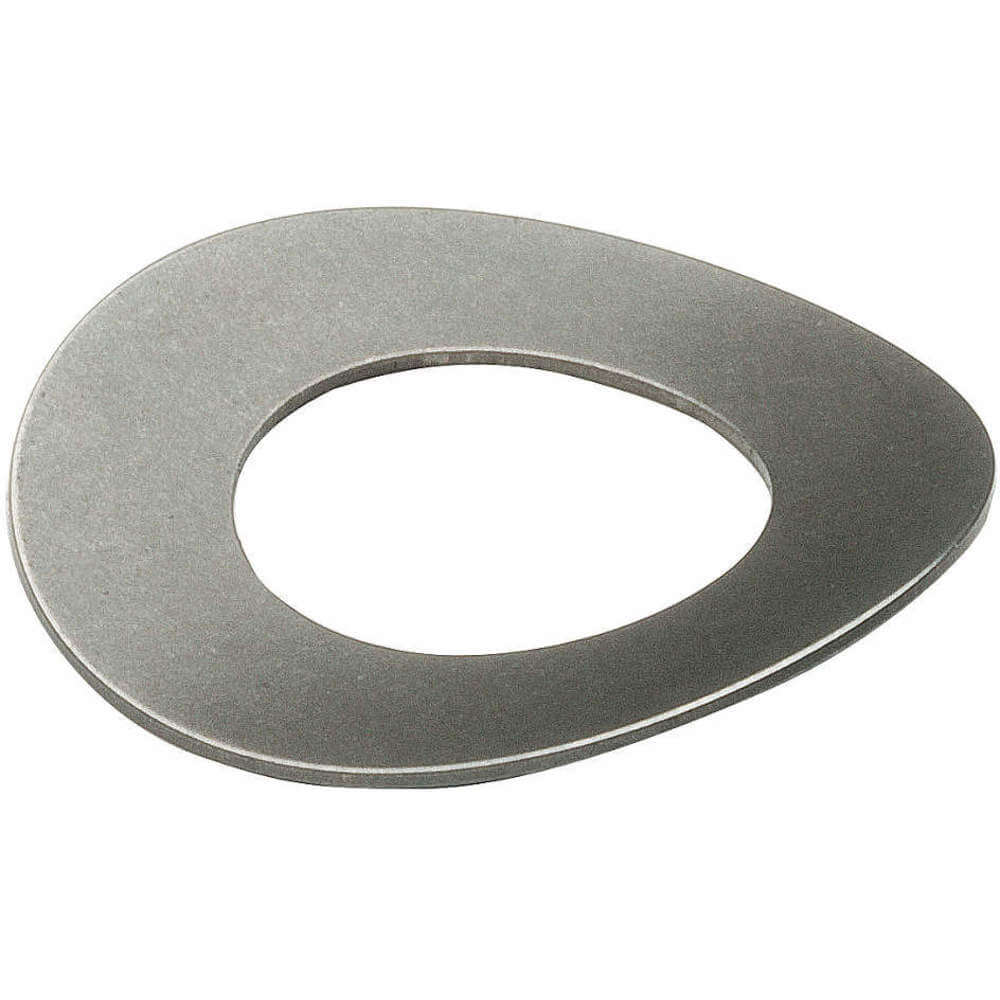

| Item | Disc Spring |
|---|---|
| Compatible Hole Diameter | 7/16" |
| Compatible Rod Size | 10" |
| Deflection @ Load | 0.02" |
| Disc Type | Curved Disc Spring |
| Finish | Plain |
| For Hole Size | 0.438" |
| For Rod Size | 0.19" |
| Inside Diameter | 0.2" |
| Load @ Deflection | 9 lbs. |
| Material | Stainless Steel |
|---|---|
| Max. Outside Dia. | 0.423" |
| Min. Inside Dia. | 1/5" |
| Outside Diameter | 0.42" |
| Overall Height | 0.05" |
| System Of Measurement | Imperial |
| Thickness | 0.011" |
| Type | Curved |
| Standards | ASTM A666 |
| Height (cm) | 0.76 |
|---|---|
| Length (cm) | 12.7 |
| Width (cm) | 3.56 |
| HS Code | 7318210090 |
|---|---|
| Weight (kg) | 0.0045 |

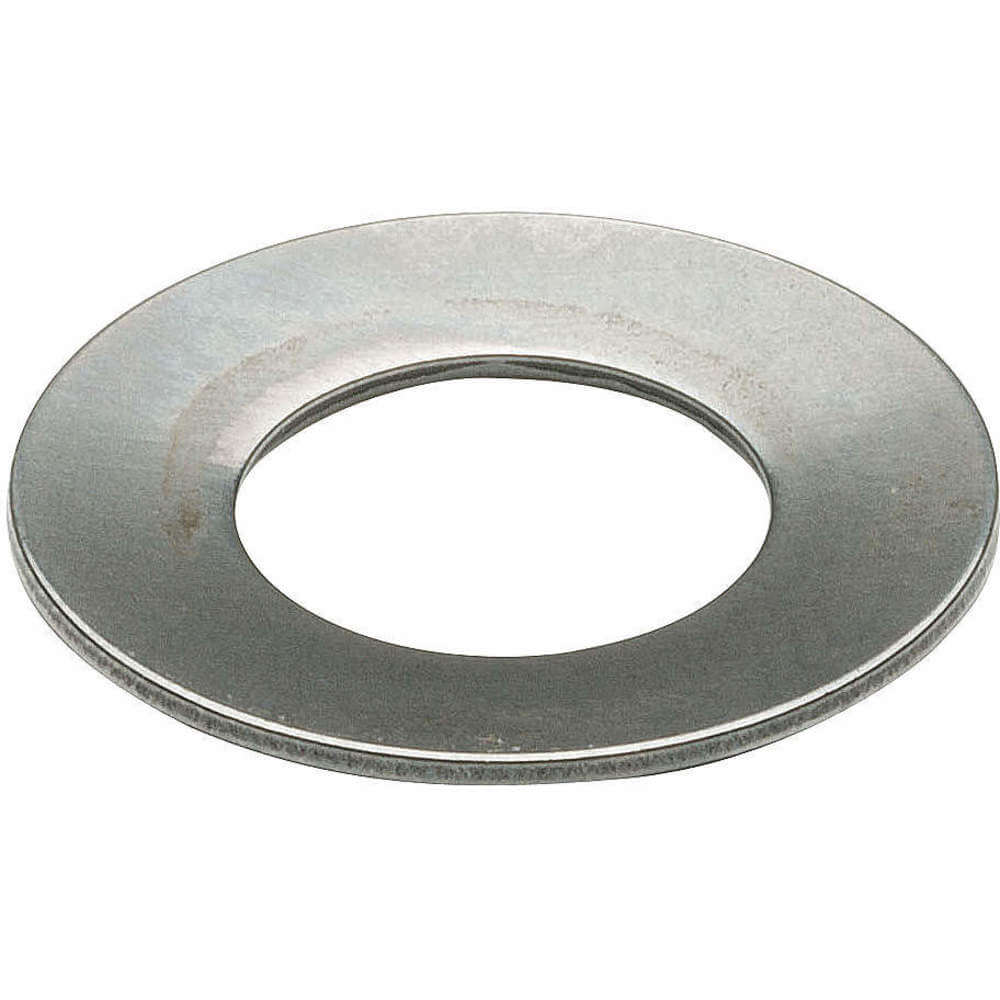

| Style | Model | Material | Thickness | Overall Height | Calculated Load @ Flat | Finish | Load @ Deflection | For Hole Size | Pkg. Qty. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B1250125 | Carbon Steel | 1/8" | 0.14" | 4421 lbf. | Oil | 2866 lbs. | 1 1/4" | 10 | $47.96 | |
| B | U1900050S | Stainless Steel | - | 0.05" | - | Plain | 1.12 lbs. | 0.344" | 25 | $40.11 | |
| B | U1900060S | Stainless Steel | 0.006" | 0.07" | - | Plain | 2.25 lbs. | 3/8" | 25 | $41.90 | |
| B | U1900065S | Stainless Steel | 0.006" | 1/25" | - | Plain | 1.75 lbs. | 0.344" | 25 | $41.90 | |
| B | U1900090S | Stainless Steel | 0.009" | 0.05" | - | Plain | 4.5 lbs. | 3/8" | 25 | $41.90 | |
| B | U1900113 | Carbon Steel | 0.011" | 0.05" | - | Plain | 9 lbs. | 0.438" | 25 | $44.67 | |
| A | B1750140 | Carbon Steel | 0.14" | 0.18" | 7441 lbf. | Oil | 4793 lbs. | 1 3/4" | 10 | $117.19 |
