| Item | Push Button Operator |
|---|---|
| Action | Momentary |
| Action Type | Momentary |
| Basic Material | Metal |
| Bezel Finish | Chrome Plated |
| Bezel Material | Metal |
| Cad Overall Depth | 28 mm |
| Cad Overall Height | 29 mm |
| Cad Overall Width | 29 mm |
| Color | White |
| Device Presentation | Basic Element |
| Features | Double Head, Snap Fit Assembly |
| Head Material | Metal |
| Head/lens Color | White |
| Ip Rating | IP66 |

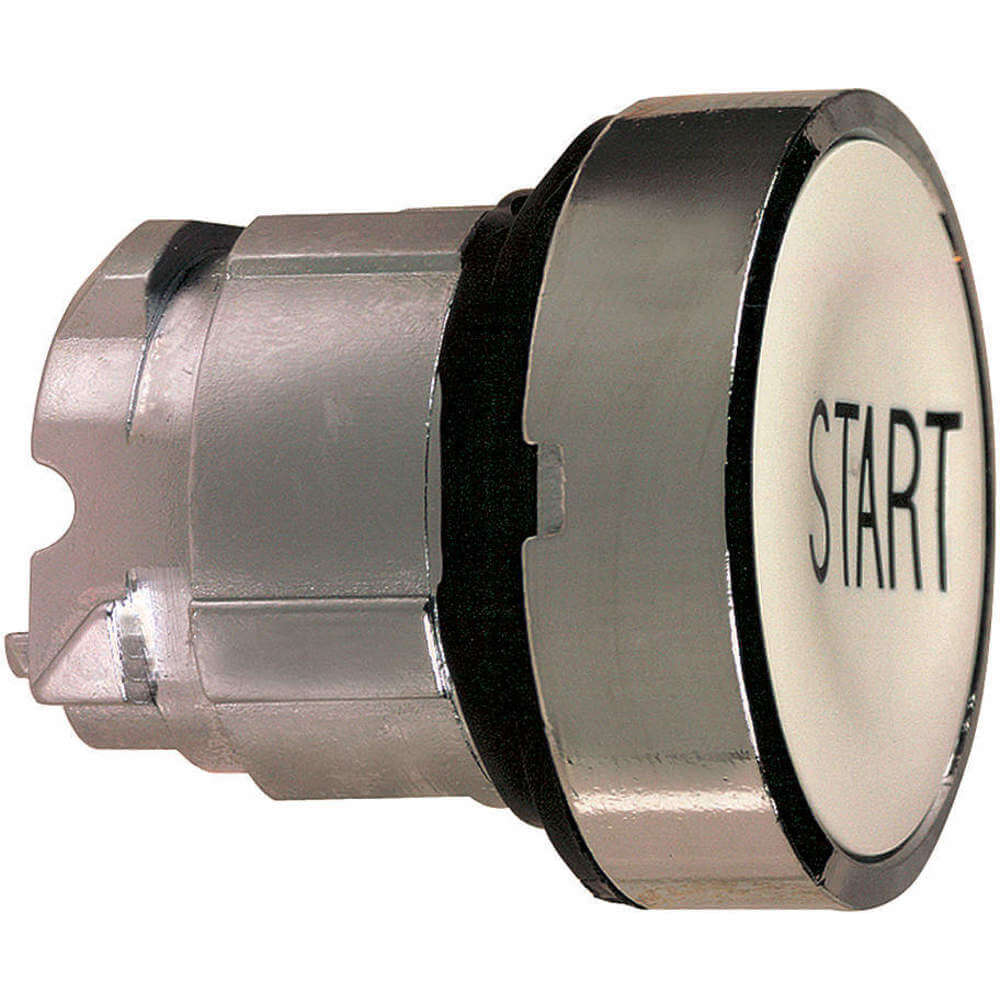

| Legend | Start |
| Legend Background Color | White |
| Legend Color | Black |
| Legend/background Color | Black, White |
| Manufacturer Warranty Length | 18 Months |
| Mounting Diameter | 22 mm |
|---|---|
| Nema Enclosure Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| Nema Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 4, NEMA 4X, NEMA 13 |
| Number Of Indicator Lights | 0 |
| Number Of Operators | 1 |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -40°F |
| Operator Illumination | Non Illuminated |
| Operator Material | Metal |
| Overall Depth | 1.1" |
| Overall Height | 1.14" |
| Overall Width | 1.14" |
| Panel Mounting Hole Diameter | 22 mm |
| Product Type | Push Button Operators |
| Push Button Style | Flush |
| Resistance Properties | Dust Resistant, Impact Resistant, Vibration Resistant, Watertight |
| Series | XB4 Series |
| Shape Of Signaling Unit Head | Round |
| Type Of Operator | Full Guard |
| Standards | BUREAU VERITAS, CLASS I IEC 60536, CSA C22.2 NO.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH FREE OF SVHC, ROHS, UL 508 |
| Height (cm) | 8.89 |
|---|---|
| Length (cm) | 7.11 |
| Width (cm) | 7.11 |
| HS Code | 8538908060 |
|---|---|
| Country Of Origin | FR |
| Weight (kg) | 0.045 |
| Style | Model | Head Material | Type Of Operator | Color | Legend | Bezel Material | Ip Rating | Diameter | Legend/background Color | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

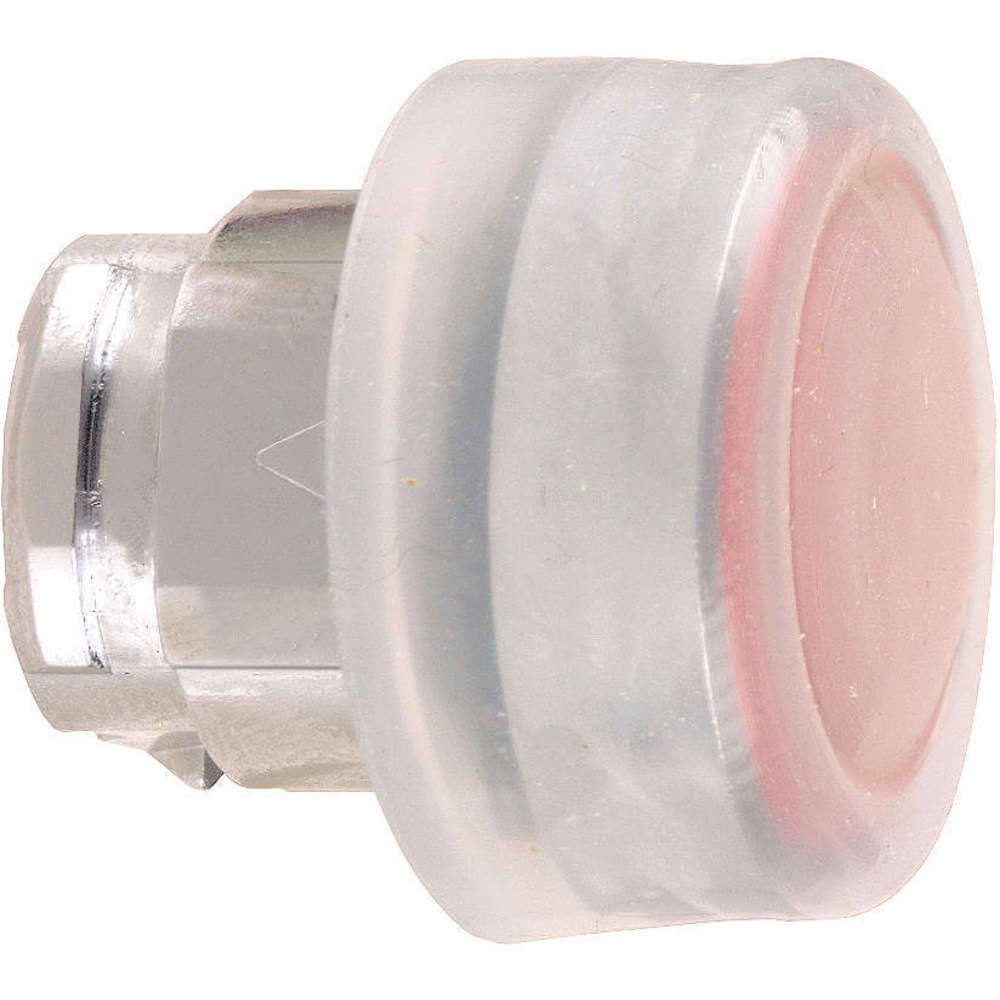

| A | ZB4BPA4 | Metal | Booted | Red | No Legend | Metal | IP66 | - | - | $47.77 | |
| B | ZB4BPA5 | Metal | Booted | Yellow | No Legend | Metal | IP66 | - | - | $47.77 | |

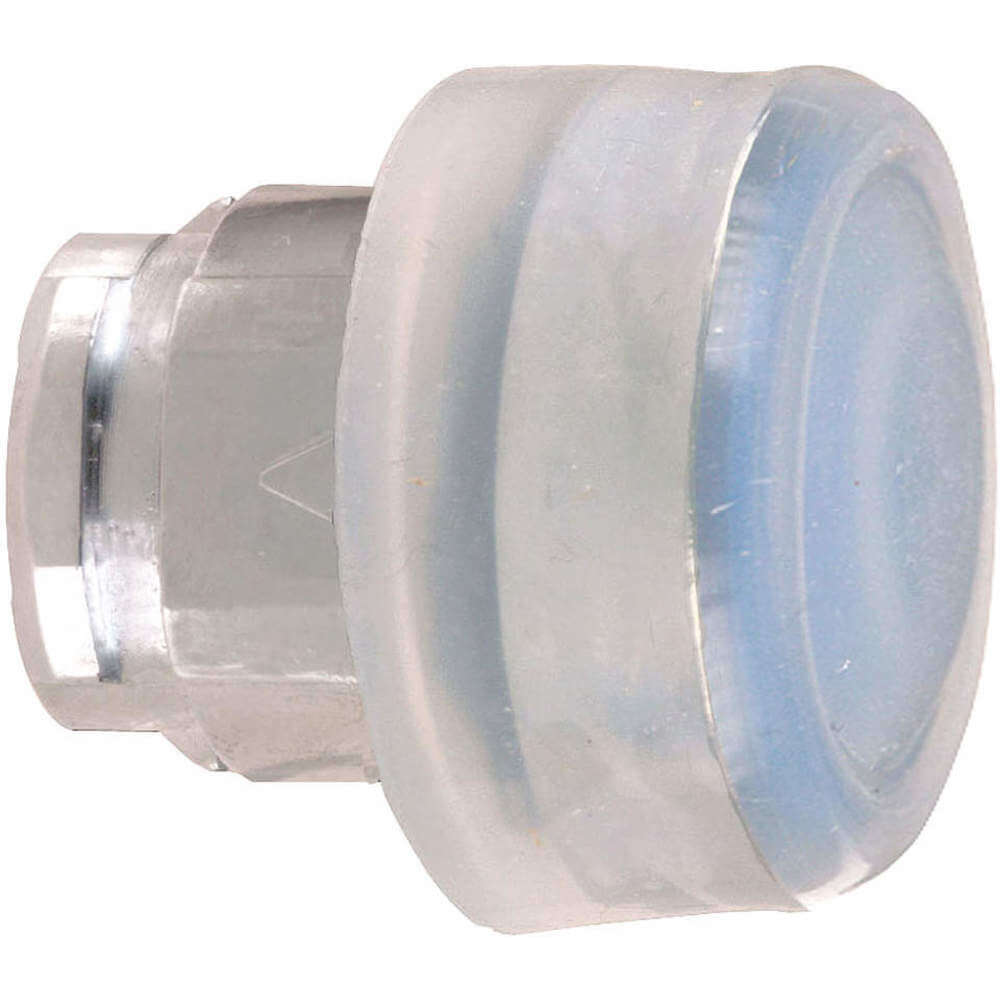

| C | ZB4BPA6 | Metal | Booted | Blue | No Legend | Metal | IP66 | - | - | $47.77 | |
| D | ZB4BPA2 | Aluminum, Zinc | Booted | Black | No Legend | Die Cast Aluminum | - | - | - | $47.77 | |
| D | ZB4BPA3 | Metal | Booted | Green | No Legend | Metal | IP66 | - | - | $47.77 | |

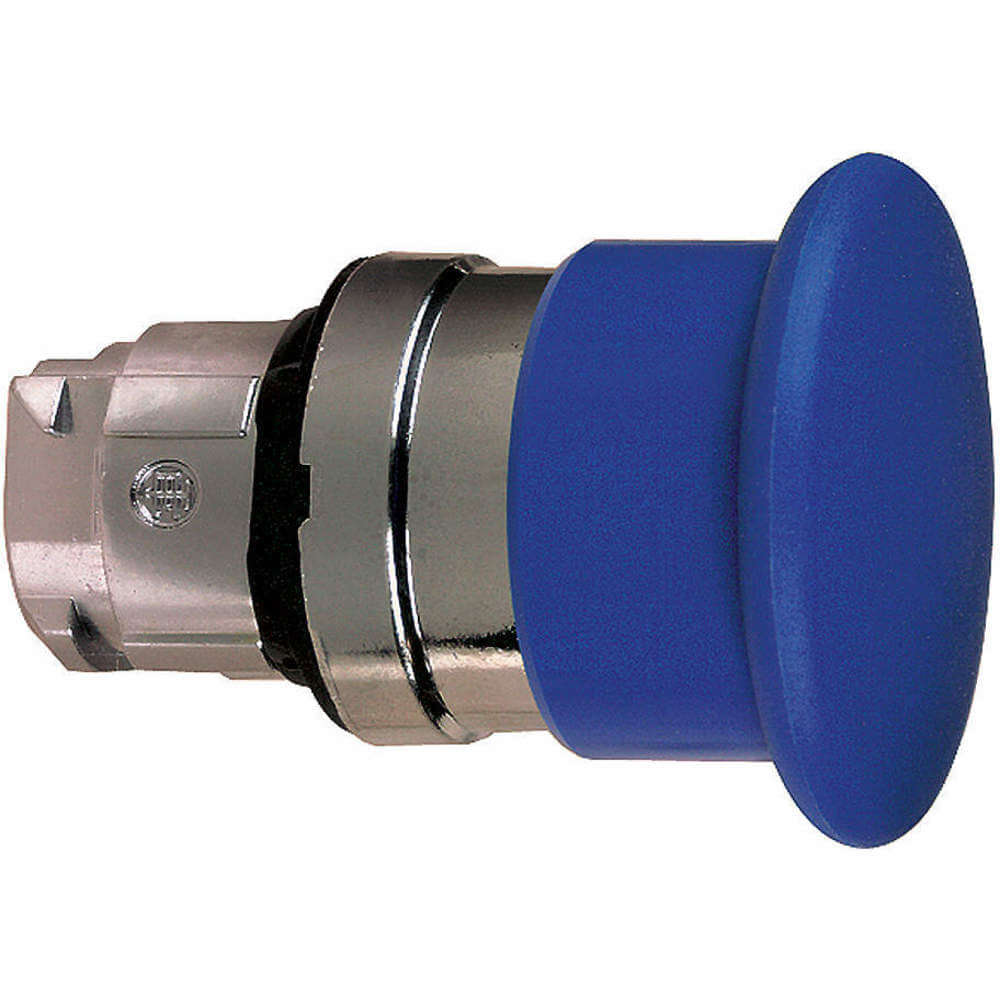

| E | ZB4BC6 | Metal | - | Blue | No Legend | Metal | IP66, IP67, IP69, IP69K | 40 mm | - | $56.79 | |

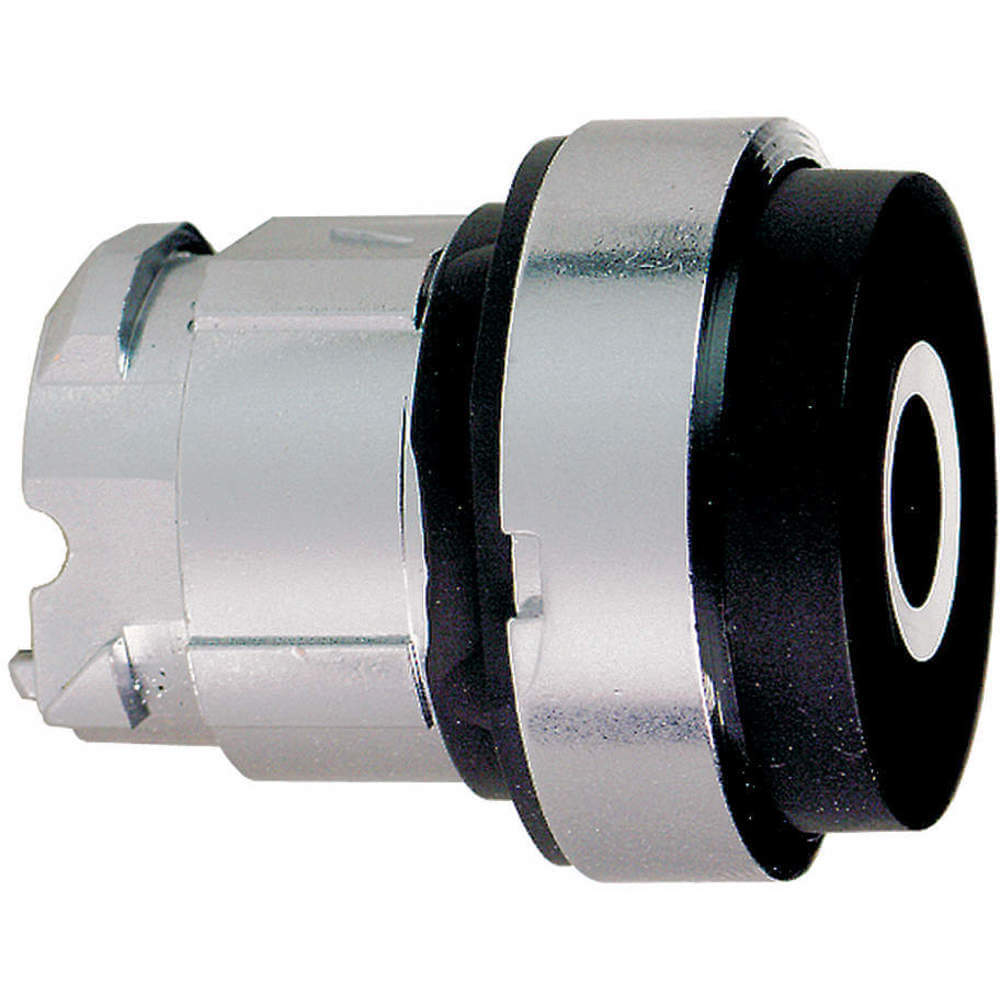

| F | ZB4BL232 | Aluminum, Zinc | No Guard | Black | O | Die Cast Aluminum | - | - | Black, White | $33.83 |
