| Item | Contactor |
|---|---|
| Action Type | Reversing |
| Auxiliary Contacts Included | 1NO/1NC |
| Coil Voltage | 24V DC |
| Contactor Style | IEC |
| Contactor Type | IEC |
| Electrical Operating Durability | 1000000, 1650000 |
| Enclosure Type | Open |
| Height | 3.54" |
| Horsepower @ Single Phase - 120v Ac | 1 hp |
| Horsepower @ Single Phase - 240v Ac | 3 hp |
| Horsepower @ Three Phase - 208v Ac | 5 hp |
| Horsepower @ Three Phase - 600v Ac | 15 hp |
| Hp @ 3 Phase - 208v | 5 hp |
| Hp @ 3 Phase - 230v | 5 hp |
| Hp @ 3 Phase - 240v | 5 hp |
| Hp @ 3 Phase - 480v | 10 hp |
| Hp @ 3 Phase - 575v | 15 hp |
| Hz | 50/60 Hz |
| Includes | Electrical Interlock |
| Includes Auxiliary Contacts | Yes |
| Inductive Full Load Amps | 18A |
|---|---|
| Integrated Surge Suppression | Yes |
| Ip Rating | IP20 |
| Main Power Pole Contact Form | 3NO |
| Maximum Operating Temperature | 140°F |
| Maximum Voltage Rating | 690V AC |
| Mechanical Operating Durability | 30000000 |
| Minimum Operating Temperature | -40°F |
| Nema Enclosure Rating | No Enclosure |
| Nominal Coil Voltage @ 60hz | 24V DC |
| Number Of Poles | 3 |
| Overall Depth | 3.74" |
| Overall Height | 3.03" |
| Overall Width | 3.54" |
| Resistive Full Load Amps | 32A |
| Reversing Capability | Reversing |
| Series | Tesys Deca |
| Width | 3.54" |
| Wire Termination Type | Screw Clamp |
| standard | BV, CCC, CSA, CSA C22.2 NO 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL LISTED |
| Height (cm) | 7.7 |
|---|---|
| Length (cm) | 9.5 |
| Width (cm) | 8.99 |
| HS Code | 8536490065 |
|---|---|
| Country Of Origin | FR |
| Weight (kg) | 1.0575 |
| Style | Model | Reversing Capability | Auxiliary Contacts Included | Nominal Coil Voltage @ 60hz | Integrated Surge Suppression | Full Load Current (inductive) | Full Load Current (resistive) | Height | Action Type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

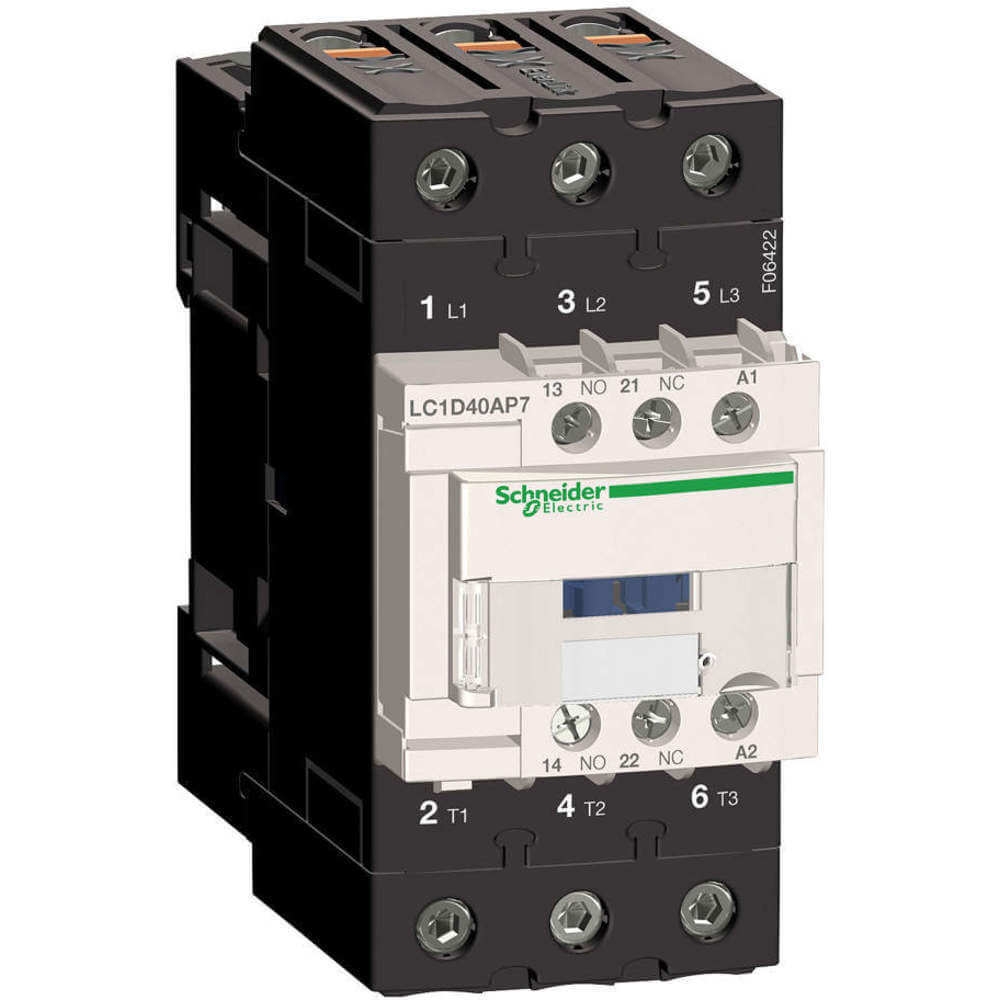

| A | LC1D40ALE7 | Non-reversing | 1NO/1NC | 208V AC | No | - | - | 2.17" | Non Reversing | $354.16 | |

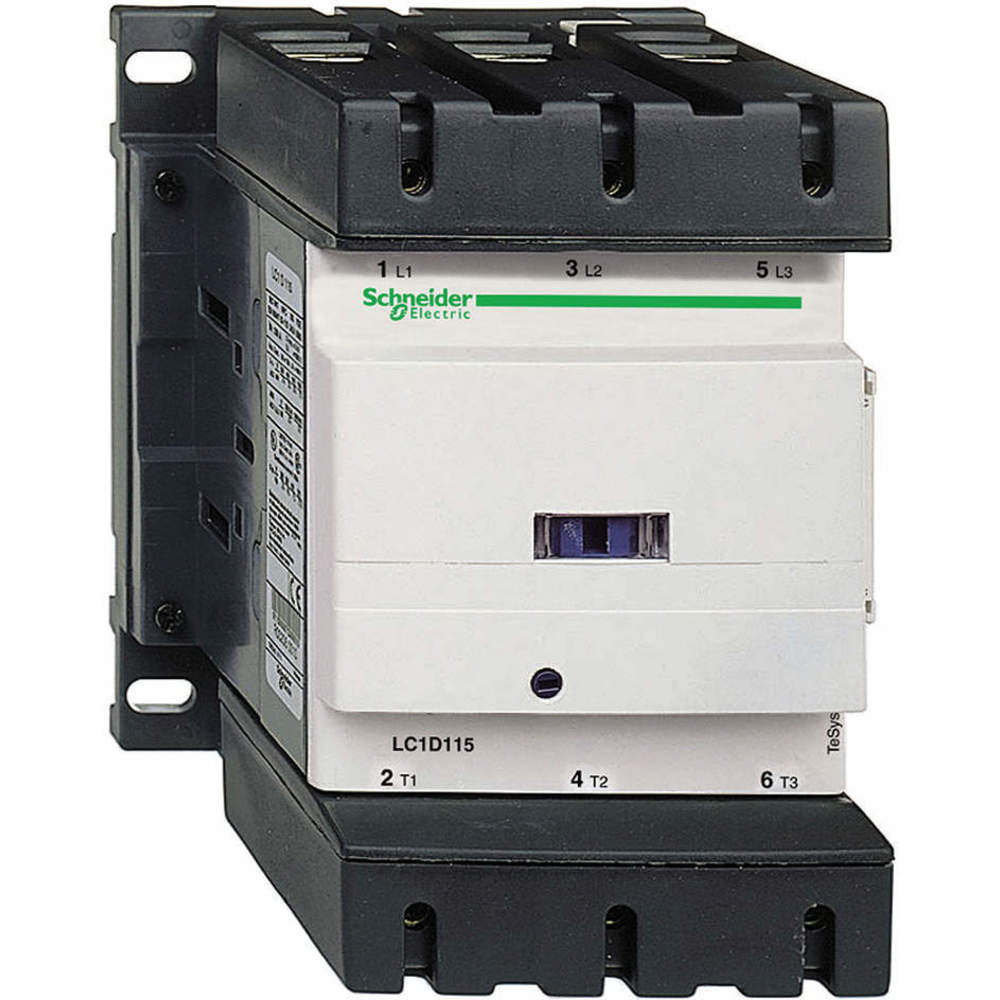

| B | LC1D115LE7 | Non-reversing | 1NO/1NC | 208V AC | Yes | 115A | 200A | 6.22" | Non Reversing | $986.60 | |

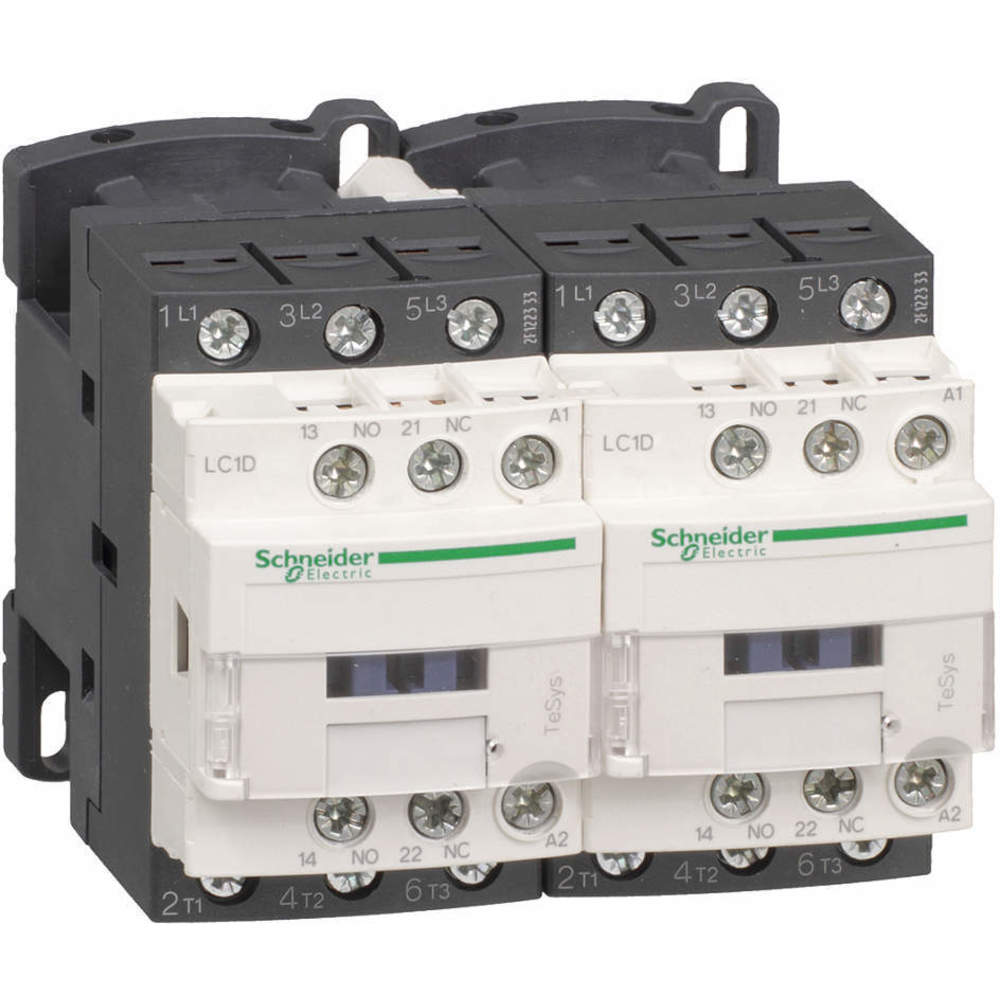

| C | LC2D09B7 | Reversing | 1NO/1NC | 24V AC | No | - | - | 3 4/5" | Reversing | $272.89 | |

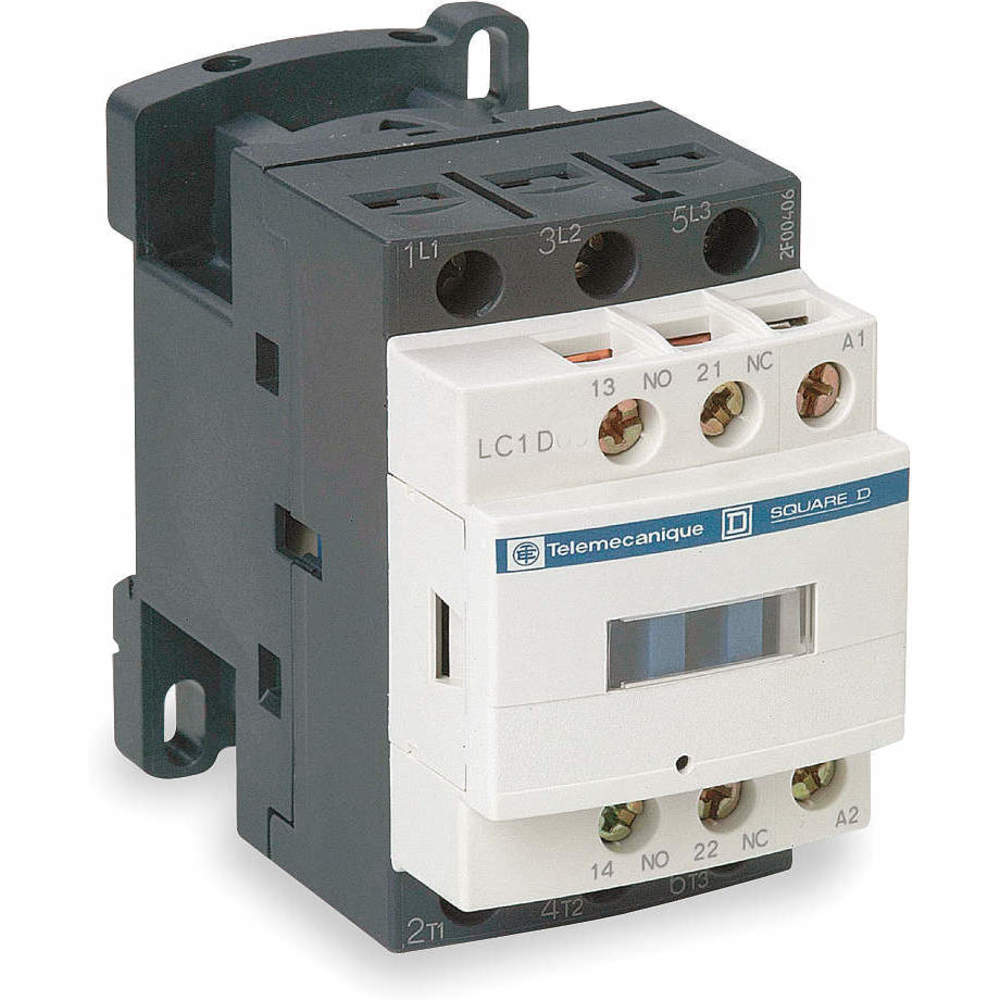

| D | LC1D09BD | - | - | - | - | - | - | 1.77" | Non Reversing | $128.07 | |
| D | LC1D09T7 | Non-reversing | 1NO/1NC | 480V AC | No | - | - | 1.77" | Non Reversing | $118.16 | |

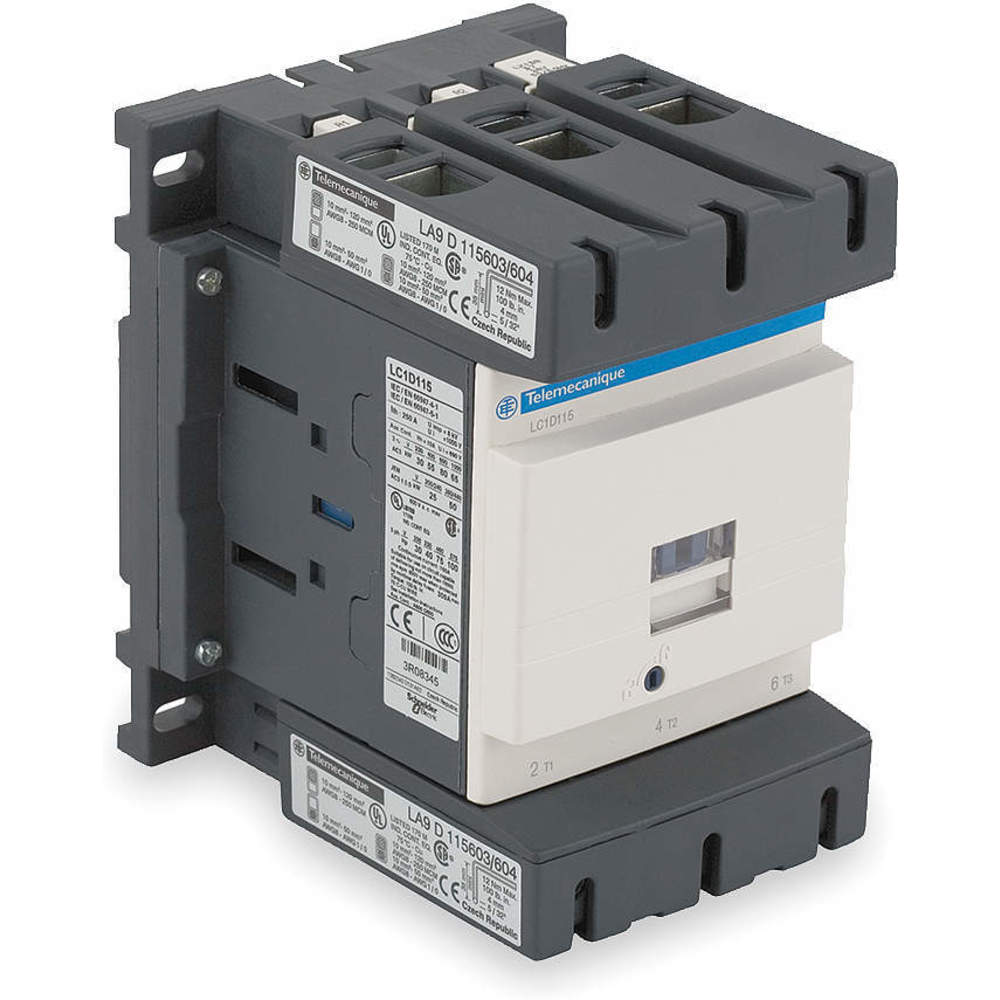

| E | LC1D115B7 | Non-reversing | 1NO/1NC | 24V AC | Yes | - | - | 4.33" | Non Reversing | $986.60 | |
| E | LC1D115BD | Non-reversing | 1NO/1NC | 24V DC | Yes | - | - | 4.33" | Non Reversing | $962.62 |
