| Item | Line Strainer |
|---|---|
| Application | Car Wash, Drinking Water Prefilters, Floor Scrubbers, Medical Devices, Pressure Washers |
| Body Material | Nylon |
| Bowl Color | Clear |
| Color | White |
| Connection Gender | Female |
| Connection Type | NPT |
| Diameter | 4" |
| Flow Rate | 8 GPM |
| For Use With | Water |
| Gasket Material | Viton |
| Grade | 304 |
| Height | 6 7/16" |
| Includes Screen | Yes |
| Incoming Tube Size | 1" |
| Length | 5" |
| Material | Nylon |
|---|---|
| Material Grade | Grade 304 |
| Max. Fluid Temp. | 125°F |
| Max. Pressure | 100 psi |
| Maximum Pressure | 100 psi @ 125°F |
| Maximum Pressure At 100°f | 100 Psi @ 125°F |
| Maximum Temperature | 125°F |
| Micron Rating | 305 |
| Outgoing Tube Size | 1" |
| Pipe Size | 1" |
| Screen | Stainless Steel |
| Screen Area | 29.73 sq. in. |
| Screen Material | Stainless Steel |
| Screen Mesh Size | 48 mesh |
| Strainer Type | Mesh |

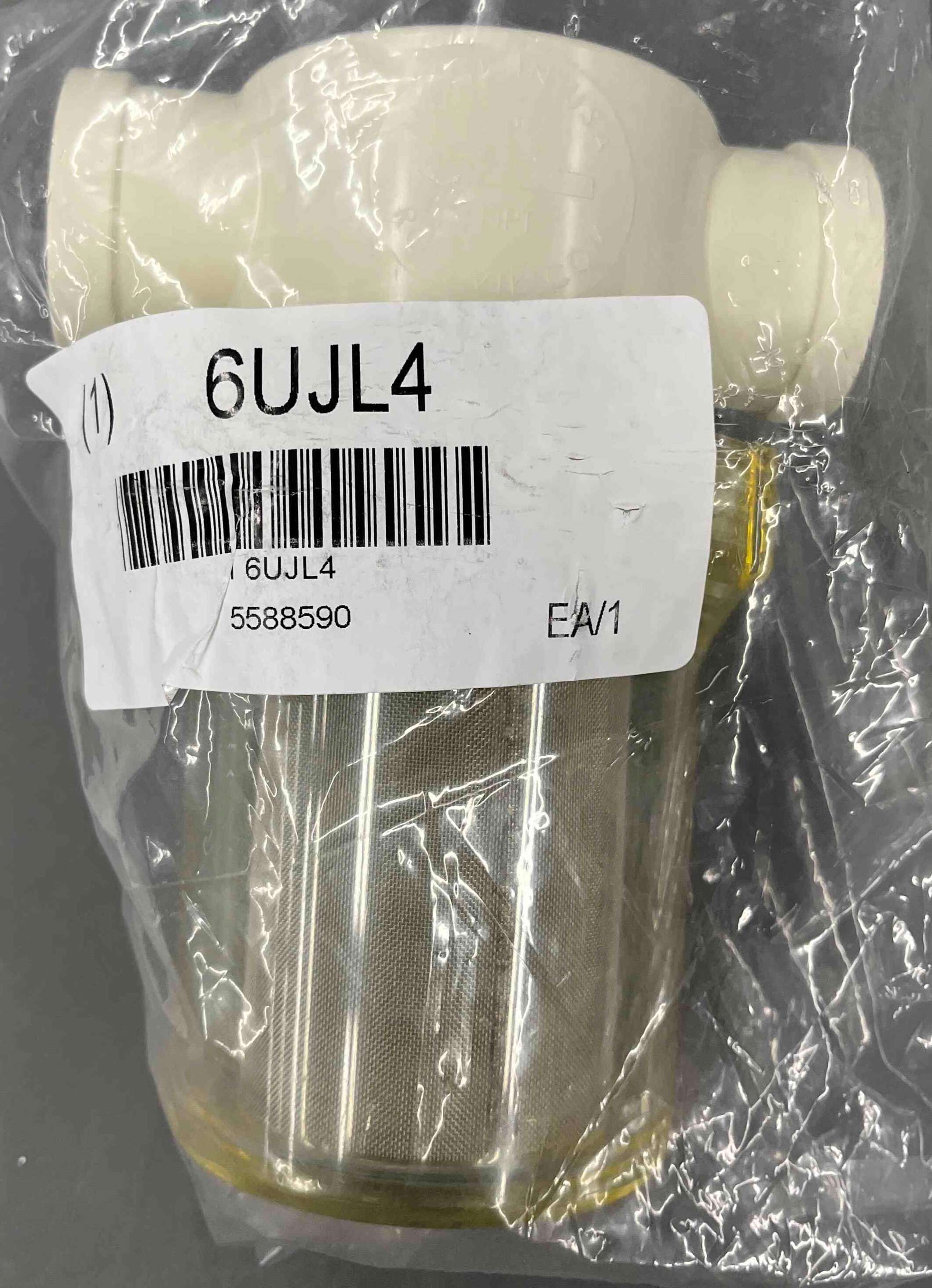

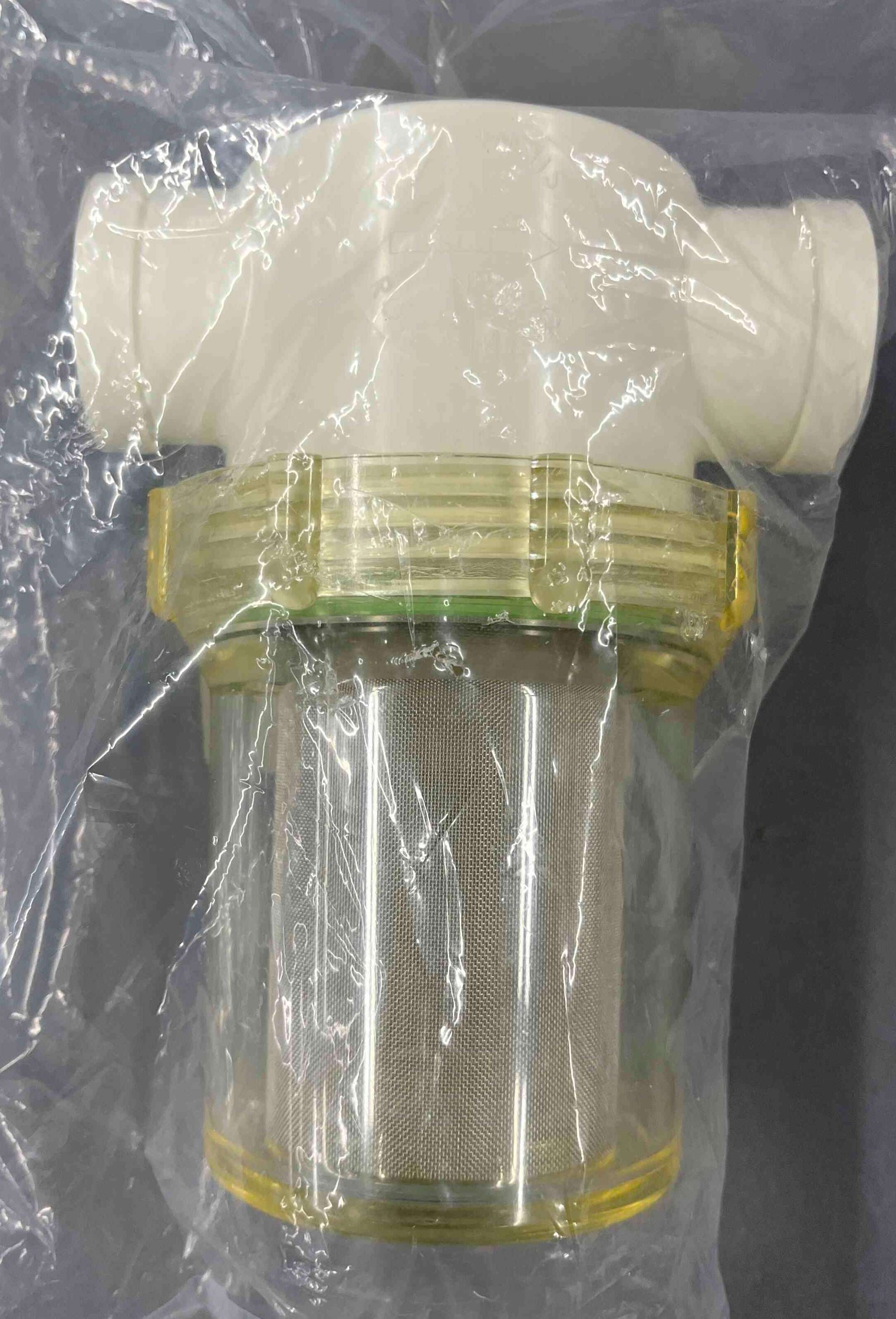

Ron-Vik 5588590 (6UJL4) in-line strainer is ideal for cost-effective straining & filtering of floating debris from tubes containing water in pressure washers, agricultural sprayers, floor scrubbers & pre-filters. This Ron-Vik inline strainer protects valves, pumps & other sensitive equipment from damage.
| Height (cm) | 11.43 |
|---|---|
| Length (cm) | 17.27 |
| Width (cm) | 13.21 |
| HS Code | 8421290065 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 0.405 |
Ron-Vik 5588590 (6UJL4) inline strainer can withstand a maximum pressure of 100 psi at a maximum temperature of 125 degrees F and a maximum pressure of 150 psi at 70 degrees F.
This Ron-Vik inline strainer has a flow rate of 8 gpm.
Ron-Vik 5588590 (6UJL4) inline strainer has a screen with a 48 mesh size and a 305-micron rating.
| Style | Model | Pipe Size | Height | Bowl Color | Flow Rate | Diameter | Incoming Tube Size | Outgoing Tube Size | Gasket Material | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 7221290 | 1/4" | 2 7/16" | Clear | 0.5 GPM | 3" | 1/4" | 1/4" | EPDM | $31.33 | |
| B | 7221490 | 3/8" | 2 7/16" | White | 1.5 GPM | 3" | 3/8" | 3/8" | EPDM | $31.33 | |
| B | 7221690 | 1/2" | 3" | White | 2 GPM | 3" | 1/2" | 1/2" | - | $31.33 | |
| C | 7221790 | 1/2" | 2 7/16" | Clear | 2 GPM | 3" | 1/2" | 1/2" | EPDM | $40.40 | |
| C | 7221990 | 1.25" | 7 1/8" | Clear | 14.5 GPM | 5" | 1 1/4" | 1 1/4" | EPDM | $138.03 | |
| C | 7222190 | 1.5" | 8" | Clear | 15 GPM | 5" | 1 1/2" | 1 1/2" | EPDM | $142.84 | |
| D | 7221590 | 3/8" | 2 7/16" | White | 1.5 GPM | 3" | 3/8" | 3/8" | EPDM | $39.37 |
