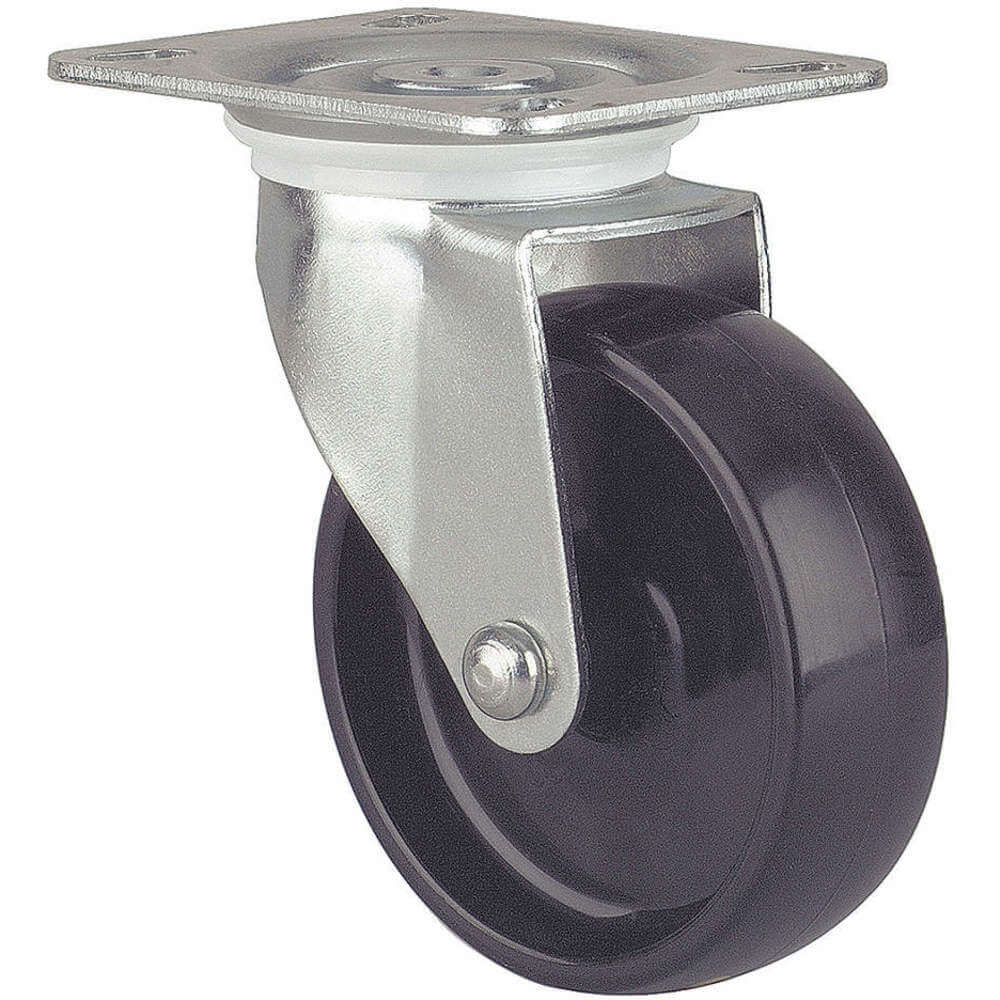

| Item | Swivel Plate Caster |
|---|---|
| Application | General Purpose |
| Bearing Type | Single Ball |
| Brake Type | Total Lock |
| Caster Brake Included | Yes |
| Caster Brake Type | Total Lock Brake |
| Caster Frame Material | Steel |
| Caster Load Rating Range | 300 lbs. to 999 lbs. |
| Caster Material | Nylon |
| Caster Product Group | Swivel Caster With Total Lock |
| Caster Sub-type | Swivel |
| Caster Temp. Range Available | Yes |
| Caster Type | Swivel |
| Caster Wheel Material | Nylon |
| Caster Wheel Shape | Standard |
| Core Color | Black |
| Core Material | Nylon |
| Durometer | 80 Shore D |
| Extended Lead | No |
| Frame Finish | Zinc Plated |
| Frame Material | Steel |
| Hole Pattern | A |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 1 3/4" x 3" |
| Load Rating | 330 lbs. |
| Lock Type | Total Lock |
| Mounting Bolt Dia. | 5/16" |
| Mounting Height | 6" |
| Mounting Plate Bolt Hole Pattern | A |
| Mounting Plate Size | 3 1/8" x 4" |
|---|---|
| Mounting Plate Size & Bolt Hole Pattern | 3 1/8" X 4" ( A ) |
| Non-marking | Yes |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Operating Temp. Range | +14°F to +104°F |
| Outside Bolt Hole Spacing | 2 3/8" x 3 3/16" |
| Overall Height | 6" |
| Plate Size | 3 1/8" x 4" |
| Plate Thickness | 1/8" |
| Plate Type | A |
| Raceway Type | Single Ball |
| Standards | Icwm |
| Swivel Construction | Kingpin |
| Swivel Lock Type | Total Lock |
| Swivel Raceway Type | Single Ball |
| Tread Shape | Standard |
| Wheel Bearing Type | Plain |
| Wheel Bearings | Plain Bore |
| Wheel Color | Black |
| Wheel Core Material | Nylon |
| Wheel Diameter | 5" |
| Wheel Material | Nylon |
| Wheel Width | 1 1/4" |
| Wheel/tread Color | Black |
| Wheel/tread Hardness | 80 Shore D |
| Wheel/tread Hardness Rating | Hard |
| Wheel/tread Material | Nylon |
| Height (cm) | 8.89 |
|---|---|
| Length (cm) | 14.99 |
| Width (cm) | 14.22 |
| HS Code | 8302200000 |
|---|---|
| Country Of Origin | GB |
| Weight (kg) | 1.0125 |
| Style | Model | Inside Bolt Hole Spacing | Outside Bolt Hole Spacing | Caster Brake Type | Wheel Width | Wheel/tread Material | Caster Load Rating Range | Load Rating | Mounting Height | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | TSSV 100 BN0S TS | 1 3/4" x 3" | 2 3/8" x 3 3/16" | Total Lock Brake | 1 1/4" | Nylon | 300 lbs. to 999 lbs. | 330 lbs. | 5" | $37.83 | |
| B | TSED 050 RN0D B | 1 1/2" x 1 1/2" | 1 7/8" x 1 7/8" | Face Contact Brake | 3/4" | Rubber | 1000 lbs. to 2999 lbs. | 110 lbs. | 2 11/16" | $9.89 |
