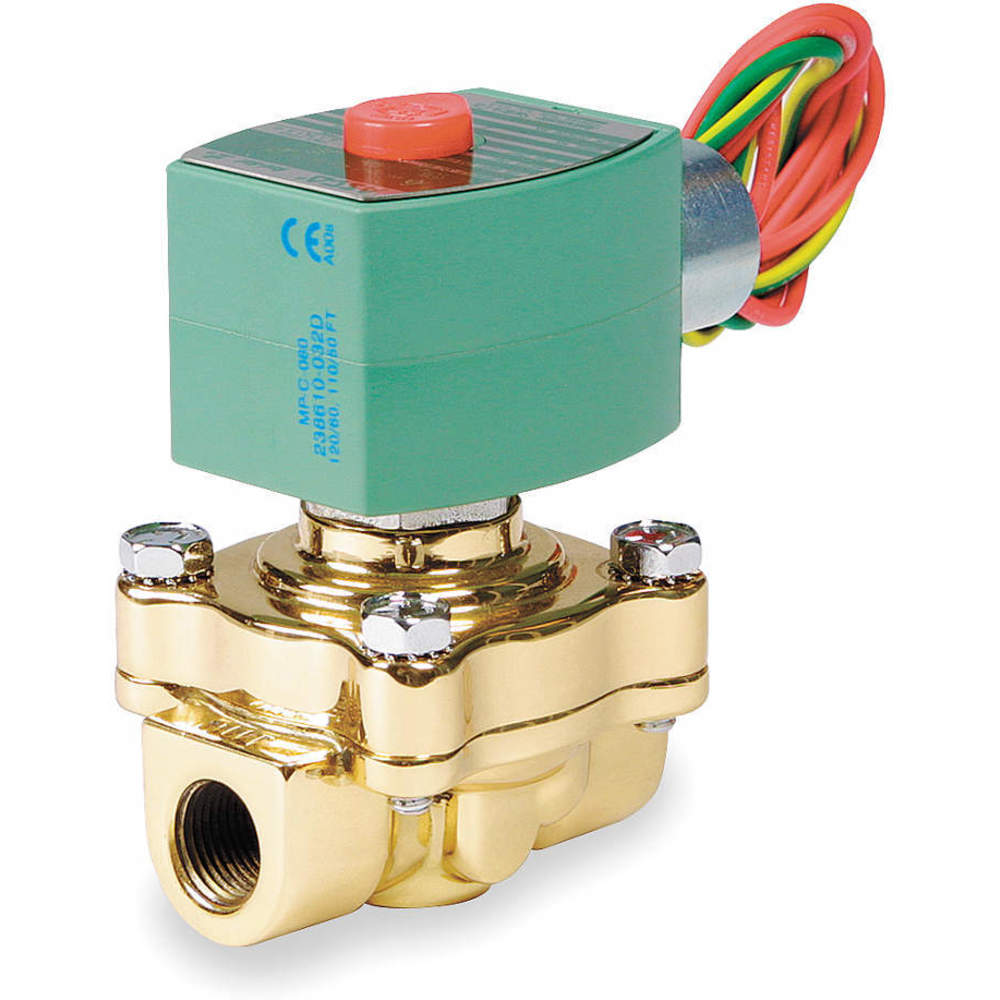

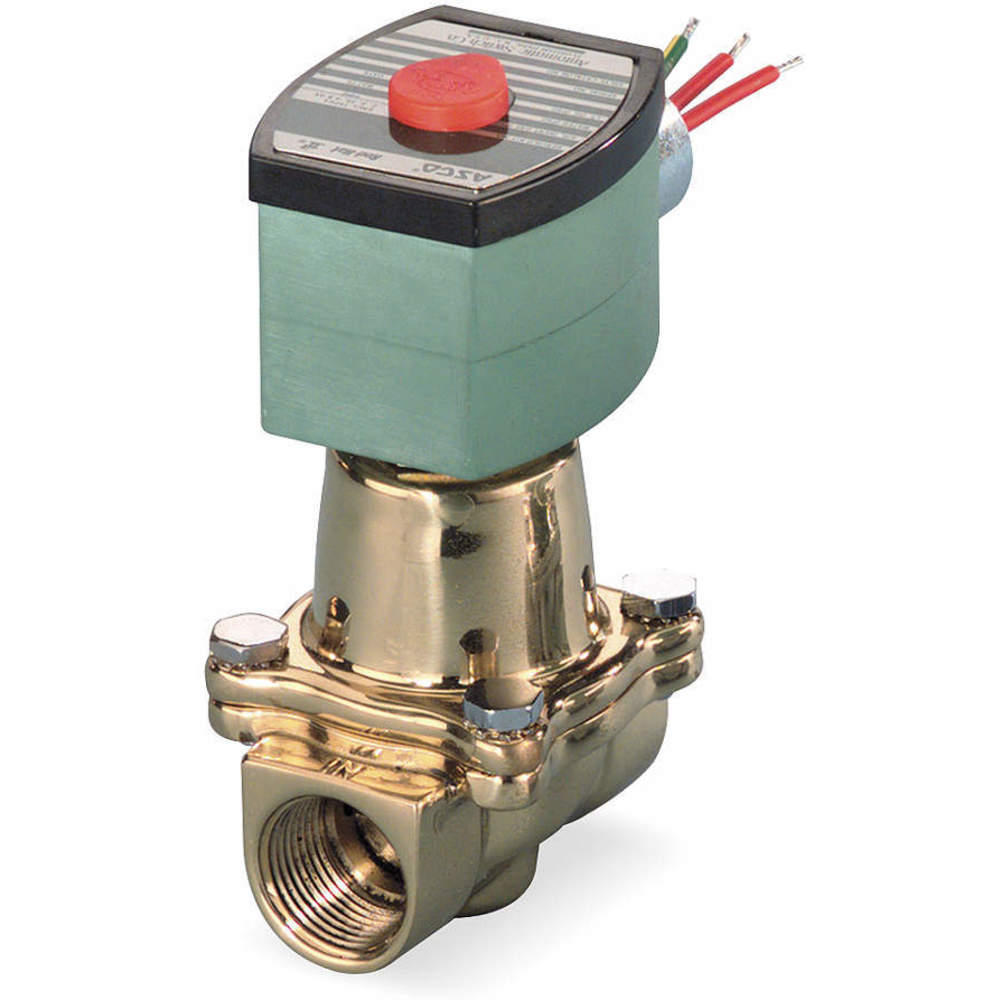

| Item | Hot Water Solenoid Valve |
|---|---|
| Ambient Temp. Range | 125°F |
| Application | Autoclave, Laundry, Molding, Sterilizers |
| Body Material | Brass |
| Center Line Pipe Center Size | 3.562" |
| Class | Class F |
| Coefficient Of Volume | 3 , 5.5 |
| Coefficient Of Volume (cv) | 3 |
| Coil Enclosure | Watertight No Junction Box |
| Coil Insulation Class | F |
| Electrical Connections | 1/2" Conduit W/18" Leads |
| For Media | Hot Water |
| Frequency | 50/60 Hz |
| Hz | 50/60 Hz |
| Includes Coil | Yes |
| Includes Seal | Yes |
| Inlet Connection Type | NPTF |
| Max. Fluid Temperature | 210°F |
| Max. Operating Pressure Differential - Hot Water | 150 psi |
| Max. Operating Pressure Differential - Steam | Not Rated |
| Nema Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X |
|---|---|
| Operating Environment | Corrosive, Hazardous, Indoor, Outdoor |
| Operation Type | Pilot Operated |
| Orifice Dia. | 3/4" |
| Orifice Diameter | 3/4" |
| Outlet Connection Type | NPTF |
| Overall Height | 4 5/16" |
| Overall Length | 2 23/32" |
| Overall Width | 3 7/16" |
| Pipe Size | 3/4" |
| Seal Material | EPDM |
| Standards | Csa, Ul Listed |
| Valve Configuration | Normally Closed |
| Valve Positions | 2 Position |
| Valve Type | Slow Closing |
| Valve Ways | 2-Way |
| Voltage | 110/120V AC |
| Wattage | 6.1 W |
| Watts | 6.1 W |
| Height (cm) | 12.95 |
|---|---|
| Length (cm) | 10.67 |
| Width (cm) | 8.13 |
| HS Code | 8481809005 |
|---|---|
| Country Of Origin | MX |
| Weight (kg) | 1.26 |
| Style | Model | Pipe Size | Coil Enclosure | Orifice Dia. | Min. Operating Pressure Differential | Coefficient Of Volume | Overall Height | Overall Length | Overall Width | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 8210G001HW | 3/8" | Watertight | 5/8" | 5 psi | 3 | 3 3/8" | 2 3/4" | 2 9/32" | $305.23 | |
| B | 8210G002HW | 1/2" | Watertight | 5/8" | 5 psi | 4 | 3 3/8" | 2 3/4" | 2 9/32" | $330.37 | |
| A | 8210G093HW | 3/8" | Watertight | 5/8" | 0 psi | 3 | 3 27/32" | 2 3/4" | 2 1/4" | $390.56 | |
| B | 8210G094HW | 1/2" | Watertight No Junction Box | 5/8" | 0 psi | - | 3.844" | 2 3/4" | 2 1/4" | $356.87 | |
| B | 8210G095HW | 3/4" | Watertight | 3/4" | 0 psi | 5 | 4 3/32" | 2 13/16" | 2 9/32" | $364.01 |
