| Item | Mixing Valve |
|---|---|
| Body Material | Bronze |
| Cold Inlet Temp. | +40°F to +80°F |
| Flow Coefficient | 1.59 |
| Flow Rate | 1-8.7 GPM |
| For Media | Hot Water, Water |
| Hot Inlet Temp. | 180°F |
| Includes | Temperature Gauge |
| Includes Temperature Gauge | Yes |
| Inlet (cold) Connection Gender | Female |
| Inlet (cold) Connection Size | 1/2" |
| Inlet (cold) Connection Type | NPT |
| Inlet Connection Size | 1/2" |
| Inlet Connection Type | NPT |
| Inlet Size | 1/2" |
| Inlet Type | FNPT |
| Max. Inlet (cold) Temperature | 80°F |
|---|---|
| Max. Inlet (hot) Temperature | 180°F |
| Max. Operating Pressure | 125 psi |
| Max. Outlet Operating Temperature | 95°F |
| Max. Pressure | 125 psi |
| Min. Inlet (cold) Temperature | 40°F |
| Min. Inlet (hot) Temperature | 180°F |
| Min. Outlet Operating Temperature | 60°F |
| Outlet Connection Type | NPT |
| Outlet Size | 1/2" |
| Outlet Type | FNPT |
| Overall Height | 3 7/8" |
| Overall Width | 7 3/4" |
| Temp. Range | +60°F to +95°F |
| Valve Type | Emergency |
| standard | ASSE 1071 |
| Height (cm) | 21.29 |
|---|---|
| Length (cm) | 21.59 |
| Width (cm) | 12.06 |
| HS Code | 8481809015 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 2.9745 |
| Style | Model | Flow Rate | Outlet Size | Outlet Type | Inlet Size | Overall Width | Overall Height | Temp. Range | Inlet Type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | ETV200-13 | 3-32.9 GPM | 1" | NPT | - | 11 11/16" | 6 5/8" | +60°F to +95°F | - | $2,795.41 | |

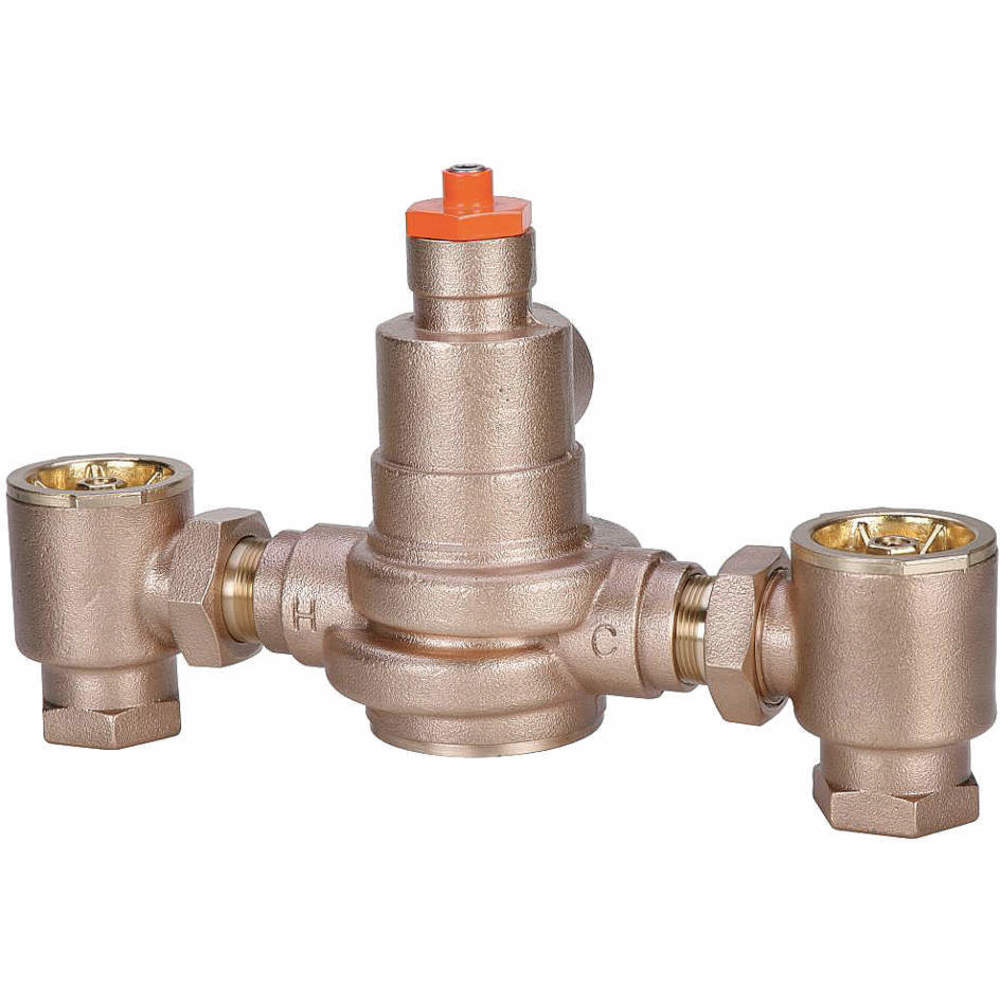

| B | ETV400-15 | 3-83.2 GPM | 1 1/2" | NPT | 1 1/4" | 16" | 8 1/2" | +60°F to +95°F | - | $4,799.46 | |

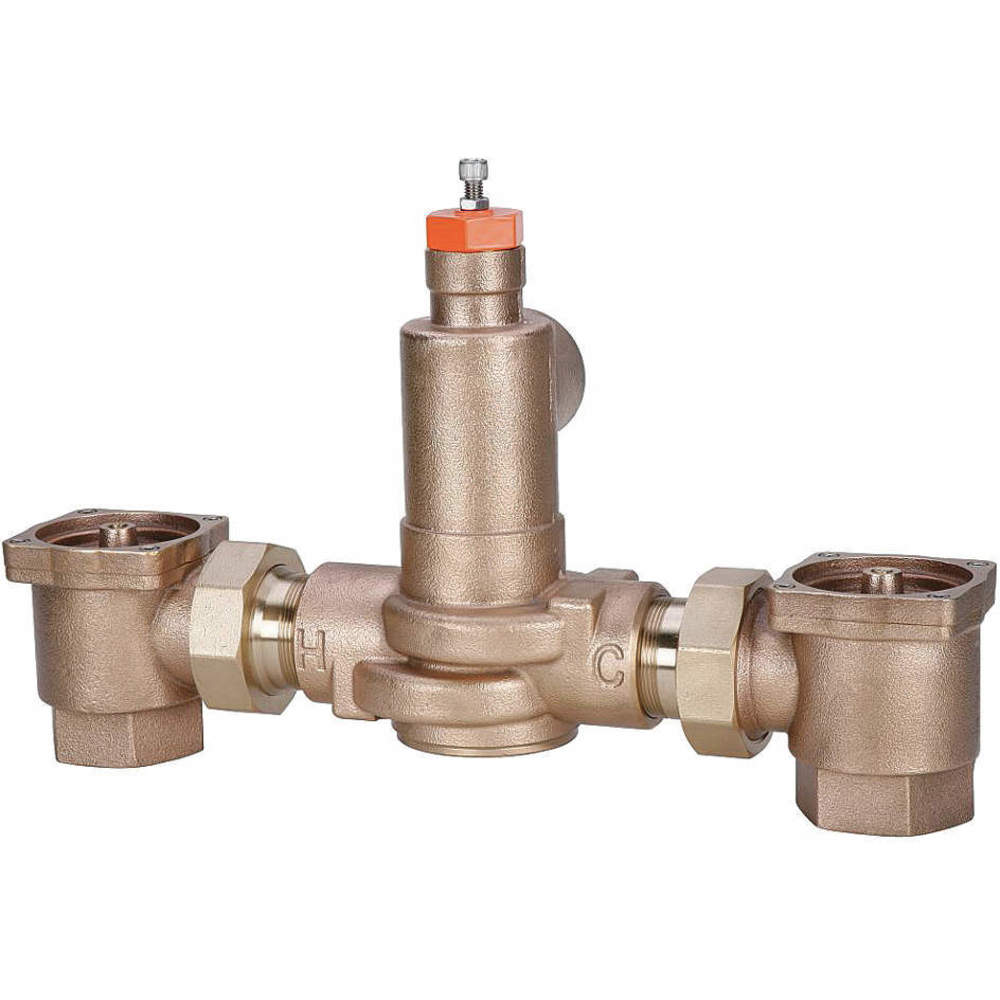

| C | ETV500-17 | 3-119.4 GPM | 2" | NPT | 2" | 19 1/4" | 10 5/8" | +60°F to +95°F | - | $7,132.42 | |
| D | ES150-10 | 1-8.7 GPM | 1/2" | NPT | 1/2" | 7 3/4" | 3 7/8" | +60°F to +95°F | - | $2,214.92 | |
| A | ETV200-10 | 3-32.9 GPM | 1" | NPT | - | 11 11/16" | 6 5/8" | +60°F to +95°F | - | $2,854.11 | |
| B | ETV400-10 | 3-83.2 GPM | 1 1/2" | NPT | 1 1/4" | 16" | 8 1/2" | +60°F to +95°F | - | $4,583.37 | |
| C | ETV500-10 | 3-119.4 GPM | 2" | NPT | 2" | 19 1/4" | 10 5/8" | +60°F to +95°F | - | $5,898.76 |
