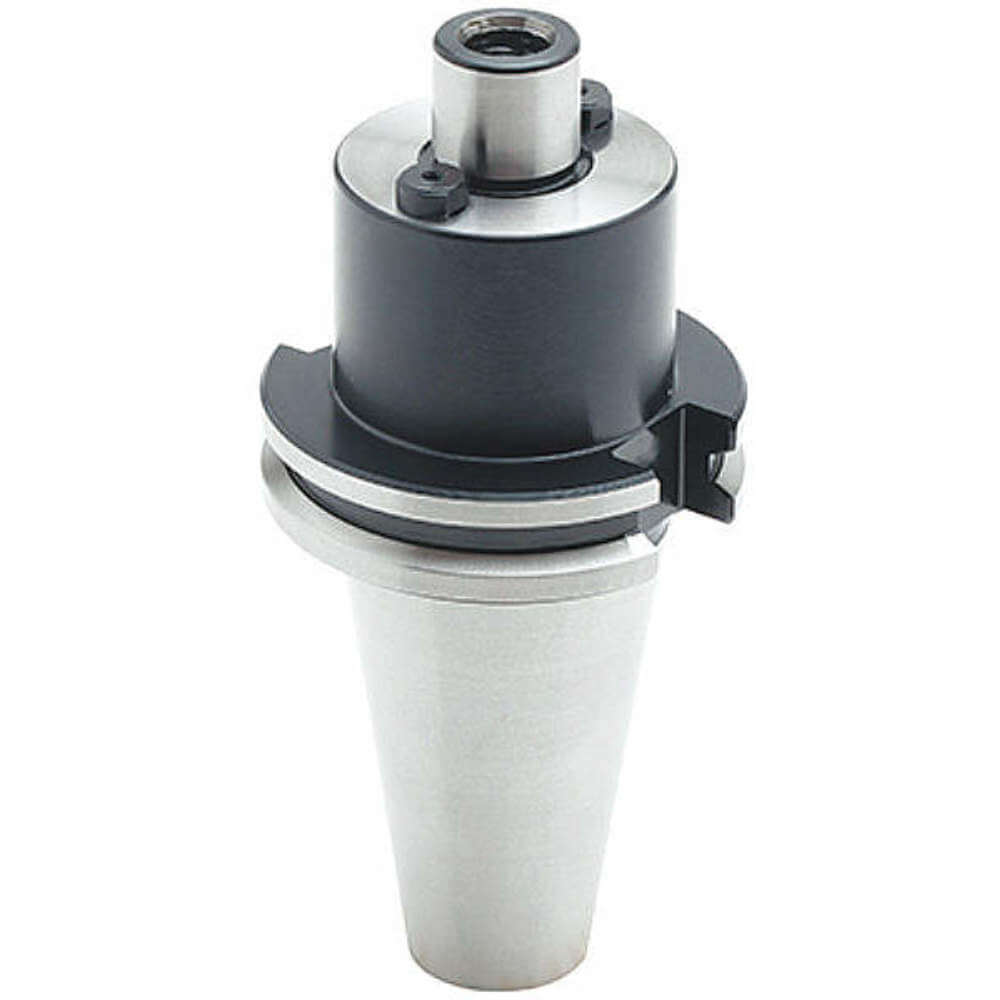

| Item | Shell Mill Holder |
|---|---|
| Body Dia. | 1 3/4" |
| Coolant Fed | Non-Coolant Through |
| Dimension A | 3/4" |
| Dimension B | 1 3/4" |
| Dimension C | 1 1/2" |
| Dimension G | 17/25" |
| Material - Machining | High Speed Steel |
|---|---|
| Pilot Dia. | 3/4" |
| Pilot Length | 17/25" |
| Projection | 1 1/2" |
| Shank Type | Taper |
| Thread Size | 3/8"-24 |
| Height (cm) | 8.64 |
|---|---|
| Length (cm) | 21.84 |
| Width (cm) | 8.64 |
| HS Code | 8466100130 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 1.1475 |
| Style | Model | Dimension C | Dimension G | Pilot Dia. | Pilot Length | Lock Screw Size | Taper Size | Projection | Dimension B | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B30-10SM177 | 1.77" | 17/25" | 1" | 17/25" | 1/2" | BT30 | 1.77" | 2.38" | $176.20 | |
| A | B30-75SM118 | 1.18" | 17/25" | 3/4" | 17/25" | 3/8" | BT30 | 1.18" | 1 3/4" | $209.76 | |
| A | B40-10SM2 | 2" | 17/25" | 1" | 17/25" | 1/2" | BT40 | - | 2 1/4" | $242.33 | |
| A | B40-10SM4 | 4" | 17/25" | 1" | 17/25" | 1/2" | BT40 | 4" | 2 1/4" | $276.57 | |
| A | B40-12SM2 | 2 1/4" | 17/25" | 1 1/4" | 17/25" | 5/8" | BT40 | 2 1/4" | 2 3/4" | $286.27 | |
| A | B40-15SM2 | 2 1/4" | 0.94" | 1 1/2" | 0.94" | 3/4" | BT40 | 2 1/4" | - | $295.77 | |
| A | B40-75SM2 | 2" | 17/25" | 3/4" | 17/25" | 3/8" | BT40 | - | 1 3/4" | $244.09 |
