| Item | Quick Coupler |
|---|---|
| Application | Hydraulic |
| Ball Material | Steel |
| Bearing Material | Stainless Steel |
| Bearing Type | Stainless |
| Body Material | Steel |
| Body Size | 1/2" |
| Configuration Type | Female NPTF |
| Connection Type | NPTF |
| Coupler Body Material | Steel |
| Coupler Finish | Zinc Plated |
| Coupler/nipple/shell | Coupler |
| Coupling Component | Socket |
| Coupling Locking Type | Sleeve |
| Coupling Size | 1/2" |
| Finish/coating | Plain |
| Fitting Type | FNPTF |
| Flow Rate | 12 GPM |

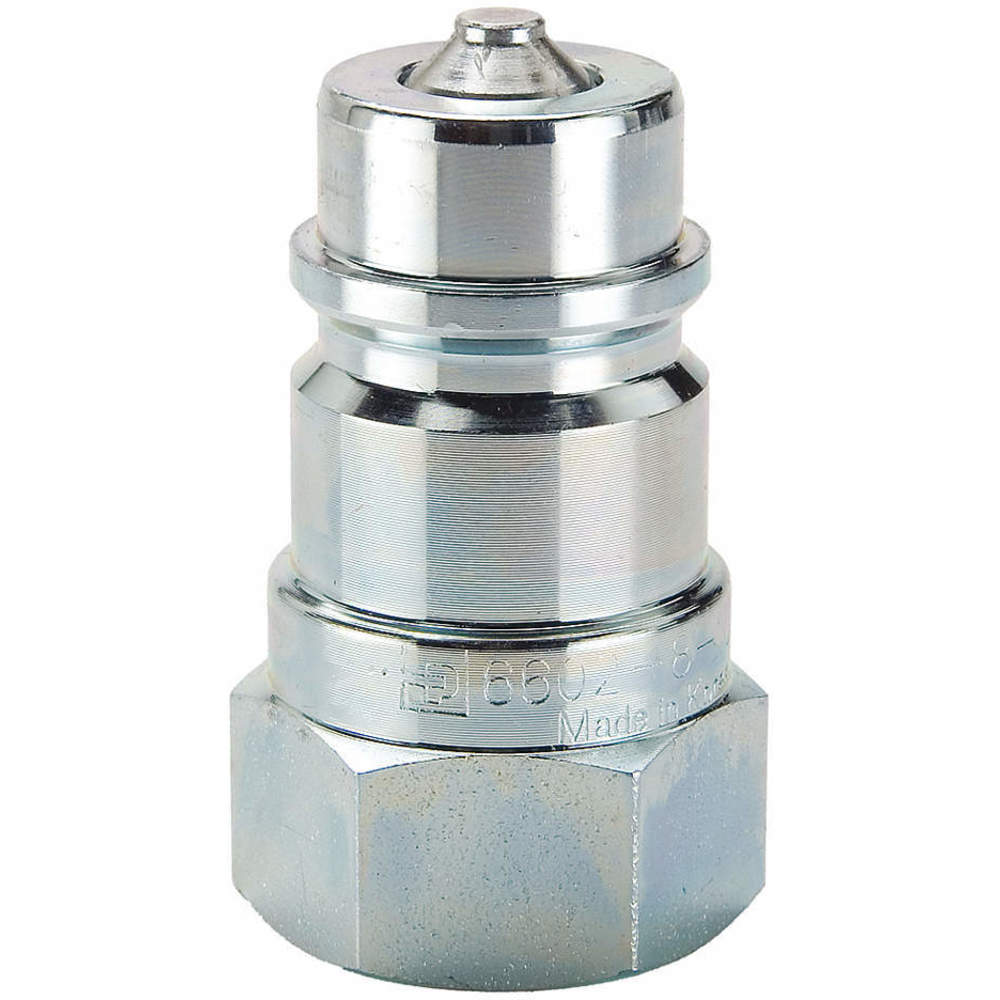

| For Use With | Iso 7241-1 Series B Nipple |
| Gender | Female |
| Grade | Grade 6 |
| Hansen Interchange | 4-HP26 |
| Hose Fitting Gender | Female |
| Includes | Sleeve-Lock, Steam, Valve Actuator |
| Includes Bearing | Yes |
| Includes Shut Off | Yes |
| Includes Valve | Yes |
| Locking Mechanism | Ball |
| Locking Type | Locking Balls |
| Material | Steel |
| Max. Flow Rate | 45 LPM |
|---|---|
| Max. Operating Pressure | 4000 psi |
| Max. Operating Temp. | 121°C |
| Max. Outside Dia. | 1 49/64" |
| Max. Pressure | 4000 psi |
| Max. Pressure Range | 4000 psi to 4999 psi |
| Max. Working Pressure @ 70 F | 4000 psi |
| Min. Operating Temp. | -40°C |
| Overall Length | 2 7/8" |
| Parker Interchange | H4-62 |
| Pipe Size | 1/2" |
| Plating | Zinc |
| Quick Coupler Type | Hydraulic General Purpose |
| Safeway Interchange | S105-4 |
| Seal Material | Nitrile |
| Series | 60 Series |
| Shut Off | Double |
| Sleeve Material | Steel |
| Snap-tite Interchange | 72C8-8F |
| System Of Measurement | Inch |
| Temp. Range | -40°F to +250°F |
| Thread 1 Size | 1/2" |
| Thread Size | 1/2"-14 |
| Thread Type | Female |
| Type | Coupler Body |
| Valve Design | Poppet |
| Valve Material | Steel |
| Valve Type | Poppet |
| Standards | ISO 7241-1 SERIES B |
| Height (cm) | 4.48 |
|---|---|
| Length (cm) | 7.3 |
| Width (cm) | 10.8 |
| HS Code | 8481200050 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 0.3393 |
| Style | Model | Coupling Size | Body Material | Connection Type | Body Size | Material | Temp. Range | Max. Operating Temp. | Min. Operating Temp. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | BH1-60 | 1/8" | Brass | NPTF | 1/8" | Brass | -40°F to +250°F | 121°C | -40°C | $69.50 | |
| A | BH2-60 | 1/4" | Brass | NPTF | 1/4" | Brass | -40°F to +250°F | 121°C | -40°C | $71.41 | |
| A | BH3-60 | 3/8" | Brass | NPTF | 3/8" | Brass | -40°F to +250°F | 121°C | -40°C | $95.06 | |
| A | BH4-60 | 1/2" | Brass | NPTF | 1/2" | Brass | -40°F to +250°F | 121°C | -40°C | $136.77 | |
| A | BH6-60 | 3/4" | Brass | NPTF | 3/4" | Brass | -40°F to +250°F | 121°C | -40°C | $237.14 | |
| A | BH8-60 | 1" | Brass | NPTF | 1" | Brass | -40°F to +250°F | 121°C | -40°C | $366.14 | |
| B | H1-62 | 1/8" | Steel | NPTF | 1/8" | Steel | -40°F to +250°F | 121°C | -40°C | $65.64 |
