| Item | Thermostatic Expansion Valve |
|---|---|
| Balanced Port Design | Balanced |
| Capillary Length | 5 ft. |
| Configuration | Angle |
| Connection Type | SAE Flare Angle |
| Connector Inlet Size | 1/4" |
| Connector Outlet | 1/2" |
| Control | Accuracy, Maintained Over A Wide Variation In Evaporator Load, Thereby Minimizing Hunting Flood Back And Coil Starving Problems |
| Element Type | Removable |
| Equalizer Type | Internal |
| Evaporator Temp. Range | -40°F to 60°F |
| Evaporator Temperature - Maximum | 60°F |
| Evaporator Temperature - Minimum | -40°F |
| For Capacity - Maximum | 8 ton. |
| For Capacity - Minimum | 0.1 ton. |
| For Refrigerant Type | R-22 |
| Includes | Sensing Bulb Mounting Clamp |
| Inlet Connection Size | 1/4" |
| Inlet Connection Type | Sae Flare |
| Liquid Subcooling Temperature | 10°F |
|---|---|
| Maximum Operating Pressure | 450 psi |
| Nominal Capacity | 0.5 ton. |
| Nominal Capacity - R-22 | 0.5 ton. |
| Not For Refrigerant Type | Ammonia |
| Not For Use With | Ammonia |
| Outlet Connection Size | 1/2" |
| Outlet Connection Type | SAE Flare |
| Parker Model Number | CAAVW |
| Product Type | Thermostatic Expansion Valve |
| Reducing Flare Nut Size | 3/8" |
| Series | C Series |
| Strainer Mesh Size | 100 Mesh |
| Strainer Type | Removable |
| Superheat | Externally Adjustable |
| Superheat Adjustment | Field Adjustable |
| Type | Adjustable |
| Valve Body Material | Brass |
| Height (cm) | 7.11 |
|---|---|
| Length (cm) | 11.94 |
| Width (cm) | 11.68 |
| HS Code | 8481809015 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 0.5175 |
| Style | Model | Evaporator Temp. Range | Capillary Length | Equalizer Type | Nominal Capacity | Superheat | Connector Inlet Size | Type | Connection Type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

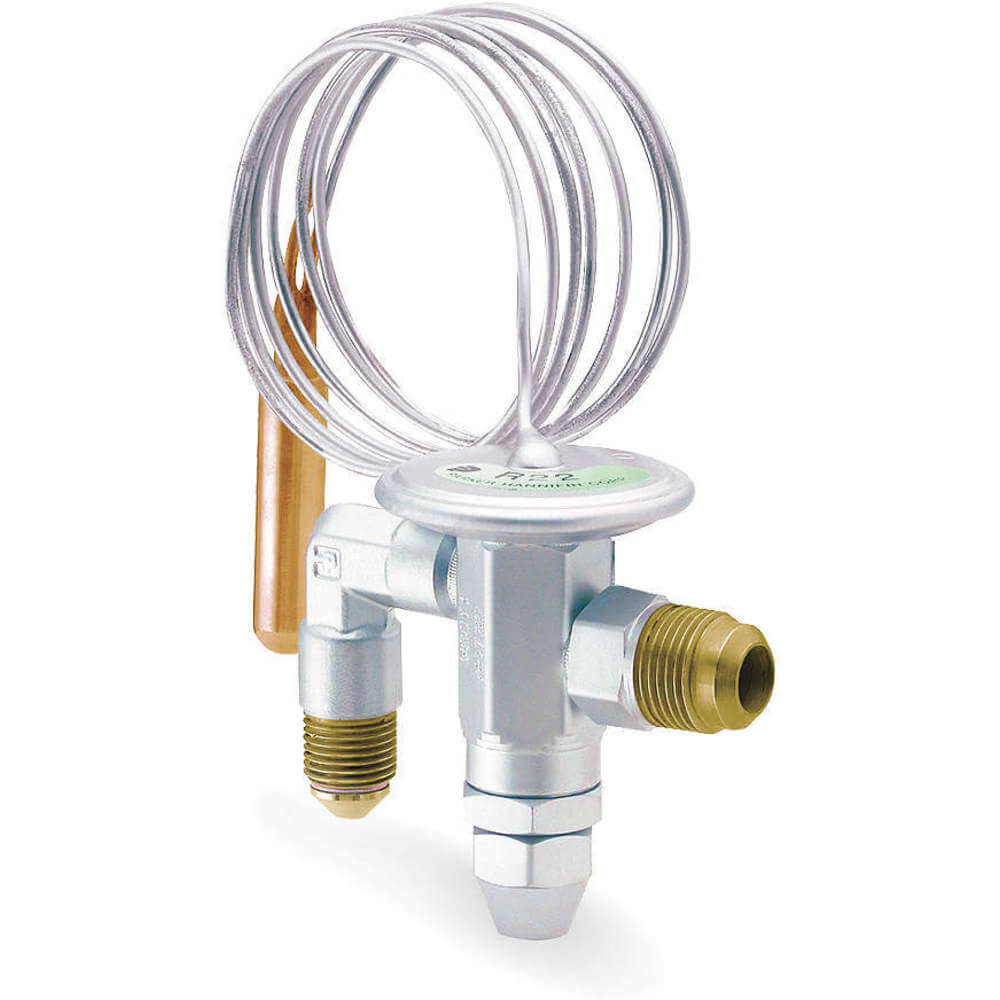

| A | CAAVX35 | -40°F to 10°F | 60" | - | - | Externally Adjustable | - | Adjustable | SAE Flare Angle | $278.51 | |
| B | CEBVX100 | 10°F to 60°F | 5 ft. | External | 0.5 ton. | Externally Adjustable | 3/8" | Adjustable | SAE Flare Angle | $250.17 | |

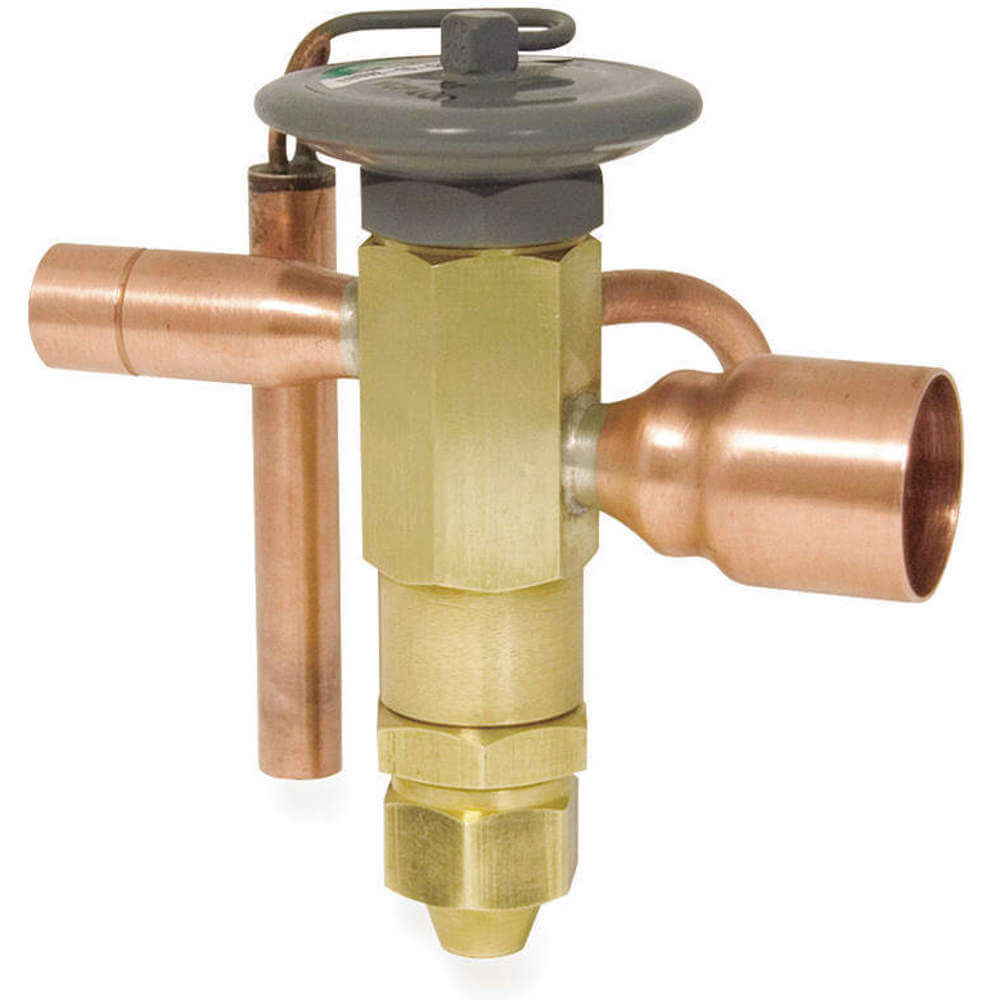

| C | EBSE8VX100 | 10°F to 60°F | 5 ft. | External | 8 ton. | Externally Adjustable | 5/8" | Adjustable | Straight Through Solder | $417.07 | |
| C | EBSE11VX100 | 10°F to 60°F | 5 ft. | External | 11 ton. | Externally Adjustable | 5/8" | Adjustable | Straight Through Solder | $434.96 | |
| C | EBSE15VX100 | 10°F to 60°F | 5 ft. | External | 15 ton. | Externally Adjustable | 7/8" | Adjustable | Straight Through Solder | $587.19 | |
| B | C-AA-JW | -40°F to 60°F | 5 ft. | Internal | 0.3 ton. | Externally Adjustable | 1/4" | Adjustable | SAE Flare Angle | $268.74 | |

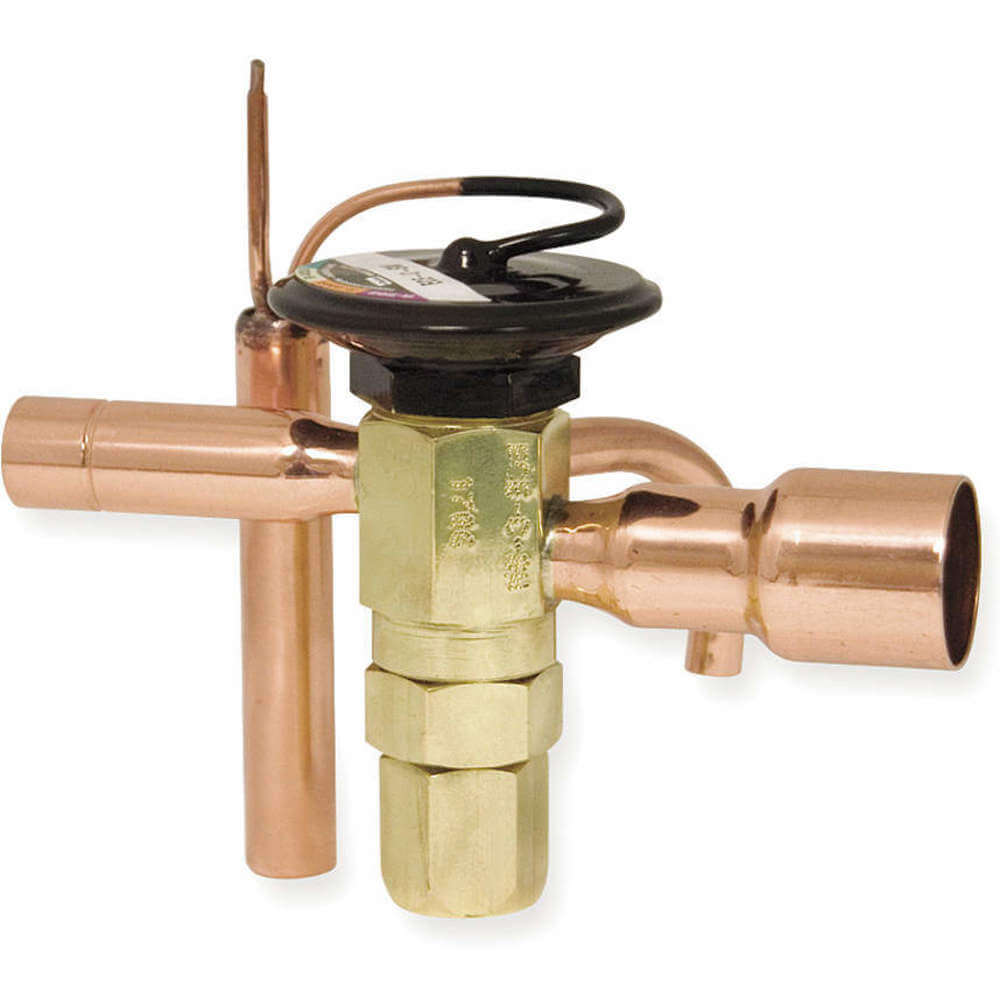

| D | EC-AA-JW | -40°F to 60°F | 5 ft. | Internal | 0.3 ton. | Externally Adjustable | 1/4" | Adjustable | Straight Through Solder | $270.23 |
