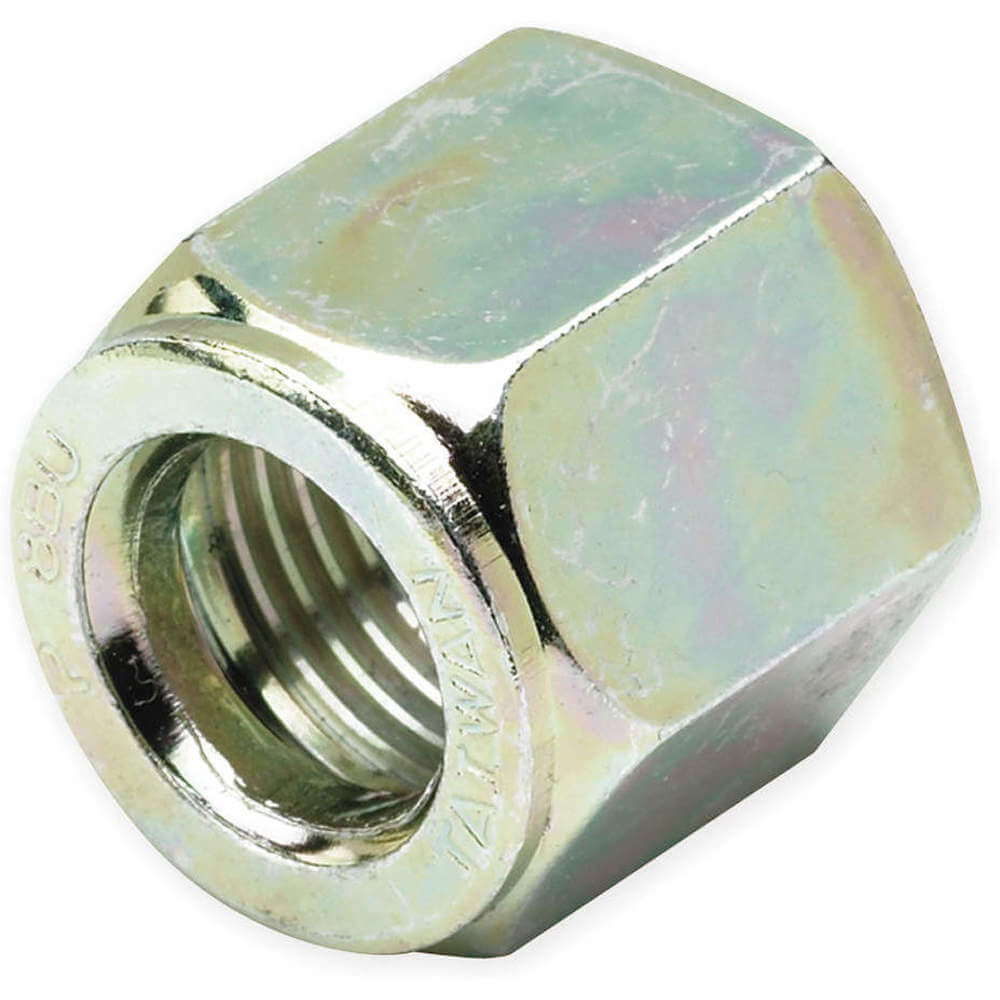

| Item | Tube Fitting |
|---|---|
| Application | Fluids, Gases |
| Basic Material | Metal |
| Body Material | Stainless Steel |
| Compatible Tube Outer Diameter | 3/8" |
| Compression Thread Size | 9/16"-18 |
| Configuration Sub-type | Nut Flareless |
| Configuration Type | Nut, Ferrule, Locknut |
| Connection Type | Flareless Bite Type |
| End 1 Size | 3/8" |
| Fitting Connection Type | Compression |
| Fitting Material | Stainless Steel |
| Hex Size | 11/16" |
| Material | Stainless Steel |
| Material Grade | Grade 316 |
| Maximum Operating Temperature | 1200°F |
|---|---|
| Minimum Operating Temperature | 425°F |
| Overall Length | 3/4" |
| Series | FERULOK Series |
| Shape | Nut |
| Specific Fitting Shape | Nut |
| Standards | Sae J514 |
| Style | Female Flareless Bite Type |
| System Of Measurement | Imperial |
| Temp. Range | -425°F to +1200°F |
| Thread Size | 9/16"-18 |
| Tube Fitting/adapter Type | Bite Type, Ferulok Flareless |
| Tube Outside Dia. | 3/8" |
| Tube Size | 3/8" |
| Height (cm) | 1.75 |
|---|---|
| Length (cm) | 1.9 |
| Width (cm) | 1.75 |
| HS Code | 7307199060 |
|---|---|
| Country Of Origin | TW |
| Weight (kg) | 0.018 |
| Style | Model | Temp. Range | Shape | Body Material | Style | Material | Tube Outside Dia. | Tube Size | Connection Style | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 4 BU-S | -65°F to +500°F | Nut | - | Female Flareless Bite Type | Steel | 1/4" | 1/4" | - | $4.24 | |
| A | 6 BU-S | -65°F to +500°F | Nut | - | Female Flareless Bite Type | Steel | 3/8" | 3/8" | - | $4.57 | |
| A | 8 BU-S | -65°F to +500°F | Nut | - | Female Flareless Bite Type | Steel | 1/2" | 1/2" | - | $5.90 | |
| B | 10 BU-S | -65°F to +500°F | Nut | - | Female Flareless Bite Type | Steel | 5/8" | 5/8" | - | $8.61 | |
| A | 12 BU-S | -65°F to +500°F | Nut | - | Female Flareless Bite Type | Steel | 3/4" | 3/4" | - | $10.24 | |
| A | 16 BU-S | -65°F to +500°F | Nut | - | Female Flareless Bite Type | Steel | 1" | 1" | - | $18.04 | |
| A | 4 BU-SS | -425°F to +1200°F | Nut | Stainless Steel | Female Flareless Bite Type | Stainless Steel | 1/4" | 1/4" | - | $8.14 |
