| Item | Manual Air Control Valve |
|---|---|
| Actuator Color | Black |
| Actuator Type | Roller |
| Actuator/return | Roller/Spring |
| Application | Assembly Lines, Conveyance, Industrial, Packaging |
| Body Material | Aluminum |
| Body Style | Inline |
| Bushing Material | Brass |
| Center Position | Closed |
| Coefficient Of Volume | 0.83 |
| Connection | NPT |
| Exhaust Port Connection Gender | Female |
| Exhaust Port Connection Size | 1/4" |
| Exhaust Port Connection Type | Threaded |
| For Media | Air |
| Lubrication | Lubrication Not Required |
| Max. Pressure | 150 psi |
| Number Of Ports | 3 |
| Number Of Positions | 2 |
| Number Of Ways | 3 |
| Operating Pressure - Maximum | 150 psi |
| Operating Pressure - Minimum | 0 psi |
|---|---|
| Operating Temperature - Maximum | 175°F |
| Operating Temperature - Minimum | 32°F |
| Overall Height | 1 5/8" |
| Overall Width | 1 1/16" |
| Pipe Size | 1/4" |
| Poppet Material | Nylon |
| Product Type | Manual Air Control Valve |
| Return Action | Spring Return |
| Seal Material | Buna-N |
| Series | DIRECTAIR 4 Series |
| Spacer Material | Zinc |
| Temp. Range | +32°F to +175°F |
| Vacuum Rating | Vacuum Operable |
| Valve Action | Normally Closed |
| Valve Port Connection Gender | Female |
| Valve Port Connection Size | 1/4" |
| Valve Port Connection Type | NPT |
| Valve Type | Spool |
| Standards | CE CERTIFIED, ROHS COMPLIANT |
| Height (cm) | 2.54 |
|---|---|
| Length (cm) | 10.8 |
| Width (cm) | 3.81 |
| HS Code | 8482200080 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 0.2475 |
| Style | Model | Actuator/return | Coefficient Of Volume | Body Material | Overall Width | Overall Height | Overall Length | Cfm | Connection | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 404211000 | Roller/Spring | 0.2 | Aluminum | 5/8" | - | 4 3/16" | - | NPT | $240.56 | |

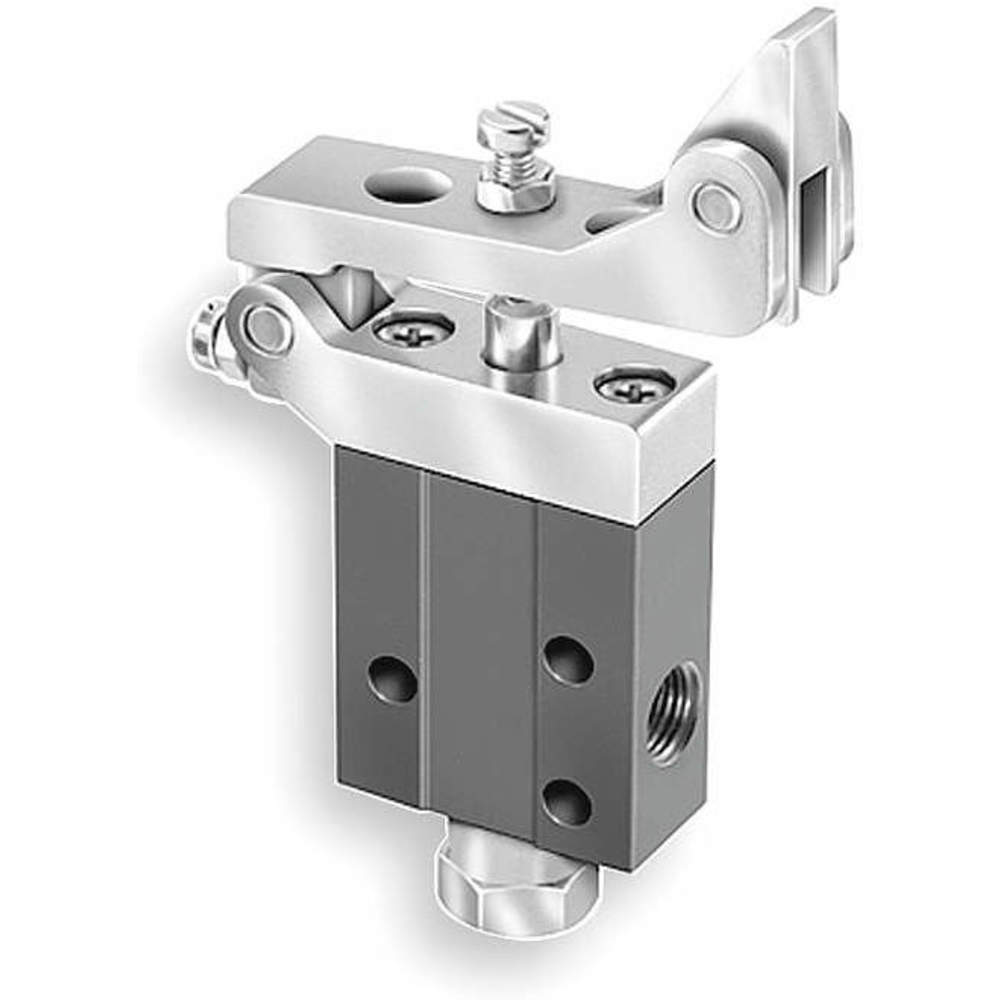

| B | 404311000 | - | 0.17 | Aluminum | 5/8" | 2 3/16" | 4 7/16" | - | NPT | $278.54 | |

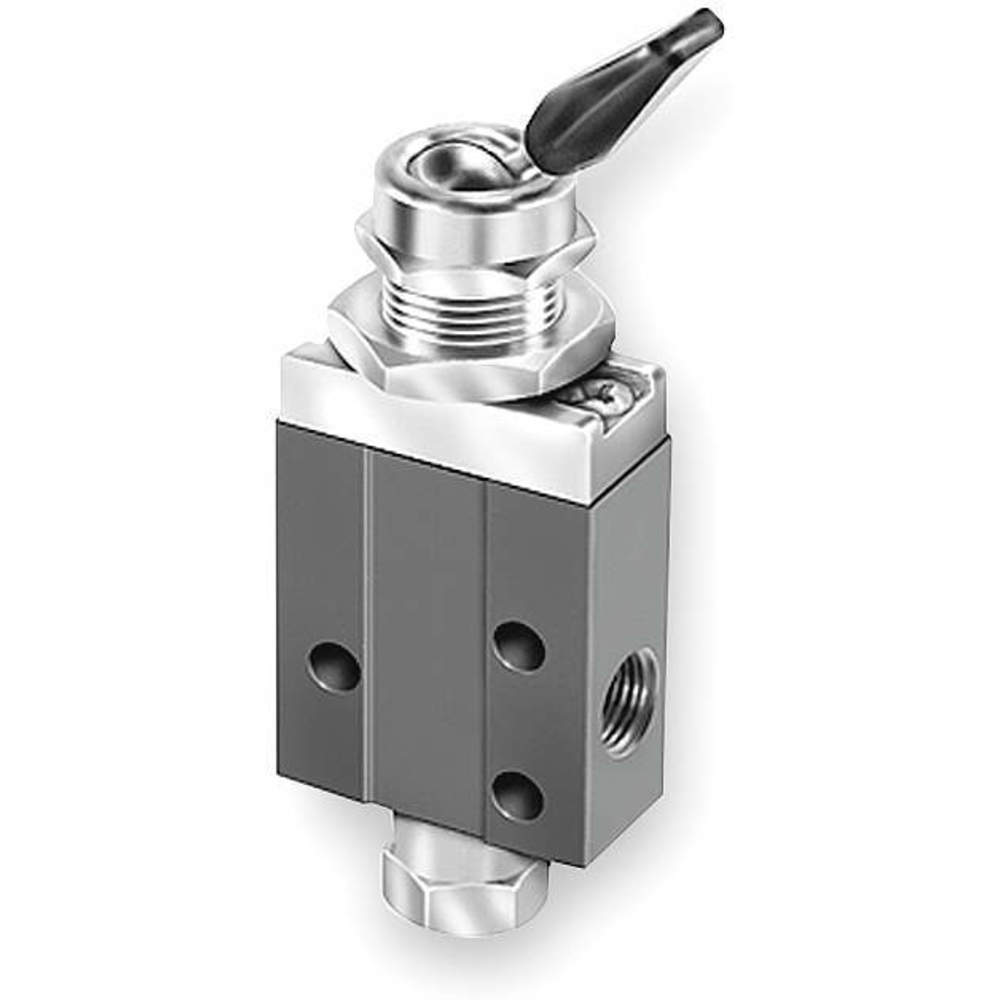

| C | 404811000 | Toggle/Spring | 0.2 | Aluminum | 1/2" | 1 1/4" | 4" | - | NPT | $253.49 | |

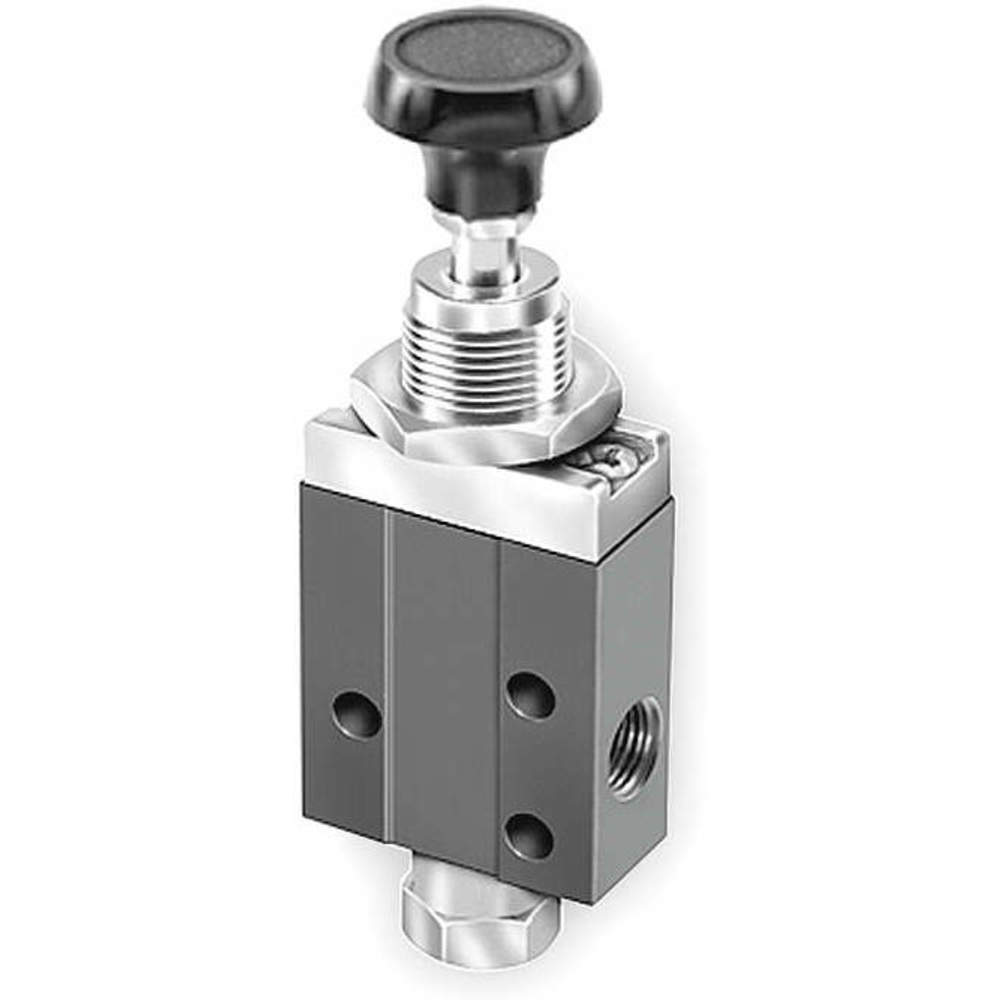

| D | 404411000 | Button/Spring | 0.17 | Aluminum | 5/8" | 1 5/16" | 4 1/8" | - | NPT | $249.59 | |

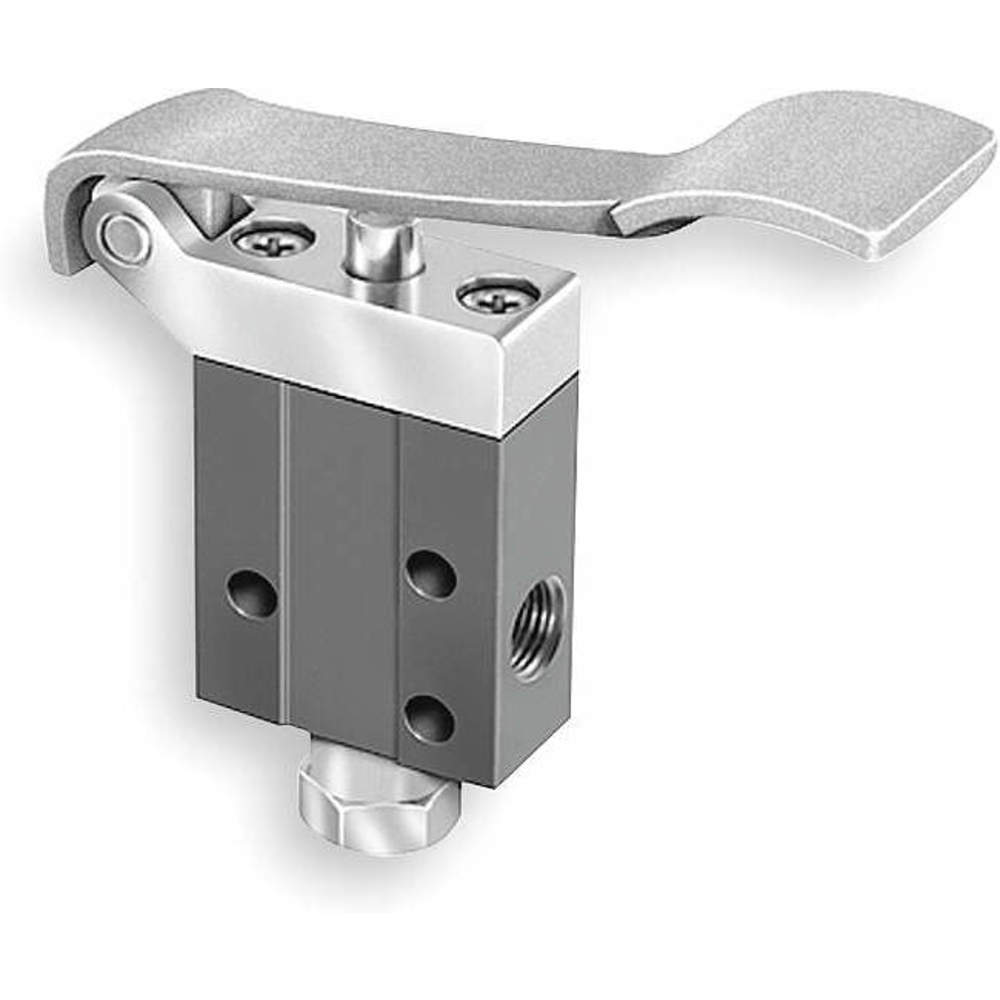

| E | 404711000 | Lever/Spring | 0.17 | Aluminum | 5/8" | - | - | - | NPT | $272.89 | |

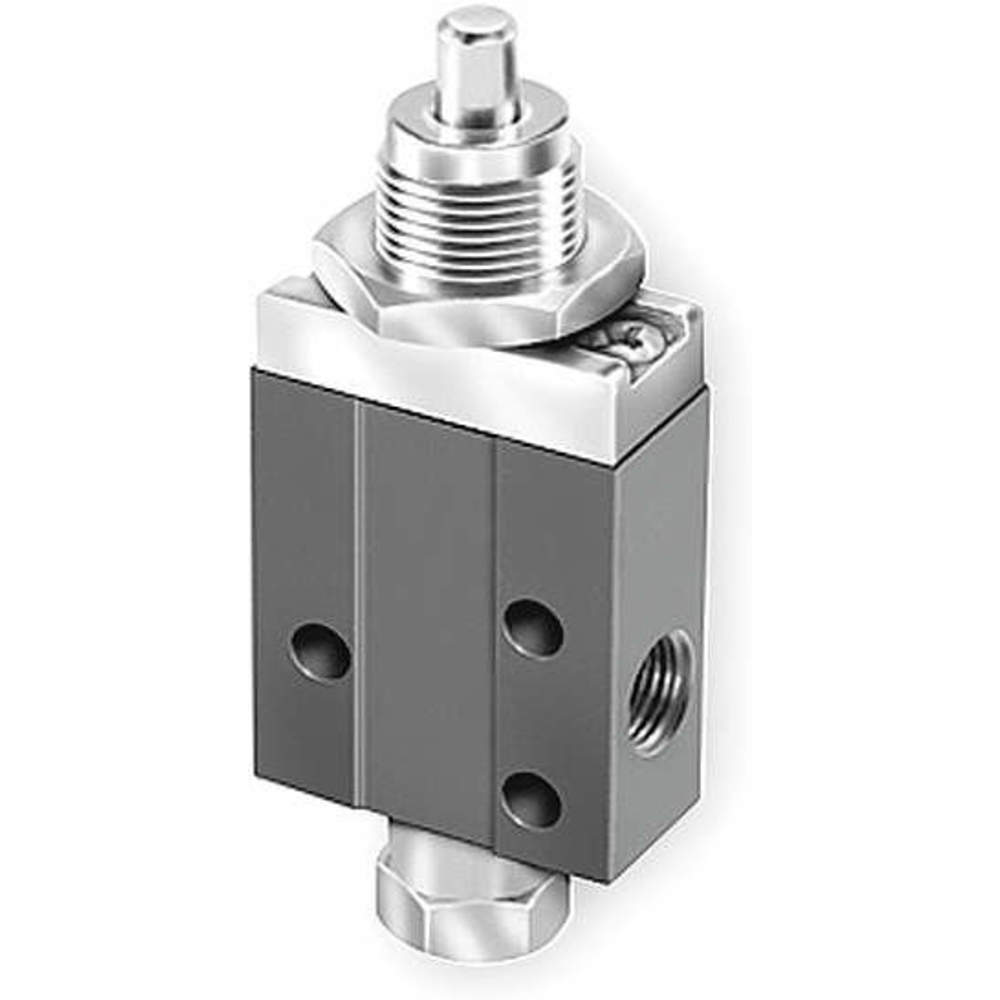

| F | 404111000 | Plunger/Spring | 0.17 | Aluminum | 5/8" | 1 5/16" | 3 3/8" | - | NPT | $215.76 | |

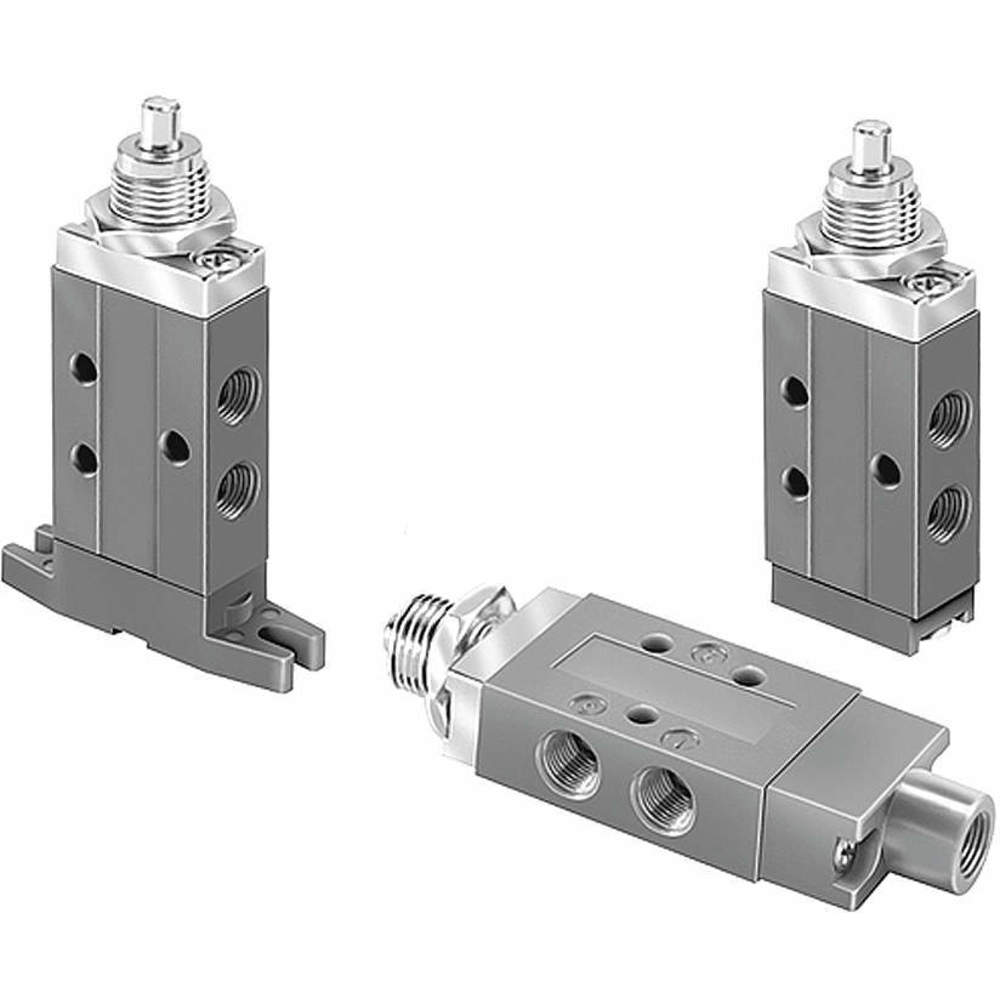

| G | 414111000 | Plunger/Spring | 0.2 | Aluminum | 5/8" | 1 5/16" | 4 1/8" | - | NPT | $268.20 |
