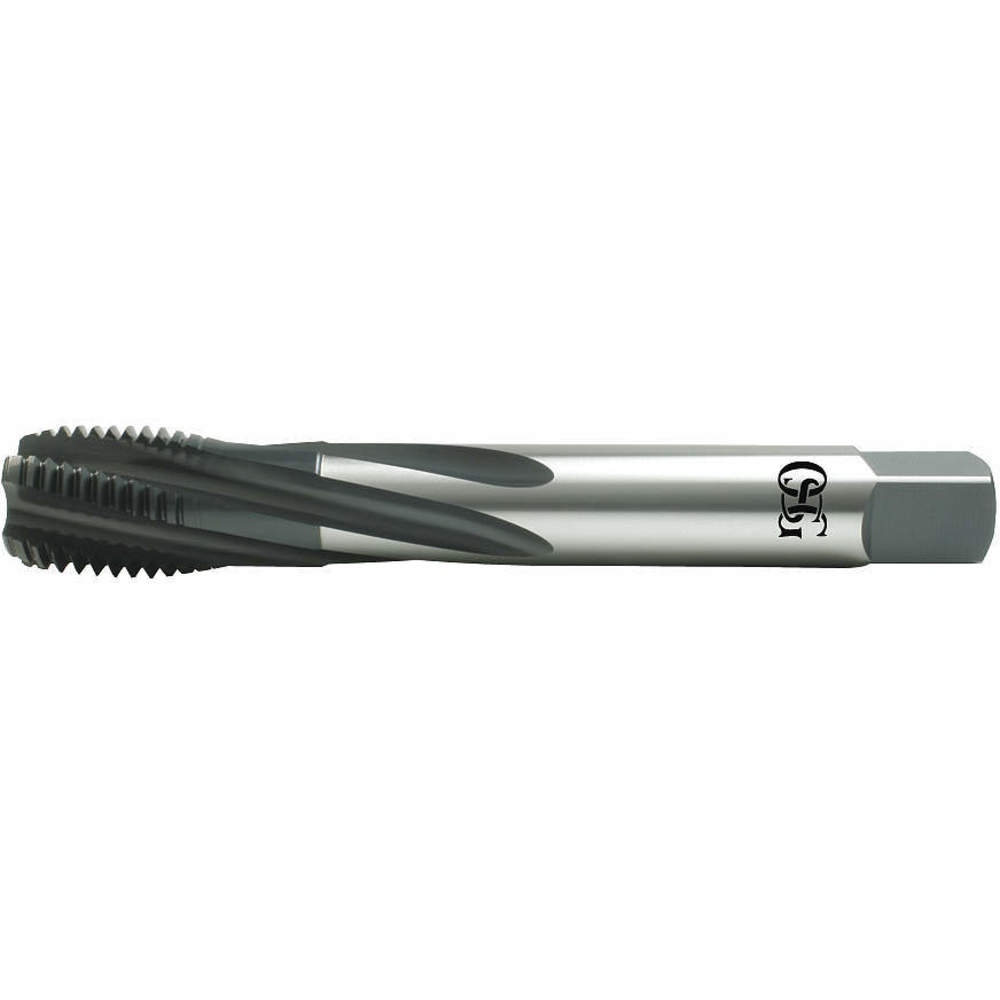

| Item | Spiral Flute Tap |
|---|---|
| 55% Thread Drill Size | 17.2 mm |
| 65% Thread Drill Size | 16.9 mm |
| 75% Thread Drill Size | 16.5 |
| Class Of Fit | Class 2B |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | 0.6461", 0.6526", 0.6591", 0.6656", 0.6721" |
| Extended Neck | Yes |
| Features | Horizontal Taps |
| Finish | Black Oxide |
| Helix Angle | 15° |
| List Number | 13014 |
| Material | High Speed Steel |
| Material Grade - Machining | Grade 16500 |
| Measurement System | Fractional Inch |
| Number Of Flutes | 4 |
| Overall Length | 4 29/32" |
| Pitch Diameter Limits | 2B |
| Pitch Type | 10 |
| Primary Material Application | Cast Iron, Hardened Steel, Steel |
| Primary Material Application Iso Code | H, K, P |
| Secondary Material Application | Stainless Steel |
|---|---|
| Secondary Material Application Iso Code | M |
| Shank Dia. | 37/64" |
| Shank Length | 4 3/32" |
| Shank Type - Machining | Straight |
| Square Size | 0.442" |
| Tap Chamfer | Modified Bottoming |
| Tap Finish | Black Oxide |
| Tap Length Standard | DIN |
| Tap Material | High Speed Steel |
| Tap Shank Standard | ANSI |
| Tap Style | Spiral Flute |
| Tap Thread Size | 3/4"-10 |
| Tap Type | Modified Bottom |
| Thread Direction | Right Hand |
| Thread Length | 3/4" |
| Thread Limit/class Of Fit | 2B |
| Thread Size | 3/4"-10 |
| Thread Standard | UNC |
| Thread Type | Coarse |
| Threads Per Inch | 10 |
| Height (cm) | 2.54 |
|---|---|
| Length (cm) | 12.06 |
| Width (cm) | 2.54 |
| HS Code | 8207400000 |
|---|---|
| Weight (kg) | 0.153 |
| Style | Model | Thread Length | Overall Length | Number Of Flutes | Thread Size | 75% Thread Drill Size | Shank Dia. | Thread Type | Square Size | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 1301400101 | 5/8" | 4 5/16" | 4 | 9/16"-12 | 12.2 | 27/64" | Coarse | 0.322" | $136.31 | |
| A | 1301400201 | 5/8" | 3 29/32" | 4 | 9/16"-18 | 12.9 | 27/64" | Fine | 0.322" | $126.93 | |
| A | 1301400301 | 11/16" | 4 5/16" | 4 | 5/8"-11 | 13.6 | 15/32" | Coarse | 0.36" | $166.13 | |
| A | 1301400401 | 11/16" | 3 29/32" | 4 | 5/8"-18 | 13.6 | 15/32" | Fine | 0.36" | $158.63 | |
| A | 1301400601 | 7/8" | 5 1/2" | 4 | 7/8"-9 | 19.5 | 11/16" | Coarse | 0.523" | $312.96 | |
| A | 1301400701 | 5 1/16" | 6 9/32" | 4 | 1"-8 | 22.25 | 51/64" | Coarse | 4.835" | $365.87 | |
| A | 1301400901 | 5 1/16" | 10 3/8" | 4 | 1 1/8"-7 | 0.9858 | 5 21/64" | Coarse | 4.835" | $550.90 |
