| Item | Snap Switch |
|---|---|
| Ac Contact Rating | 15A @ 250V |
| Actuation Type | Short Hinge Roller Lever |
| Actuator Length | 1.05" |
| Actuator Style | Hinge Roller Lever |
| Actuator Type | Short Hinge Roller Lever |
| Actuator Type - Snap Action Switch | Hinge Roller, Lever, Short |
| Amps Rating | 15A |
| Body Depth | 0.69" |
| Body Height | 0.69" |
| Body Material | Phenolic |
| Body Width | 1.94" |
| Center Mounting Hole Distance | 1" |
| Dc Contact Rating | 15A @ 14V |
| Depth | 0.69" |
| Depth - Snap Action Switch | 0.69" |
| Differential Travel | 0.02" |
| Differential Travel - Maximum | 0.0197" |
| Display Qty | 1 |
| Electrical Connection | Screw |
| Electrical Connection - Snap Action Switch | Screw |
| Height | 1 4/25" |
| Height - Snap Action Switch | 1 4/25" |
| Includes | Short Hinge Roller Lever |
| Length | 1.94" |
| Lever Actuator Length | 1.05" |
| Lever Actuator Length - Snap Action Switch | 1.05" |
|---|---|
| Max. Operating Force | 1.57N |
| Max. Pretravel | 0.094" |
| Maximum Operating Force | 1.57N |
| Mounting Hole Diameter | 3/16" |
| No. Of Contact Form | 2 , NO/NC |
| Operating Force | 5.6 oz. |
| Operating Force - Minimum | 1.57N |
| Operating Temp. | -25°C to +80°C |
| Operating Temperature - Maximum | 176°F |
| Operating Temperature - Minimum | -13°F |
| Over Travel | 0.094" |
| Overall Depth | 0.69" |
| Overall Height | 0.69" |
| Overall Width | 1.94" |
| Pre-travel | 0.095" |
| Release Force | 1.47 ozf |
| Roller Adjustability | Fixed |
| Roller Diameter | 0.37" |
| Roller Material | Plastic |
| Roller Position | Outside Offset |
| Roller Width | 4/25" |
| Series | Z |
| Standards | Csa, Ul Listed |
| Terminal Type | Screw |
| Watertight | No |
| Height (cm) | 5.08 |
|---|---|
| Length (cm) | 9.14 |
| Width (cm) | 8.13 |
| HS Code | 8536509040 |
|---|---|
| Country Of Origin | ID |
| Weight (kg) | 0.045 |
| Style | Model | Ac Contact Rating | Electrical Connection | Release Force | Max. Pretravel | Over Travel | Terminal Type | Differential Travel | Amps Rating | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

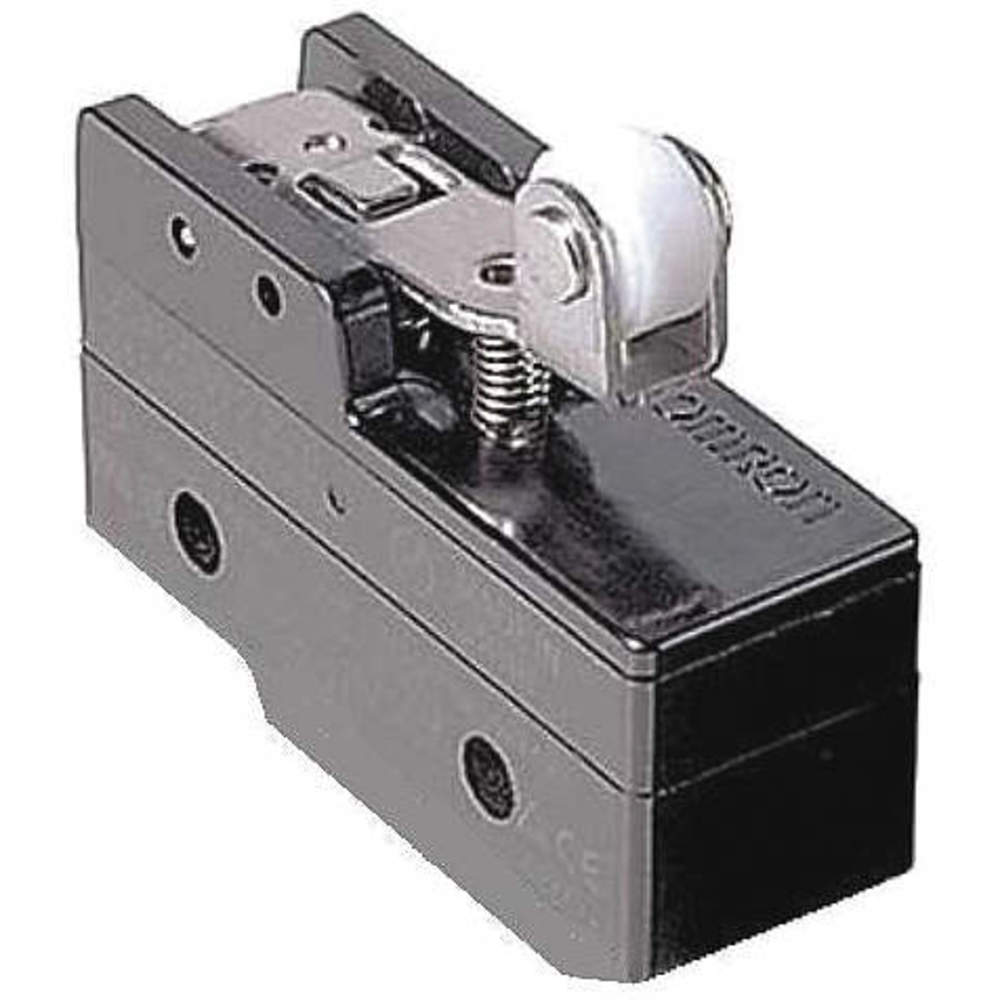

| A | A-20GV22 | 20A @ 480V | Solder | 1.48 ozf | 0.248" | 0.047" | Solder | 0.047" | 20A | $21.79 | |

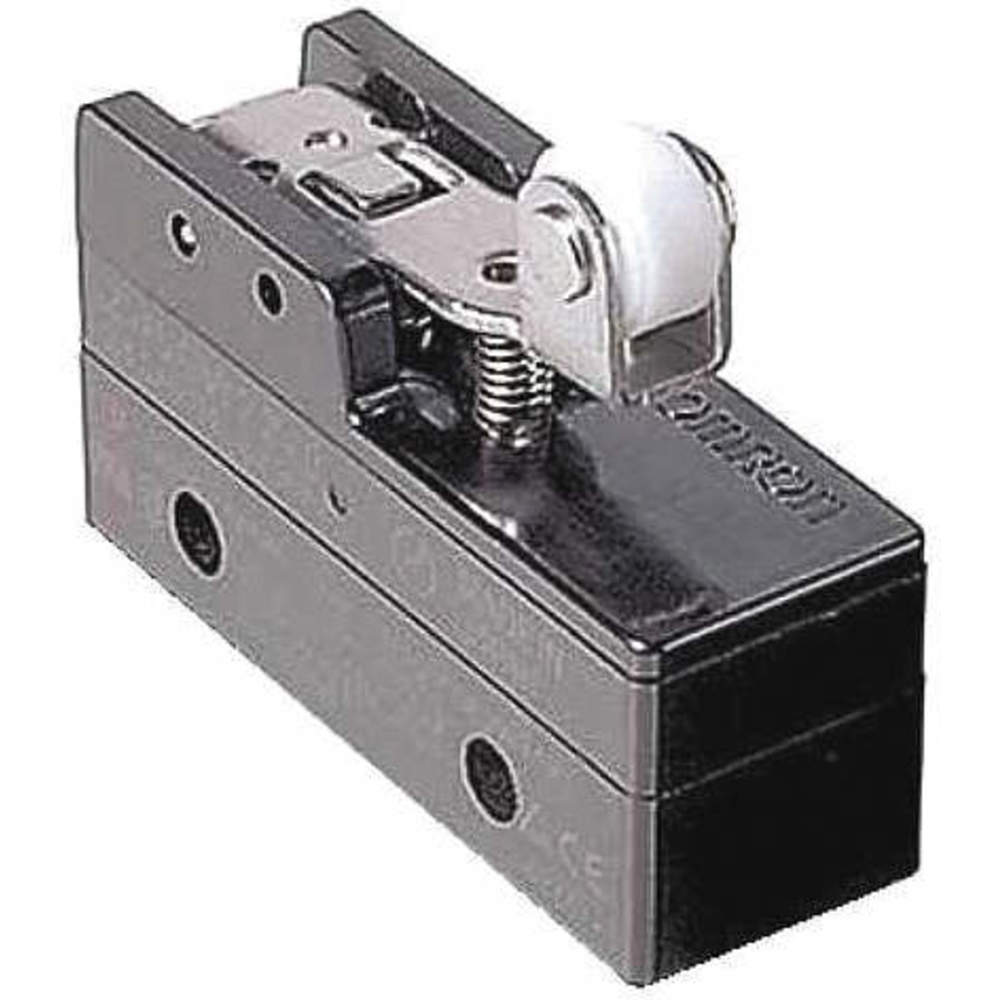

| B | Z-15GW22 | 15A @ 250V | Solder | 1.47 ozf | 3.1 mm | 0.094" | Solder | 0.02" | 15A | $24.01 | |

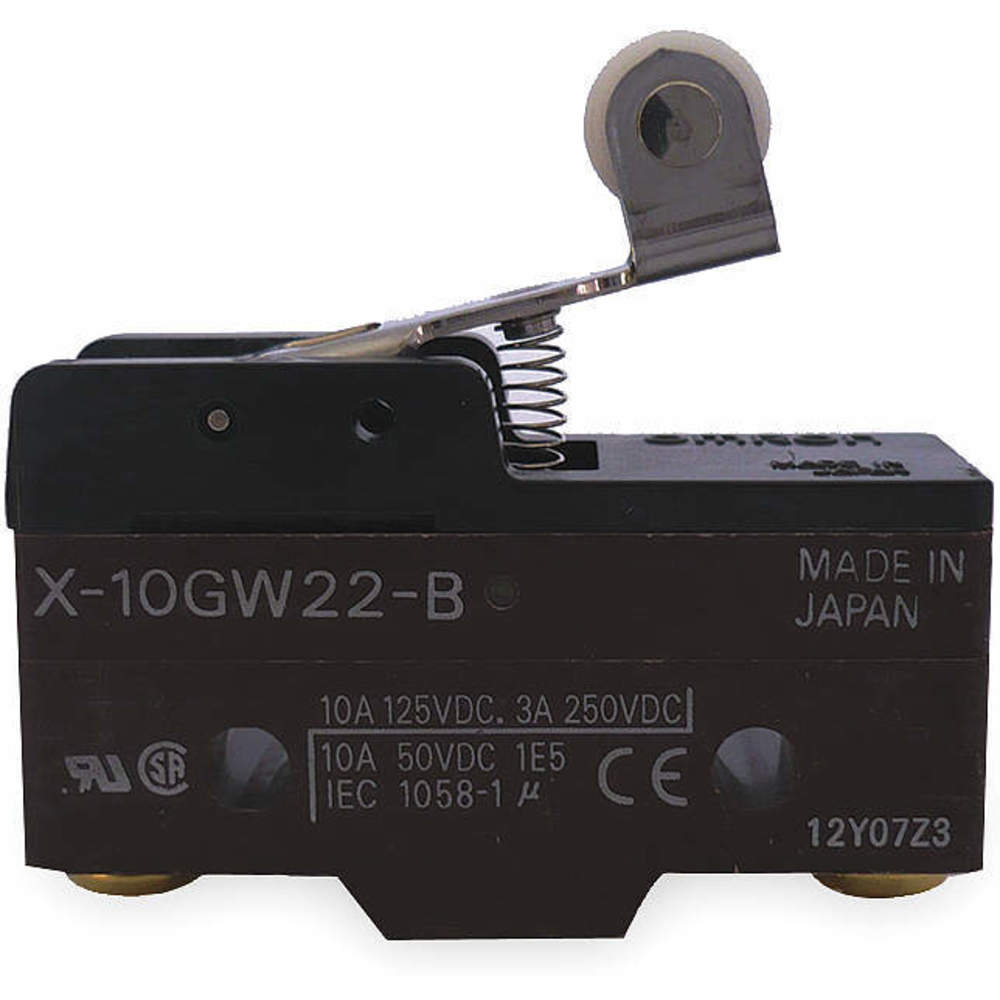

| C | X-10GW22-B | 2A @250V | Screw | 1.22 ozf | 0.225" | 0.094" | Screw | 0.067" | 10A | $50.60 | |

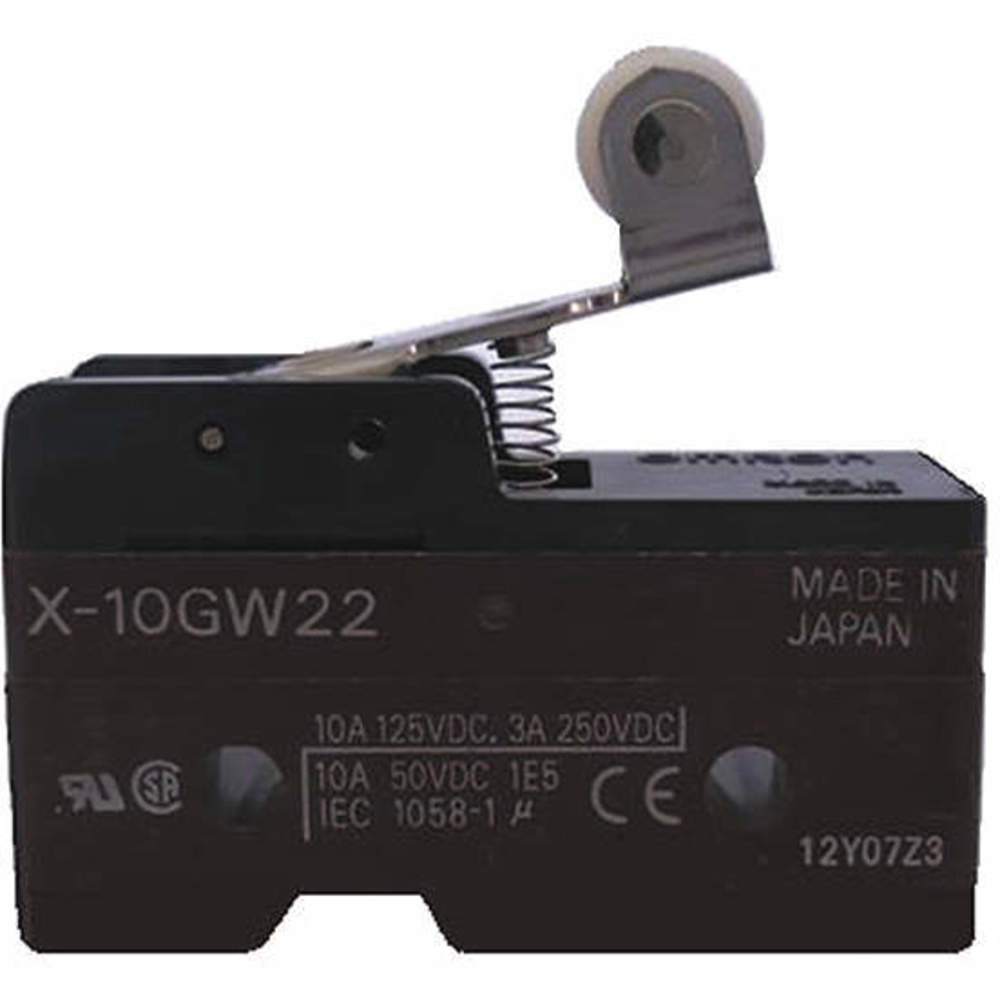

| D | X-10GW22 | 2A @250V | Solder | 1.22 ozf | 0.225" | 0.094" | Solder | 0.067" | 10A | $52.17 | |

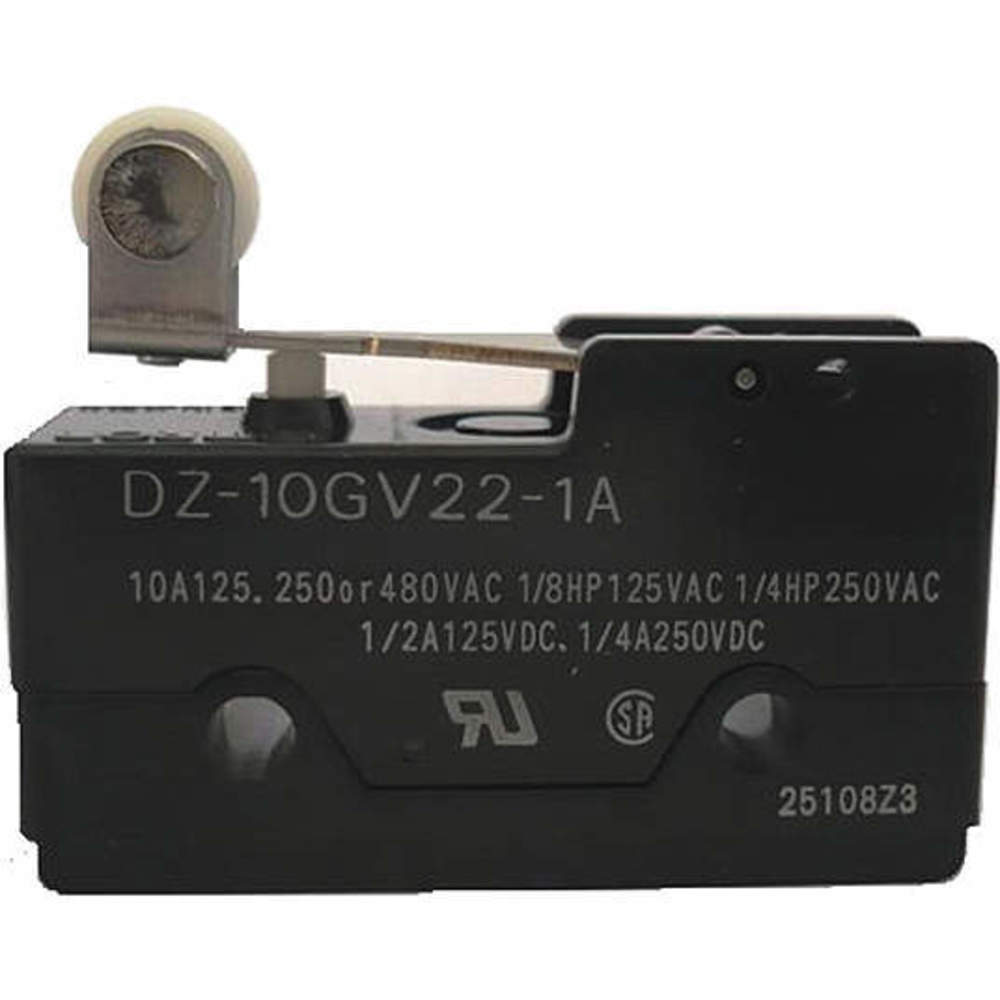

| E | DZ-10GV22-1A | 2A @ 480V | Solder | 1.47 ozf | 0.118" | 0.005" | Solder | 0.024" | 10A | $55.73 | |
| F | TZ-1GV22 | 1A @ 240V | Screw | 1.19 ozf | 0.059" | 0.075" | Bolt | 0.024" | 1A | $748.08 | |
| G | A-20GV22-B7-K | 20A @ 250V | Screw | 1.48 ozf | 0.248" | 0.047" | Screw | 0.047" | 20A | $34.70 |
