| Item | Mounted Ball Bearing |
|---|---|
| Base Height | 0.779" |
| Base Width | 2.126" |
| Bearing Housing Material Type | Cast Iron |
| Bearing Insert Material | Alloy Steel |
| Bearing Insert Type | Radial Ball |
| Bearing Material Grade | Grade 52100 |
| Bolt Center To Center Length | 5 7/8" |
| Bolt Hole Size | 1/2" |
| Bolt Size | 1/2" |
| Bore Dia. | 1 3/4" |
| Bore Type | Cylindrical |
| Center Height | 2 1/16" |
| Closure | Open |
| Closure Type | Open |
| Color | Black |
| Dimension H | 2 1/16" |
| Dimension H1 | 25/32" |
| Dimension H2 | 4 3/32" |
| Dimension J | 5 7/8" |
| Dimension L | 7 15/32" |
| Dimension S | 3/4" |
| Dynamic Load Capacity | 7350 lbs. |
| Dynamic Radial Load Capacity | 7306 lbf. |
| Features | Light Duty |
| Finish | Painted |
| Grade | Grade 52100 |
| Housing Material | Cast Iron |
| Housing Material Finish | Black Oxide |
| Inner Ring Width | 1.937" |
| Insert | Ball Bearing |
|---|---|
| Insert Finish | Chrome Plated |
| Insert Material | Steel |
| Insert Type | Radial Ball |
| Lock Type | Set Screw |
| Lubricant Material | Nlgi #3 Equivalent |
| Material | Steel |
| Maximum Speed | 3500 RPM |
| Maximum Temperature | 250°F |
| Minimum Temperature | -40°F |
| Mount Hole Center-to-center Length | 5 55/64" |
| Mount Hole Size | 0.563" x 1.126" |
| Mount Type | Bolt Through |
| Mounting Bolt Size | 1/2" |
| Mounting Hole Center | 5 7/8" |
| Mounting Surface To Shaft Center | 2 1/8" |
| Mounting Surface To Shaft Center Height | 2 1/16" |
| Number Of Bolts | 2 |
| Number Of Mounting Holes | 2 |
| Overall Height | 4.094" |
| Overall Length | 7.468" |
| Overall Width | 2 1/8" |
| Seal Material | Nitrile Rubber |
| Seal Type | Contact |
| Shaft Locking Type | Set Screws |
| Static Load Capacity | 4600 lbs. |
| Static Radial Load Capacity | 4586 lbf. |
| System Of Measurement | Inch |
| Type | Ball |
| Height (cm) | 10.4 |
|---|---|
| Length (cm) | 18.97 |
| Width (cm) | 5.4 |
| HS Code | 8483204040 |
|---|---|
| Country Of Origin | JP |
| Weight (kg) | 2.475 |
| Style | Model | Housing Material | Overall Width | Overall Height | Overall Length | Shaft Locking Type | Mount Hole Center-to-center Length | Mounting Bolt Size | Closure | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

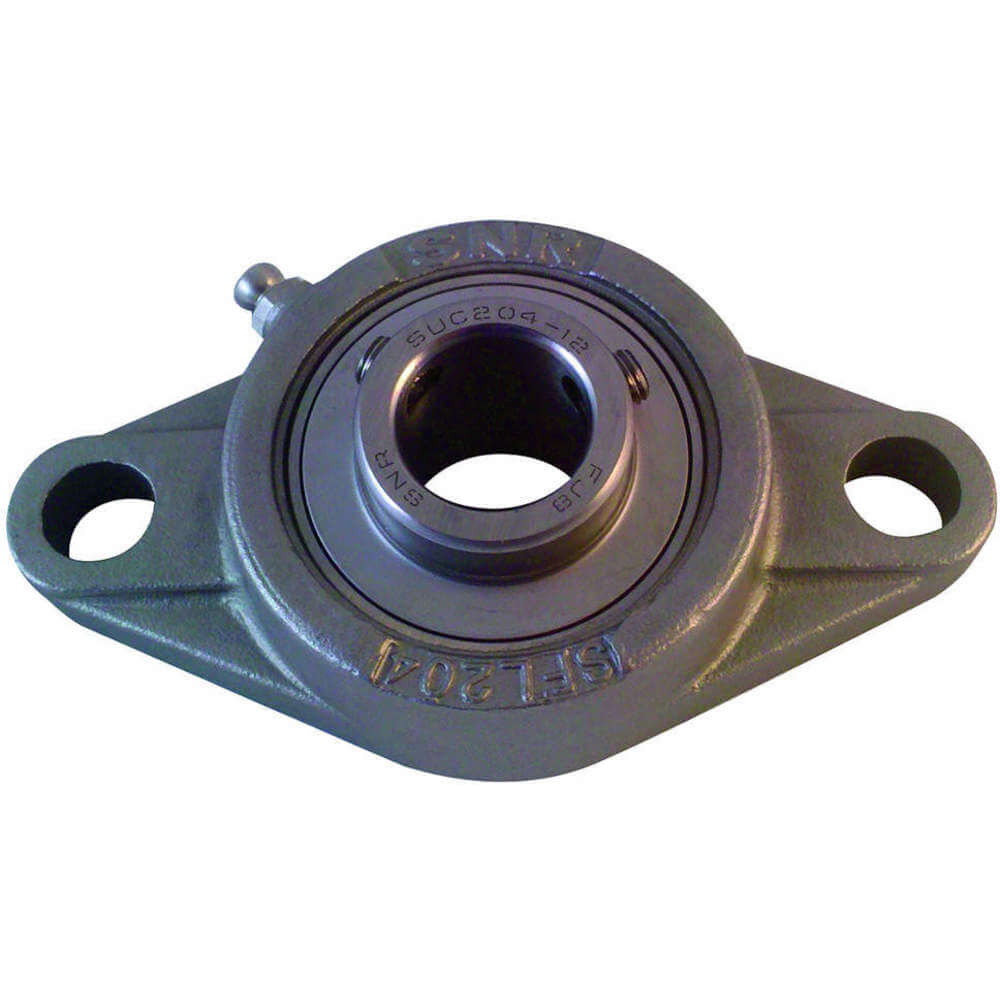

| A | SUCFL206-20 | Stainless Steel | 1 37/64" | 3 9/64" | 5 17/32" | Set Screws | 4 39/64" | 1/2" | Double Sealed | $595.56 | |
| A | SUCFL207-22 | Stainless Steel | 1 3/4" | 3 33/64" | 5 1/8" | Set Screws | 5 1/8" | 1/2" | Double Sealed | $697.04 | |
| A | SUCFL207-22 | Stainless Steel | 1 3/4" | 3 33/64" | 5 1/8" | Set Screws | 5 1/8" | 1/2" | Double Sealed | $688.31 | |
| A | SUCFL207-23 | Stainless Steel | 1 3/4" | 3 33/64" | 5 1/8" | Set Screws | 5 1/8" | 1/2" | Double Sealed | $683.21 | |

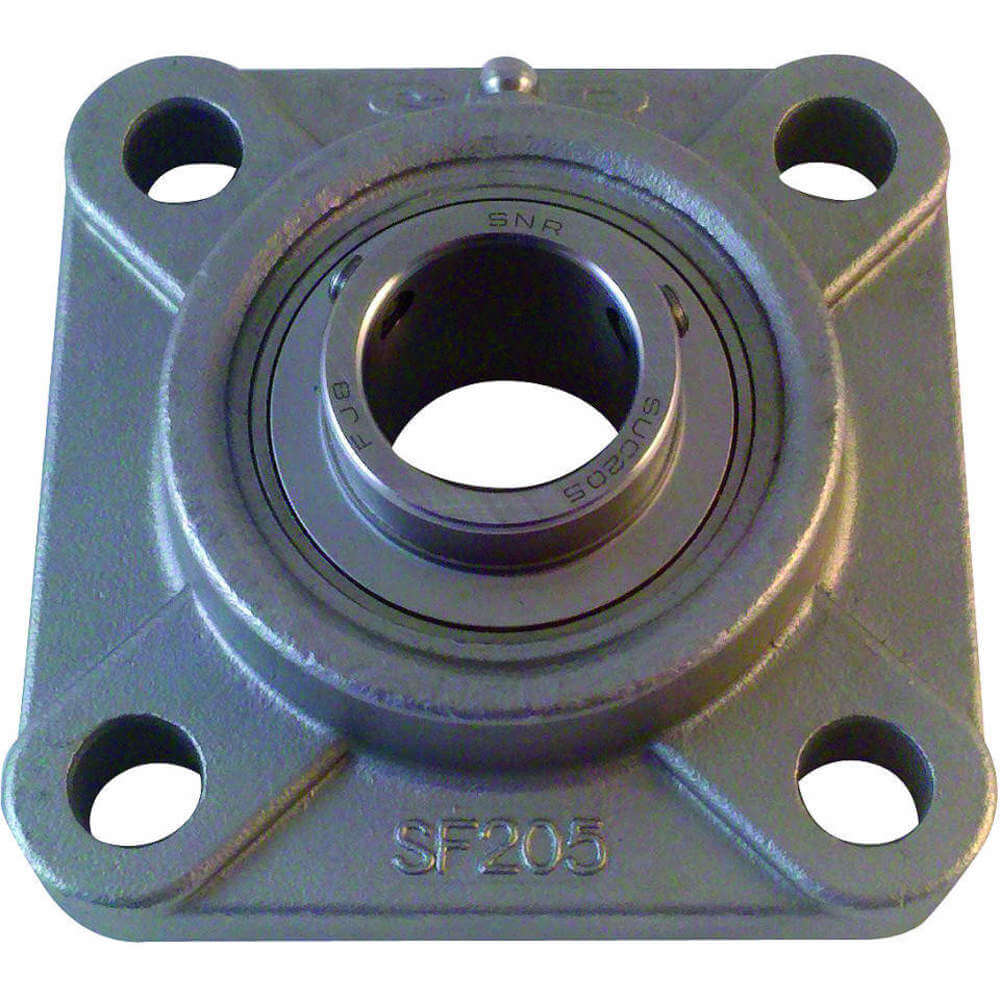

| B | SUCF205-16N | Stainless Steel | 1 13/32" | 3 3/4" | 3 3/4" | Set Screws | 2 3/4" | 3/8" | Double Sealed | $417.56 | |
| B | SUCF206-20 | Stainless Steel | 1 37/64" | 4 1/4" | 4 1/4" | Set Screws | 3 17/64" | 3/8" | Double Sealed | $602.83 | |
| B | SUCF207-22 | Stainless Steel | 1 3/4" | 4 19/32" | 4 19/32" | Set Screws | 3 5/8" | 1/2" | Double Sealed | $727.12 |
