| Item | Electronic Digital Indicator |
|---|---|
| Accuracy | +/-0.00012", +/-0.003 mm |
| Back Type | Removable Flat |
| Battery Size | SR44 |
| Bezel Type | Yes |
| Calibration Certificate | No |
| Case Type | Case |
| Compatible Data Output Cable | 905338 |
| Contact Point Dia. | 0.38" |
| Contact Point Shape | Radius |
| Data Output Type | Cable |
| Dial Size | 66 mm x 83.2 mm |
| Dimension Type | Inch, Metric |
| Display Type | LCD |
| Included Certification | Certificate Of Inspection |
| Includes Battery | Yes |
| Includes Case | Yes |
| Ip Rating | IP42 |
| Long Form Calibration Certificate | No |
|---|---|
| Max. Measuring Force | 2.3N |
| Maximum Measurement - Inch | 2" |
| Maximum Measurement - Mm | 50.8 mm |
| Minimum Measurement - Inch | 0" |
| Minimum Measurement - Mm | 25.4 mm |
| Non-magnetic | No |
| Number Of Indicators | 1 |
| Operation Type | Plunger |
| Range | 0" to 2" |
| Resolution | 0.00005", 0.0001", 0.0005", 0.001", 0.001 mm, 0.01 mm |
| Shock Resistant | No |
| Spc Output | Yes |
| Standards | C0920, Din40050 Part 1, Iec 60529, Jis D0207 |
| Stem Dia. | 0.375" |
| Stem Thread Size | #4-48 Unf |
| Variable Resolution | No |
| Height (cm) | 7.62 |
|---|---|
| Length (cm) | 35.56 |
| Width (cm) | 15.75 |
| HS Code | 9017308000 |
|---|---|
| Country Of Origin | JP |
| Weight (kg) | 0.6525 |
| Style | Model | Accuracy | Long Form Calibration Certificate | Back Type | Stem Dia. | Data Output Type | Stem Thread Size | Contact Point Shape | Contact Point Dia. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 543-783-10 | -0.0008" to +0.0008" | No | Flat Back | 0.375" | Cable | #4-48 Unf | Radius | 0.38" | $364.59 | |
| A | 543793B10 | -0.0001" to +0.0001" | No | Removable Flat | 0.375" | Cable | #4-48 Unf | Radius | 0.38" | $539.20 | |

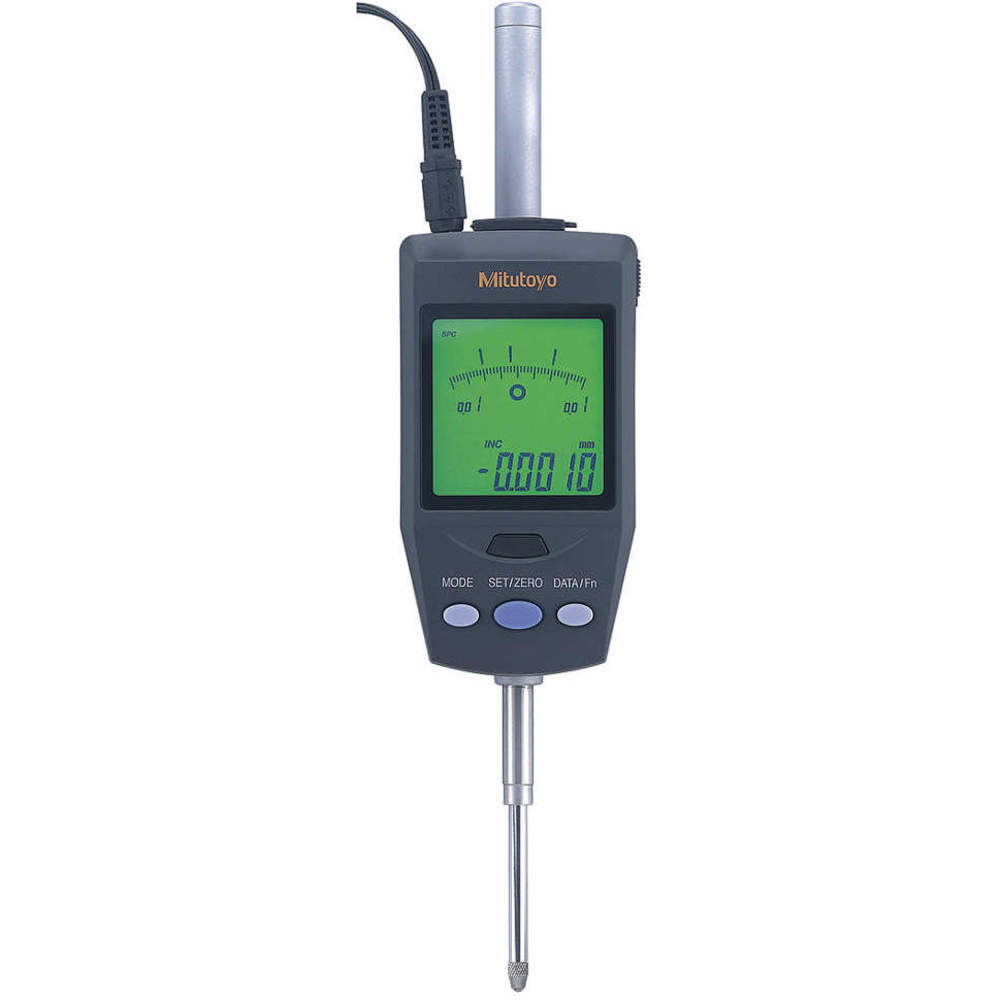

| B | 543-562A | -0.0015 mm to +0.0015 mm | No | Flat Back | 0.375" | Cable | #4-48 Unf | Radius | 0.38" | $1,808.47 | |
| C | 543-783BCERT | -0.0001" to +0.0001" | Yes | Removable Flat | 0.375" | Cable | #4-48 Unf | Radius | 0.38" | $445.14 | |

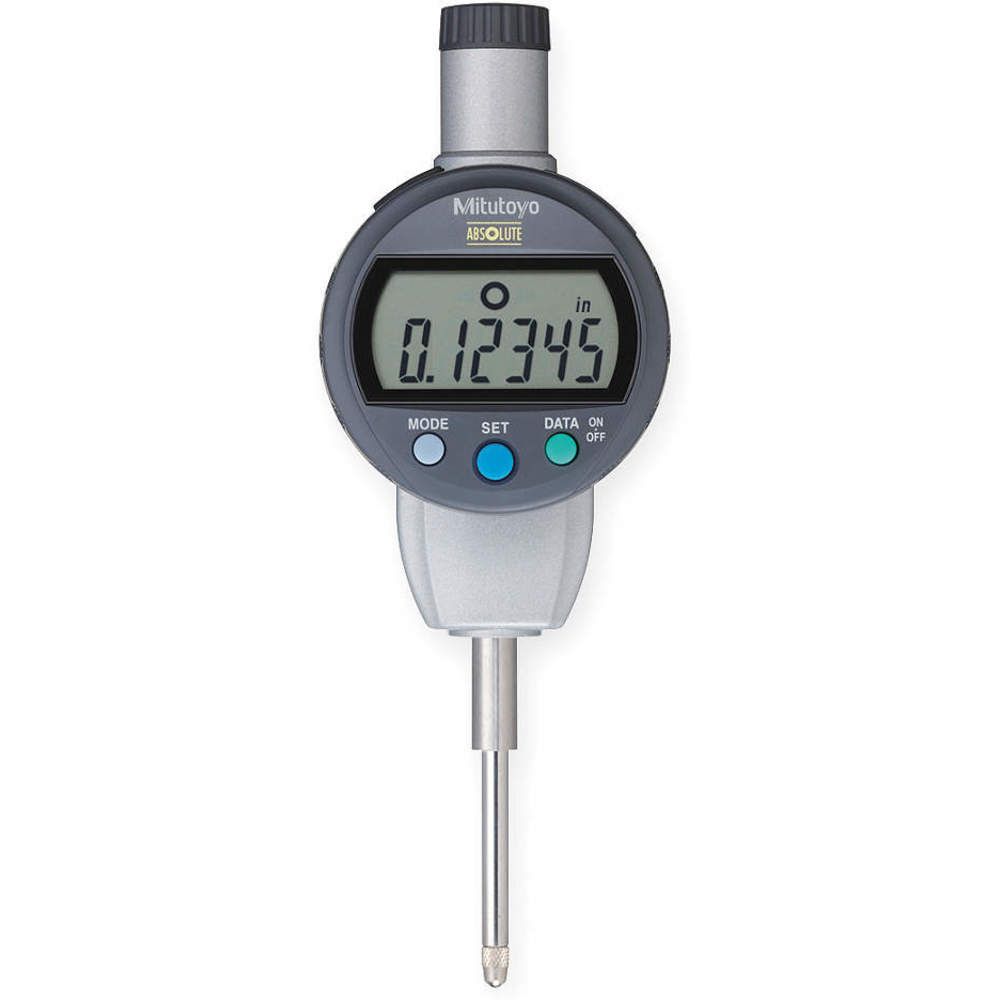

| D | 543-472BCERT | -0.0001" to +0.0001" | Yes | Removable Flat | 0.375" | Cable | #4-48 Unf | Radius | 0.38" | $1,749.87 | |
| E | 543-402BCERT | -0.0001" to +0.0001" | Yes | Removable Flat | 0.375" | Cable | #4-48 Unf | Radius | 0.38" | $746.59 | |
| F | 543-796CERT | 0.0001" | - | - | - | - | - | - | - | $713.06 |
