| Item | Dial Test Indicator |
|---|---|
| Accuracy | -0.0002" to +0.0002" |
| Bearing Type | Jeweled |
| Contact Point Dia. | 5/64" |
| Contact Point Material | Carbide |
| Contact Point Shape | Ball |
| Contact Point Style | Carbide |
| Dial Color | White |
| Dial Reading | 0-4-0 |
| Dial Size | 40 mm |
| Dimension Type | Inch |
| Graduations | 0.0001" |
| Included Certification | Inspection Certificate |
| Includes | Carbide Point, Stem |
| Includes Case | Yes |
| Includes Dovetail Mount Attachments | Yes |
| Indicator Style | Horizontal |
| Long Form Calibration Certificate | No |
|---|---|
| Max. Measuring Force | 0.3N |
| Maximum Measurement - Inch | 0.016" |
| Minimum Measurement - Inch | 0" |
| Mounting Style | Dovetail |
| Non-conductive Tip | No |
| Non-magnetic Tip | Yes |
| Number Of Indicators | 1 |
| Operation Type | Lever Style |
| Range | 0" to 0.016" |
| Range Per Revolution | 0.008" |
| Reading | Balanced |
| Standards | AGD |
| Stem Thread Size | M8 x 1 |
| Stylus Length | 15 mm |
| Test Indicator Style | Tilted Face |
| Height (cm) | 5.84 |
|---|---|
| Length (cm) | 13.21 |
| Width (cm) | 7.87 |
| HS Code | 9026806000 |
|---|---|
| Country Of Origin | JP |
| Weight (kg) | 0.2025 |
| Style | Model | Range | Dial Reading | Operation Type | Dial Color | Dimension Type | Accuracy | Graduations | Stem Thread Size | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

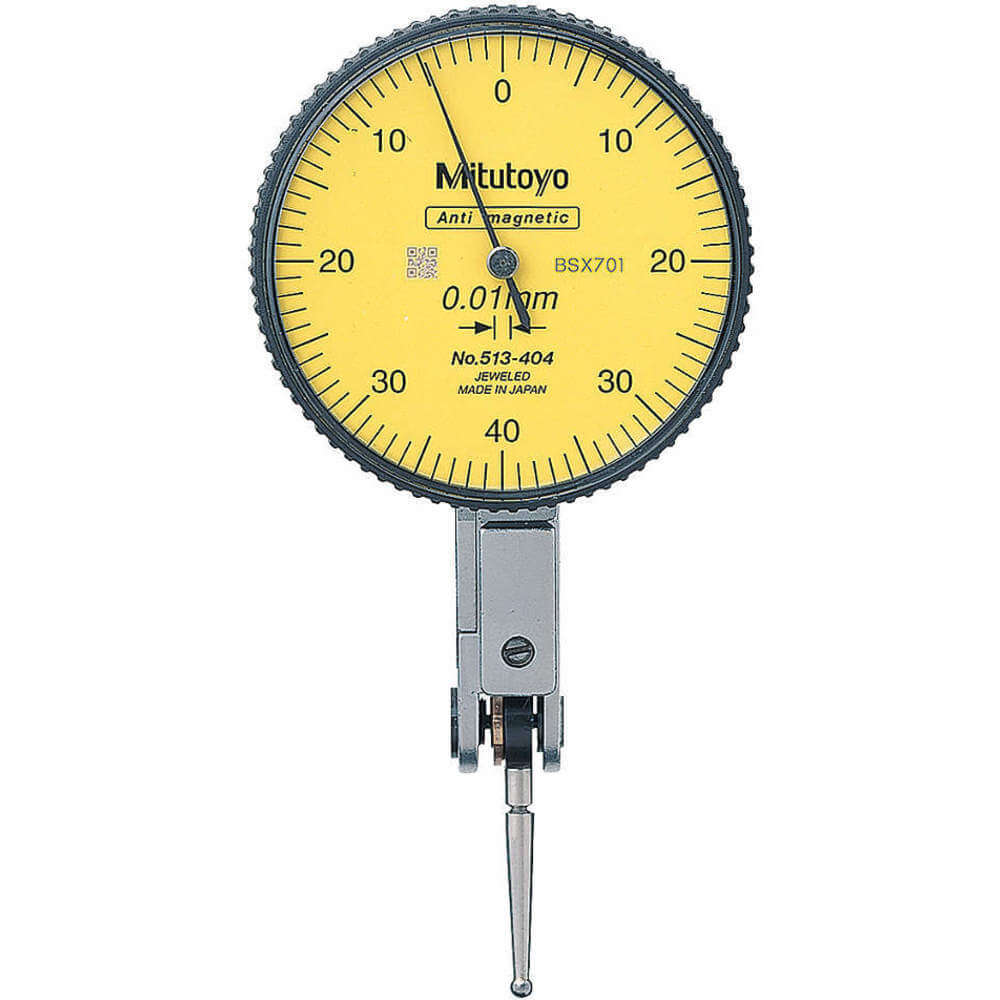

| A | 513-404-10E | 0 mm to 0.8 mm | 0-40-0 | Lever Style | Yellow | Metric | -0.008 mm to +0.008 mm | 0.01 mm | M8 x 1 | $235.53 | |

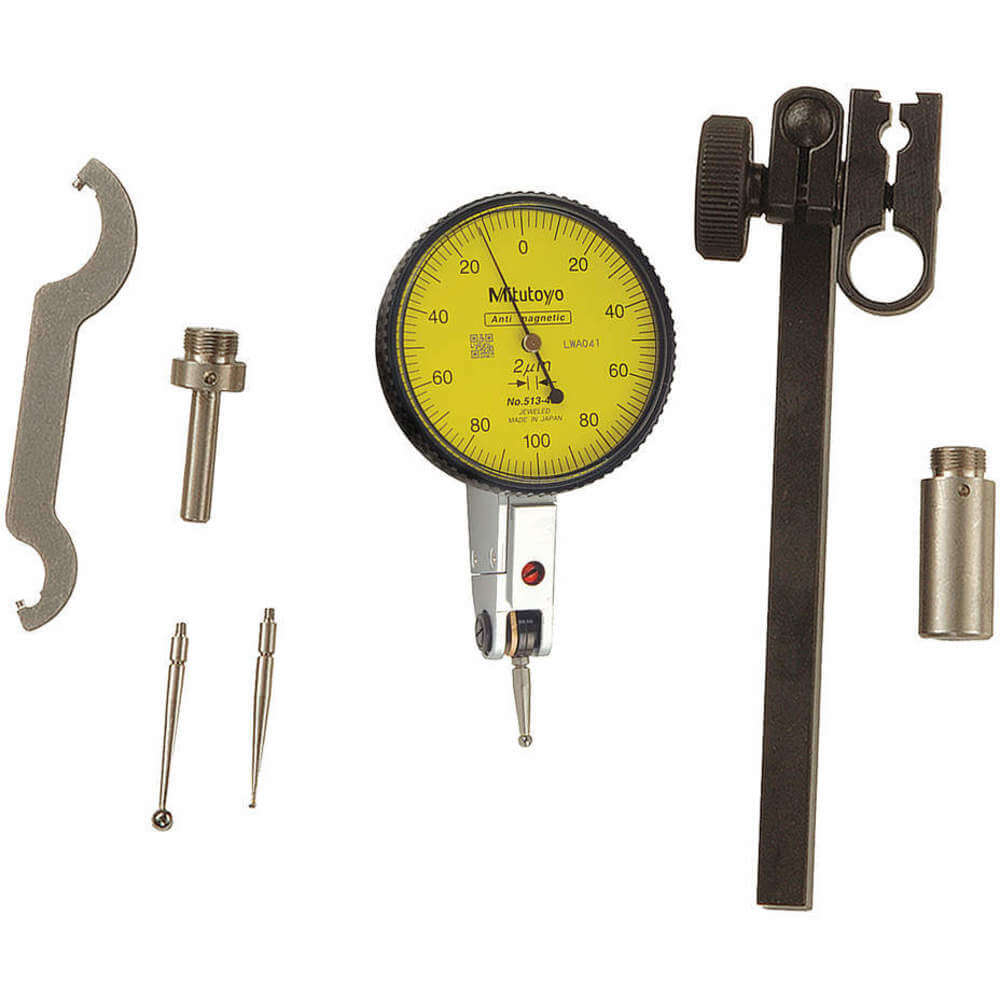

| B | 513-405-10T | 0 mm to 0.2 mm | 0-100-0 | Lever Style | Yellow | Metric | -0.004 mm to +0.004 mm | 0.002 mm | M6 | $331.51 | |
| C | 513-403-10T | 0" to 0.008" | 0-4-0 | Lever Style | White | Inch | -0.0001" to +0.0001" | 0.0001" | M6 | $340.20 | |
| D | 513-412-10T | 0" to 0.03" | 0-15-0 | Lever Style | White | Inch | -0.0005" to +0.0005" | 0.0005" | M6 | $364.40 | |

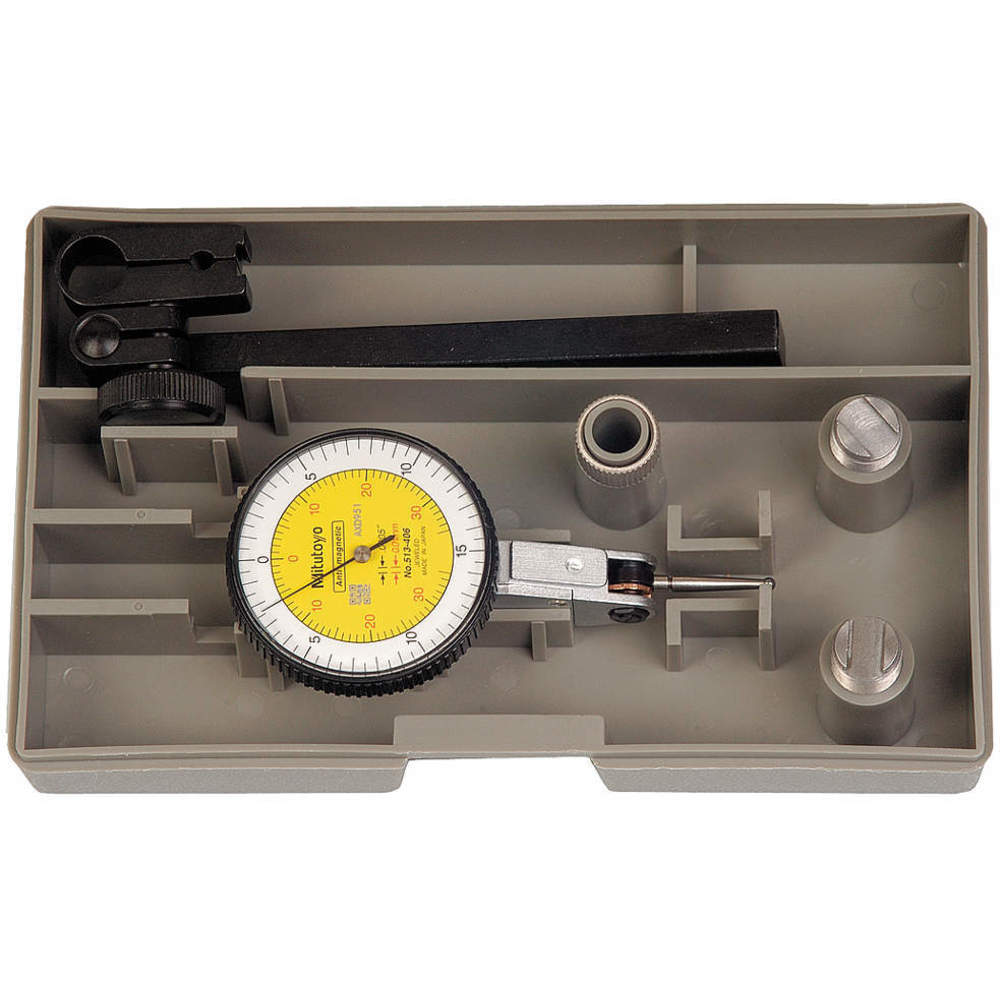

| E | 513-406-10T | 0" to 0.7", 0 mm to 0.7 mm | 0-15-0, 0-35-0 | Lever Style | White, Yellow | Inch, Metric | -0.004 mm to +0.004 mm | 0.0005" | M6 | $307.50 | |
| F | 513-412-10E | 0" to 0.03" | 0-15-0 | Lever Style | White | Inch | -0.0005" to +0.0005" | 0.0005" | M6 | $327.50 | |
| G | 513-442-10A | 0" to 0.06" | 0-15-0 | Lever Style | White | Inch | -0.0005" to +0.0005" | 0.0005" | M8 x 1 | $317.43 |
