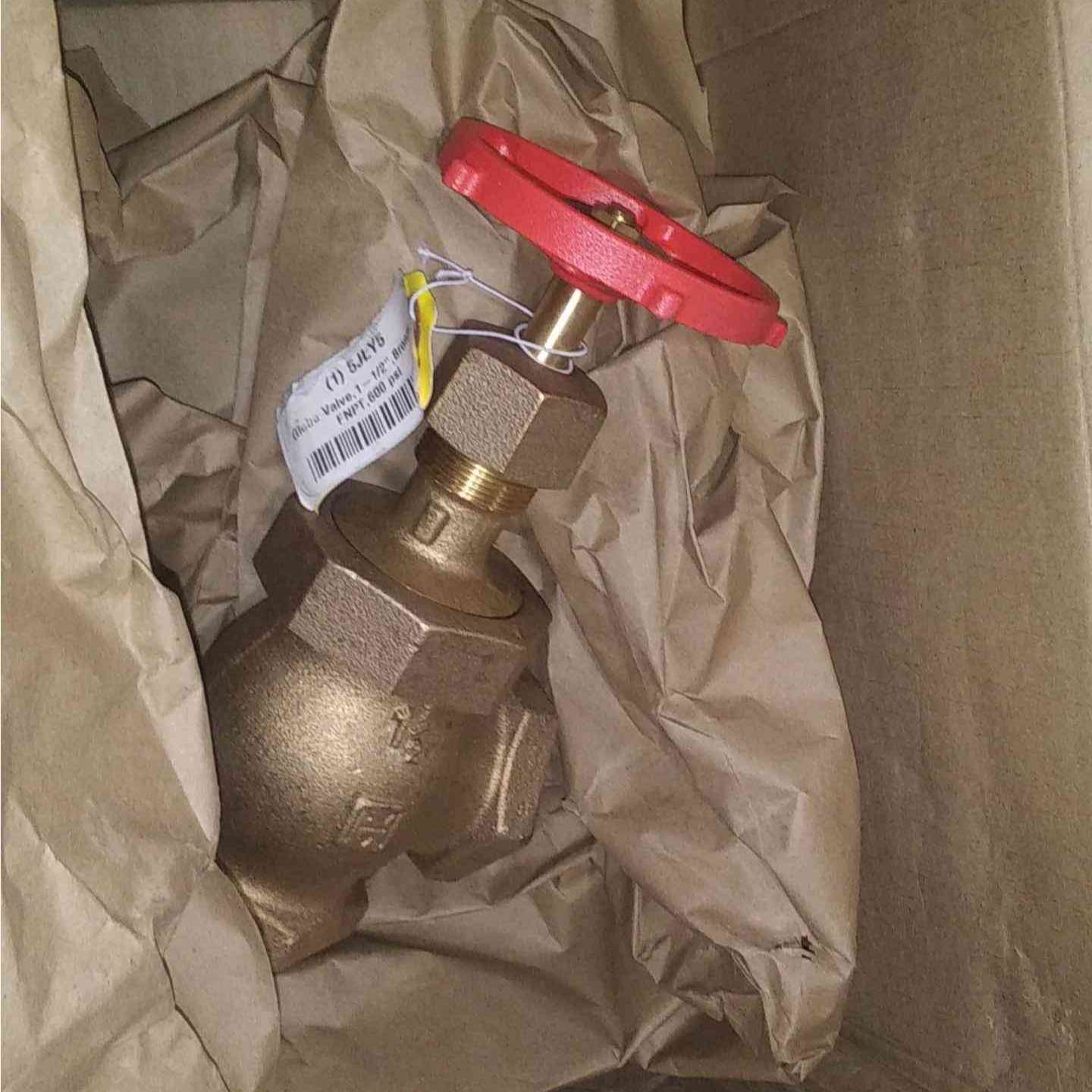

| Item | Angle Globe Valve |
|---|---|
| Body Material | Bronze |
| Bonnet Material | Bronze |
| Bonnet Style | Union |
| Class | Class 300 |
| Connection Size - Side 1 | 1 1/2" |
| Connection Size - Side 2 | 1 1/2" |
| Connection Type | FNPT x FNPT |
| Disc Material | Bronze |
| Flow Coefficient | 39 |
| For Media | Gas, Oil, Steam, Water |
| Globe Valve Body Type | Angle |
| Handle Diameter | 4.25" |
| Handle Height | 7 3/4" |
| Handle Material | Iron |
| Handle Type | Wheel |
| Inlet To Outlet Length | 7 1/2" |
| Item - Globe Valves | Globe Valve |
| Max. Fluid Temp. | 550°F |
| Max. Pressure (cwp) | 600 psi |
| Max. Steam Pressure | 300 psi |
|---|---|
| Max. Water Pressure | 600 psi |
| Media Temp. Range | -20°F to +550°F |
| Media Temperature Range | -20°F to +550°F |
| Overall Length | 4.75" |
| Pipe Size | 1 1/2" |
| Seal Material | Bronze |
| Seat Material | Bronze |
| Shape | Angle |
| Shape - Globe Valves | Angle |
| Stem | Rising |
| Stem Material | Bronze |
| Stem Type | Rising |
| Top Of Handle To Inlet Center | 2 1/4" |
| Valve Class | Class 300 |
| Valve Handle Design | Hand Wheel |
| Valve Series | 582 |
| Valve Stem Design | Rising |
| Wedge Material | Bronze |
| Standards | ASTM B 124 C37700, ASTM B16, ASTM B61, MSS SP-80 |
| Height (cm) | 13.72 |
|---|---|
| Length (cm) | 38.1 |
| Width (cm) | 26.42 |
| HS Code | 8481801070 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 3.195 |
| Style | Model | Max. Water Pressure | Pipe Size | Bonnet Style | Class | Max. Fluid Temp. | Max. Steam Pressure | Top Of Handle To Inlet Center | Inlet To Outlet Length | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 504 1 | 200 psi | 1" | Screw In | Class 125 | - | - | - | - | $240.87 | |
| A | 504 2 | 200 psi | - | Screw In | Class 125 | 353°F | 125 psi | - | - | $562.93 | |
| B | 582 1 | 600 psi | 1" | Union | Class 300 | 550°F | 300 psi | 1 3/4" | 6 3/8" | $413.79 | |
| B | 582 2 | 600 psi | 2" | Union | Class 300 | 550°F | 300 psi | 2 3/4" | 8 3/4" | $971.30 |
