| Item | Fuse |
|---|---|
| Ac Max I.r./breaking Capacity I1 | 200 kA |
| Ac Voltage | 600V AC |
| Ac/dc | AC/DC |
| Amps | 400A |
| Body Material | GMG |
| Body/insulating Material | GMG |
| Connection/terminal Material | Brass Alloy |
| Connection/terminal Type | Blade |
| Diameter | 54 mm |
| Frame Type | A4J |
| Frequency | 50/60 Hz |
| Fuse Class | Class J |
| Fuse Dia. | 2 3/25" |
| Fuse Length | 7.13" |
|---|---|
| Length | 181.1 mm |
| Mounting | Clip |
| Mounting Style | Clip |
| Number Of Poles | 1 |
| Product Group | Low Voltage UL/CSA Fuses |
| Rated Voltage Ac Ul | 600V |
| Rated Voltage Dc Ul | 300V |
| Rohs Compliant | Yes |
| Speed Characteristic | Fast Acting |
| Speed Type | Fast Acting |
| Voltage | 600V |
| Voltage Type | AC |
| Height (cm) | 18.42 |
|---|---|
| Length (cm) | 5.38 |
| Width (cm) | 5.38 |
| Country Of Origin | MX |
|---|---|
| Weight (kg) | 0.828 |
| Style | Model | Amps | Body Style | Mounting Style | Fuse Dia. | Fuse Length | Amps Rating | Dc Voltage Rating | Fuse Class | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

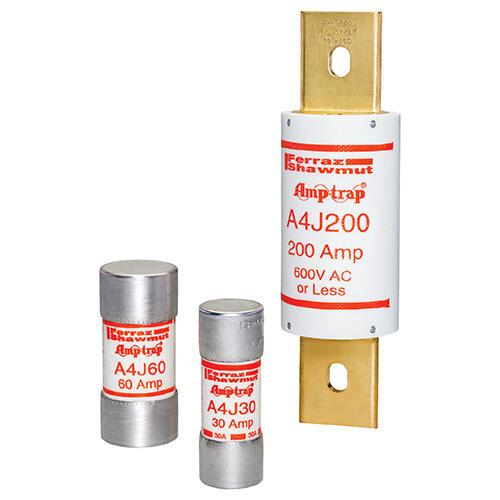

| A | A4J110EI | 110A | - | Clip | 1.62" | 5 3/4" | - | - | Class J | $483.59 | |
| A | A4J200EI | 200A | - | Clip | 1.62" | 5 3/4" | - | - | Class J | $420.48 | |
| A | A4J600EI | 600A | - | Clip | 2 1/2" | 8" | - | - | Class J | $1,025.49 | |

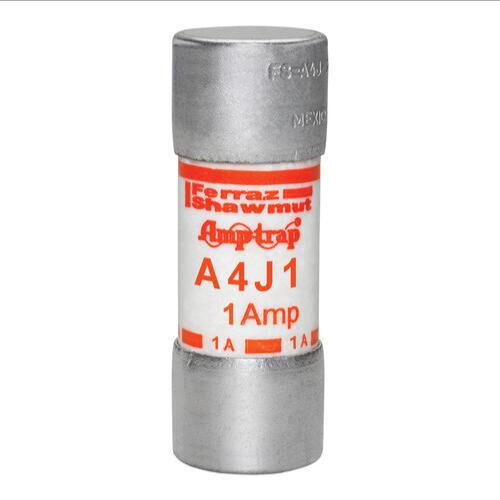

| B | A4J1 | 1A | - | Clip | 0.81" | 2 1/4" | - | - | Class J | $19.62 | |
| B | A4J10 | 10A | Cartridge Fuses | Holder | 0.81" | 2 1/4" | 10A | 300V DC | Class J | $19.62 | |
| B | A4J100 | 100A | Cartridge Blade Fuses | Holder | 1.06" | 4.63" | 100A | 300V DC | Class J | $50.80 | |
| B | A4J110 | 110A | - | Clip | 1.62" | 5 3/4" | - | - | Class J | $109.73 |
