| Item | Kiln Motor |
|---|---|
| Application | Kiln |
| Bearing Type | Ball |
| Bearings | Ball |
| Cc Number | CC003A |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1, F2 |
| Duty Cycle | Continuous |
| Efficiency Group | Premium |
| Frame | 256T |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Full Load Amps | 12.8A |
| Hp | 10 hp |
| Insulation Class | Class H |
| Inverter Rated | Yes |
| Inverter Rating | 20:1 Variable Torque |
| Lead Length | 96" |
| Length Less Shaft | 18 1/8" |
| Manufacturers Warranty Length | 2 yrs. |
| Max. Ambient Temp. | 90°C |
| Motor Application | Kiln |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Air Over |
|---|---|
| Motor Frame Material | Cast Iron |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1172 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 91% |
| Number Of Speeds | 1 |
| Overall Length | 22 3/8" |
| Phase | 3 |
| Service Factor | 1.15 |
| Shaft Dia. | 1 5/8" |
| Shaft Length | 4 1/4" |
| Standards | CSA |
| Thermal Protection | Thermostat |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 460V AC |
| Warranty | 2 yrs. |
| Motor Thermal Protection | None |

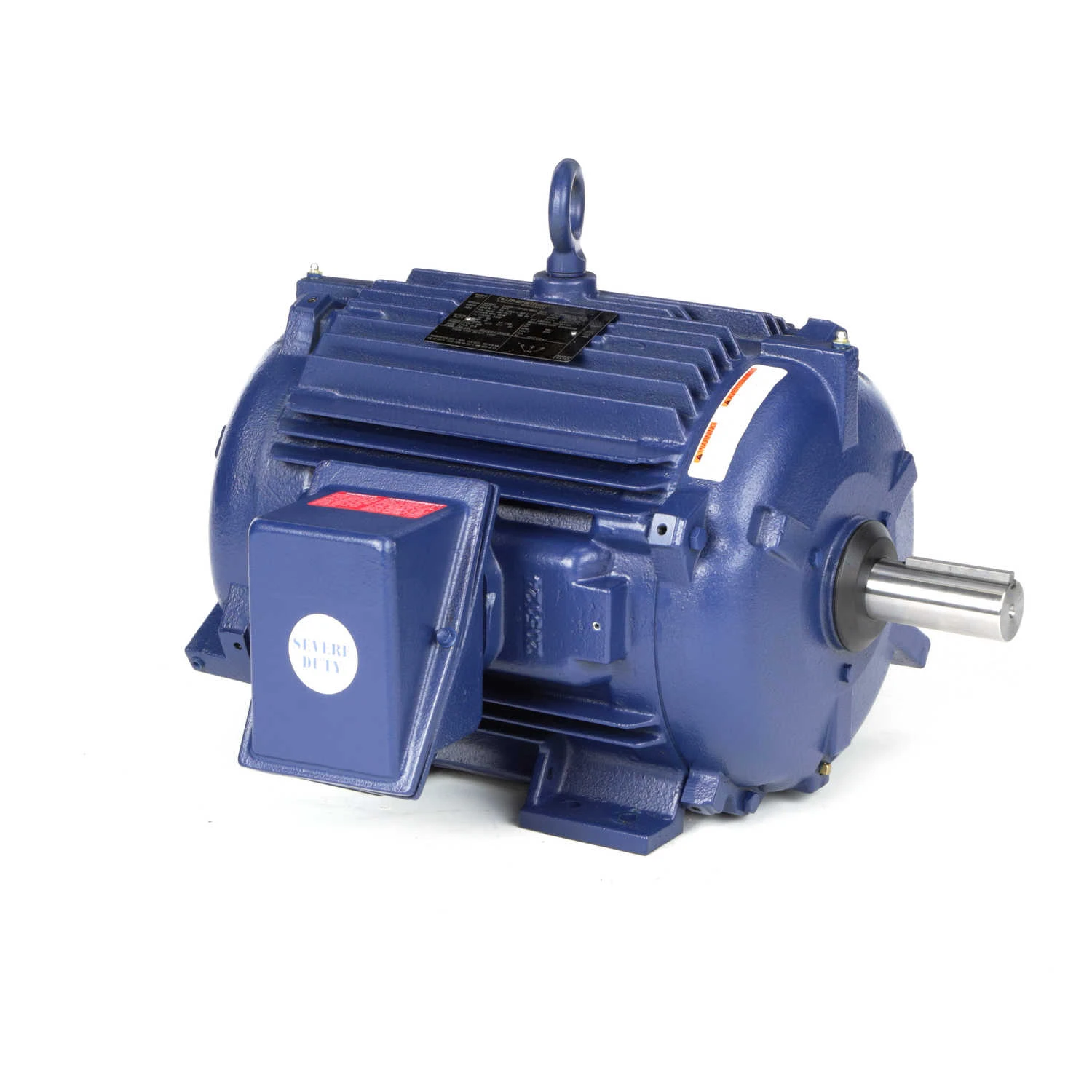

Marathon 256TTTNA18578 Kiln motor is suitable for harsh environments, such as lumber drying kilns in the pulp and food production industries. This motor offers high structural rigidity and provides excellent performance in any dry kiln environment having high ambient temperatures, humidity and chemicals.
| Height (cm) | 45.72 |
|---|---|
| Length (cm) | 79.38 |
| Width (cm) | 56.52 |
| HS Code | 8501524000 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 157.95 |
A continuous duty operation is one where the highest current is expected to work continuously for three hours or more.
In a single-phase motor, the electricity flows through a single conductor. On the other hand, a three-phase connection comprises three separate conductors for transmitting electricity.
| Style | Model | Hp | Nameplate Rpm | Frame | Efficiency Group | Nominal Efficiency | Shaft Dia. | Shaft Length | Overall Length | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

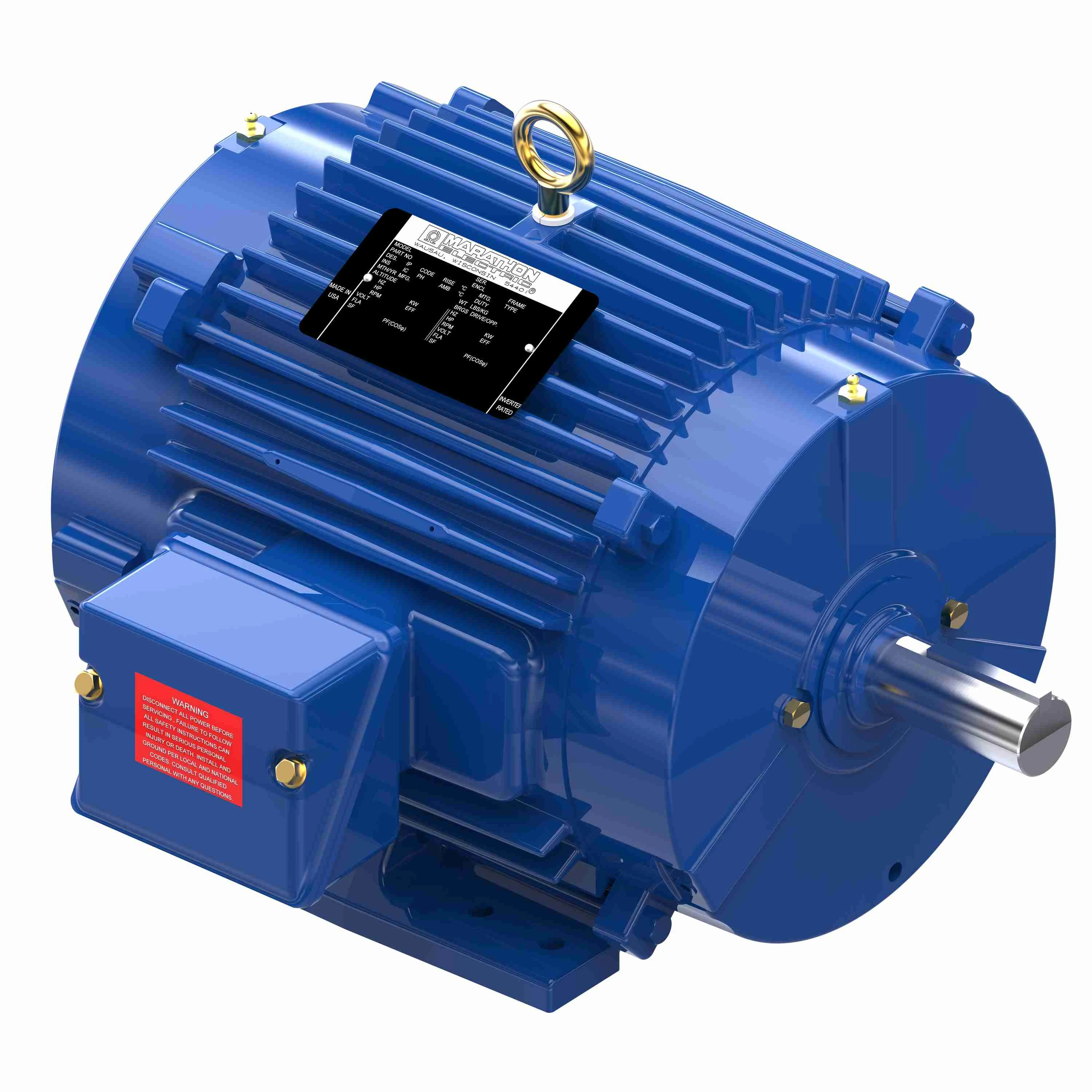

| A | 215TTTS17077 | 5 hp | 1170 RPM | 215T | Energy | 87.5% | 1 3/8" | 3 9/16" | 17 3/16" | $4,808.54 | |

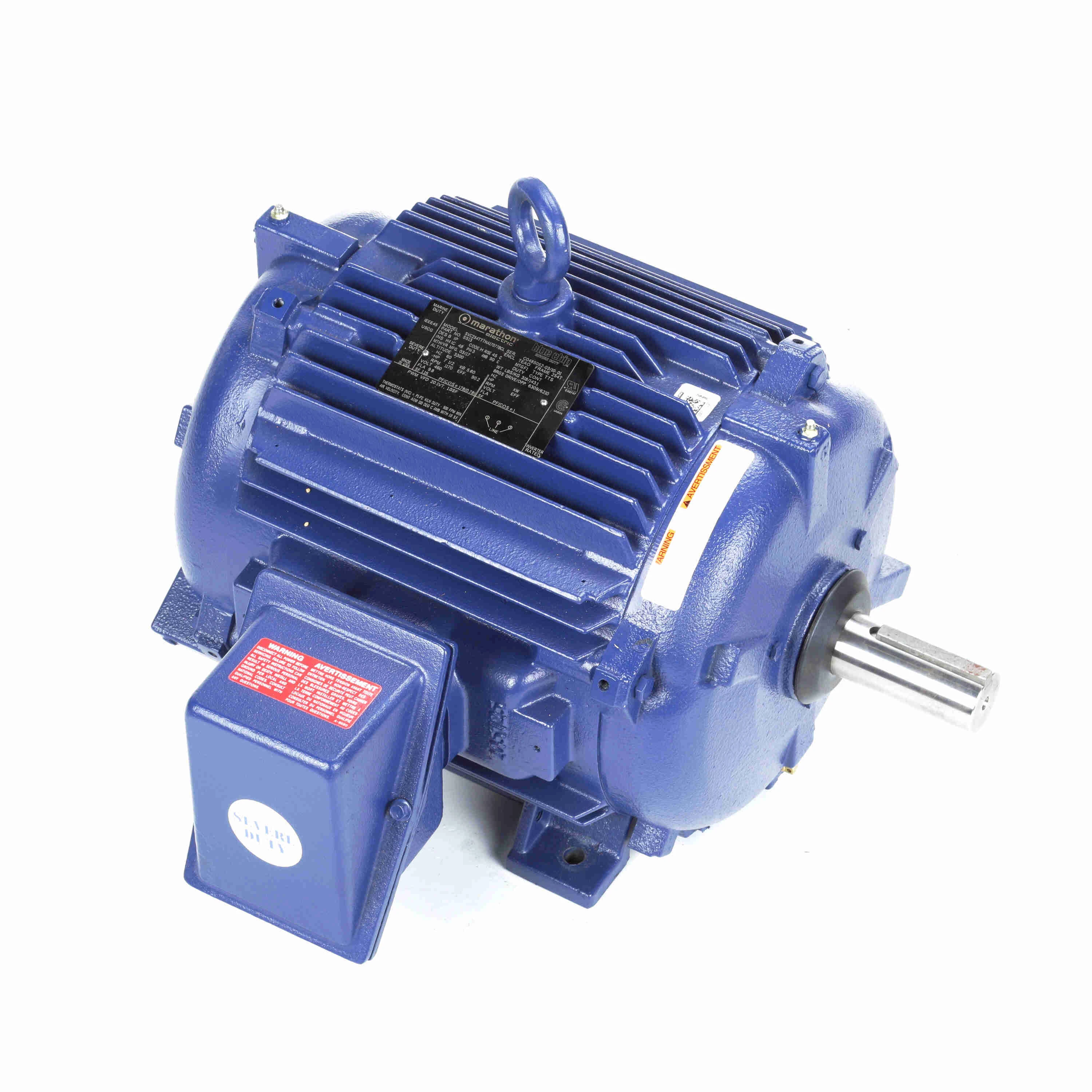

| B | 254TTTNA17077 | 7 1/2 hp | 1170 RPM | 254T | Energy | 90.2% | 1 5/8" | 4 1/4" | 20 5/8" | $4,758.16 |
