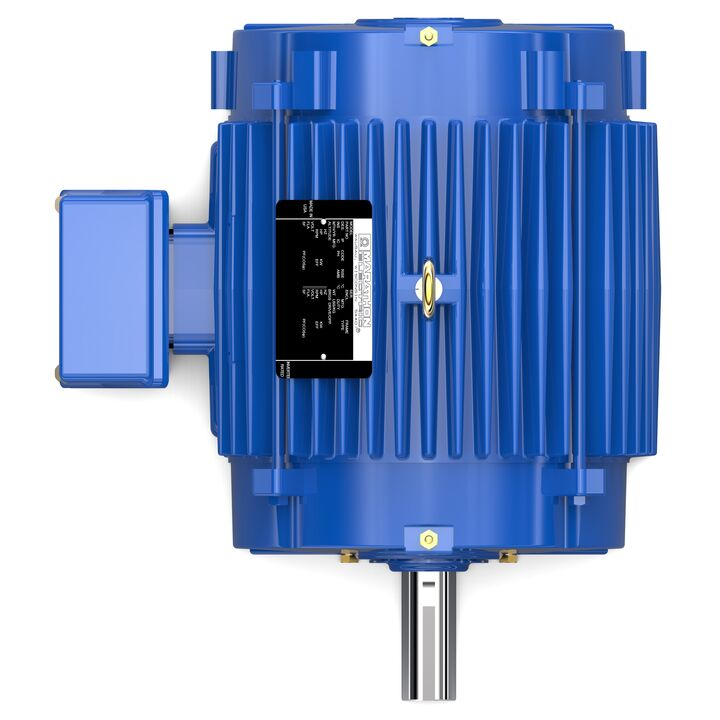

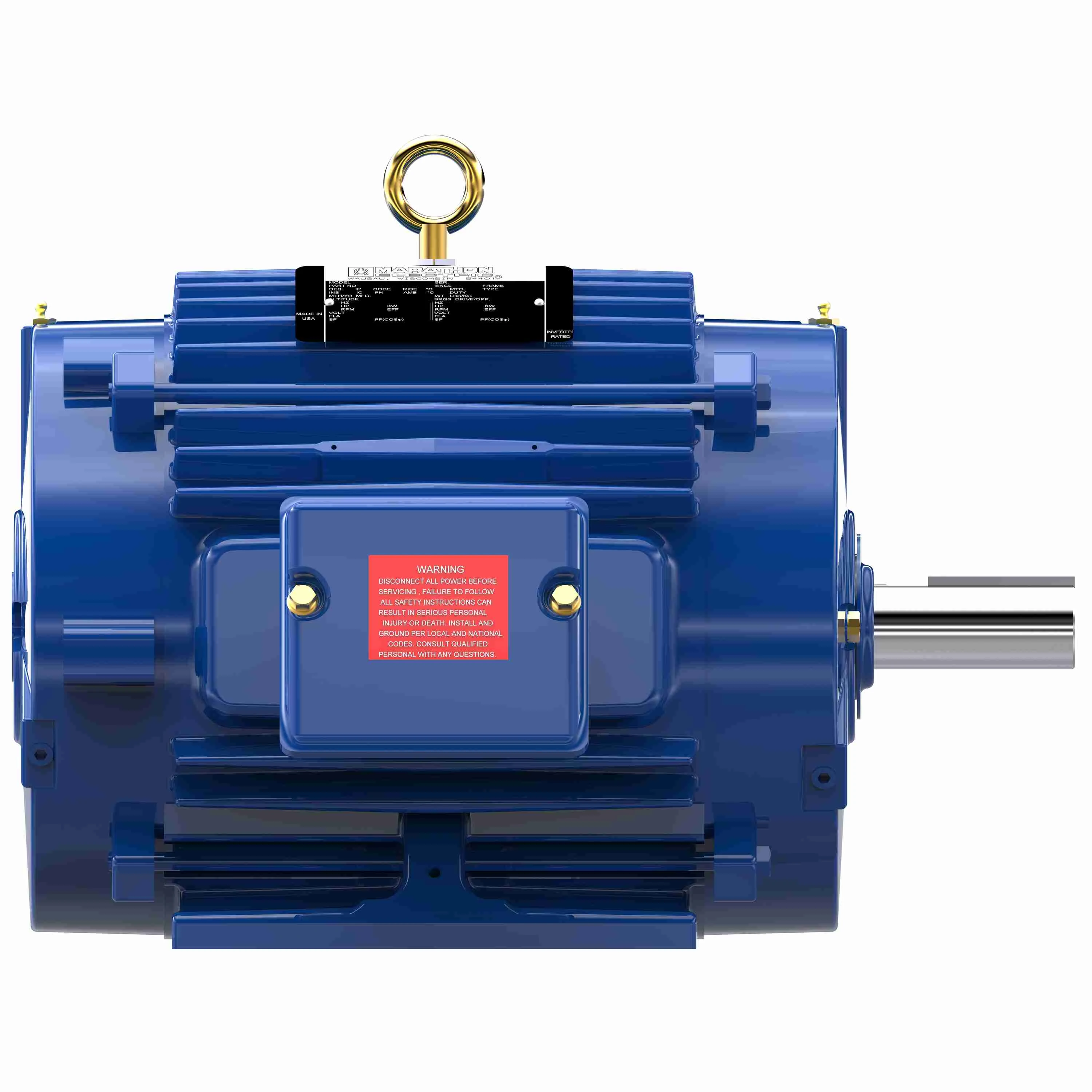

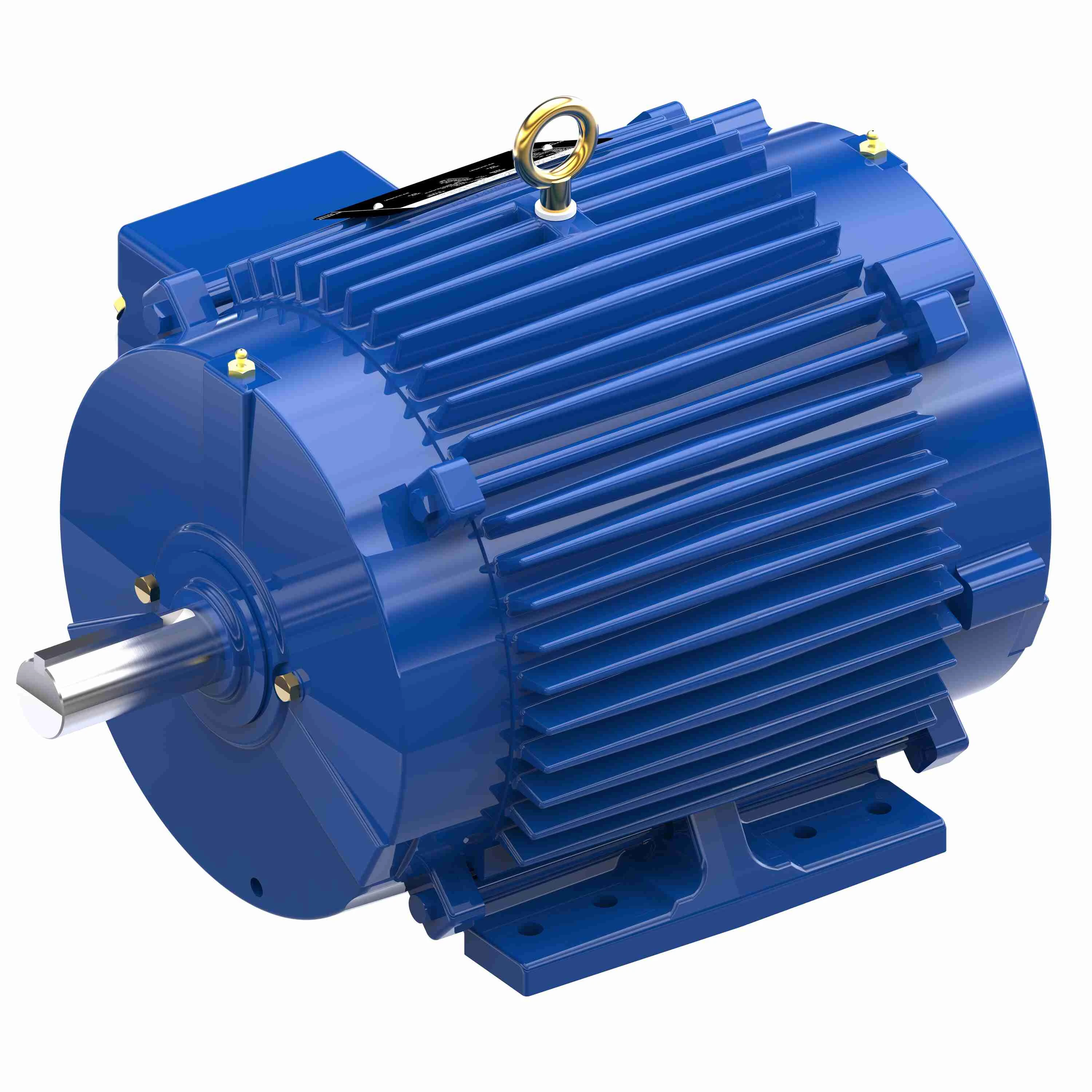

| Item | Kiln Motor |
|---|---|
| Application | Kiln |
| Bearing Type | Ball |
| Bearings | Ball |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1, F2 |
| Duty Cycle | Continuous |
| Efficiency Group | Energy |
| Frame | 215T |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Full Load Amps | 6.9A |
| Hp | 5 hp |
| Insulation Class | Class H |
| Inverter Rated | Yes |
| Inverter Rating | 20:1 Variable Torque |
| Lead Length | 96" |
| Length Less Shaft | 13 5/8" |
| Manufacturers Warranty Length | 2 yrs. |
| Max. Ambient Temp. | 90°C |
| Motor Application | Kiln |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Efficiency Group | Energy Efficient |
| Motor Enclosure Design | Totally Enclosed Air Over |
|---|---|
| Motor Frame Material | Cast Iron |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1170 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 87.5% |
| Number Of Speeds | 1 |
| Overall Length | 17 3/16" |
| Phase | 3 |
| Service Factor | 1.15 |
| Shaft Dia. | 1 3/8" |
| Shaft Length | 3 9/16" |
| Standards | Csa, Ul Recognized |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 460V AC |
| Warranty | 2 yrs. |
| Motor Thermal Protection | None |
| Height (cm) | 36.53 |
|---|---|
| Length (cm) | 68.28 |
| Width (cm) | 45.72 |
| HS Code | 8501524000 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 88.2 |
| Style | Model | Hp | Nameplate Rpm | Frame | Efficiency Group | Nominal Efficiency | Shaft Dia. | Shaft Length | Overall Length | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 254TTTNA17077 | 7 1/2 hp | 1170 RPM | 254T | Energy | 90.2% | 1 5/8" | 4 1/4" | 20 5/8" | $4,758.16 | |
| B | 256TTTNA18578 | 10 hp | 1172 RPM | 256T | Premium | 91% | 1 5/8" | 4 1/4" | 22 3/8" | $4,999.69 |
