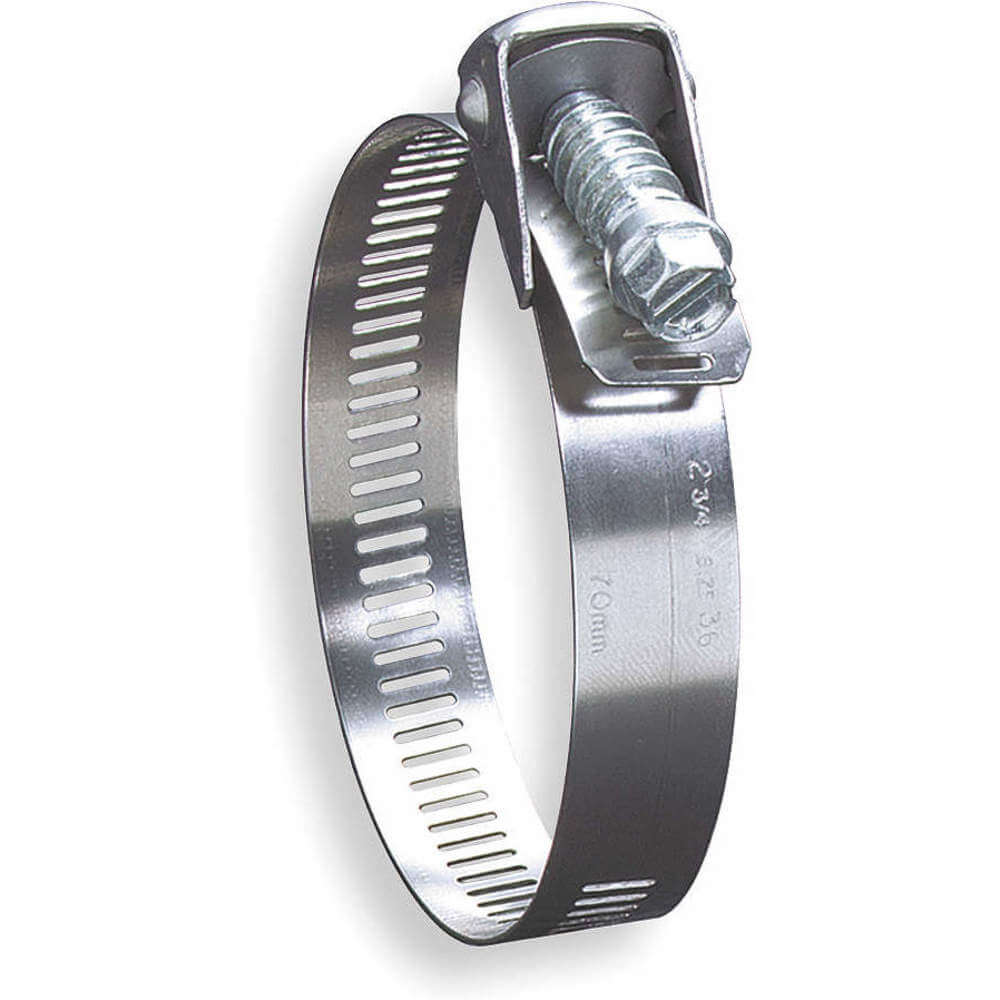

| Item | Worm Gear Hose Clamp |
|---|---|
| Band Length | 0.56" |
| Band Material | Stainless Steel |
| Band Material Grade | Grade 201 |
| Band Thickness | 0.022" |
| Band Type | Perforated |
| Band Width | 9/16" |
| Clamp Maximum Inside Diameter | 1 1/4" |
| Clamp Minimum Inside Diameter | 1/2" |
| Clamp Type | Worm Gear Clamp |
| Drive Type | Quick Release Slotted Hex |
| Fastener Housing Material | 201 Stainless Steel |
| For Maximum Outside Diameter | 1 1/4" |
| Hex Size | 5/16" |
| Housing Material | Stainless Steel |
| Housing Material Grade | Grade 201/301 |
|---|---|
| Install Torque | 30 lbs.-in. |
| Max. Clamp Dia. | 1 1/4" |
| Maximum Operating Temperature | 500°F |
| Metric Dia. Max. | 32 mm |
| Metric Dia. Min. | 13 mm |
| Min. Clamp Dia. | 1/2" |
| Sae Number | 12 |
| Screw Material | Steel |
| Screw Material Finish | Zinc Plated |
| Screw Size | 5/16" |
| Series | SNAPLOCK Series |
| Standards | Iatf16949, Iso 14001, Iso 9001 |
| System Of Measurement | Imperial |
| Torque | 30 lbs.-in. |
| Height (cm) | 11.94 |
|---|---|
| Length (cm) | 7.62 |
| Width (cm) | 7.11 |
| HS Code | 7326908588 |
|---|---|
| Country Of Origin | MX |
| Weight (kg) | 0.225 |
| Style | Model | Sae Number | Screw Size | Metric Dia. Max. | Metric Dia. Min. | Band Width | Band Thickness | Band Material | Torque | Pkg. Qty. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 5620 | 20 | 5/16" | 44.45 mm | 19 mm | 9/16" | 0.022" | Stainless Steel | 30 lbs.-in. | 10 | $34.01 | |
| A | 5624 | 24 | 5/16" | 50.8 mm | 25.4 mm | 9/16" | 0.022" | Stainless Steel | 30 lbs.-in. | 10 | $35.30 | |
| A | 5636 | 36 | 5/16" | 69.85 mm | 25.4 mm | 9/16" | 0.022" | Stainless Steel | 30 lbs.-in. | 10 | $40.49 | |
| A | 5656 | 56 | 5/16" | 101.6 mm | 25.4 mm | 9/16" | 0.022" | Stainless Steel | 30 lbs.-in. | 10 | $51.70 | |
| A | 5672 | 72 | 5/16" | 127 mm | 50.8 mm | 9/16" | 0.022" | Stainless Steel | 30 lbs.-in. | 10 | $57.09 | |
| A | 56104 | 104 | 5/16" | 177.8 mm | 44.45 mm | 9/16" | 0.022" | Stainless Steel | 30 lbs.-in. | 10 | $64.90 | |
| A | 5812 | - | 3/8" | 31.75 mm | 12.7 mm | 9/16" | 0.022" | Stainless Steel | 30 lbs.-in. | 10 | $37.83 |
