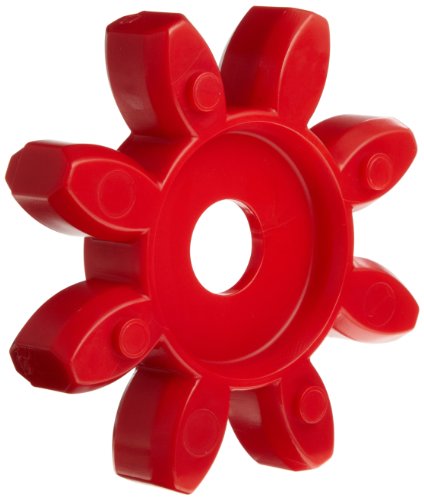

| Item | GS Series Spider |
|---|---|
| Angular Misalignment | 0.9° |
| Axial Misalignment | -0.027" to +0.059" |
| Clamping Style Hub Max. Speed | 5850 RPM |
| Color | Red |
| Cubic Inches | 3.867 cu. in. |
| Dimension Cl | 0.1" |
| Dimension Th | 4/25" |
| Distance Between Spider And Hub Face (dimension Cl) | 0.1" |
| Locking Device Style Hub Max. Speed | 11700 RPM |
| Material | Urethane |
| Max. Bore | 1 1/2" |
| Max. Temp. Range (f) | -40°F to +248°F |
|---|---|
| Normal Temp. Range | -30°F to +194°F |
| Outside Dia. | 2 14/25" |
| Radial Misalignment | 0.004" |
| Set Screw Style Coupling Location Size | 0.59" |
| Set Screw Style Hub Max. Speed | 7350 RPM |
| Set Screw Thread Size | 5/16"-18 |
| Size | 28 |
| Style | Solid |
| Temp. Range | -40°F to +248°F |
| Temperature | -30°F to +194°F |
| Thickness | 0.59" |
| Height (cm) | 5.51 |
|---|---|
| Length (cm) | 5.49 |
| Width (cm) | 5.49 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 0.0315 |
| Style | Model | Angular Misalignment | Outside Dia. | Color | Style | Axial Misalignment | Dimension Cl | Dimension Th | Radial Misalignment | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 68514467249 | 0.9° | 1.18" | Red | Solid | -0.019" to +0.039" | 0.06" | 2/25" | 0.003" | $17.95 | |
| A | 68514467251 | 0.9° | 1.57" | Red | Solid | -0.019" to +0.047" | 2/25" | 3/25" | 0.002" | $32.48 | |

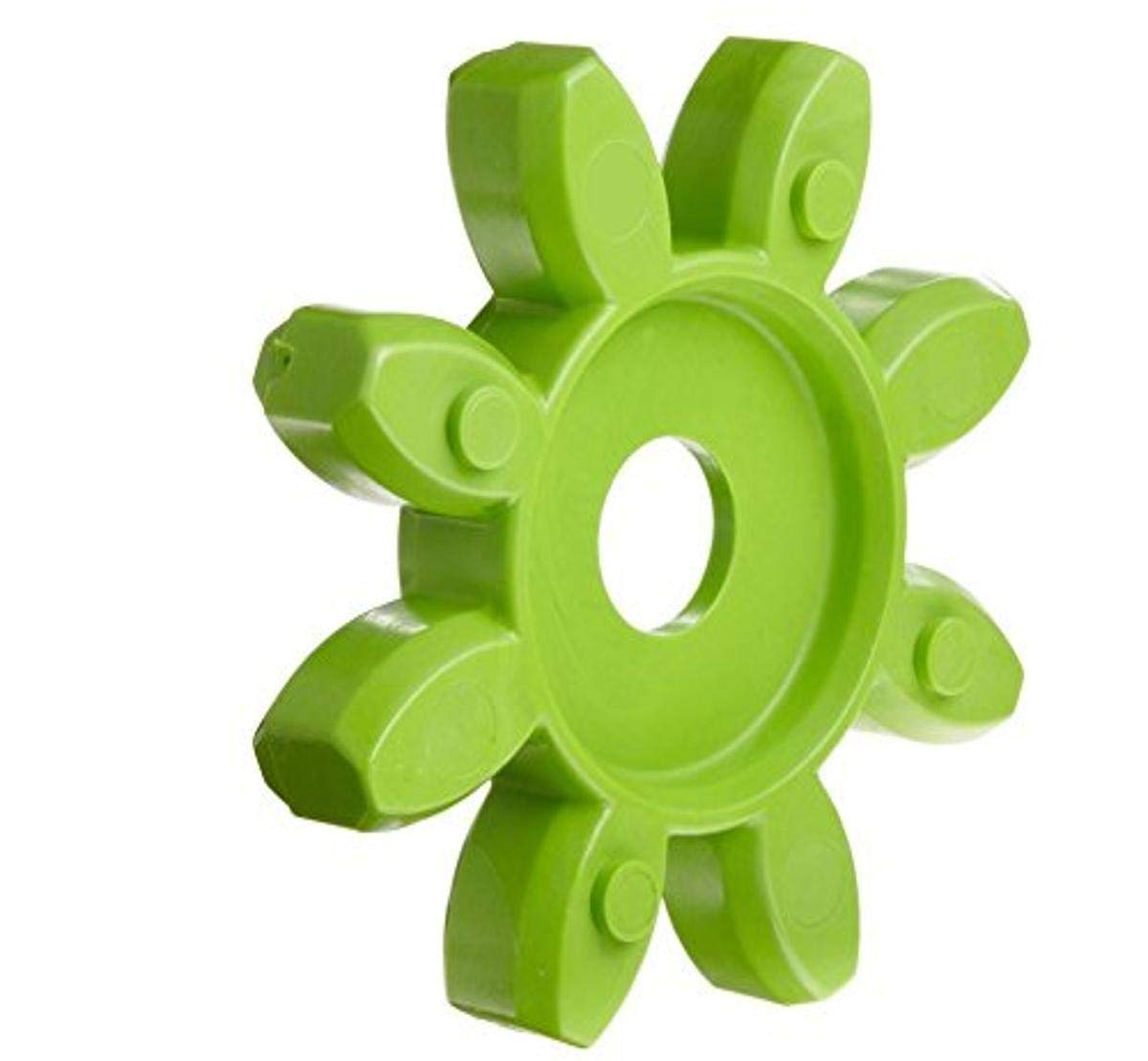

| B | 68514472245 | 0.8° | 2 4/25" | Green | Solid | -0.019" to +0.055" | 2/25" | 3/25" | 0.003" | $91.31 | |
| A | 68514467253 | 0.9° | 2 4/25" | Red | Solid | -0.019" to +0.055" | 2/25" | 3/25" | 0.004" | $38.21 | |
| C | 68514467254 | 1° | 2 14/25" | Yellow | Solid | -0.027" to +0.059" | 0.1" | 4/25" | 0.006" | $42.48 | |

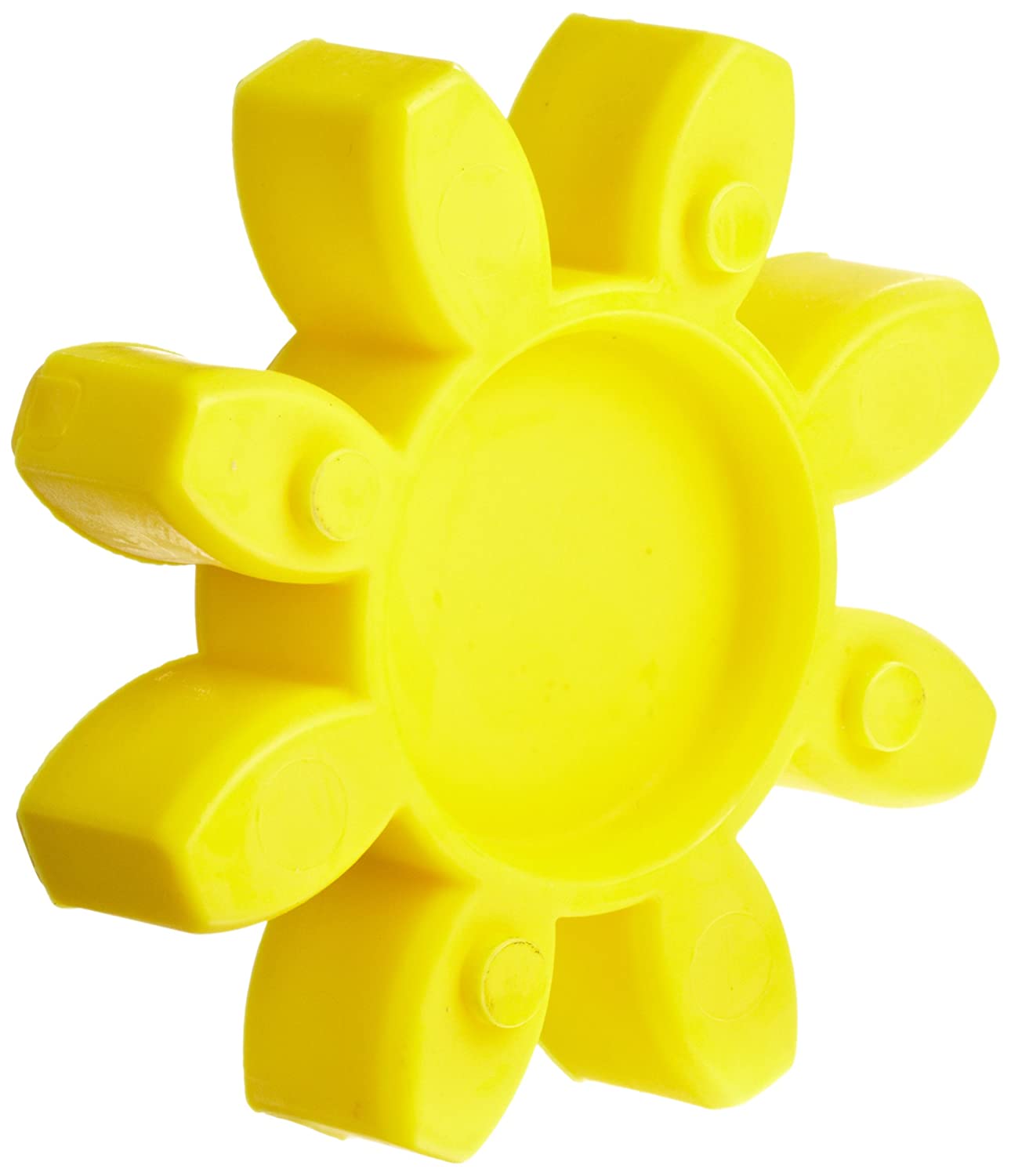

| C | 68514467256 | 1° | 3.15" | Yellow | Solid | -0.027" to +0.07" | 3/25" | 4/25" | 0.007" | $61.59 | |
| A | 68514467261 | 0.9° | 4.13" | Red | Solid | -0.039" to +0.082" | 0.14" | 4/25" | 0.006" | $106.19 |
