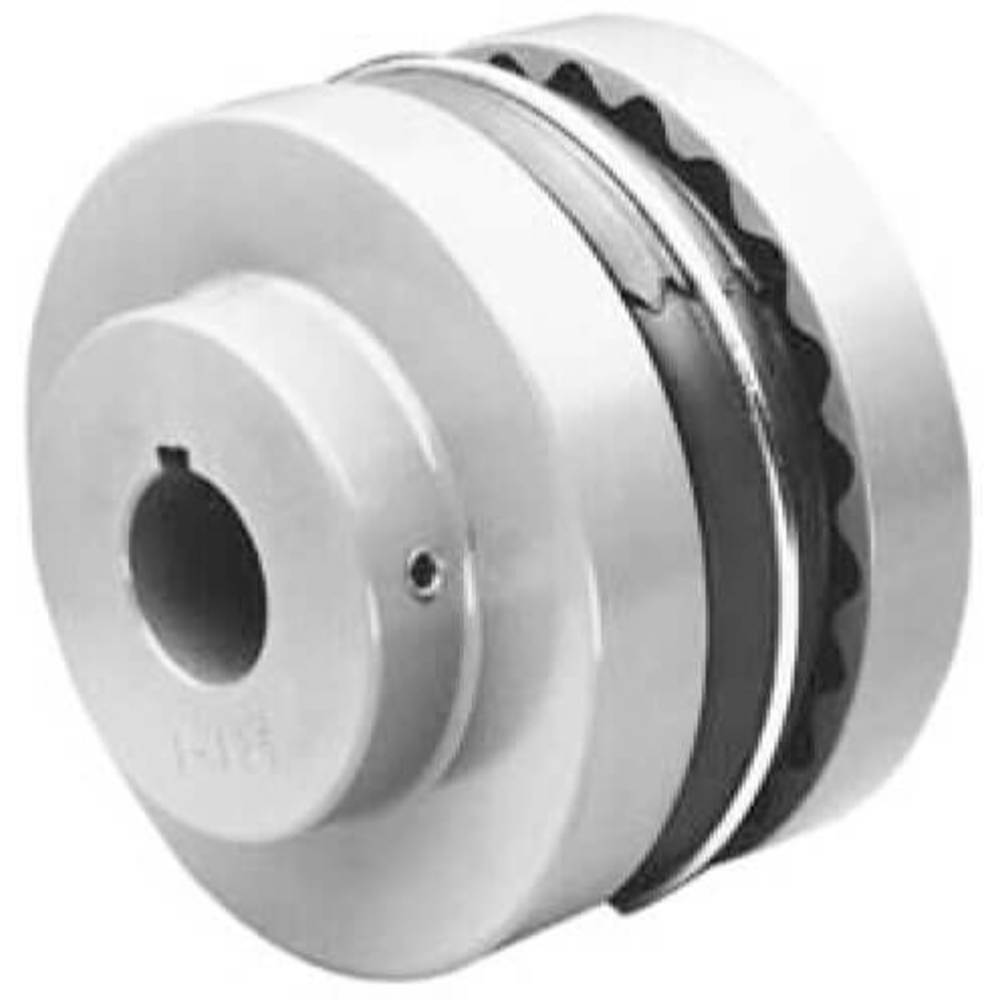

| Item | Sleeve Coupling Flange |
|---|---|
| Bore Size | 45 mm |
| Bore Type | Finished Bore |
| Color | Gray |
| Coupling Size | 10S |
| Coupling Type | S Flex |
| Dimension Fl | 30.99 mm |
| Dimension Hd | 111.25 mm |
| Dimension L | 68.58 mm |
| Dimension P | 20.57 mm |
| Dimension Sl | 10.41 mm |
| Hp Rating @ 100 Rpm | 4 3/5 hp |
| Hp Rating @ 1200 Rpm | 55 hp |
|---|---|
| Hp Rating @ 1800 Rpm | 82 hp |
| Hp Rating @ 3600 Rpm | 164 hp |
| Keyway Size | 14 mm x 3.8 mm |
| Material | Cast Iron |
| Max. Bore | 2 3/4" |
| Max. Speed | 3600 RPM |
| Nominal Torque (with Epdm Sleeve) | 324.83 mm |
| Outside Dia. | 190.5 mm |
| Thread Size | 1/2"-13 |
| Torsional Stiffness | 10980 lbs.-in./rad |
| Type | Coupling Flange |
| Height (cm) | 12.7 |
|---|---|
| Length (cm) | 19.05 |
| Width (cm) | 19.05 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 5.535 |
| Style | Model | Thread Size | Max. Bore | Keyway Size | Hp Rating @ 100 Rpm | Outside Dia. | Dimension P | Dimension L | Dimension Fl | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 68514459838 | 1/2"-13 | 2 3/4" | 14 mm x 3.8 mm | 4 3/5 hp | 190.5 mm | 20.57 mm | 68.58 mm | 30.99 mm | $162.44 | |
| A | 68514445956 | 1/2"-13 | 2 3/4" | 16 mm x 4.3 mm | 4 3/5 hp | 190.5 mm | 20.57 mm | 68.58 mm | 30.99 mm | $188.00 | |
| A | 68514452009 | 1/2"-13 | 2 3/4" | 18 mm x 4.4 mm | 4 3/5 hp | 190.5 mm | 20.57 mm | 68.58 mm | 30.99 mm | $178.96 | |
| B | 68514441518 | 1/4"-20 | 1.188" | 6 mm x 2.8 mm | 2/5 hp | 82.55 mm | 11.43 mm | 34.04 mm | 14.99 mm | $46.97 | |
| B | 68514441519 | 1/4"-20 | 1.188" | 8 mm x 3.3 mm | 2/5 hp | 82.55 mm | 11.43 mm | 34.04 mm | 14.99 mm | $46.97 | |
| B | 68514441520 | 1/4"-20 | 1.188" | 8 mm x 3.3 mm | 2/5 hp | 82.55 mm | 11.43 mm | 34.04 mm | 14.99 mm | $44.73 | |
| B | 68514441521 | 1/4"-20 | 1.188" | 8 mm x 3.3 mm | 2/5 hp | 82.55 mm | 11.43 mm | 34.04 mm | 14.99 mm | $46.97 |
