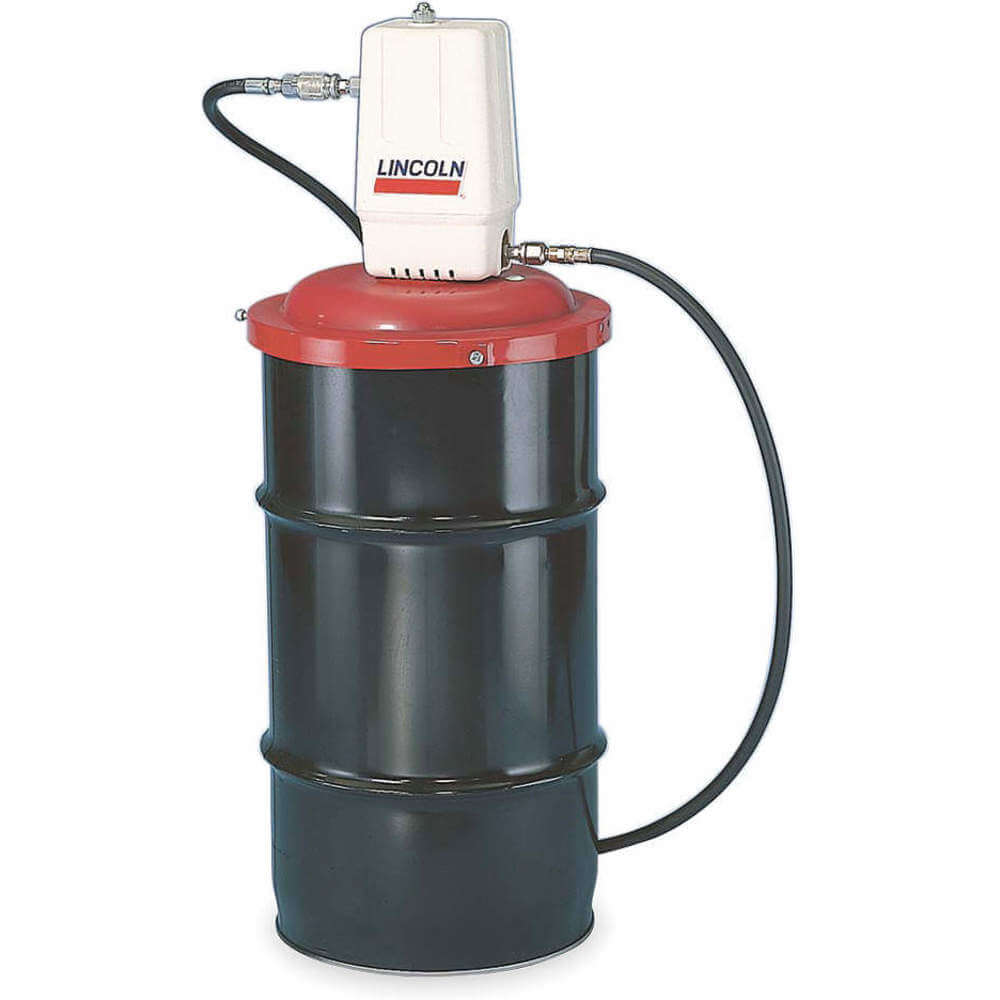

| Item | Oil Pump Transfer System |
|---|---|
| Adapter Connection Type | FNPT |
| Air Inlet Size | 1/4" |
| Air Motor Size | 2" |
| Bung Connection Dia. | 2" |
| Compatible Chemicals | Automatic Transmission Fluid, Fluid Lubricants, Gear Lubricants, Motor Oil |
| Consumption @ 100 Psi | 11 CFM |
| Container Size | 16 gal. |
| Diesel Exhaust Fluid Compatible | No |
| Discharge Connection Type | NPT |
| Discharge Tube Outlet Id | 1/2" |
| Discharge Tube Outlet Od | 13/16" |
| Explosion Proof | No |
| Fluid Inlet Thread Size | 1" |
| Food Grade | No |
| For Container Size | 16 gal. |
| For Container Type | Drum |
| For Media Type | Automatic Transmission Fluid, Fluid Lubricants, Gear Lubricants, Motor Oil |
| Hose Inside Dia. | 1/2" |
| Hose Length | 5 ft. |
| Hose Outside Dia. | 13/16" |
| Housing Material - Pumps | Steel |
| Includes | Air Coupler, Air Hose, Air Nipple, Lubricant Hose, Volume Elbow |
| Includes Bung Adapter | Yes |
| Includes Discharge Hose | Yes |
| Includes Nozzle | No |
| Includes Spout | No |
| Includes Suction Tube | Yes |
| Max. Air Inlet Pressure | 200 psi |
|---|---|
| Max. Air Pressure | 200 psi |
| Max. Flow Rate | 6 GPM |
| Max. Fluid Temp. | 120°F |
| Max. Oil Flow | 6 GPM |
| Max. Outlet Pressure | 600 psi |
| Max. Output | 6 GPM |
| Max. Working Flow | 6 GPM |
| Metered | No |
| Min. Air Pressure | 40 psi |
| Min. Fluid Temp. | 30°F |
| Ounces Per Stroke | 2.08 oz./stroke |
| Outlet Size | 1/2" |
| Overall Length | 44 1/8" |
| Power Source | Air |
| Pump Connection Id | 1/2" |
| Pump Connection Type | FNPT |
| Pump Package Type | Basic Pump With Discharge Hose |
| Ratio | 3:1 |
| Runs Dry | No |
| Seal Material | Buna-N |
| Self-priming | Yes |
| Suction Tube Length | 7 1/2" |
| Suction Tube Material | Steel |
| Suction Tube Od | 1 21/32" |
| Type | Air Operated |
| Variable Speed | No |
| Wetted Materials | Brass, Buna N, Copper, Polyurethane, Steel |
| Height (cm) | 37.08 |
|---|---|
| Length (cm) | 77.47 |
| Width (cm) | 49.53 |
| HS Code | 8424890000 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 16.479 |
| Style | Model | For Container Size | Max. Flow Rate | Max. Output | Outlet Size | Ounces Per Stroke | Max. Outlet Pressure | Max. Working Flow | Air Inlet Size | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

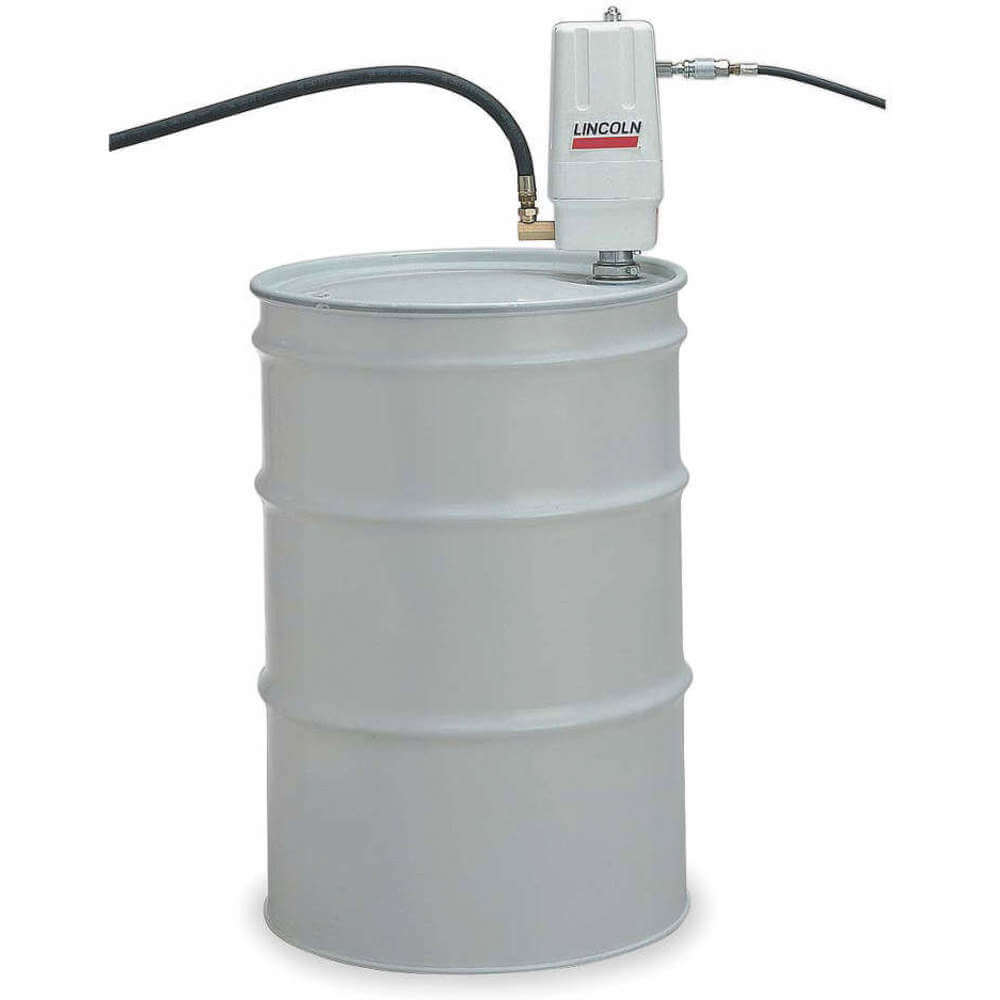

| A | 2424 | 55 gal. | 6 GPM | 6 GPM | 1/2" | 2.08 oz./stroke | 600 psi | 6 GPM | 1/4" | $2,634.11 | |

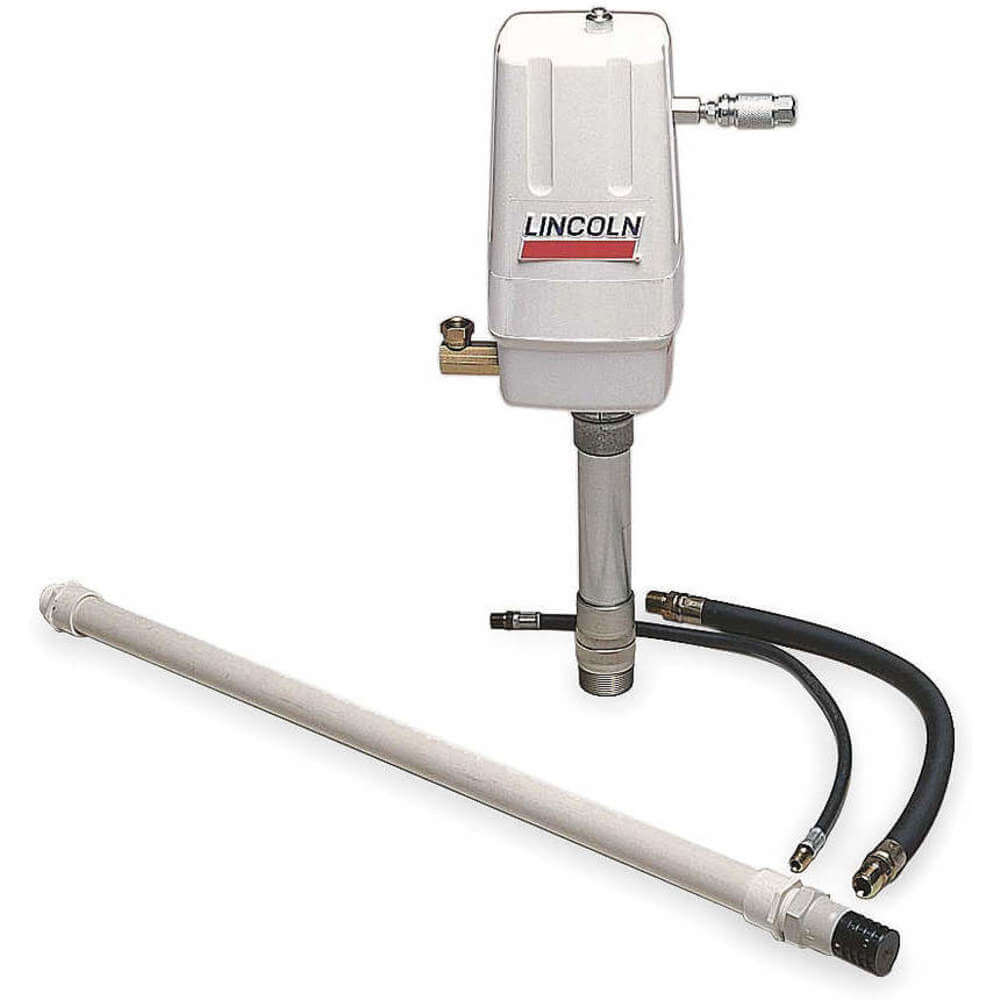

| B | 284168 | 275 gal. | 6 GPM | 6 GPM | 1/2" | 2.08 oz./stroke | 600 psi | 6 GPM | 1/4" | $2,088.89 | |

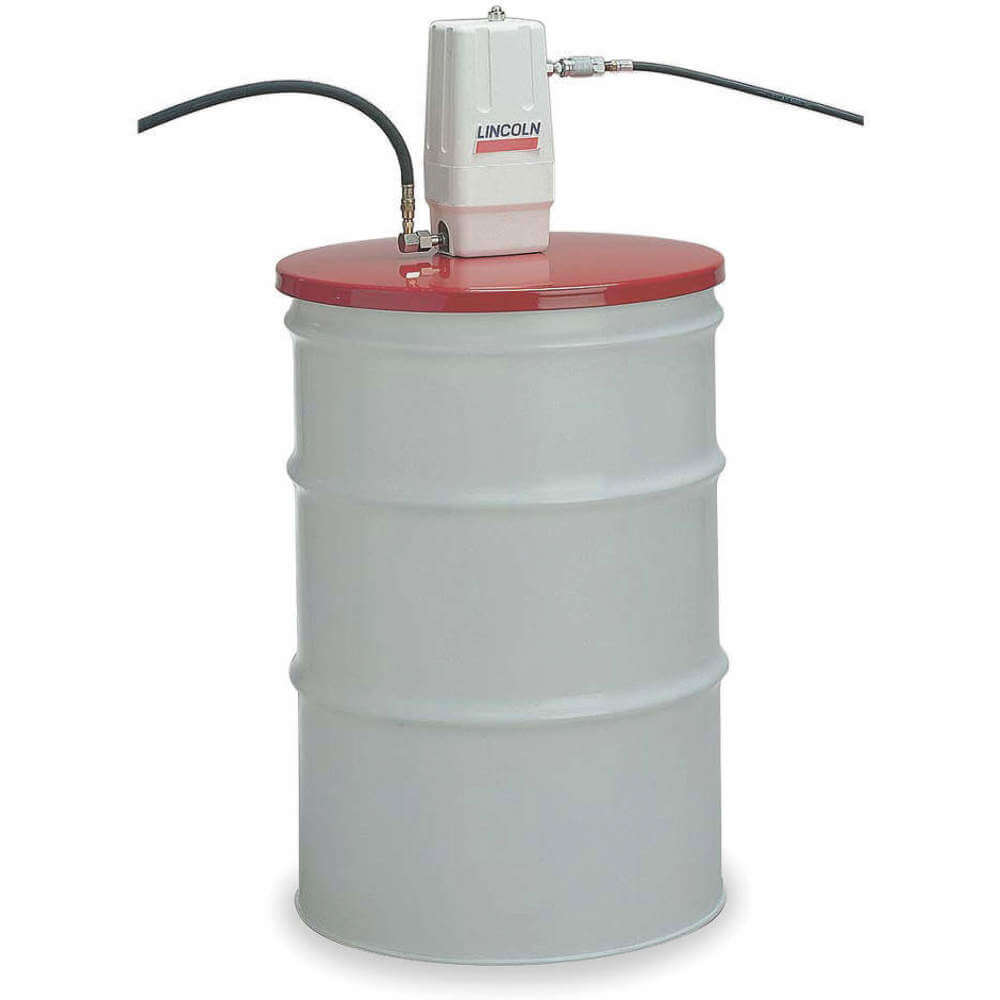

| C | 2524 | - | - | 6 GPM | 1/2" | 2.08 oz./stroke | 1000 psi | 6 GPM | - | $2,506.95 | |
| C | 2537 | 16 gal. | 6 GPM | 6 GPM | 1/2" | 2.08 oz./stroke | 1000 psi | 6 GPM | 1/4" | $2,531.11 | |
| D | 1901 | - | - | 3 GPM | 3/4" | 2.49 oz./stroke | 2400 psi | 3 GPM | - | $8,976.04 | |
| D | 1952 | 55 gal. | 12.6 GPM | 3 GPM | 3/4" | 2.49 oz./stroke | 1200 psi | 3 GPM | 1/2" | $9,078.70 | |

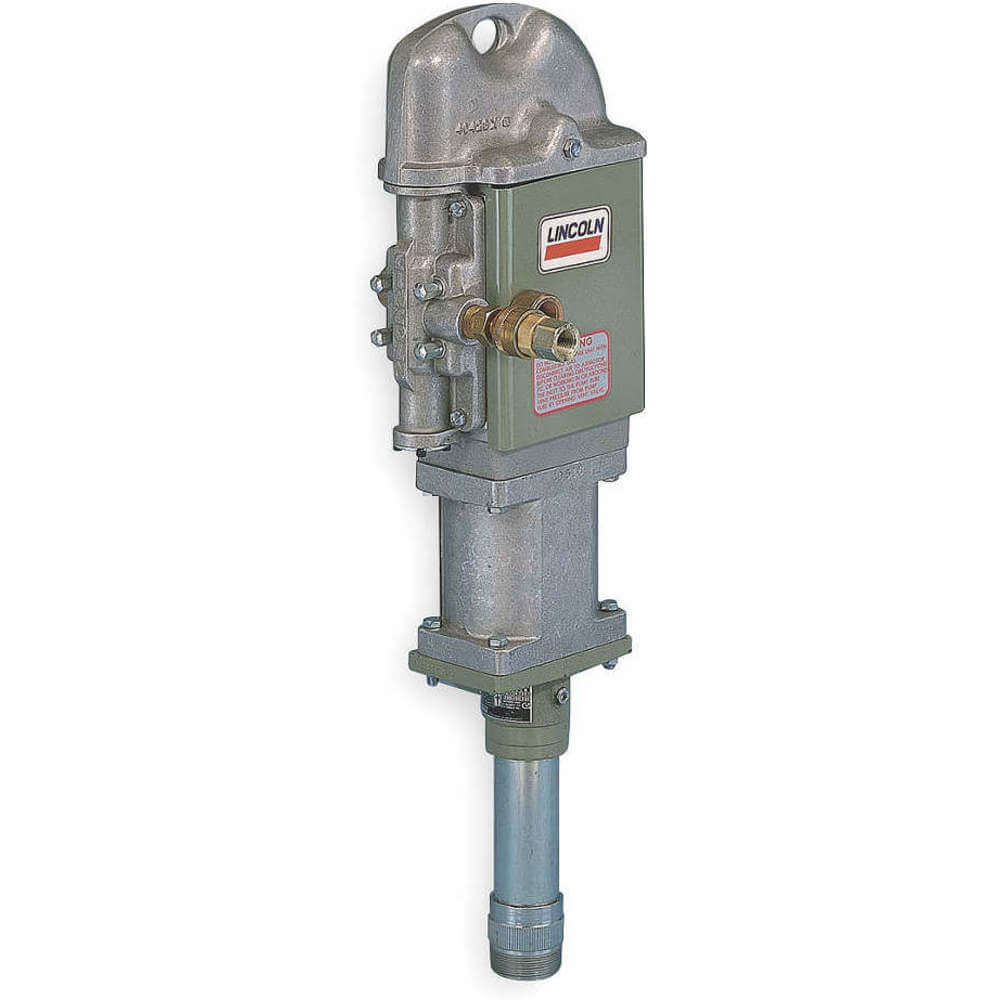

| E | 1914 | 55 gal., 275 gal. | 12.6 GPM | 12 GPM | 3/4" | 2.49 oz./stroke | 2400 psi | 12 GPM | 1/2" | $8,951.36 |
