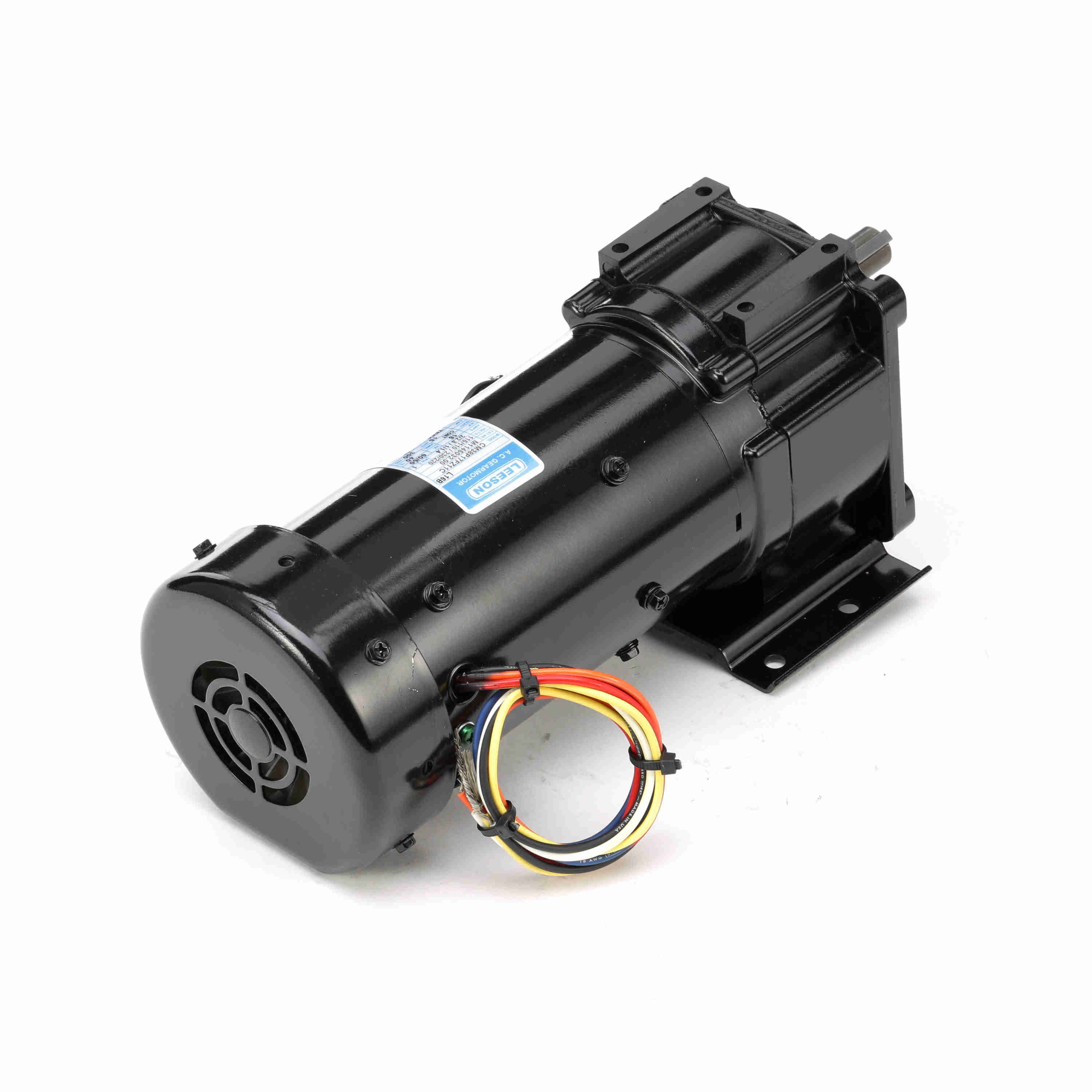

| Item | AC Gearmotor |
|---|---|
| Ambient Temp. | 40°C |
| Amps | 1/2A |
| Application | Power Transmission |
| Assembly | M1040419 |
| Base To Center Of Shaft | 3 1/2" |
| Bearing Type | Needle |
| Capacitor Required | Yes |
| Code | D |
| Connection | Const Torque Speed Range |
| Drive End Bearing Size | 6201 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Duty Rating | Continuous |
| Enclosure Type | Tefc |
| Explosion Proof | Brake Motors |
| Features | Permanent Split Capacitor Design Rated For 115/230Vac 60/50 Hz Input. Precision Machined In-Line Steel Gears. First Stage Steel Helical Gear Followed By Spur-Type Gears. Lubrication Is Permanent Semi-Fluid Grease, Reducing Possibility Of Leakage. Output Shafts Have Needle Bearings For High Load Capacities. Shafts Are Hardened Steel. Optional Conduit Box Available |
| Frame | 38 |
| Frame Length | 5 22/25" |
| Frame Size | 38 |
| Frame Suffix | Not Available |
| Frequency | 50/60 Hz |
| Full Load Amps | 2/1A |
| Gear Material | Steel |
| Gear Ratio | 43:1 |
| Gear Type | Helical |
| Height | 6.69" |
| Hp | 16/100 hp |
| Includes Capacitor | Capacitor Included |
| Input Horsepower | 0.167 hp |
| Insulation Class | Class F |
| Keyway Depth | 1 1/16" |
| Keyway Width | 15/79" |
| Kw | 0.12 kW |
| Length | 16 1/2" |
| Length Less Shaft | 10.63" |
| Lubrication | Semi-Fluid Grease |
| Max. Ambient Temp. | 40°C |
| Maximum Ambient Temperature | 104°F |
| Maximum Output Speed | 40 RPM |
| Maximum Torque | 219 lbs.-in. |
| Motor Duty Class | Continuous |
| Motor Enclosure | Totally Enclosed Fan Cooled |
|---|---|
| Motor Insulation Class | Class F |
| Motor Type | Permanent Split Capacitor |
| Mount Hole Center-to-center Length | 1.5" |
| Mount Hole Center-to-center Width | 4" |
| Mount Type | Horizontal Or Vertical Shaft Down |
| Mounting | Special |
| Mounting Orientation | Horizontal, Vertical With Shaft Down |
| Mounting Type | Special |
| Nameplate Speed | 40 RPM |
| Number Of Output Shafts | 1 |
| Operating Voltage | 115V AC |
| Opp. Drive End Bearing Size | 6201 |
| Opp. Drive End Bearing Type | Ball |
| Outline | M1030381 |
| Output Direction | Left Hand |
| Output Kw | 0.12 kW |
| Output Shaft Diameter | 5/8" |
| Output Shaft Length | 1 1/2" |
| Output Shaft Type | Hollow |
| Overall Height | 5.13" |
| Overall Length | 12.13" |
| Overall Width | 5.63" |
| Overhung Load Capacity | 303 lbs.-ft. |
| Overrlung Ld. | 303 lbs. |
| Packaging | M1307027.01 |
| Phase | 1 |
| Rotation | CW/CCW |
| Rotation Type | Reversible |
| Rpm | 40 RPM |
| Series | P240 Series |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 1/2" |
| Shaft Orientation | Inline |
| Shaft Type | Parallel |
| Test Card | 07 |
| Torque | 219 lbs.-in. |
| Type | PF |
| Voltage | 110V |
| Winding | MP38419 |
| Thermal Protection | None |
| Height (cm) | 16.99 |
|---|---|
| Length (cm) | 41.91 |
| Width (cm) | 19.51 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 9 |
| Style | Model | Rotation | Shaft Orientation | Overhung Load Capacity | Base To Center Of Shaft | Operating Voltage | Gear Ratio | Output Shaft Type | Rpm | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | M1145023.00 | CW/CCW | Inline | 407 lbs.-ft. | 3.51" | 115V AC | 114:1 | Hollow | 15 RPM | $1,443.15 | |
| B | M1145024.00 | CW/CCW | Parallel | 330 lbs.-ft. | 3.51" | 115/230V AC | 52:1 | - | 30 RPM | $1,438.16 | |
| C | M1145027.00 | CW/CCW | Parallel | 232 lbs.-ft. | 3.51" | 115/230V AC | 16.5:1 | - | 97 RPM | $974.10 | |
| D | M1145029.00 | CW/CCW | Parallel | 491 lbs.-ft. | 3.51" | 115/230V AC | 216:1 | - | 8 RPM | $1,074.64 | |
| E | M1145030.00 | CW/CCW | Parallel | 399 lbs.-ft. | 3 1/2" | 115V AC | 103:1 | - | 16 RPM | $1,589.16 | |
| F | M1145031.00 | CW/CCW | Inline | 330 lbs.-ft. | 3 1/2" | 115V AC | 58:1 | Hollow | 30 RPM | $1,539.78 | |
| G | M1145033.00 | CCW | Parallel | 268 lbs.-ft. | 3 1/2" | 115V AC | 29:1 | Keyed | 60 RPM | $1,512.86 |
