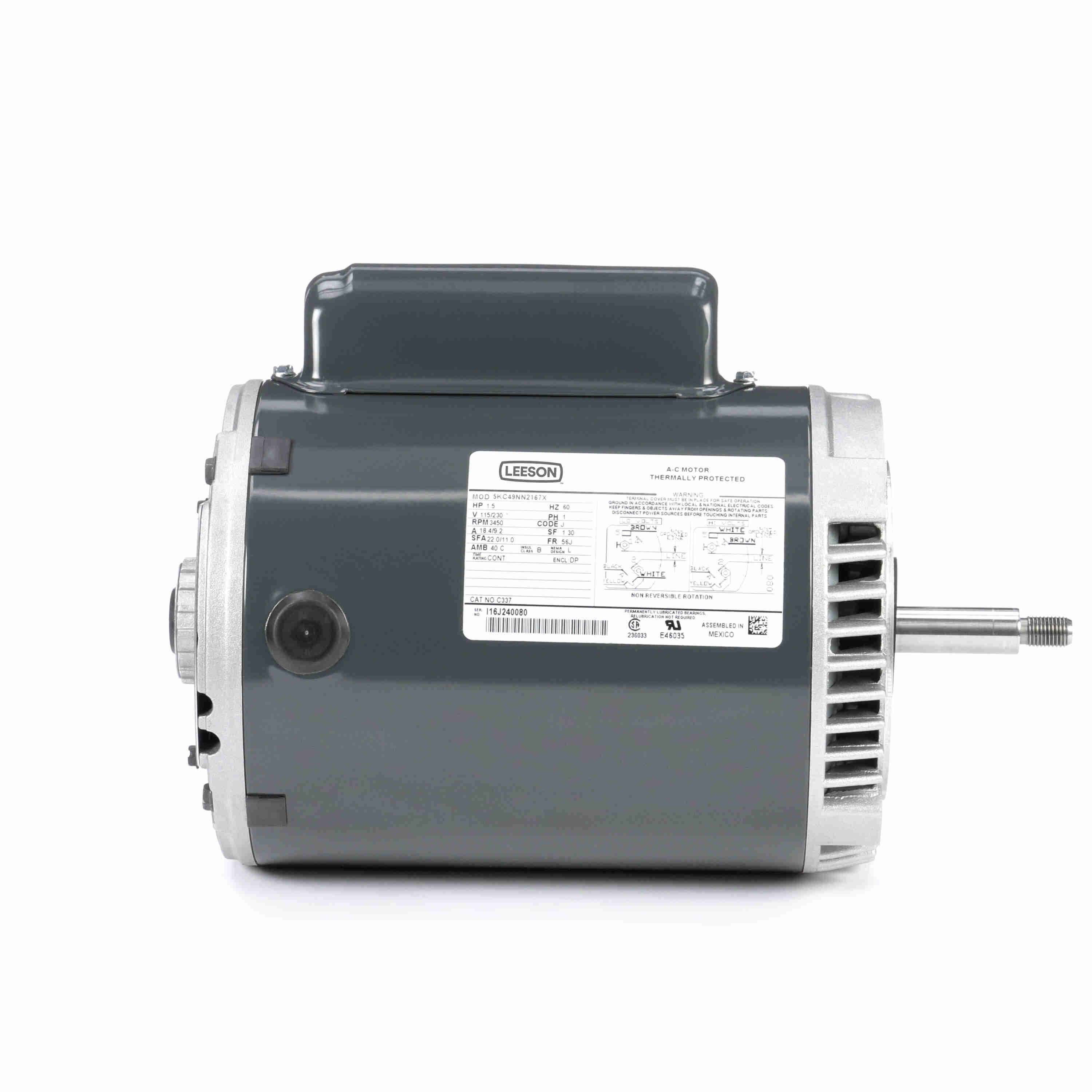

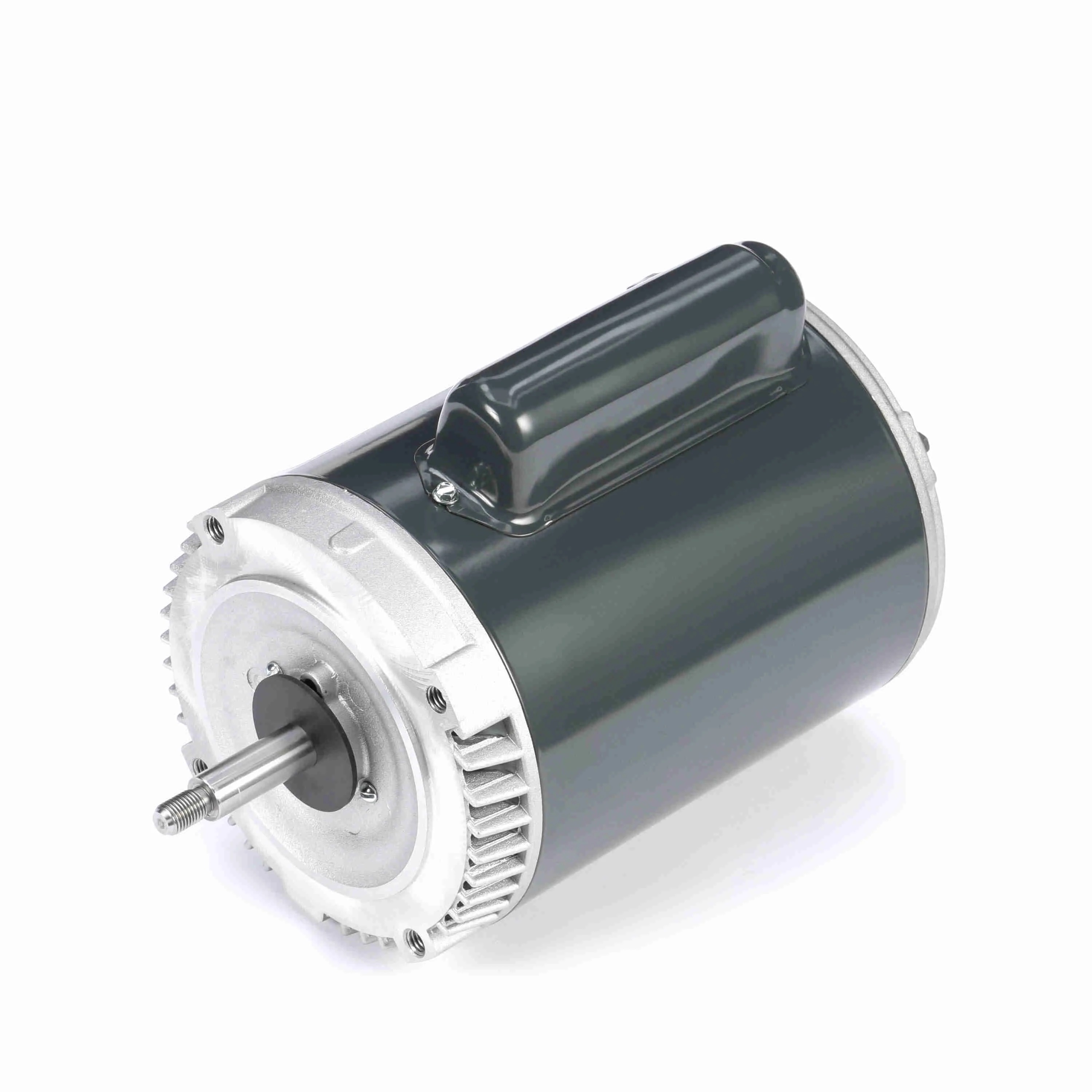

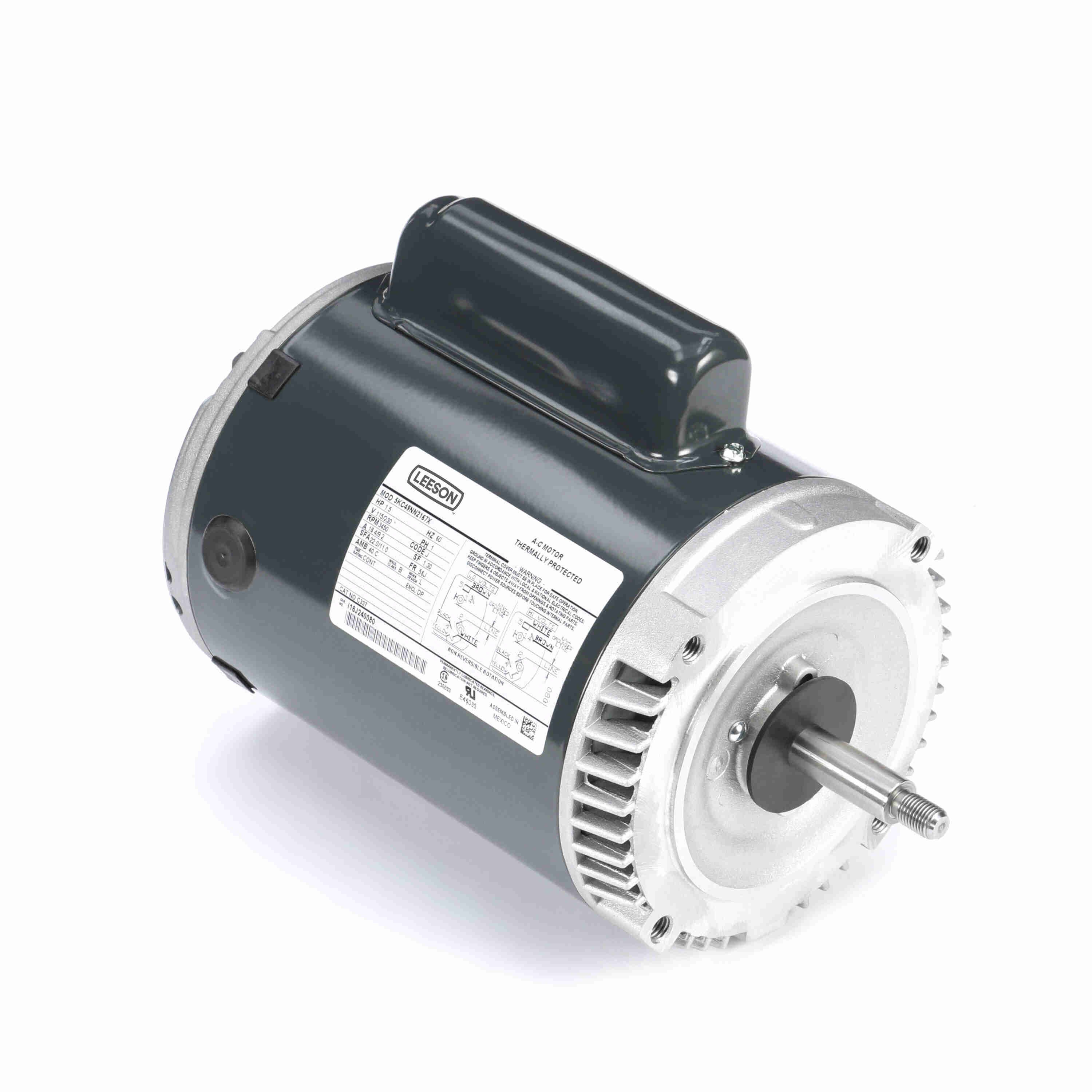

| Item | Jet Pump Motor |
|---|---|
| Amps | 18.4/9.2A |
| Bearing Type | Ball |
| Body Dia. | 6 2/5" |
| Bolt Circle Dia. | 2 15/16" |
| Duty Cycle | Continuous |
| Frame | 56J |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 18.4/9.2A |
| Hp | 1 1/2 hp |
| Includes | Shaft Slinger |
| Insulation Class | Class B |
| Length Less Shaft | 9 1/2" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Pump |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Face |
| Motor Service Factor | 1.3 |
| Motor Shaft Design | Threaded |
|---|---|
| Motor Shaft Rotation | CCWSE |
| Motor Thermal Protection | Auto |
| Motor Type | Capacitor Start/Induction Run |
| Mounting Position | Horizontal/Vertical |
| Mounting Type | Face |
| Nameplate Rpm | 3450 RPM |
| Nema Design | L |
| Nominal Efficiency | 72% |
| Number Of Speeds | 1 |
| Overall Length | 11 7/8" |
| Phase | 1 |
| Rpm Range | 3001-3600 RPM |
| Service Factor | 1.3 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2 3/8" |
| Shaft Material | Stainless Steel |
| Shaft Type | Threaded |
| Standards | Csa, Ul Recognized |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115/230V AC |
| Height (cm) | 19.05 |
|---|---|
| Length (cm) | 34.77 |
| Width (cm) | 18.11 |
| HS Code | 8501406040 |
|---|---|
| Country Of Origin | MX |
| Weight (kg) | 11.7 |
| Style | Model | Voltage | Hp | Motor Shaft Rotation | Service Factor | Motor Application | Motor Thermal Protection | Motor Mounting Position | Overall Length | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 5KC36JN269X | 115/230V AC | 1/2 hp | CCWSE | 1.6 | Pump | Automatic | All Angle | 10 13/16" | $371.14 | |
| B | 5KC39QN3219X | 115/208-230V AC | 3/4 hp | CCWSE | 1.5 | Jet Pump | Automatic | All Angle | 12 3/8" | $352.14 | |
| C | 5KC39RN45X | 115/208-230V AC | 1 hp | CCWSE | 1.4 | Pump | Automatic | All Angle | 13 1/8" | $404.70 | |
| D | 5KCR48TN2174T | 115/230V AC | 3 hp | CCWSE | 1.15 | Pump | Automatic | All Angle | 13 3/16" | $1,109.36 | |
| E | 5KC37FN65X | 115/208-230V AC | 1/3 hp | CW | 1.75 | Pump | Automatic | All Angle | 11 1/4" | $351.92 |
